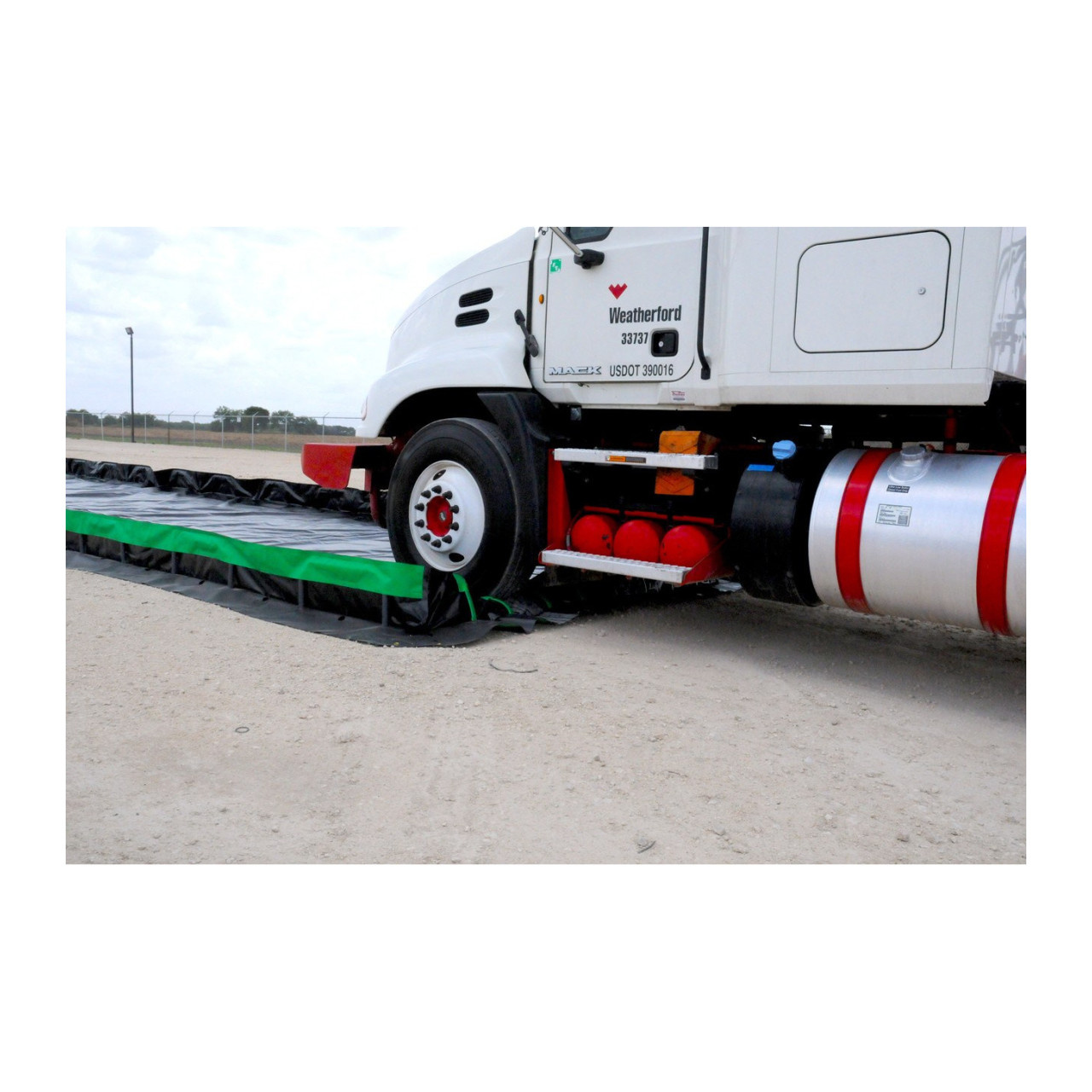

Living hinge design allows hands-free drive in/drive out
-
Walls automatically spring back to vertical position after vehicle passage
-
No need to manually raise or lower end walls
-
PVC sidewall assemblies with swivel feet for lowering sidewalls for storage or transport
-
Suitable for drums, IBCs, vehicles, equipment, frac tanks, and large containers
-
Available in Copolymer-2000 material
-
Custom sizes available in virtually any length and width
-
Custom heights available for most models
Ultra-Containment Berm – Ultimate Model
Price range: $813.00 through $1,705.00
Ultra-Containment Berm Ultimate Model is a high-wall heavy-duty berm for capturing leaks and spills during frac tank and large equipment maintenance.
The Ultra-Containment Berm Ultimate Model combines convenience and economy for capturing leaks and spills during equipment maintenance or drum transportation. Features unique living hinge design allowing 12″ walls to bend under equipment and automatically snap back into place. No manual raising or lowering of endwalls required. Available in multiple sizes (4×6 to 66×15 feet) with containment capacity from 179 to 7,405 gallons. Long sidewalls held upright by PVC sidewall assemblies with swivel feet for easy storage and transport. Made from Copolymer 2000™ or other rugged materials suitable for drums, IBCs, vehicles, equipment, and frac tanks.
Description
Ultra-Containment Berm – Ultimate Model
The Ultra-Containment Berm Ultimate Model combines convenience and economy for capturing leaks and spills during equipment maintenance or drum transportation. Features unique living hinge design allowing 12″ walls to bend under equipment and automatically snap back into place. No manual raising or lowering of endwalls required. Available in multiple sizes (4×6 to 66×15 feet) with containment capacity from 179 to 7,405 gallons. Long sidewalls held upright by PVC sidewall assemblies with swivel feet for easy storage and transport. Made from Copolymer 2000™ or other rugged materials suitable for drums, IBCs, vehicles, equipment, and frac tanks.
Features
Specifications
- 8500
- dimensions_ft_m: 4 x 6 x 1 (1.2 x 1.8 x .3); containment_capacity_gal_L: 179 (677); weight_lbs_kg: 72 (32.7)
- 8501
- dimensions_ft_m: 10 x 10 (3.0 x 3.0); containment_capacity_gal_L: 748 (2831); weight_lbs_kg: 176.0 (79.8)
- 8502
- dimensions_ft_m: 12 x 26 (3.7 x 7.9); containment_capacity_gal_L: 2,333 (8,831); weight_lbs_kg: 189.0 (85.7)
- 8505
- dimensions_ft_m: 60 x 12 x 1 (18.3 x 3.7 x .3); containment_capacity_gal_L: 5385 (20384.4); weight_lbs_kg: 297.0 (134.5)
- 8506
- dimensions_ft_m: 50 x 15 x 1 (15.2 x 4.6 x .3); containment_capacity_gal_L: 5610 (21236.2); weight_lbs_kg: 326 (147.9)
- 8507
- dimensions_ft_m: 66 x 15 x 1 (20.1 x 4.6 x .3); containment_capacity_gal_L: 7405 (28031); weight_lbs_kg: 405 (183.7)
- 8508
- dimensions_ft_m: 14 x 54 x 1 (4.3 x 16.5 x .3); containment_capacity_gal_L: 5,655 (21,406); weight_lbs_kg: 368 (166.9)
- 8509
- dimensions_ft_m: 12 x 36 x 1 (3.7 x 11 x .3); containment_capacity_gal_L: 3,231 (12,230); weight_lbs_kg: 283.0 (128.4)
- 8510
- dimensions_ft_m: 14 x 56 x 1 (4.3 x 17.1 x .3); containment_capacity_gal_L: 5,864 (22,197); weight_lbs_kg: 408.0 (185.1)
- material
- Copolymer-2000
- wall_height
- 12 inches
- operating_temperature_max
- 160°F
- operating_temperature_min
- -25°F
- material_weight
- 28 oz. / sq. yard
