Low profile 26″ overall height allows safe IBC handling and dispensing
-
All-polyethylene construction provides excellent chemical resistance and corrosion resistance
-
Forkliftable with forklift pockets on two sides
-
365-gallon sump capacity meets EPA and SPCC regulations
-
8,500 lb. uniformly distributed load capacity with five inner polyethylene columns
-
52″ x 52″ deck for safe IBC tank placement
-
Small 62″ x 62″ footprint requires minimal floor space
-
All components easily removed for cleaning
-
UV inhibitors for outdoor use without UV degradation
-
Patented Cross of Life design protects structural integrity under heavy loads
-
Optional pull-over cover (Part #1159) keeps rainwater out of sump
-
Optional bucket shelf (Part #1160) captures dispensing spills and channels excess into sump
-
Available with drain (Part #1158) or without drain (Part #1157)
-
Stackable up to 3 units high for shipping
-
Five-year warranty against material or workmanship defects
Ultra-IBC Spill Pallet Plus (1157/1158)
Price range: $1,558.00 through $1,582.00

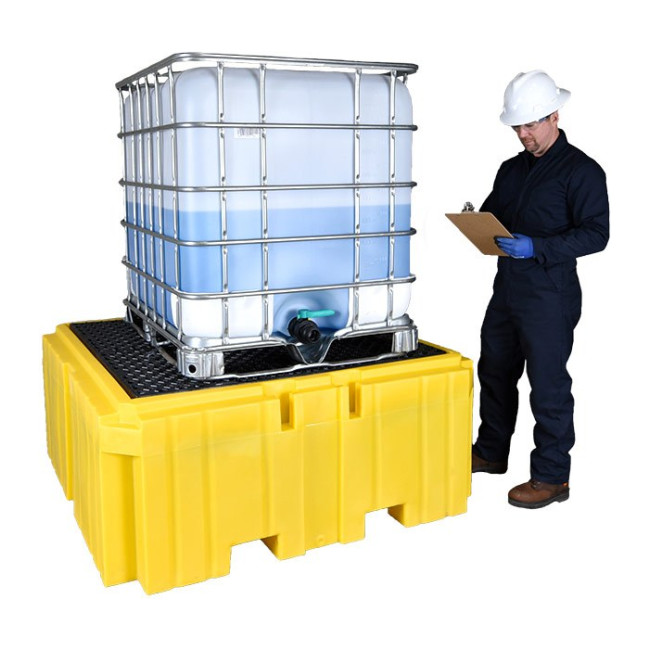

The Ultra-IBC Spill Pallet Plus is a portable 365-gallon containment system for IBCs, tanks, and large containers that meets EPA and SPCC regulations.
The Ultra-IBC Spill Pallet Plus provides economical and portable spill containment for IBCs, tanks and other large containers. Features all-polyethylene (LLDPE) construction with excellent chemical resistance, low 26″ profile for safe IBC handling, forklift pockets for convenient positioning, and 365-gallon sump capacity meeting EPA and SPCC regulations. Large 52″ x 52″ deck supports uniformly distributed loads up to 8,500 lbs. Five inner polyethylene columns provide structural support with innovative “Cross of Life” design. Available with or without drain. Optional accessories include pull-over cover and bucket shelf. Five-year warranty against material and workmanship defects.
Description
Ultra-IBC Spill Pallet Plus (1157/1158)
The Ultra-IBC Spill Pallet Plus provides economical and portable spill containment for IBCs, tanks and other large containers. Features all-polyethylene (LLDPE) construction with excellent chemical resistance, low 26″ profile for safe IBC handling, forklift pockets for convenient positioning, and 365-gallon sump capacity meeting EPA and SPCC regulations. Large 52″ x 52″ deck supports uniformly distributed loads up to 8,500 lbs. Five inner polyethylene columns provide structural support with innovative “Cross of Life” design. Available with or without drain. Optional accessories include pull-over cover and bucket shelf. Five-year warranty against material and workmanship defects.
Features
Specifications
- Part # 1157
- IBC Plus Without Drain
- Part # 1158
- IBC Plus With Drain
- Dimensions (1157/1158)
- 62 x 62 x 26 in. (1574.8 x 1574.8 x 660.4 mm)
- Weight Capacity UDL
- 8500 lbs. (3855.5 kg)
- Containment Capacity
- 365 gal. (1381.7 L)
- Weight (1157/1158)
- 230 lbs. (104.33 kg)
- Deck Size
- 52″ x 52″
- Overall Height
- 26″
- Material
- 100% Polyethylene (LLDPE)
- Drain Type (1158)
- ¾” polyethylene plug with NPT threads in sidewall
