Inflatable sealing bags for pipeline blockage
-
Suitable for leak sealing testing of pipelines
-
Can be used for temporary bypass construction
-
Multiple size options for various pipe diameters (7-140 cm)
-
Integrated inflation hose available (10 m)
-
Safety valve with pressure regulation
-
Compatible with compressed air bottles, truck air connections, local compressed air networks, and foot pumps
-
Support structures included for positioning in pipelines
-
Securing lines available to prevent bag slippage
-
Operating instructions include safety symbols and hazard warnings
-
Maintenance intervals specified for controllers, inflation hoses, and sealing bags
-
Material resistance chart provided for chemical compatibility

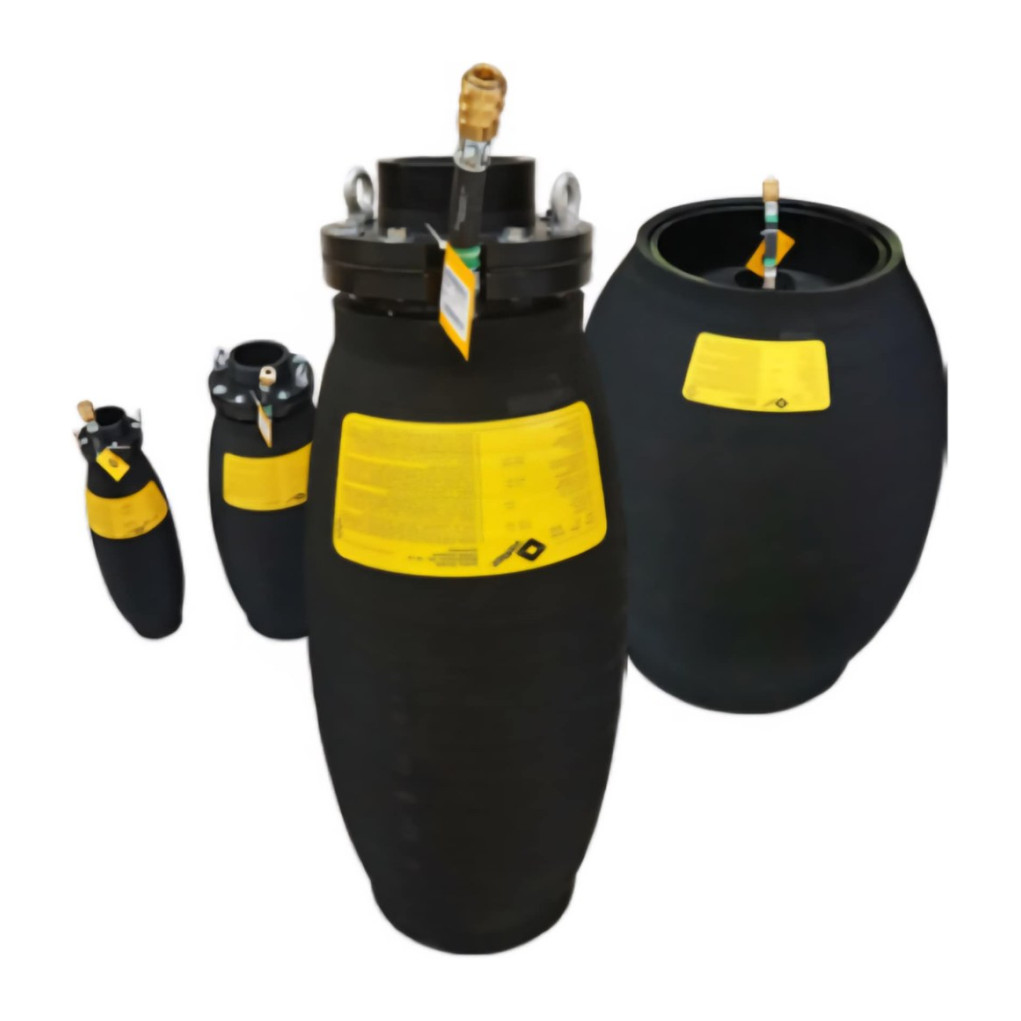

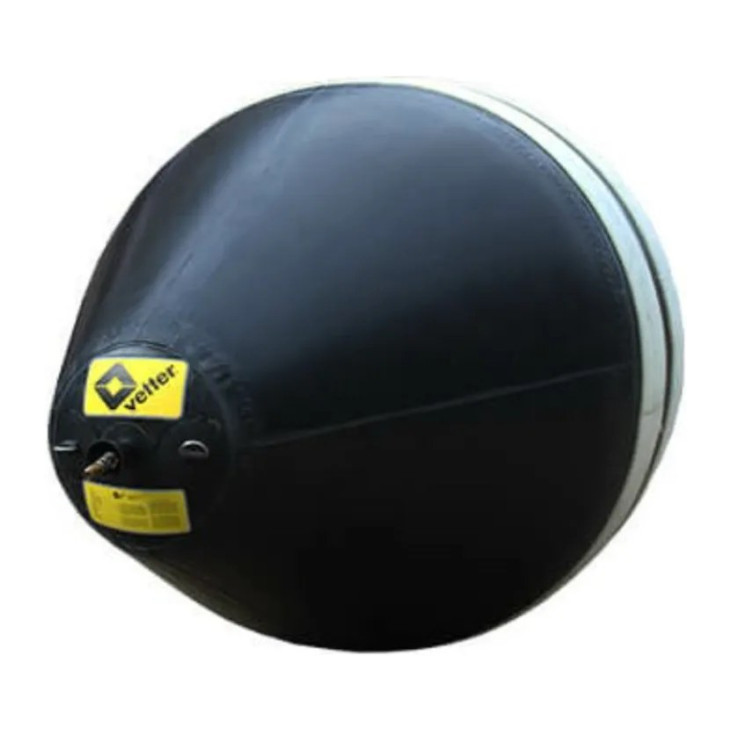

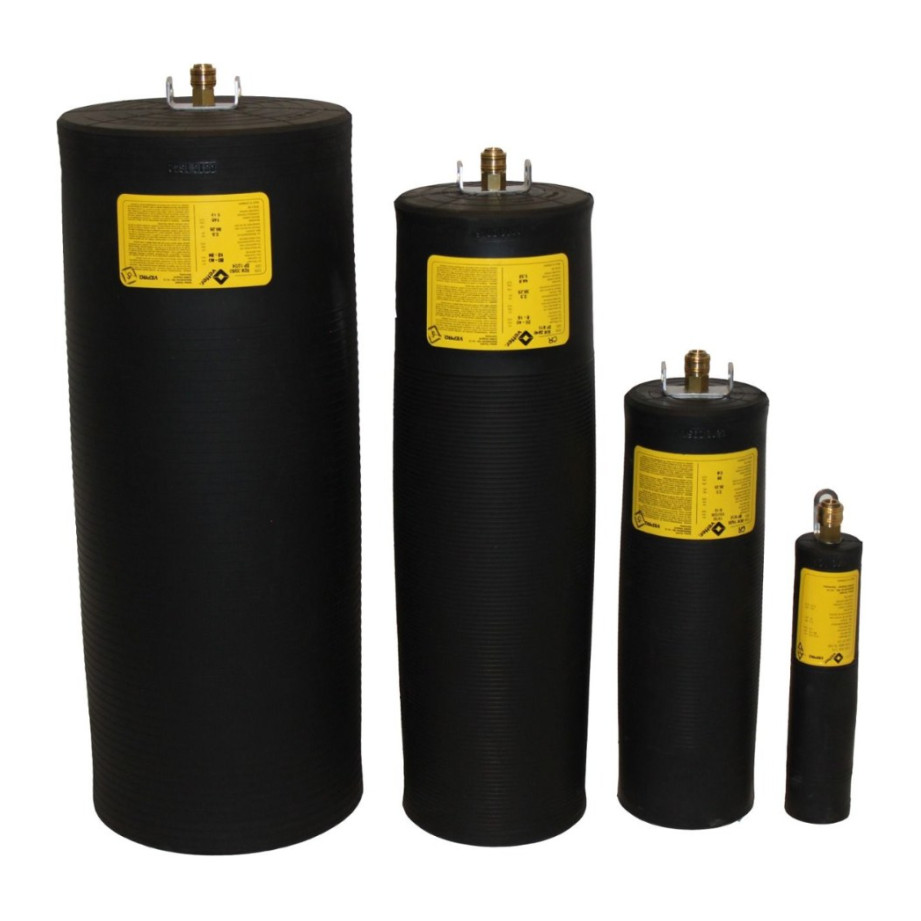

Vetter Sewer/Drain Sealing Bag (large-diameter)
$0.00
Larger-bore inflatable seals for sewer and storm-drain lines to block contaminant migration.
Operating instructions for VETTER Pipe Sealing and Bypass Bags (1.5 bar FS) designed for fire services. These inflatable bags are used for sealing off pipelines, channelling, leak testing, and temporary bypass construction. Available in multiple sizes for pipe diameters ranging from 7-140 cm. Made of CR material with nylon cord/aramide support, hot vulcanized. Operating pressure 1.5 bar, test pressure 1.95 bar, with maximum test counterpressure of 5 m water column. Includes comprehensive safety instructions, operation procedures, maintenance intervals, and storage guidelines.
Description
Vetter Sewer/Drain Sealing Bag (large-diameter)
Operating instructions for VETTER Pipe Sealing and Bypass Bags (1.5 bar FS) designed for fire services. These inflatable bags are used for sealing off pipelines, channelling, leak testing, and temporary bypass construction. Available in multiple sizes for pipe diameters ranging from 7-140 cm. Made of CR material with nylon cord/aramide support, hot vulcanized. Operating pressure 1.5 bar, test pressure 1.95 bar, with maximum test counterpressure of 5 m water column. Includes comprehensive safety instructions, operation procedures, maintenance intervals, and storage guidelines.
Features
Specifications
- Material
- CR (hot vulcanised)
- Support Material
- Nylon cord/Aramide
- Operating Pressure
- 1.5 bar (21.75 psi)
- Test Pressure
- 1.95 bar (28.28 psi)
- Test Counterpressure
- 5 m water column (7.25 psi)
- Cold Resistance
- -40 °C
- Cold Flexibility
- -20 °C
- Heat Resistance Long Term
- +90 °C
- Heat Resistance Short Term
- +115 °C
- Pipe Sealing Bag Sizes
- RDK 7/15 FS, RDK 10/20 FS, RDK 20/40 FS, RDK 30/60 FS, RDK 50/100 FS, RDK 80/140 FS
- Bypass Bag Sizes
- BK 7/15 FS, BK 10/20 FS, BK 20/50 FS, BK 50/120 FS, BK 80/140 FS
