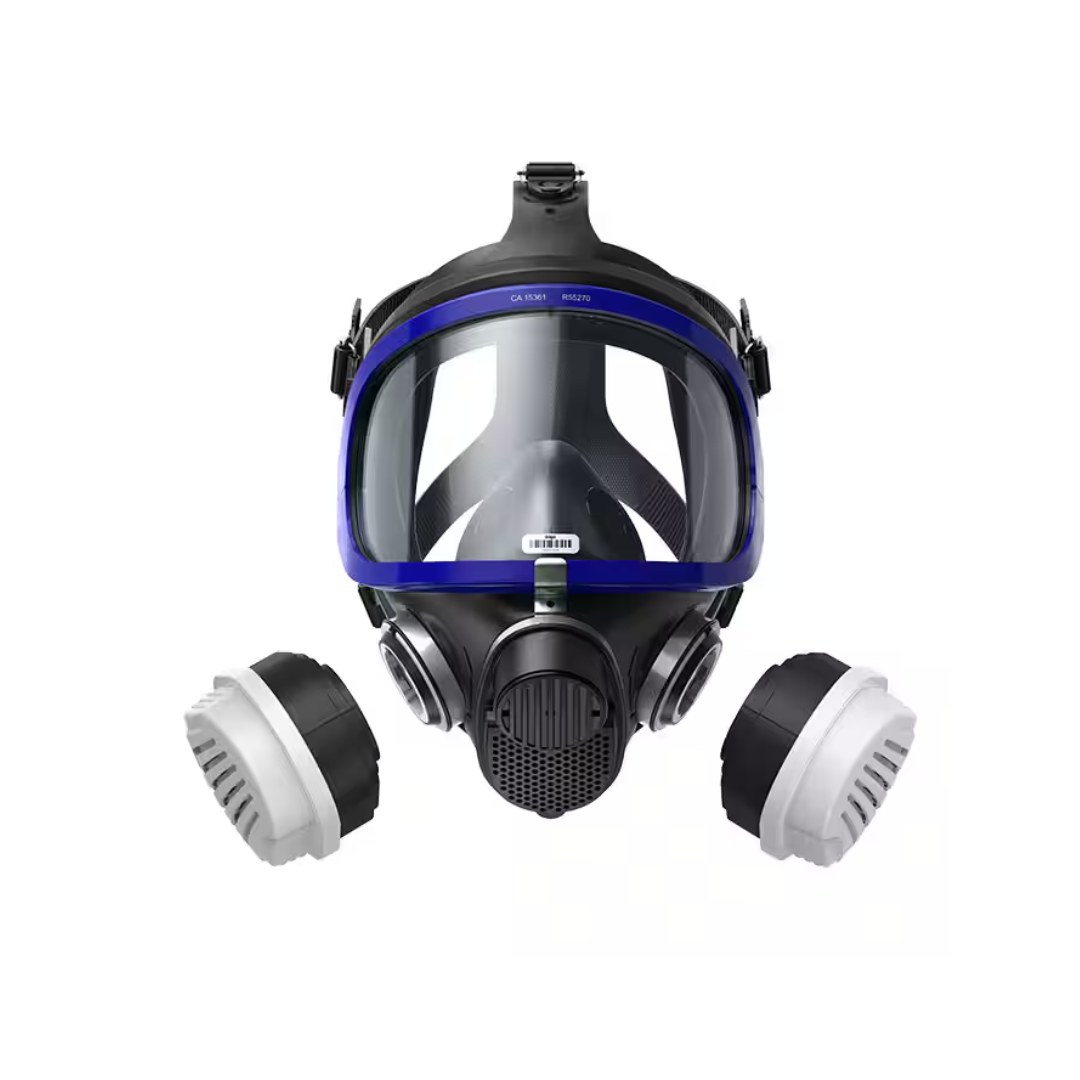

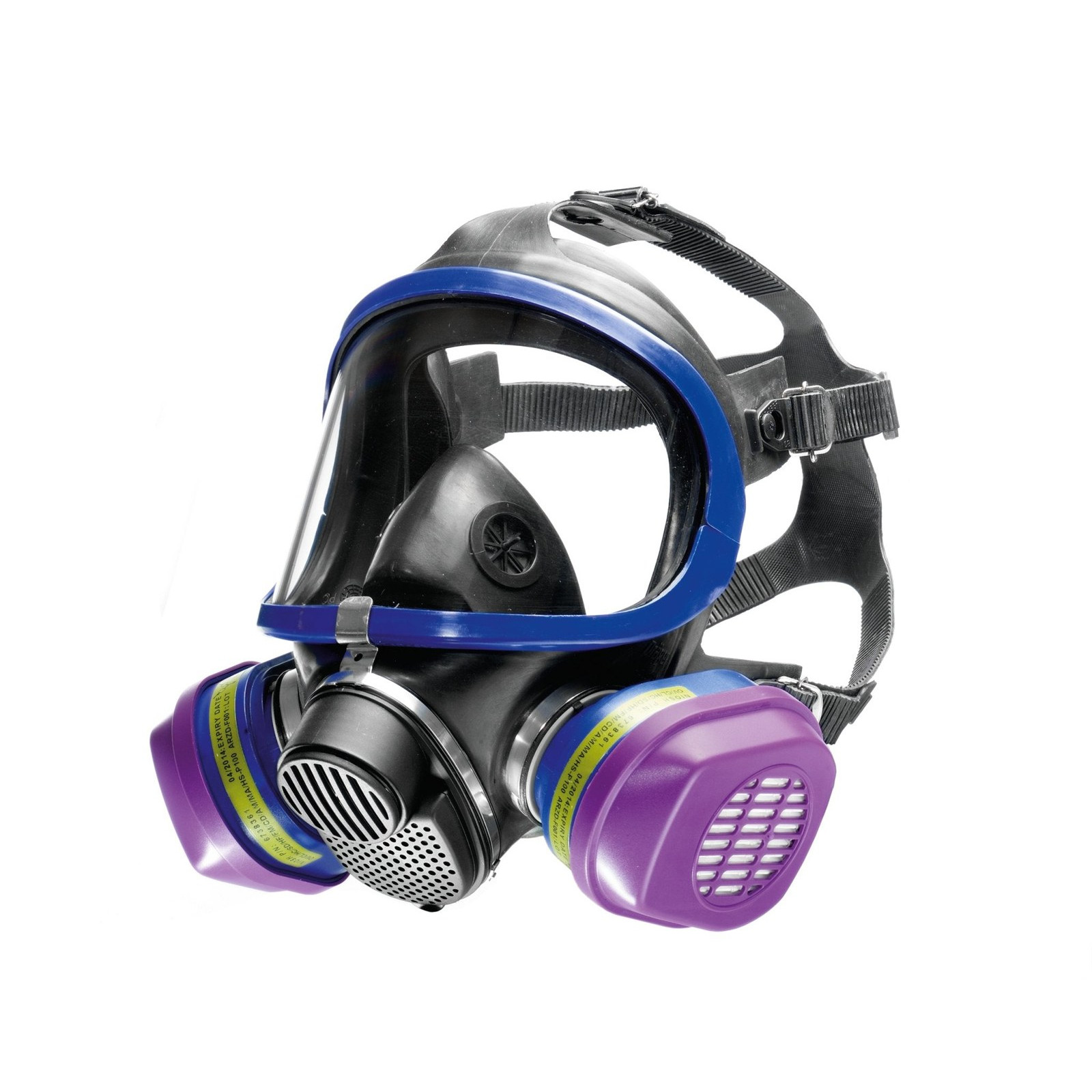

The Dräger X-plore 5500 is a full-face air-purifying respirator designed for industrial workers in chemical, metal, automotive, and shipbuilding environments.
The Dräger X-plore 5500 is a comprehensive full face respirator designed for demanding industrial environments including chemical, metal, automotive, and shipbuilding industries. Features a twin-port design with Dräger-specific bayonet connections, EPDM mask body material, and universal sizing. The mask offers a 180° distortion-free lens available in impact-proof polycarbonate or scratch-proof chemical-resistant Triplex glass. Equipped with a comfortable 5-point harness, efficient ventilation system, and double sealing frame with threefold sealing edges for secure fit. One universal size simplifies logistics and storage with internal barcode for inventory management. Approved to EN 136 Class 2, AS/NZS 1716:2012, and NIOSH standards. Compatible with comprehensive Dräger X-plore Bayonet filter series for protection against particles, gases, and vapors.
| Physical | |
| Mask body material | EPDM |
| Connectivity | |
| Dräger-specific Bayonet connection | yes |
| RA -Standard thread connection Rd40 (according to EN 148-1) | no |
| PE-thread connection M45x3 (according to EN 148-3) | no |
| ESA-plug-in connection (according to DIN 58600) | no |
| P-Dräger plug-in connection | no |
| RP-Dräger plug-in connection (closed-circuit) | no |
| 2-point connection for Dräger HPS 7000 helmets | no |
| Approvals & Warranty | |
| EN 136 class 2 | yes |
| EN 136 class 3 | no |
| NFPA | no |
| Other | |
| Product type | Twin-port full face mask |
| Protection against | Particles and / or gases and vapors - depending on the respiratory filter used |
| Sizes | Universal size |
| Communication system | no |
| Bayonet filters | yes |
| RD40 filters | no |
| PAPR | no |
| Escape Unit | no |
| Airline Unit | no |
| SCBA | no |
| CCBA | no |
| Plexiglas | no |
| PC (impact-proof) | yes |
| Triplex (scratch-proof and chemical resistant) | yes |
| PCas (impact-, scratch-proof, increased chemical resistance) | no |
| APEC (impact-proof, increased heat resistance) | no |
| APECas (impact-, scratch-proof, increased chemical resistance) | no |
| 5-point rubber head harness | yes |
| Textile hairnet | no |
| EN 137 type 2 | no |
| DIN 58610 | no |
| VFDB 0802 (RA, PE, ESA) | no |
| AS/NZS 1716:2012 | yes |
| NIOSH | yes |
