Easily transportable
-
Assembly/disassembly of multiple sub-components in ~10 minutes
-
Compact dimensions ~78.8 x 203.0 x 61.0 cm (~31.0 x 79.9 x 24.0 in.) (W x H x D)
-
19 detectors for coverage of body, head, legs, arm, hands and feet
-
Same comprehensive monitor software platform used on other Argos-3/5, Sirius-5, Cronos-1/4/11 and GEM-5 contamination monitors
-
Based on Windows 11 IoT operating system
-
Beta plastic scintillation detectors (TPS-B-579) available
-
Alpha/beta plastic scintillation detectors (TPS-AB-579) available
-
Beta/gamma plastic scintillation detectors (TPS-BG-579) available
-
Detachable 8″ touch screen display

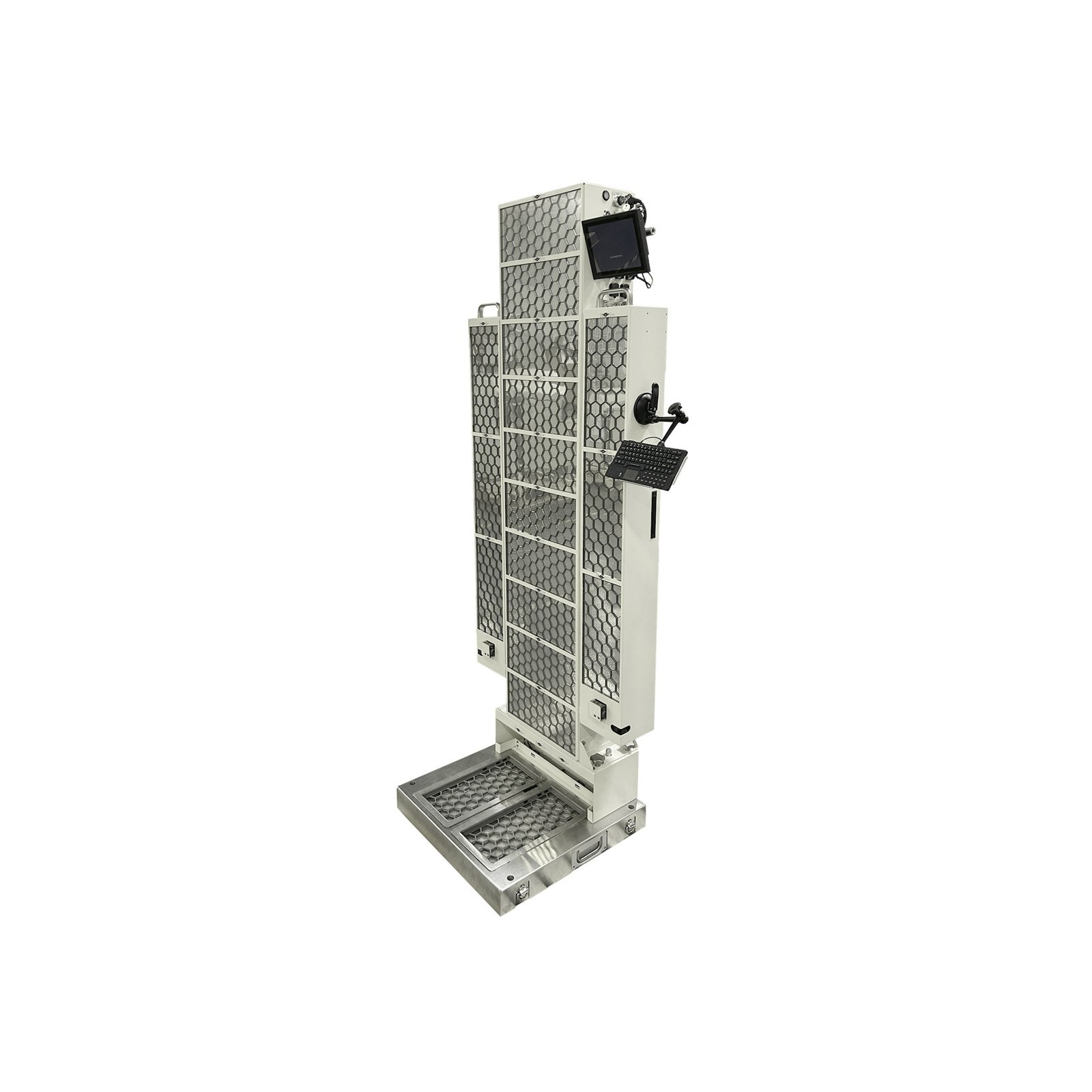

Argos-3 Modular Body Contamination Monitor
$0.00
The Argos-3 Modular is a transportable whole-body contamination monitor designed for personnel working in nuclear environments, featuring 19 detectors and quick assembly.
In stock
The Argos-3 Modular monitor is an easily transportable body contamination monitor designed for mobility and swift assembly/disassembly into subcomponents for transport and storage. Part of the Argos family of whole body contamination monitors, the system provides user-friendly operation with thorough and reliable detection of external contamination on personnel working in nuclear environments. Features 19 detectors arranged to cover body, head, legs, arms, hands and feet. Assembly takes approximately 10 minutes with compact dimensions of ~78.8 x 203.0 x 61.0 cm. Based on Windows 11 IoT operating system with detachable 8″ touch screen display.
Description
Argos-3 Modular Body Contamination Monitor
The Argos-3 Modular monitor is an easily transportable body contamination monitor designed for mobility and swift assembly/disassembly into subcomponents for transport and storage. Part of the Argos family of whole body contamination monitors, the system provides user-friendly operation with thorough and reliable detection of external contamination on personnel working in nuclear environments. Features 19 detectors arranged to cover body, head, legs, arms, hands and feet. Assembly takes approximately 10 minutes with compact dimensions of ~78.8 x 203.0 x 61.0 cm. Based on Windows 11 IoT operating system with detachable 8″ touch screen display.
Features
Specifications
- Size
- 78.8 x 203.0 x 61.0 cm (31.0 x 79.9 x 24.0 in.)
- Weight
- approx. 120 kg (260 lb) depending on configuration
- Operating Temperature Range
- from 0 to +45 °C (+32 to +113 °F)
- Storage Temperature Range
- 0 to +50 °C (+32 to +122 °F)
- Operating Relative Humidity
- ≤ 85% non-condensing at +35 °C (+95 °F) maximum
- Storage Relative Humidity
- ≤ 95% non-condensing
- Power Requirements
- 115/230 (±10%) VAC, 50/60 Hz, 2/1 A nominal mains
- Standard Cable
- 3 m (~10 ft) standard cable with IEC 60320 C13 plug supplied
- Average Power Consumption
- 50 W
- Maximum Power Consumption
- 90 VA (Typical)
- Certifications
- ISO 11929:2019 compliant
- Number of Detectors
- 19
- Assembly/Disassembly Time
- ~10 minutes
- Touch Screen Display
- Detachable 8″ touch screen display
- Operating System
- Windows 11 IoT
