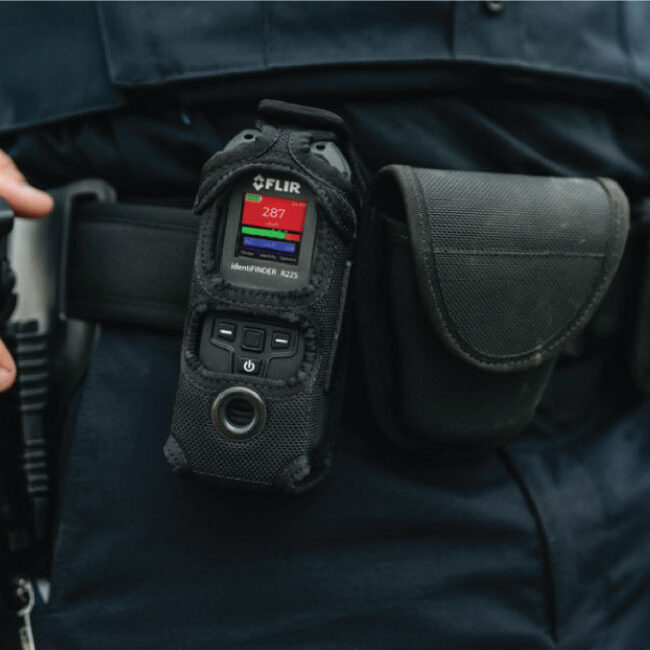

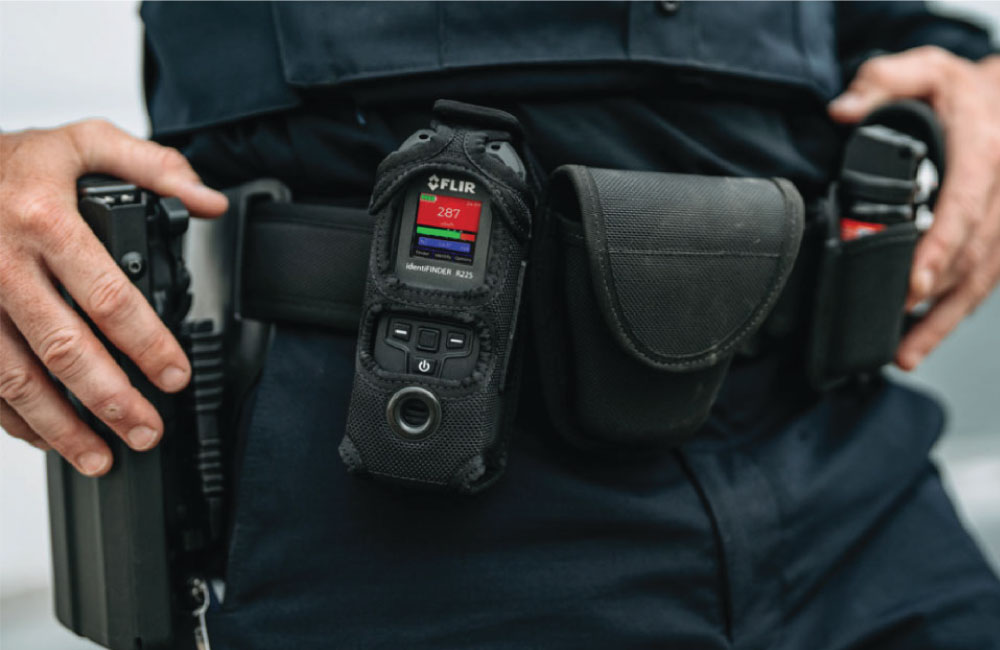

01WearHolstered
On the belt, screen up
Teledyne FLIR modified the holster to give quick access to the device and to keep the screen completely visible while holstered.
Startup time<1 minute from cold start
Teledyne FLIR · Radiation detection

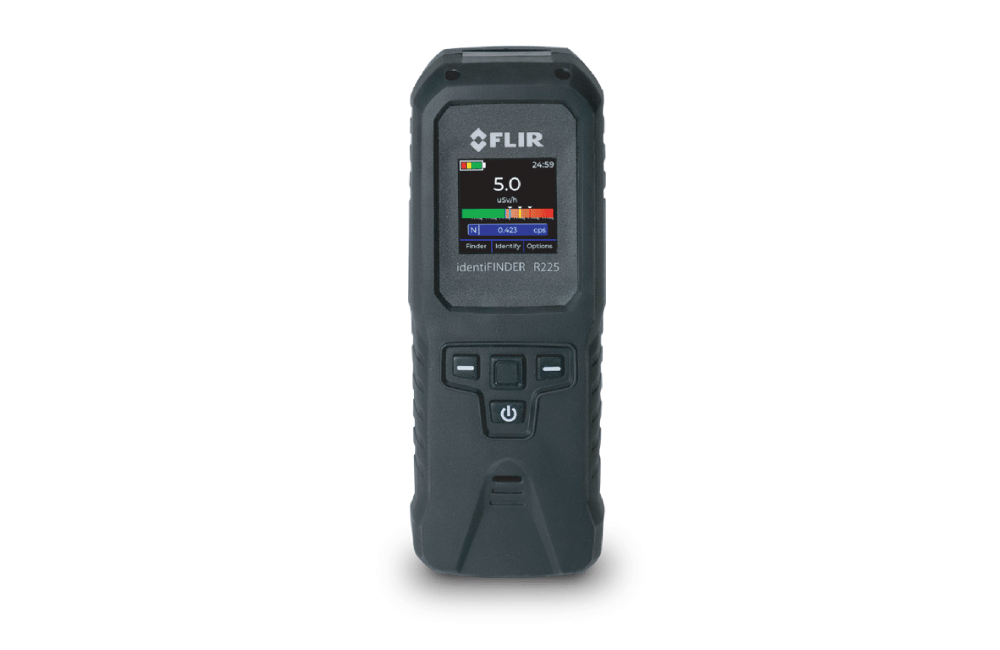

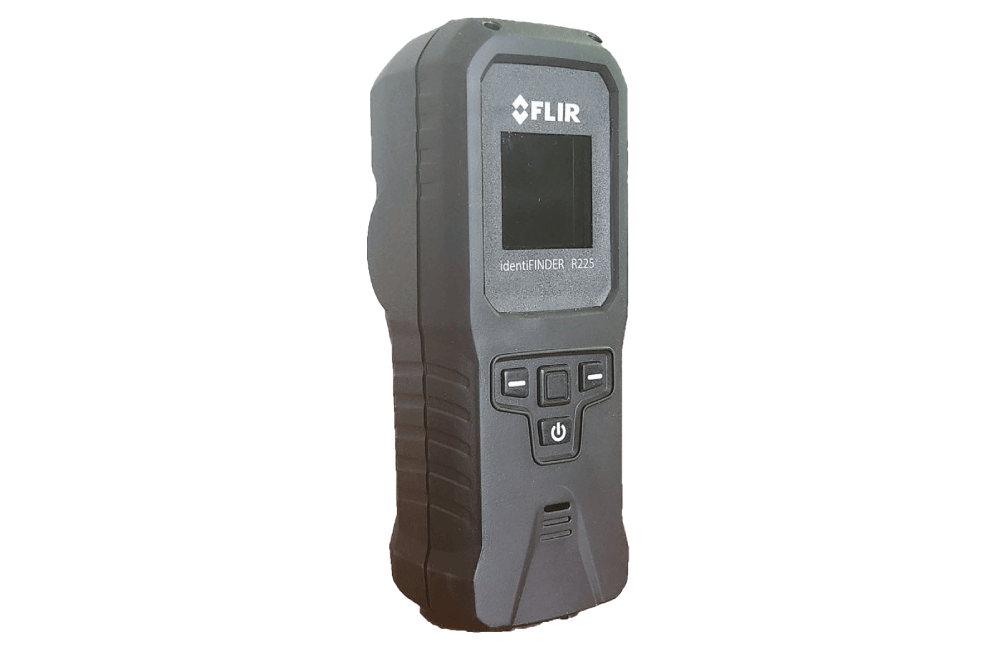

FLIR identiFINDER R225
Spectroscopic Personal Radiation Detector
Teledyne FLIR describes the identiFINDER® R225 as a rugged, pager-sized Spectroscopic Personal Radiation Detector (SPRD): a personal radiation detector you wear on the belt that also identifies gamma sources, run with the familiar three-button control common to all identiFINDER products.
N42.48ANSI SPRD, incl. nuclide ID
IP67According to IEC 60529
≤0.89 lb(406 g)
≥24hInternal Li-ion battery
Fast front-line detection and response
Worn on the belt. Identifies on the spot.
Teledyne FLIR built key features of the R225 on feedback from its predecessor, the identiFINDER R200, including operating in multiple languages. The screen is brighter and in colour, and the holster leaves it completely visible.
Alarm to identification
Two instruments’ work, one belt-worn unit
The R225 is rated to two standards at once: ANSI N42.32 for personal radiation detectors, and ANSI N42.48 for spectroscopic PRDs, including nuclide identification. In practice that is one workflow, from the belt to a named isotope to remote viewing and ANSI N42.42 data output.

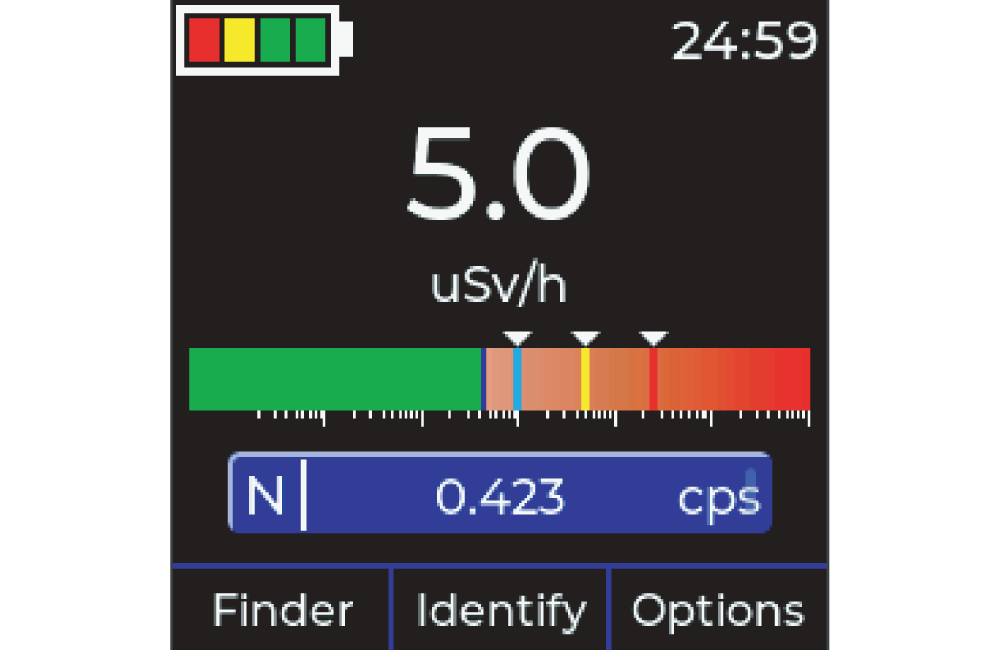

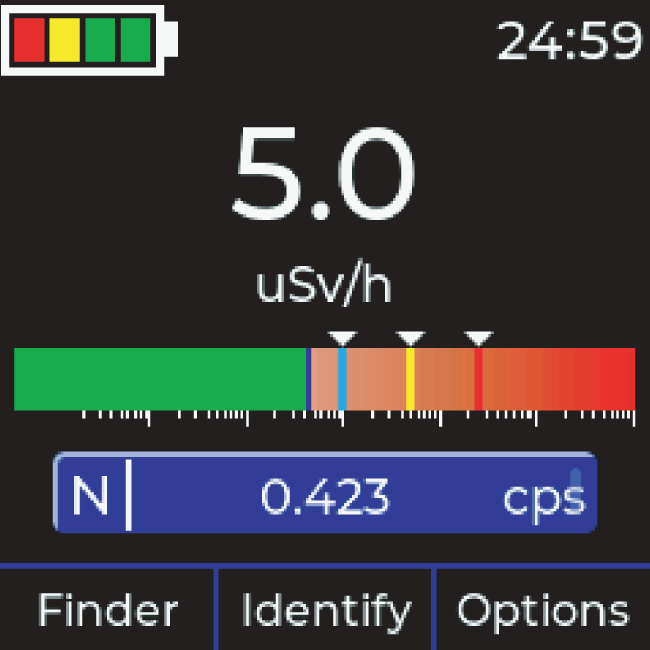

02DetectDose rate & alarm
Alert you can see and hear
Alerts come through a sunlight readable color display, LED alarm indicators and an audible alarm. The colour screen is visible in sunlight and through polarized sunglasses.
Dose rate / accuracy (Cs-137)≤10 µrem/h – 1 rem/h ± 20%03IdentifyNuclide ID

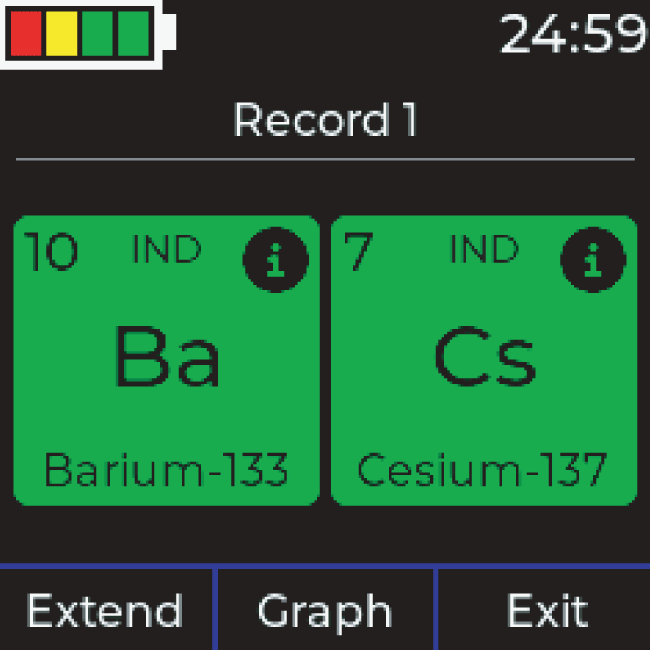

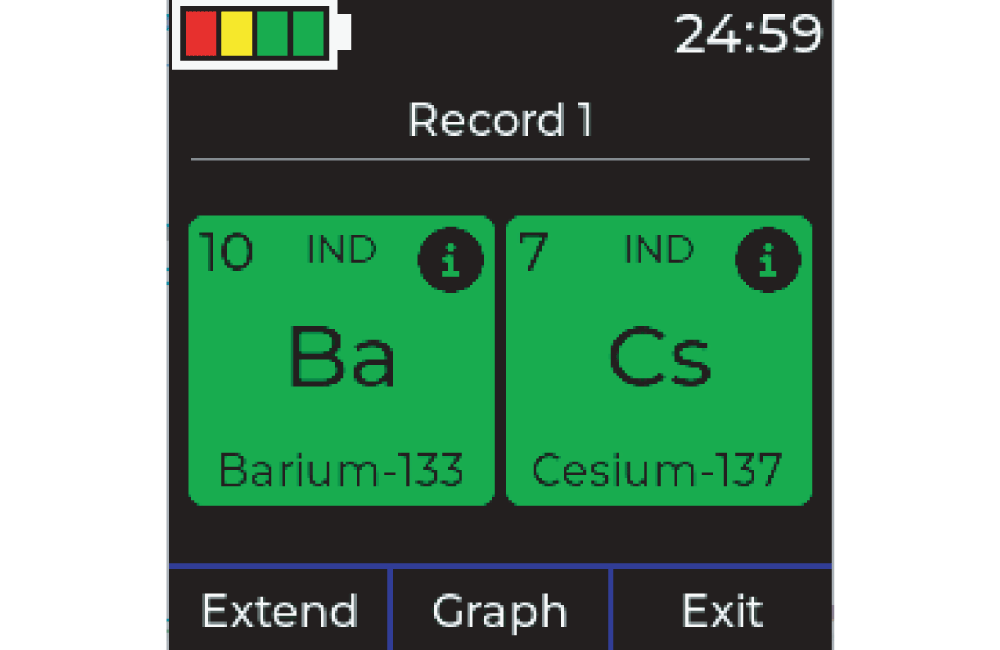

Name the isotope
Identification uses the field-proven template matching algorithms found across the entire identiFINDER family, with the R225’s spectroscopic detector behind them.

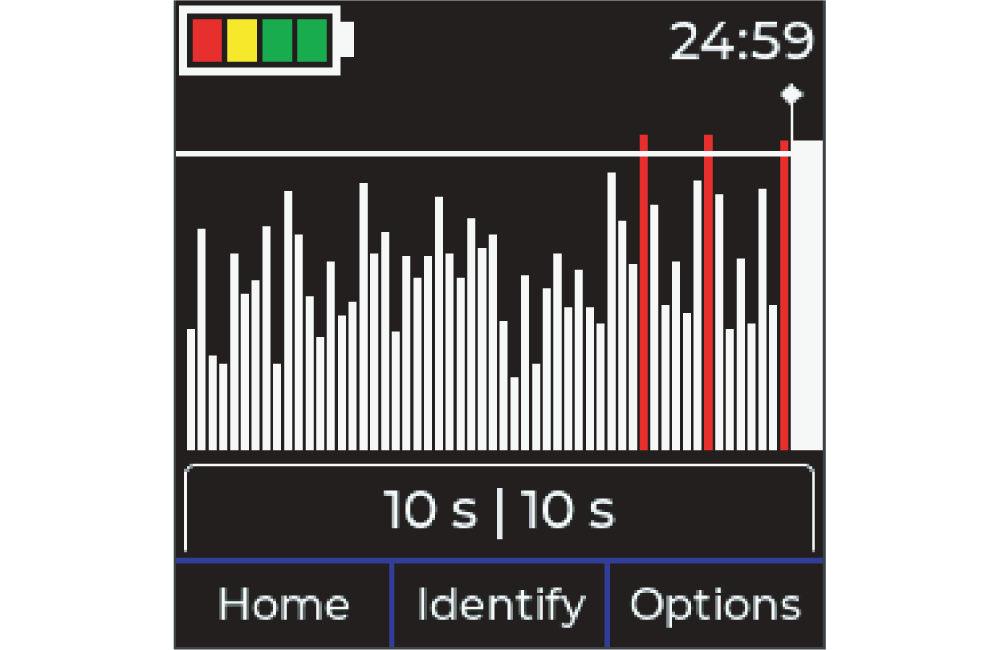

Sampling & analysisFrom a few seconds to minutes04ShareSpectrum & data
Send it up the chain

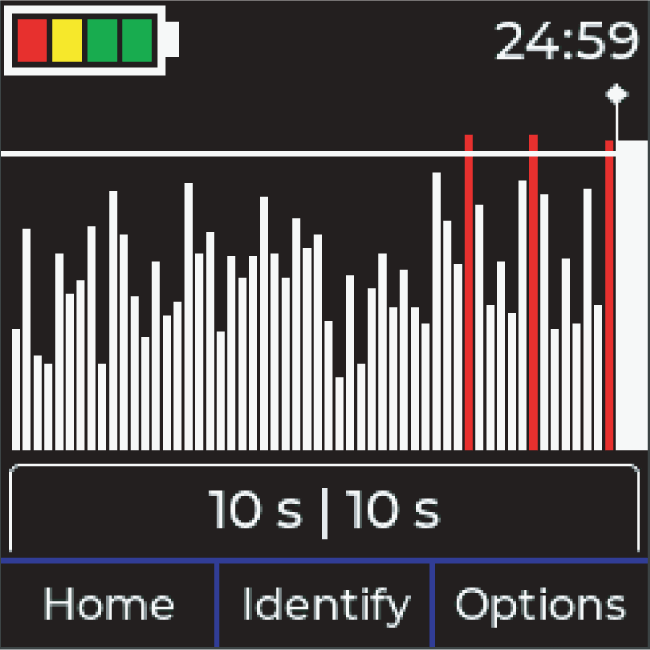

Check the spectrum on the device, then monitor and control the unit remotely from the mobile app (iOS & Android). ANSI N42.42 data output is standard.
Gamma spectrum1024 channels; 3 MeVLow training burden
<10 mins for operator; 1 day for advanced user.
Familiar controls
The three-button control common to all identiFINDER products.
Multilingual
Operates in multiple languages, a feature built on feedback from the identiFINDER R200.

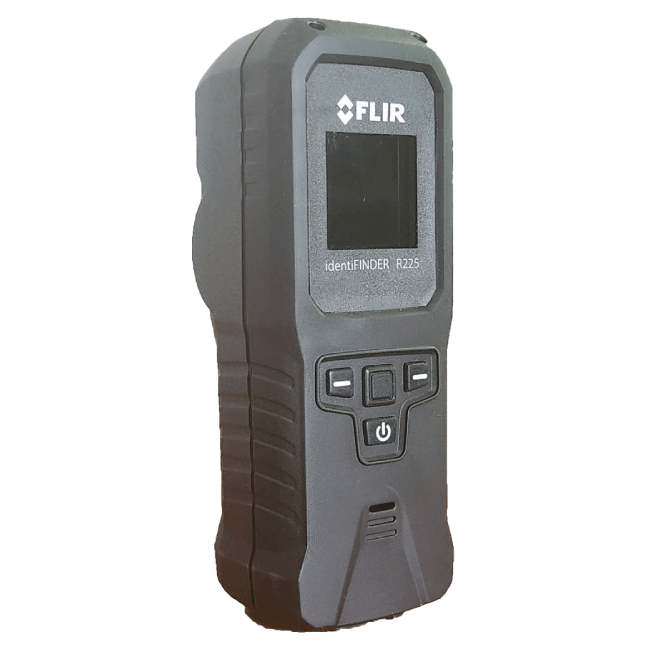

Wearable form factor
Pager-sized, made to be worn
A personal detector does its job only when it is on you. The R225 is pager-sized and weighs ≤0.89 lb (406 g), with a ≥24h internal battery and a replaceable CR-123A back-up.
Front outline, drawn to scale
5.7 x 2.2 x 1.9 in (14.5 x 5.6 x 4.9 cm) · ≤0.89 lb (406 g) · illustration
- 01
A screen made for outdoors
Teledyne FLIR upgraded the screen for increased brightness and added color, so it is visible in sunlight and through polarized sunglasses.
- 02
Read it without drawing it

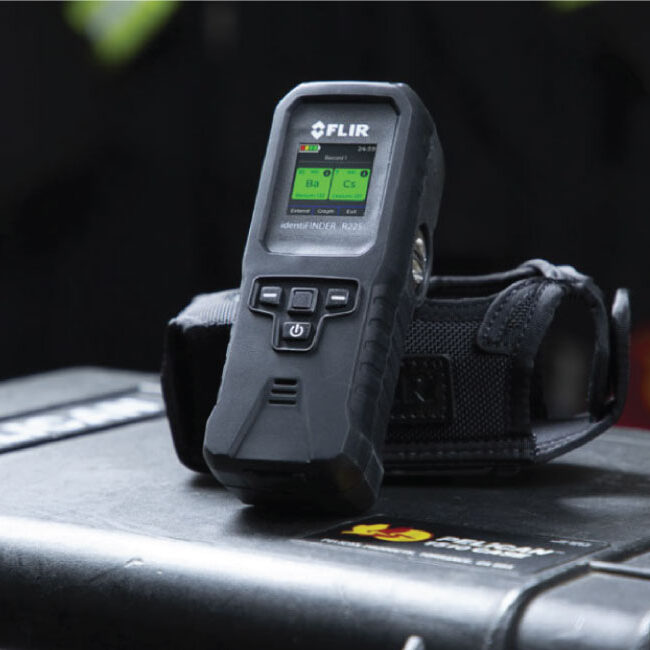

The modified holster gives quick access to the device, and the screen stays completely visible while holstered.
- 03
Two power sources
An internal single cell Li-ion battery, plus a replaceable CR-123A back-up. Teledyne FLIR describes the back-ups as hot-swappable. Operational battery life:
Internal Li-ionCR-123A back-up
Detector options
One body, two crystals
Every R225 uses a single (18mm)3 cubic crystal read by a silicon photomultiplier (SiPM). The choice is the crystal: cesium iodide for sensitivity, or lanthanum bromide for sharper peaks.
G & GN models
CsI(Tl)
(18mm)^3 Cesium Iodide (CsI) with Silicon Photomultiplier (SiPM). Teledyne FLIR cites exceptional sensitivity and identification capability.
- Typical resolution
- ≤7.5 %
- FWHM at 662 keV
- Gamma sensitivity (Cs-137)
- 2.1 cps/µrem/h
LG & LGN models
LaBr3(Ce)
(18mm)^3 Lanthanum Bromide (LaBr3(Ce)) with Silicon Photomultiplier (SiPM), the higher-resolution option.
- Typical resolution
- ≤4 %
- FWHM at 662 keV
- Gamma sensitivity (Cs-137)
- 1.94 cps/µrem/h
What resolution means
Smaller number, narrower peak
Typical resolution is quoted as the width of a gamma peak at half its maximum height (FWHM), here at the 662 keV line. The smaller the percentage, the narrower the peak the detector draws.
Illustration
| Model | Gamma crystal | Neutron detector (ZnS) |
|---|---|---|
| G | CsI(Tl) | Not fitted |
| GN | CsI(Tl) | 27 mm x 62 mm x 5 mm |
| LG | LaBr3(Ce) | Not fitted |
| LGN | LaBr3(Ce) | 27 mm x 62 mm x 5 mm |
Configuration is confirmed per quote. The R225 comes in four configurations (G, GN, LG and LGN); the neutron detector is on GN & LGN models only. Tell us which crystal and configuration your team needs and we will confirm what can be supplied. Request a quote
Rugged & connected
Survives the mission, reports in real time
Teledyne FLIR’s two other promises for the R225: wear it with confidence in the harshest environments, and get critical information off it in real time.
Wear with confidence
Built for decon and salt fog
- IP67 rated for use in harsh environments or temporary submersion during decontamination (protection rating IP67 according to IEC 60529).
- MIL STD 810G (Salt Fog) compliant, in a plastic injection enclosure with rubber overmold.
- Automatic calibration, stabilization, and no user maintenance required, with sourceless gain stabilization and real time linearization of gamma energy.
- -22 to 122 °F (-30 to 50 °C) operating temperature, 0 to 100% operating humidity.
Critical information in real time
Data off the belt
Communication is USB-C, WiFi and Bluetooth (BLE 5.0). Teledyne FLIR adds that built-in Bluetooth, Wi-Fi and GPS ensure remote data viewing.
USB-C
WiFi
BLE 5.0
- Mobile app (iOS & Android) to monitor and control the R225 remotely.
- On-board webserver software on the device itself.
- Built in communications and a robust API enable integration with user deployed networks.
- ANSI N42.42 data output is standard, the data format standard the R225 is fully compliant with.
Specifications
Key specifications
Where a value differs by model, the model is named.
| Detectors | |
|---|---|
| Technology | Spectroscopic personal radiation detector (SPRD) |
| Gamma detector, CsI(Tl) (G & GN models) | (18mm)^3 Cesium Iodide (CsI) with Silicon Photomultiplier (SiPM) |
| Gamma detector, LaBr3(Ce) (LG & LGN models) | (18mm)^3 Lanthanum Bromide (LaBr3(Ce)) with Silicon Photomultiplier (SiPM) |
| Neutron detector, ZnS (GN & LGN models only) | 27 mm x 62 mm x 5 mm |
| Spectrum | |
| Energy range (gamma) | 25 keV - 3 MeV |
| Gamma spectrum | 1024 channels; 3 MeV |
| Typical resolution |
|
| Sensitivity & dose rate | |
|---|---|
| Gamma sensitivity (Cs-137) |
|
| Neutron sensitivity | ≥ 7.5 cps/nv (GN & LGN models only) |
| Dose rate range, ID mode (Cs-137) | 0.1 µrem/h - 25 mrem/h 1 nSv/h - 250 µSv/h |
| Dose rate / accuracy (Cs-137) | ≤10 µrem/h – 1 rem/h ± 20%, ≤100 nSv/h – 10 mSv/h ± 20% |
| Operation | |
| Stabilization | Sourceless gain stabilization |
| Linearization | Real time linearization of gamma energy |
| Sampling & analysis | From a few seconds to minutes |
| Startup time | <1 minute from cold start |
| Interface | |
|---|---|
| Display & alerts | Sunlight readable color display, LED alarm indicators, audible |
| Communication | USB-C , WiFi, Bluetooth (BLE 5.0) |
| Connectivity | Online mobile app available (Android, iPhone) |
| Software | On-board webserver software |
| Training requirements | <10 mins for operator; 1 day for advanced user |
| Power | |
| Input voltage | 100-240 VAC (wall and car adapters and USB cable supplied) |
| Battery specs | Internal single cell Li-ion operational battery life ≥24h; replaceable back-up CR-123A: operational battery life ≥12h |
| Environment | |
|---|---|
| Operating temperature | -22 to 122 °F (-30 to 50 °C) |
| Operating humidity | 0 to 100% |
| Storage temperature | 14 to 122 °F (-10 to 50 °C) |
| Enclosure & protection | Plastic injection with rubber overmold; protection rating IP67 according to IEC 60529 ; MIL STD 810G (Salt Fog) compliant |
| Physical | |
| Dimensions (L x W x H) | 5.7 x 2.2 x 1.9 in (14.5 x 5.6 x 4.9 cm) |
| Weight | ≤0.89 lb (406 g) |
| Standards compliance | |
|---|---|
| ANSI N42.32 | ANSI N42.32 PRD standard fully compliant |
| ANSI N42.48 | ANSI N42.48 SPRD standard fully compliant, including nuclide identification |
| ANSI N42.42 | ANSI N42.42 data format standard fully compliant |
| Environmental | MIL STD 810G (Salt Fog) compliant; protection rating IP67 according to IEC 60529 |
Teledyne FLIR export notice: “This product is subject to United States export regulations and may require US authorization prior to export, reexport, or transfer to non-US persons or parties.”
Resources
Documents and support
Datasheet
identiFINDER R225 datasheet
Overview and full specifications.
ServiceFarrWest Repair Depot
OEM-certified service and support on every product we deliver. When a repair falls outside our in-house scope, we coordinate directly with the manufacturer and manage the logistics end to end.
BrandMore from FLIR
Browse the other FLIR products FarrWest lists.
FAQ
Questions we get asked
What is the difference between a PRD and an SPRD?
The R225 is both ANSI N42.32 PRD standard fully compliant and ANSI N42.48 SPRD standard fully compliant, including nuclide identification. The spectroscopic detector lets the same belt-worn unit identify the gamma source, not only measure dose rate.
What are the G, GN, LG and LGN models?
There are four configurations. G & GN models use an (18mm)^3 CsI(Tl) crystal (≤7.5 % FWHM at 662 keV); LG & LGN models use an (18mm)^3 LaBr3(Ce) crystal (≤4 % FWHM at 662 keV). The ZnS neutron detector is on GN & LGN models only. Request a quote and tell us which configuration you need.
How long does the battery last?
Internal single cell Li-ion operational battery life ≥24h; replaceable back-up CR-123A operational battery life ≥12h. Teledyne FLIR describes the back-ups as hot-swappable. Wall and car adapters and a USB cable are supplied.
Does it need user calibration?
Teledyne FLIR lists automatic calibration, stabilization, and no user maintenance required, with sourceless gain stabilization. For repair or other service, see the FarrWest Repair Depot.
Can it be decontaminated?
The R225 is IP67 rated for use in harsh environments or temporary submersion during decontamination (protection rating IP67 according to IEC 60529).
How long does it take to train an operator?
Training requirements are <10 mins for operator; 1 day for advanced user. The R225 uses the three-button control common to all identiFINDER products.
Can supervisors see readings remotely?
Yes. The mobile app (iOS & Android) can monitor and control the unit remotely, the device has on-board webserver software, and built in communications and a robust API enable integration with user deployed networks. Communication is USB-C, WiFi and Bluetooth (BLE 5.0).
