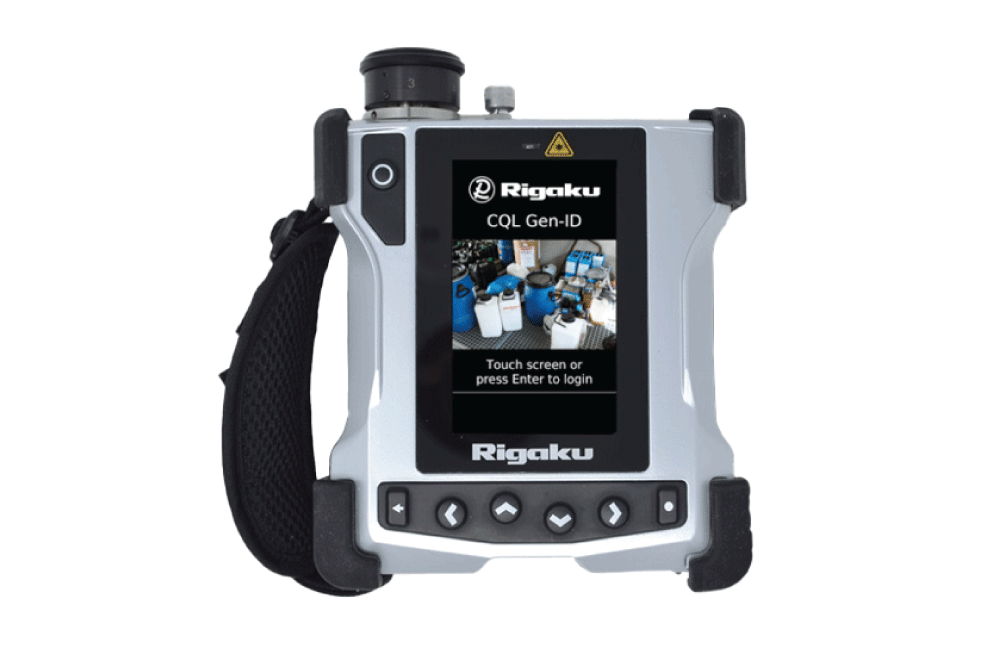

Rigaku CQL Gen-ID
The CQL Gen-ID provides advanced analytical chemical identification of the more common threats found by first responders or at the border, and in clandestine and crime laboratories. It identifies unknown solids, liquids, powders, pastes and gels against a comprehensive library of narcotics, explosives, household chemicals, precursors, and more. Rigaku positions it as a cost-effective solution for departments looking for targeted chemical threat analysis.
through the packaging.

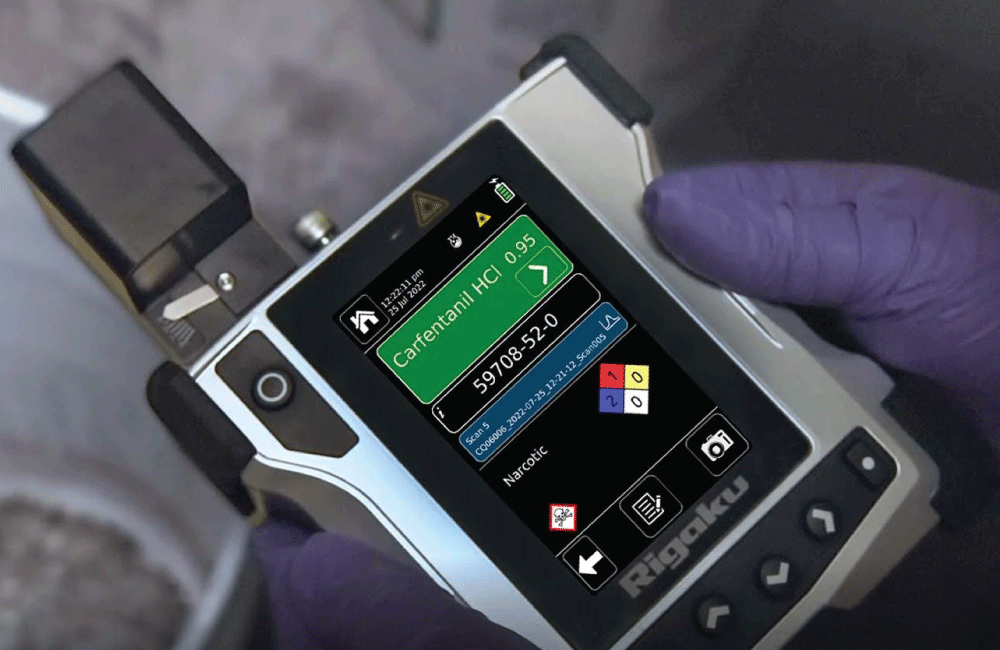

The CQL Gen-ID handheld 1064 nm Raman analyzer can nondestructively identify unknown solids, liquids, powders, pastes, or gels through translucent packaging. In Rigaku's words, this keeps the user safe from exposure to a harmful chemical.
Its 1064 nm laser excitation reduces the fluorescence interference that often occurs when scanning impure or dirty mixtures, a common issue for older generation Raman devices.
From packaged sample to a named substance
Handheld Raman identification in four steps: focus through the packaging, excite the sample with the 1064 nm laser, match the spectrum against the on-board library, then record the result.

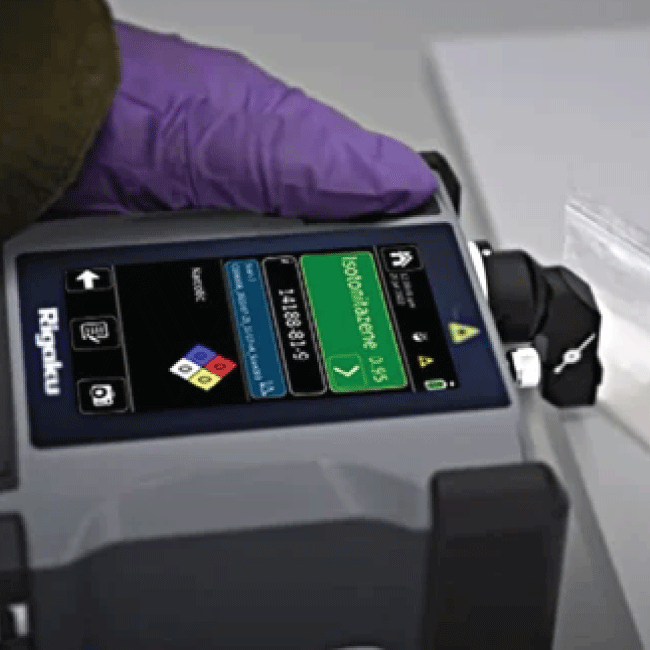

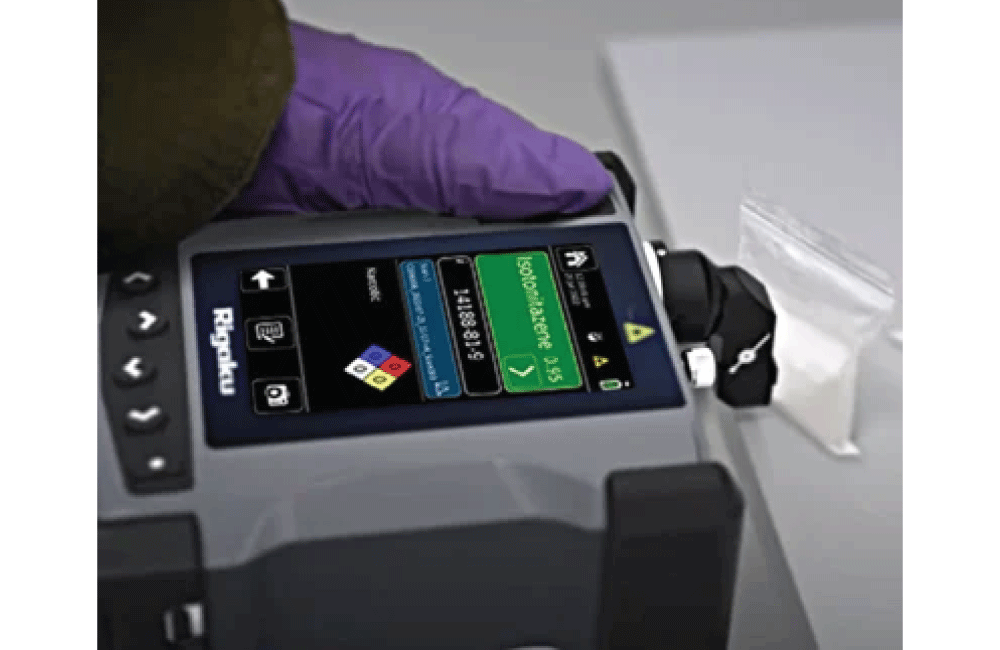

Focus through the packaging
An adjustable nose cone allows scanning through different thickness and types of packaging.
- Adjustable Nose Cone (0mm -5.5mm)
- Touchscreen or button control
Excite at 1064 nm
1064 nm excitation means reduced fluorescence interference when scanning impure or dirty mixtures.
- Laser: 1064 nm / 490mW
- Laser Passcode, Scan Delay Timer, and Scan Timeout

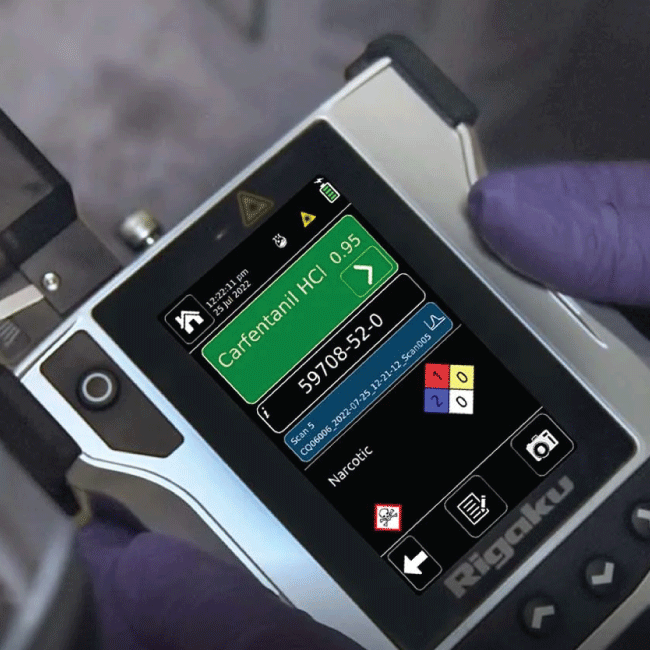

Match the library
The spectrum is compared against the on-board library, with automatic mixture analysis for samples that are not a single pure compound.
- Spectral Library Size: 5100+ items
- Automatic mixture analysis of up to 5 components
Record the evidence
Add pictorial evidence with the on-board camera for traceability, then move results to a desktop or mobile device.
- On-board 5MP camera with LED flash
- Data Output Formats: .spc, .rrb, .pdf, .txt
Fourteen libraries, one general-purpose analyzer
The Gen-ID ships with fourteen included libraries covering narcotics, explosives, household chemicals, precursors, and more.
- Add materials to the user library, up to 4 user library categories
- Create custom applications and a configurable library management system
- Automatic precursor monitoring with 4C Technology
Drugs & pharma
- Narcotic
- Narcotic Precursor
- Cutting Agent
- Pharmaceutical
- Steroid
Explosives
- Explosive
- Explosive Precursor
Chemicals & materials
- General Chemical
- General Precursor
- Household Chemical
- Industrial Chemical 1
- Solvent
- Polymer
- Biomolecule (amino acids)
Good to know: the Gen-ID's included libraries do not include chemical warfare agent (CWA) or toxic industrial chemical (TIC) libraries, and it runs two scan modes rather than the three on the CQL Max-ID. If chemical warfare agents are part of your mission, compare the CQL Max-ID.

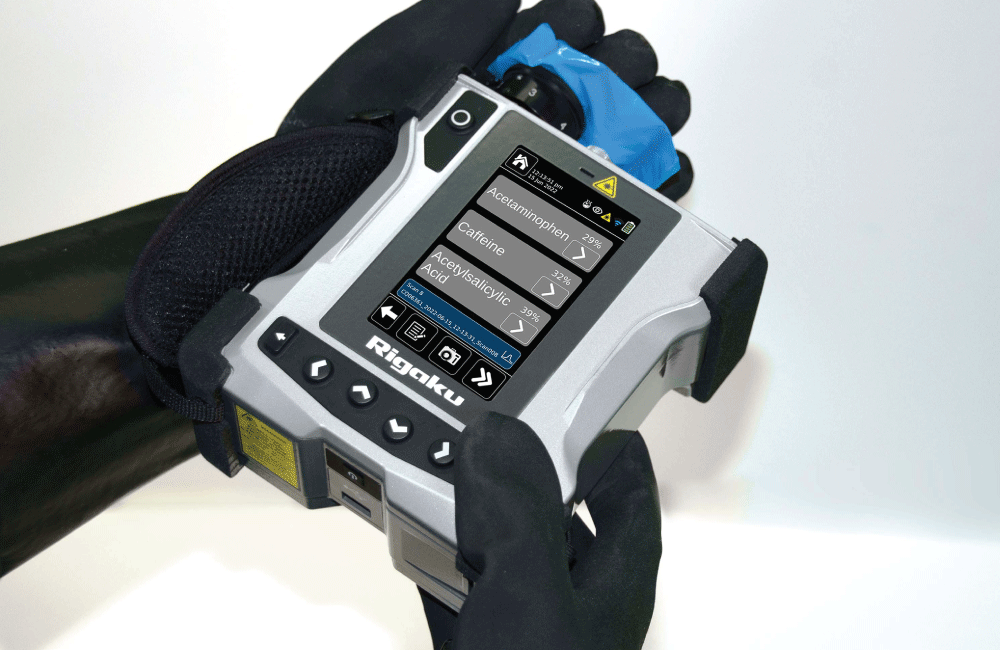

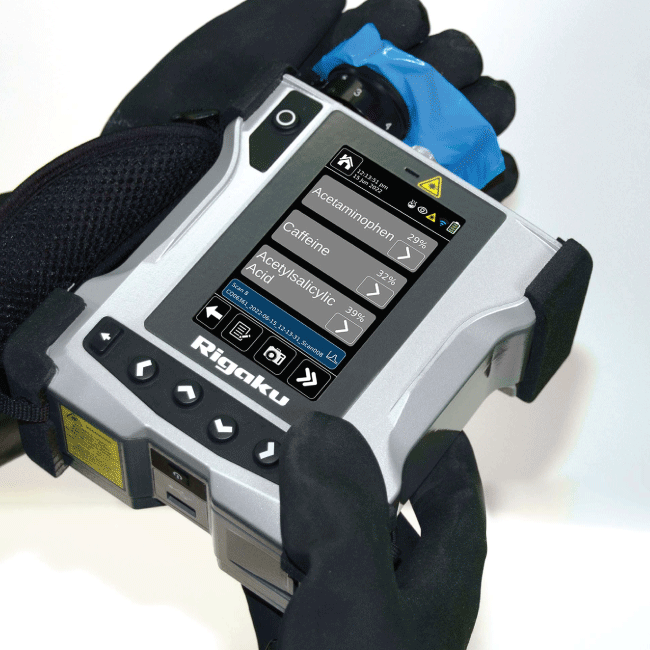

Real samples are rarely pure
- 01
Up to five components, automatically
Automatic mixture analysis of up to 5 components, so a cut or blended sample can be broken down into its components.
- 02
Built for dirty and impure samples
1064 nm excitation reduces the fluorescence interference that often occurs when scanning impure or dirty mixtures.
- 03
Libraries kept current
Software and library updates are included under active support.
Two scan modes

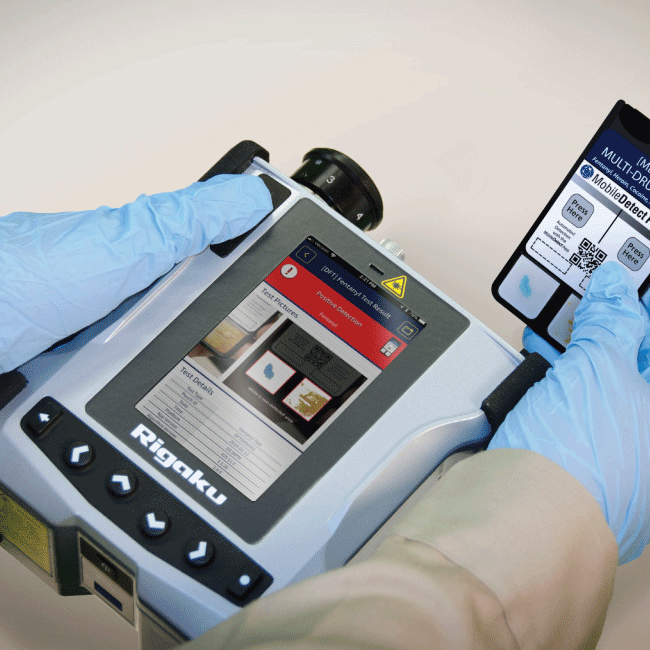

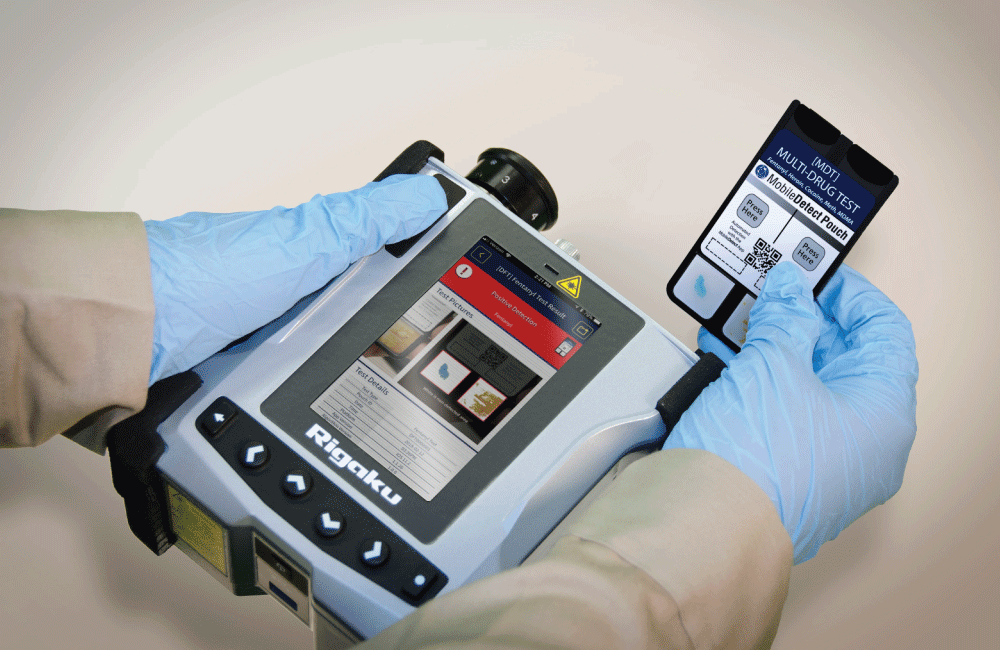

Raman reads bulk material. For trace levels, Rigaku pairs the Gen-ID with optional QuickDetect™ colorimetric detection for narcotics and explosives.
Identification
ThreatAlert™
- 01
Bulk and trace levels
Identify bulk and trace levels of an unknown substance with the optional QuickDetect™ mode. QuickDetect™ is optional (Narcotics & Explosives).
- 02
Adjustable focal position
Adjustable focal position to accommodate sampling through different packaging, from the adjustable nose cone (0mm -5.5mm).
- 03
Adjustable exposure
Manual mode exposure time: 200-7000 ms.
Rigaku sampling accessories
- Bottle Adapter
- Forms to bottles of different sizes and shapes. It snaps onto the nosecone.
- Periscope Adapter
- Allows the user to adjust the laser focus to reach different sample heights.
- Universal Adapter
- Can secure various sample types for easier analysis. It snaps onto the nosecone.
- Vial Holder
- Allows the user to adjust the sample position to optimize the laser focus for different sized vials.
Rugged in the field, managed as a fleet
The same handheld that scans at the scene also logs in users, shares results and joins Rigaku's fleet management software.
Environmental ruggedness
Rated IP-68 & MIL810G for field work.
IP-68 & MIL810G-20⁰C to 50⁰C Intermittent, +40⁰C Continuous
Power
Rechargeable by default, with an optional CR123a configuration.
Default: 7.2 V Li-ion, 3400mAH, >5 hoursOptional: CR123a (qty: 6)
Connectivity
Connect to a desktop or mobile device.
Waterproof USB-Type C / Wi-Fi / Peer-to-Peer.spc, .rrb, .pdf, .txt
CommandSuite™
Compatible with Rigaku's CommandSuite™ Fleet Management software.
Included on units #1 - #2. Available for purchase for higher quantitiesAccess & laser safety
User login privileges, and laser safety controls on every scan.
Laser Passcode, Scan Delay Timer, and Scan TimeoutSupport
Reachback and updates come with active support.
24/7/365 Reachback Support: Included under active supportBuilt on a proven platform. The CQL Gen-ID is based on Rigaku's award-winning ResQ and subsequent CQL platforms, which have been evaluated and approved by the U.S. DoD JPEO DR SKO Modernization program.
- All products manufactured by Rigaku Analytical Devices are made in the USA.
- Not ITAR-restricted, though a U.S. Department of Commerce export license may be required for some countries.
Same chassis, different missions
The Gen-ID shares its chassis, 490 mW laser and detector with the CQL Max-ID. The differences are the library, the scan modes and the number of user library categories.
CQL Gen-ID
General chemical threats: narcotics, explosives, household chemicals, precursors, and more. 2 scan modes (Identification, ThreatAlert™), 5100+ library items, up to 4 user library categories.
You are hereCQL Max-ID
Adds a third scan mode, ChemGuard, and up to 8 user library categories, on the same chassis, laser and detector.
View CQL Max-ID Other CQL modelCQL Narc-ID
The CQL family's narcotics identification model.
View CQL Narc-IDThe numbers, in full
| Physical | |
|---|---|
| Size | 18.5 cm x 15 cm x 7.9 cm (7.28 in x 5.9 in x 3.11 in) |
| Weight | 1.7 kg (3.7 lbs) |
| Operating temperature | -20⁰C to 50⁰C Intermittent, +40⁰C Continuous |
| Environmental ruggedness | IP-68 & MIL810G |
| Battery type | Default: 7.2 V Li-ion, 3400mAH, >5 hours / Optional: CR123a (qty: 6) |
| Optical | |
| Laser wavelength / max power | 1064 nm / 490mW |
| Spectral resolution | ~6-13 cm-1 |
| Spectral range | 200-2500 cm-1 |
| Spectrometer type | Transmissive Volume Phase Grating |
| Detector | TE Cooled InGaAs - 512 pixel |
| Interface | |
| Touchscreen | Yes |
| Adjustable nose cone | 0mm -5.5mm |
| Camera | On-board 5MP camera with LED flash |
| Connectivity to desktop or mobile device | Waterproof USB-Type C / Wi-Fi / Peer-to-Peer |
| Data output formats | .spc, .rrb, .pdf, .txt |
| Scan modes | Identification, ThreatAlert™ |
|---|---|
| Auto collection mode | Yes |
| Adjustable exposure time (manual mode) | 200-7000 ms |
| Laser safety features | Laser Passcode, Scan Delay Timer, and Scan Timeout |
| QuickDetect™ trace colorimetric detection | Optional (Narcotics & Explosives) |
| 4C precursor monitoring | Yes |
| User login privileges | Yes |
| Self test reference standard (default) | Yes (Polystyrene) |
| Spectral library size | 5100+ items |
|---|---|
| Included libraries | Biomolecule (amino acids), Cutting Agent, Explosive, Explosive Precursor, General Chemical, General Precursor, Household Chemical, Industrial Chemical 1, Narcotic, Narcotic Precursor, Pharmaceutical, Polymer, Solvent, Steroid |
| Ability to add materials to user library | Yes (Up to 4 user library categories) |
| Create custom applications | Yes |
| CommandSuite fleet management | Included on units #1 - #2. Available for purchase for higher quantities |
| Software and library updates | Included under active support |
| 24/7/365 reachback support | Included under active support |
|---|---|
| Export | CQL Gen-ID is not ITAR-restricted, though a U.S. Department of Commerce export license may be required for some countries. |
| Origin | All products manufactured by Rigaku Analytical Devices are made in the USA. |
