Detects chlorine, bromine, fluorine, and chlorine dioxide
-
Excellent linearity
-
Fast response time (≤30 seconds)
-
Wide operating temperature range (-40 to 50°C)
-
Low detection limit (0.05 ppm)
-
Compatible with multiple Dräger gas detection devices
-
Replaceable sensor cartridge

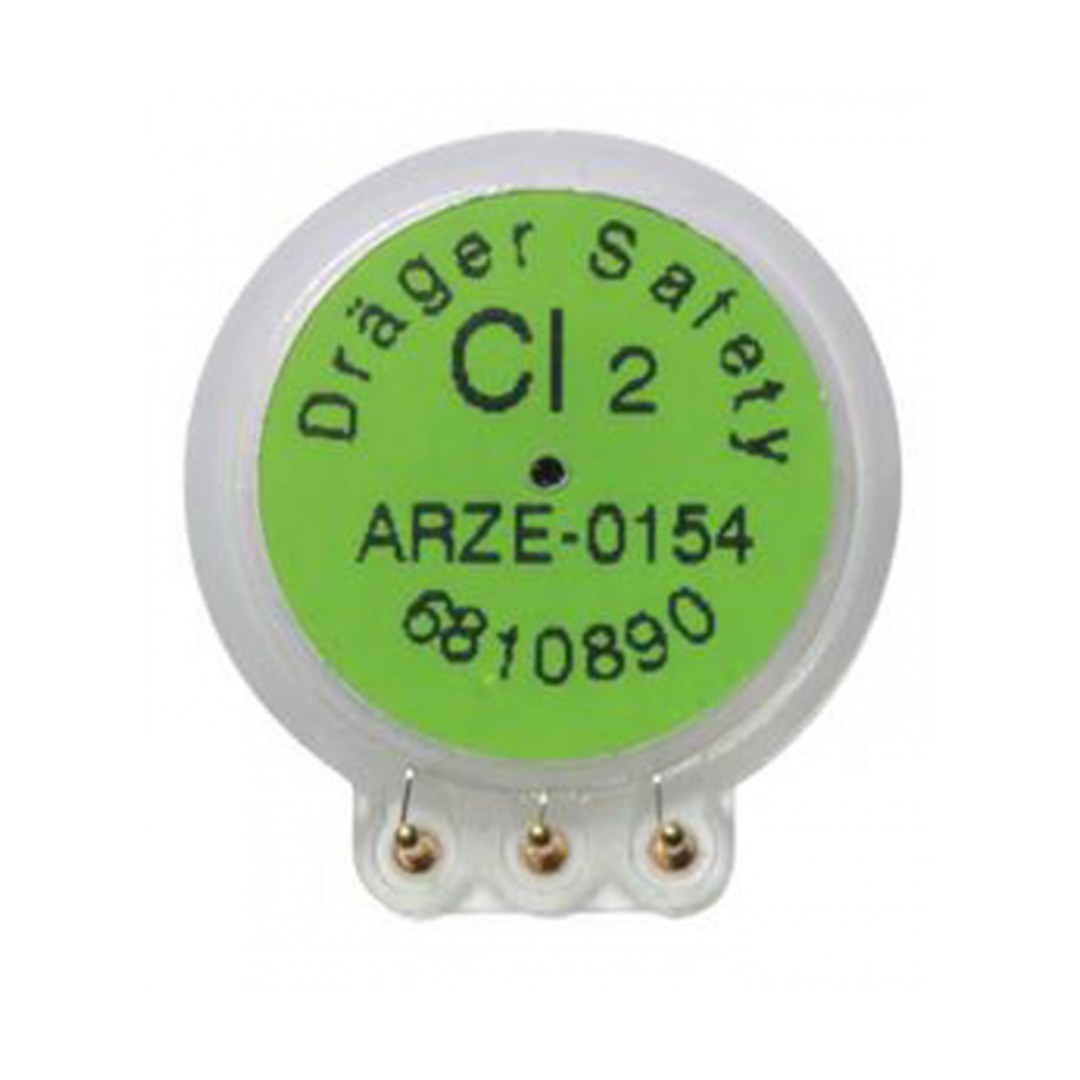

DrägerSensor XXS Cl2
$655.00
DrägerSensor XXS Cl2 is a replaceable electrochemical chlorine sensor for monitoring hazardous gases in food, chemical, pulp and paper, power generation, and water treatment facilities.
DrägerSensor XXS Cl2 is a replaceable electrochemical sensor designed for monitoring hazardous gas concentrations in ambient air. Compatible with Dräger Pac 8000, X-am 5000, and X-am 8000 gas detection devices. Features excellent linearity, fast response times (≤30 seconds), and broad measurement range. Suitable for food and beverage, chemical manufacturing, pulp and paper, power generation, sewage treatment, and water treatment applications. Expected sensor life exceeds 2 years with 1-year warranty.
Description
DrägerSensor XXS Cl2
DrägerSensor XXS Cl2 is a replaceable electrochemical sensor designed for monitoring hazardous gas concentrations in ambient air. Compatible with Dräger Pac 8000, X-am 5000, and X-am 8000 gas detection devices. Features excellent linearity, fast response times (≤30 seconds), and broad measurement range. Suitable for food and beverage, chemical manufacturing, pulp and paper, power generation, sewage treatment, and water treatment applications. Expected sensor life exceeds 2 years with 1-year warranty.
Features
Specifications
- Order no.
- 6810890
- Detection limit
- 0.05 ppm
- Resolution
- 0.05 ppm
- Measurement range (Cl2)
- 0 to 20 ppm
- Measurement range (F2)
- 0 to 20 ppm
- Measurement range (Br2)
- 0 to 20 ppm
- Measurement range (ClO2)
- 0 to 20 ppm
- Relative sensitivity (Cl2)
- 1.00
- Relative sensitivity (F2)
- 1.00
- Relative sensitivity (Br2)
- 1.00
- Relative sensitivity (ClO2)
- 0.60
- Response time
- ≤30 seconds (t90)
- Sensitivity
- ≤±2% of measured value
- Zero point drift (20°C)
- ≤±0.2 ppm/year
- Sensitivity drift
- ≤±2% of measured value/month
- Warm-up time
- ≤30 minutes
- Operating temperature
- (-40 to 50)°C
- Operating humidity
- (10 to 90)% RH
- Operating pressure
- (700 to 1,300) hPa
- Temperature influence – Zero point
- ≤±0.05 ppm
- Temperature influence – Sensitivity
- ≤±5% of measured value
- Humidity influence – Zero point
- No effect
- Humidity influence – Sensitivity
- ≤±0.4% of measured value/%RH
- Test gas
- approx. 1 to 18 ppm Cl2
- Expected sensor life
- >2 years
- Guaranty
- 1 year
- Plug&Play
- no
- Replaceable
- yes
