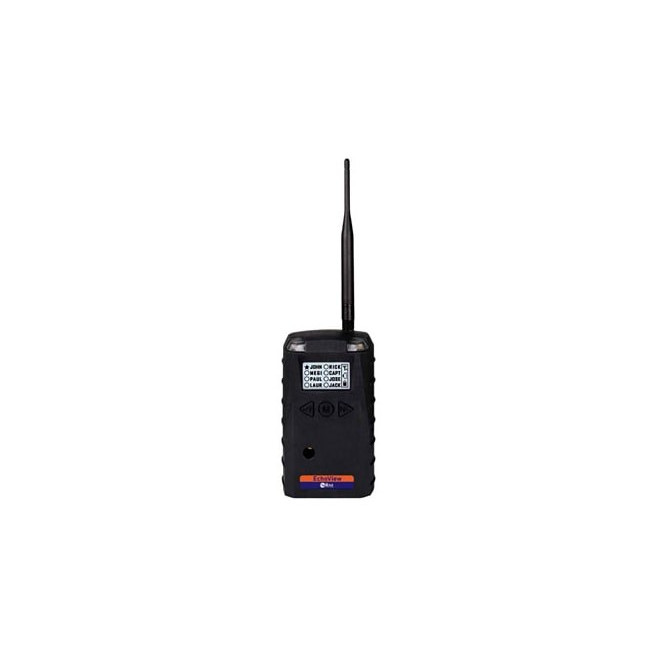

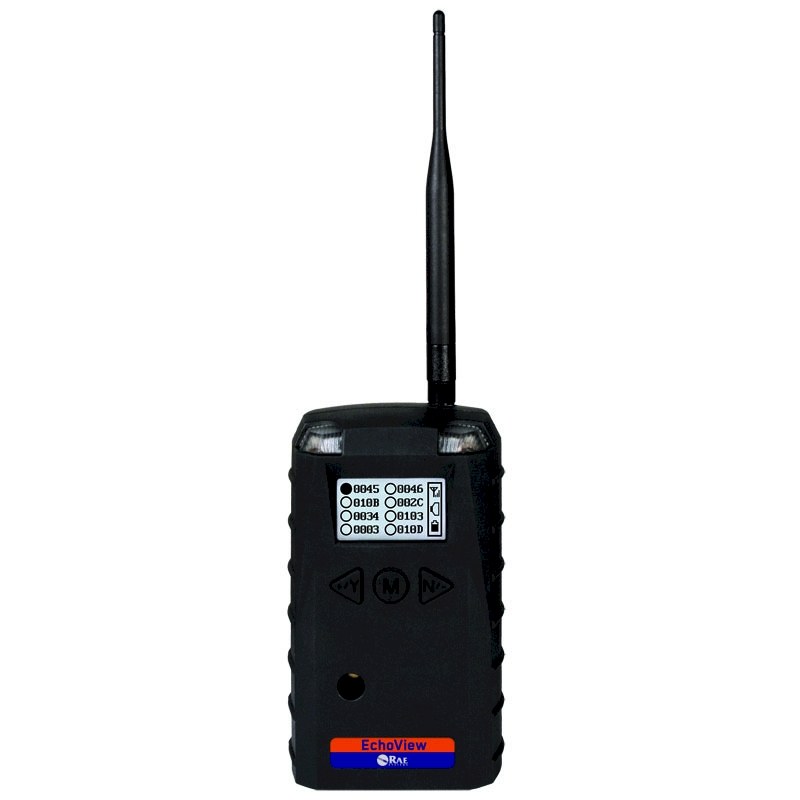

EchoView Host
The Honeywell EchoView Host is a wireless mini-controller that manages up to 8 portable gas monitors with remote alarm notifications for hazardous work environments.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- IP Rating
- IP-65
- Weight
- 1.3 lbs (0.6 kg)
- Warranty
- 1 year
Overview

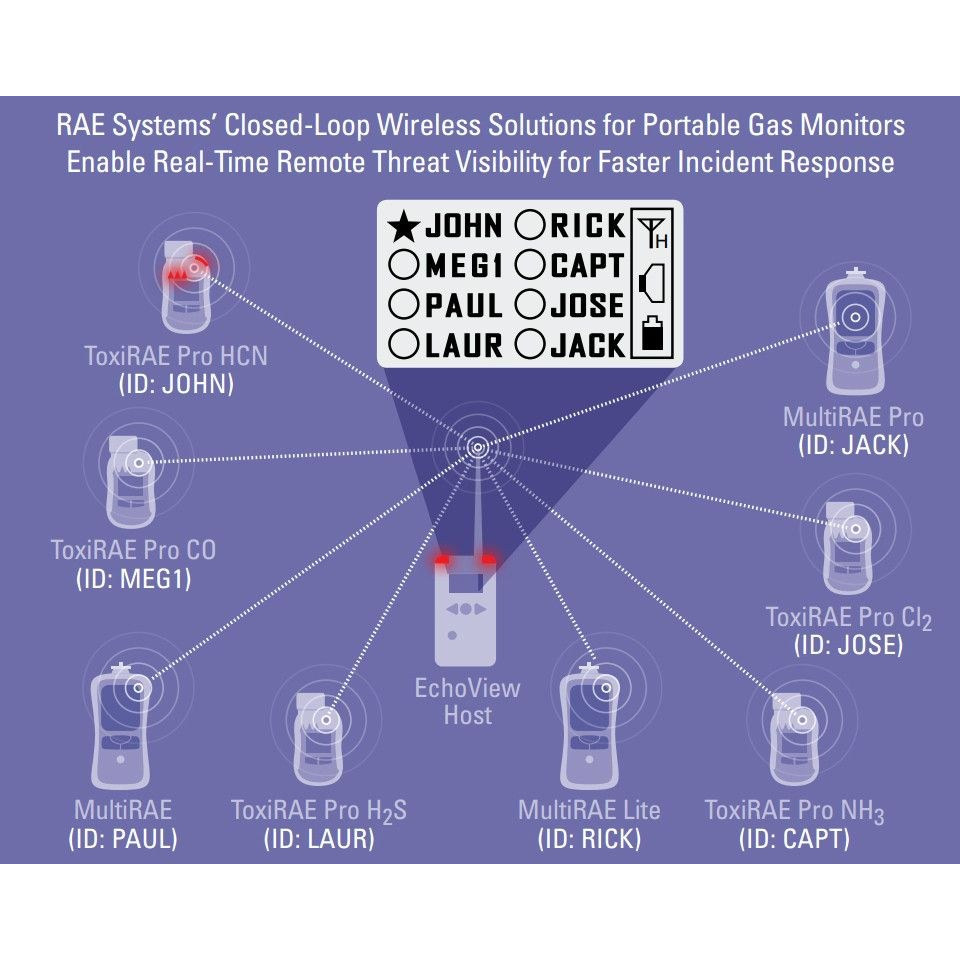

The EchoView Host is a mini-controller that creates a self-contained intelligent wireless network supporting up to 8 portable gas monitors. Features an easy-to-read backlit LCD display for customizable device names and real-time readings. Provides immediate remote notification of alarm conditions with bright-red high-visibility alarm lights and loud 90dB audible alarm. IP-65 rated for water and dust protection with field-replaceable lithium battery providing 10-day runtime. Communication range extendable to 0.6 miles with Mesh Routers. Supports ToxiRAE Pro, QRAE 3, and MultiRAE wireless portable gas monitors. Intrinsically safe for Class I, Division 1 hazardous environments.
- Creates a self-contained intelligent wireless network that supports up to 8 monitors
- Communication range extendable to 0.6 mi (1 km) with Mesh Routers
- Field-replaceable battery with a 10-day runtime
- IP-65 water and dust ingress protection rating
- Bright-red high-visibility alarm lights
- Highly-resistant to electromagnetic and radio interference
- Loud audible alarm, 90dB @ 30cm
- Remote wireless access to real-time readings and alarm status of portable gas monitors for faster incident response
- Intrinsically safe for Class I, Division 1 hazardous environments
Specifications
| Performance | |
| Visual Alarm | 2 super-bright red LED lights |
| Audible Alarm | 90dB @ 30cm |
| Display | Backlit LCD (1" x 1.5" / 72mm x 108mm) |
| Power | |
| Power Supply | Disposable Lithium battery |
| Physical | |
| Size | 10.5" L x 3.7" W x 2.1" H (26.5 cm x 9.5 cm x 5.5 cm) |
| Weight | 1.3 lbs (0.6 kg) |
| Connectivity | |
| Wireless Network | RAE Systems Dedicated Wireless Network |
| Wireless Range (Typical) | 990 feet (300 meters) - EchoView to Mesh Router; 660 feet (200 meters) - EchoView to ToxiRAE Pro, QRAE 3 and Multi-RAE |
| Wireless Frequency | ISM license free band, IEEE 802.15.4 Sub 1GHz |
| Approvals & Warranty | |
| IP Rating | IP-65 |
| Safety Certifications | US and Canada: Class I, Division 1, Groups A, B, C and D, T4; Europe: ATEX IM1/II 1G Ex ia I/IIC T4; IECEx Ex ia I/IIC T4 |
| Warranty | 1 year |
| Wireless Approvals | FCC Part 15, CE R&TTE, Others |
| Other | |
| Keypad | Three operation and programming keys |
| Operating Time | 10 days, 24/7 |
| Operating Temperature | -4° to 122° F (-20° to +50° C) |
| Humidity | 10% to 90% relative humidity, non-condensing |
| Radio Module | Supports RM900 |
