FLIR FirstLook
Throwable reconnaissance robot · 110 & 125
A throwable, rugged robot that goes in first. FirstLook is built to be thrown or dropped into a structure, right itself when flipped over, and send back what it sees and hears before anyone enters. Two models: the FirstLook 110, an expandable robot controlled from the uPoint® Multi-Robot Control system, and the FirstLook 125, a throwable, personal reconnaissance robot with HD and thermal cameras.

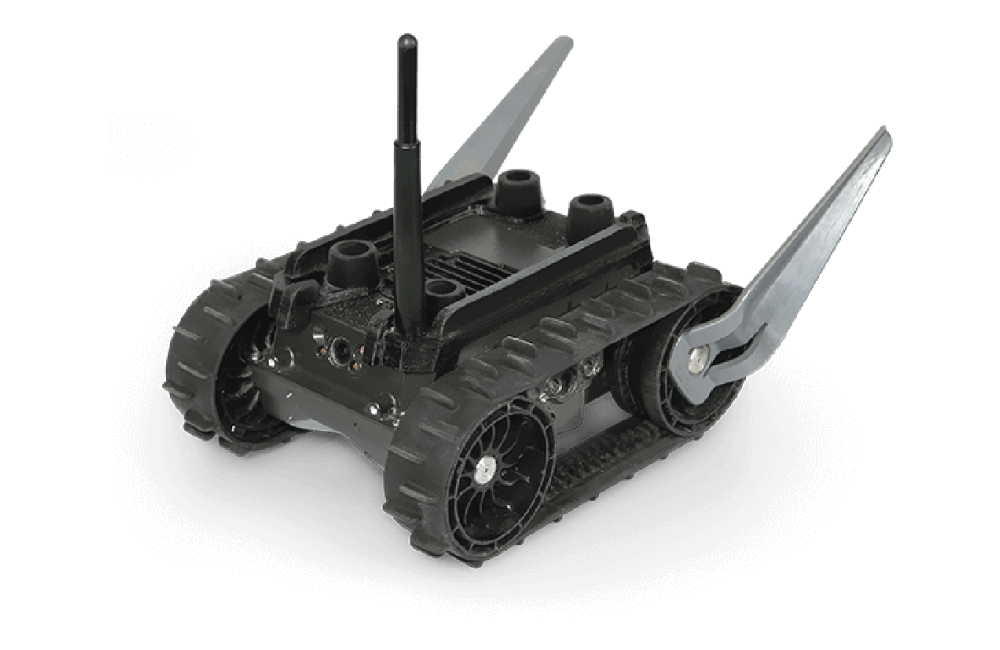

Shown: FirstLook 125
Throw it. Look before you go in.
FirstLook is made to go where other robots can’t fit or maneuver, and to report back first. The 110 is quick to power-up and can be deployed in a moment’s notice; the 125 is engineered for tactical deployment through windows, doorways, and confined spaces. Here is the sequence.
- 01
Throw
125Throwable distance of 32.8 ft (10 m), for deployment through windows, doorways, and confined spaces. 110Can be inserted into structures to provide feedback before entry.
- 02
Land & self-right
The 110 survives 16 ft (5 m) drops onto concrete; the 125 is engineered to sustain 16 ft (5 m) drops and self right instantly to remain mission ready.
- 03
Move

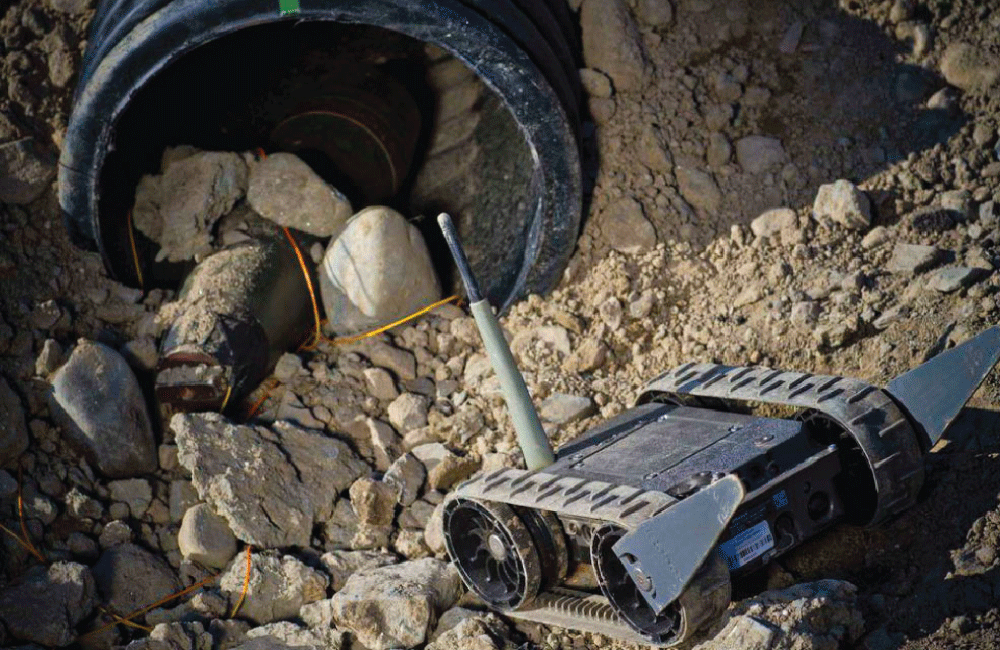

Zero radius turn and 30° slopes on both. Obstacles up to 7” (17.8 cm) (110) or 6” (15.2 cm) (125). The 110 overcomes curbs; the 125’s articulated flippers push through debris.
- 04
Look & listen
110Visual, audio, and sensor feedback before entry. 125Real time visual, thermal, and audio situational awareness, with two way audio.
FirstLook 110 vs 125
Same idea, different emphasis. The 110 is the expandable one: payload ports, a manipulator option and optional CBRN/HazMat sensors. The 125 is the lighter, faster personal reconnaissance robot with 360° HD cameras, front and rear thermal cameras and a user replaceable battery.
- Building clearing
- Close-in scenarios
- CBRN/ HazMat detection
- Surveillance/ reconnaissance
- Remote inspection
- Dismounted and mobile operations
- Intelligence, surveillance and reconnaissance (ISR)
- Confined space operations
- Subterranean operations
- Building clearing
— = not specified for that model.
Throwable, rugged, expandable.
FirstLook is a throwable, rugged and expandable robot that provides immediate situational awareness, performs persistent observation and investigates dangerous and hazardous material while maintaining a safer stand-off distance for operators.
- 01
Throwable, rugged, and maneuverable
Weighing 6.6 lb (3 kg), FirstLook survives 16 ft (5 m) drops onto concrete.
- 02
Highly maneuverable

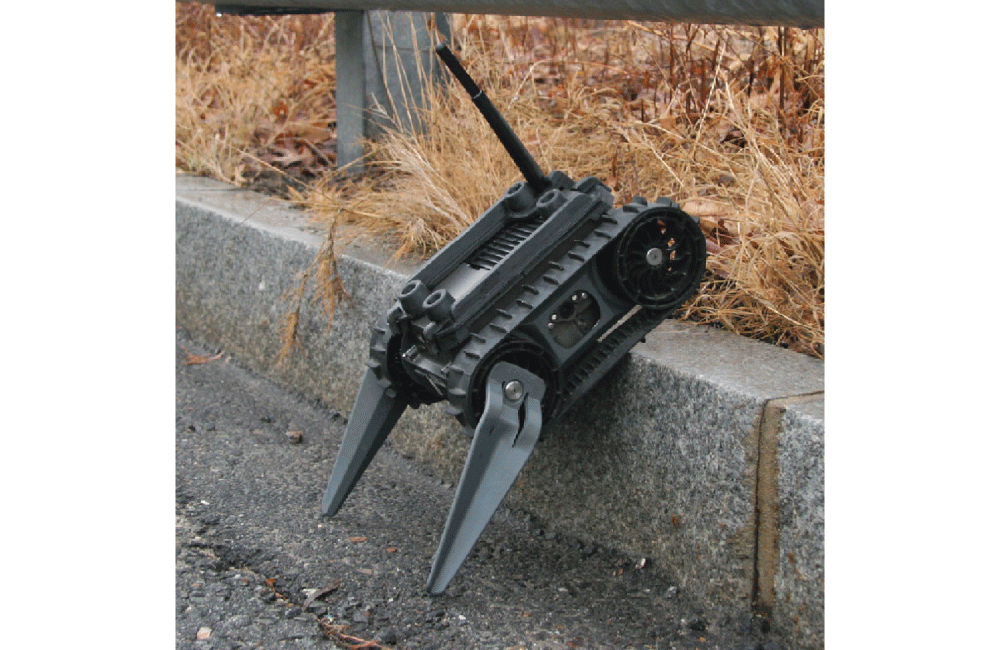

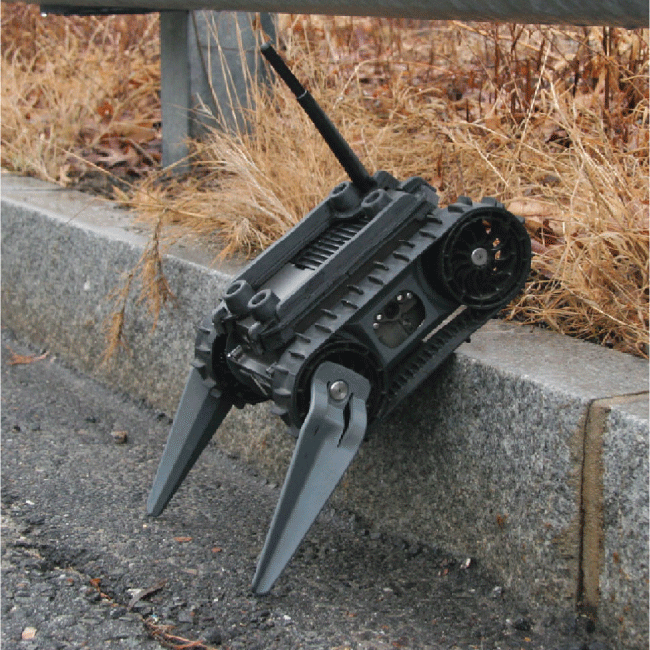

FirstLook climbs obstacles up to 7” (17.8 cm) high, overcomes curbs, turns in place and self-rights when flipped over.
- 03
Multi-sensor capability
Audio capability is integrated into FirstLook. Optional CBRN/ HazMat sensors available.
- 04
uPoint® Multi-Robot Control System
Using the touchscreen-based ruggedized tablet controller, an operator can select from across the family of connected robots.
- 05
Superior communications
The MPU5 radio operating on the Wave Relay® MANET allows the robot to penetrate deeper into complex structures and further downrange.
110 accessories
The FirstLook 110 has multiple payload ports. These are the available accessories; ask us about configuring a 110 for your mission.
Integrated Deployment and Camera (IDAC)
Remote payload deployment platform with fixed camera with white light LED.

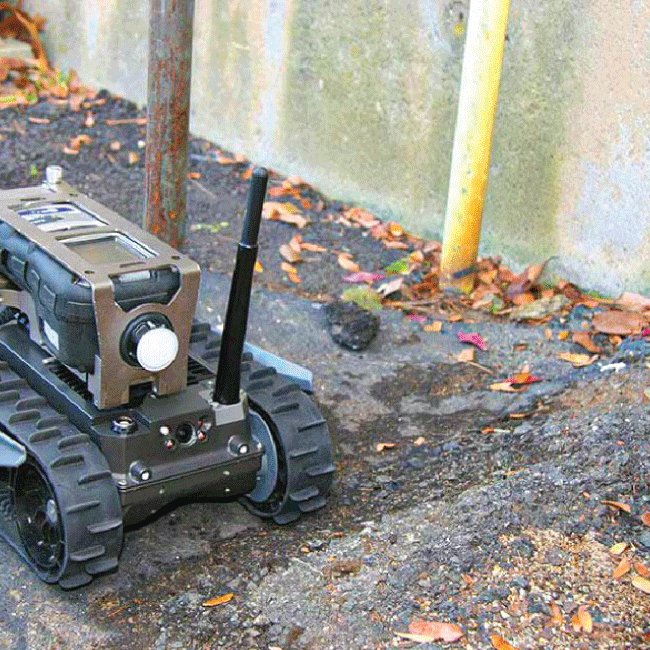

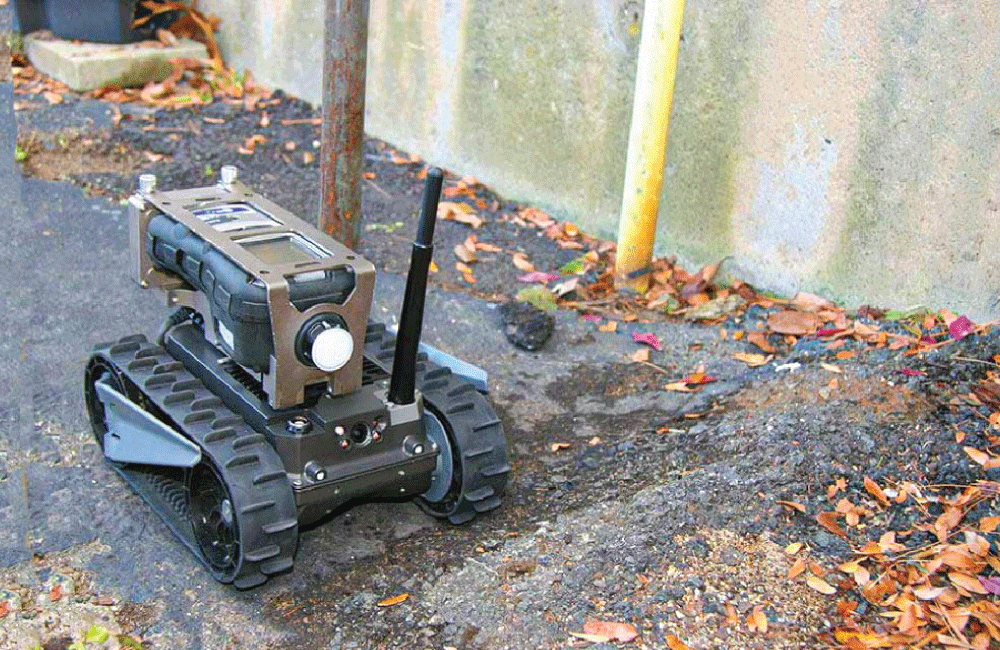

RAE Systems MultiRae Pro Sensor
Multi-threat monitor for VOC, O2, LEL, H2S, and CO detection. Available as a sensor accessory.
MultiRAE Pro listingBoson® LWIR thermal camera
Boson® longwave infrared (LWIR) thermal camera – Boson 640, 42mm, 18° FOV and Boson 640, 4.9mm, 95° FOV.

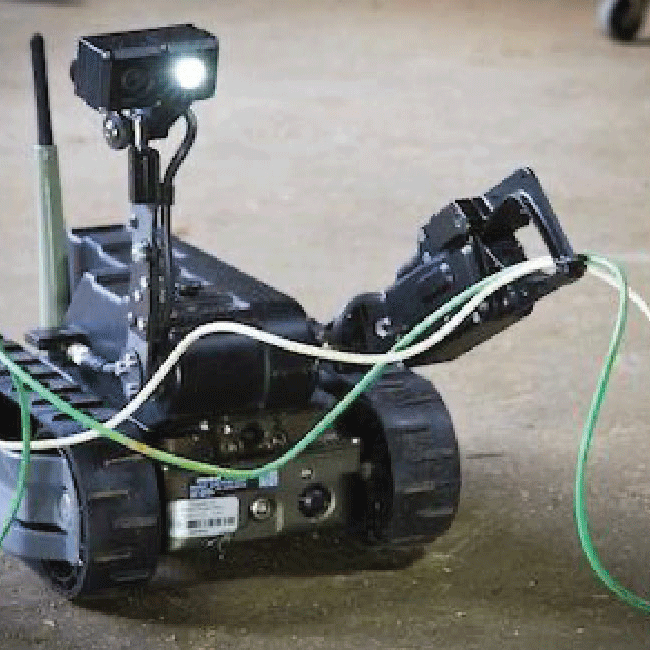

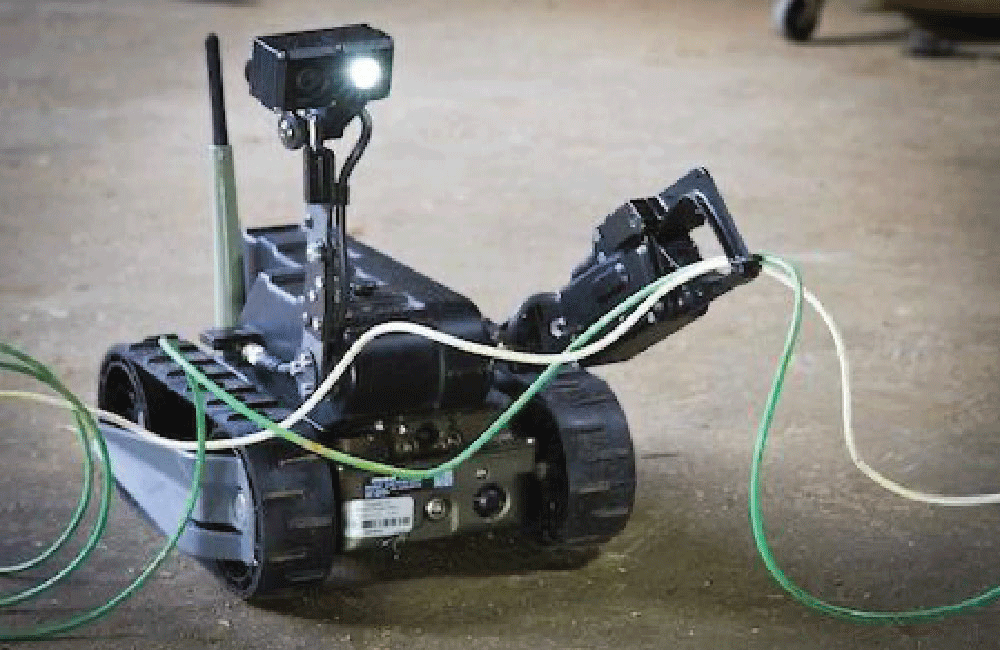

Small Lightweight Manipulator (SLM)
Max lift capacity of 3.5 lb (1.6 kg). Optional manipulator weight: 3.7 lb (1.7 kg).
Also available: a Consumables Kit that includes robot antenna, tracks, wheels, flippers, and more.
FirstLook 110 applications
- Building clearing
- Close-in scenarios
- CBRN/ HazMat detection
- Surveillance/ reconnaissance
- Remote inspection
Personal reconnaissance, day or night.
Built for real world abuse, FirstLook 125 is a lightweight 5.7 lb (2.6 kg) robot engineered to sustain 16 ft (5 m) drops and self right instantly. Its enhanced EO/IR camera suite, integrated illumination, and two way audio provide situational awareness in low light, GPS denied, and cluttered environments.
- 01
Lightweight, man portable design
Purpose built for single operator carry, enabling rapid deployment and sustained dismounted operations without degrading mobility or endurance.
- 02
Throwable and droppable
Engineered for tactical deployment through windows, doorways, and confined spaces, allowing immediate emplacement without compromising sensing, mobility, or system survivability.
- 03
Highly mobile

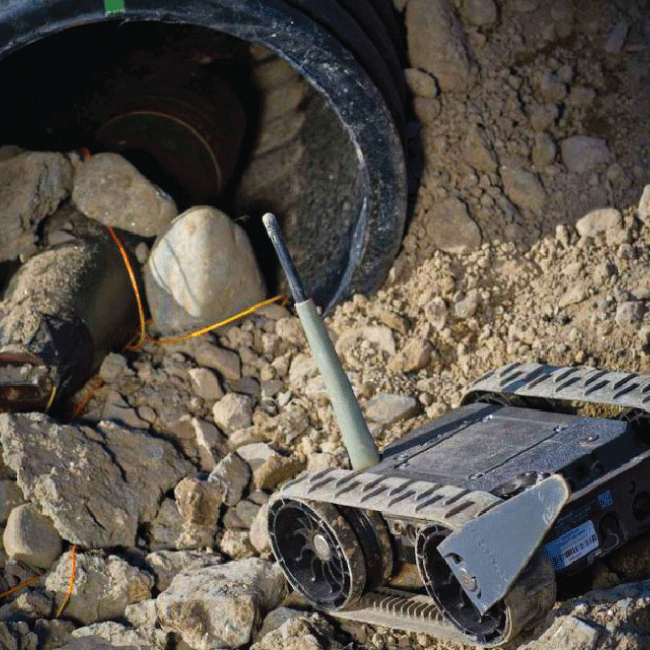

Advanced tracked mobility optimized for stairwells, rubble, and uneven terrain, delivering stable, reliable movement in complex environments.
- 04
Integrated day/night ISR with secure, real time link
Visible and infrared imaging provides continuous situational awareness, paired with encrypted, low latency video and control links for immediate operator decision making.
- 05
Controller compatibility
The single handed tactile device combines an intuitive design with an analog pan/tilt joystick and throttle control, enabling confident, gloved operation in fast moving environments. Compatible with FirstLook 125 and Black Hornet® 4.
Reach further on the ground or in the air
Extend your range on the ground with another FirstLook or in the air with a Black Hornet 4.
The 125 is interoperable with Black Hornet 4, ATAK and Nett Warrior.
FirstLook 125 applications
- Dismounted and mobile operations
- ISR
- Confined space operations
- Subterranean operations
- Building clearing
Spec sheets
Pick a model.
| Physical | |
|---|---|
| Weight – mobility platform | 6.6 lb (3 kg) (including integrated battery) |
| Weight – optional manipulator | 3.7 lb (1.7 kg) |
| Runtime | 6-8 hours |
| Mobility | |
| Speed | Up to 2.7 mph (4.3 km/h) |
| Agility | Zero radius turn |
| Slopes | 30° (ascend, descend and lateral) |
| Vertical obstacles | 7” (17.8 cm) |
| Drops | Survives 16 ft (5 m) drops onto concrete |
| Awareness | |
| Cameras | Four (4) fixed-focus Near infrared (NIR) cameras |
| Audio | Audio |
| Sensors | Optional CBRN/ HazMat sensors available |
| Payload | |
| Optional manipulator lift | 3.5 lb (1.6 kg) |
| Expansion | Multiple payload ports |
| Control & communications | |
| Controller | uPoint® Multi-Robot Control System |
| Radio | MPU5 radio operating on the Wave Relay® MANET |
| Compatible | Connects to the Wave Relay® MANET, to form a robust network in which robots, operators, and observers seamlessly operate together. |
| Compliance | |
| Export regulations | EAR |
| Physical | |
|---|---|
| Weight | 5.7 lbs. (2.6 kg) |
| Runtime | Up to 5 hours (User replaceable battery) |
| Mobility | |
| Speed | 6.2 mph (10 km/hr) |
| Agility | Zero radius turn |
| Slopes | 30° |
| Obstacles | 6” (15.2 cm) |
| Ruggedness | |
| Throwable distance | 32.8 ft (10 m) |
| Drops | Engineered to sustain 16 ft (5 m) drops |
| Environmental | IP-67 |
| Awareness | |
| Cameras | HD Cameras (360° Coverage) Thermal Cameras (Front and Rear) |
| Audio | Two-way Audio |
| Illumination | White Light NIR |
| Control & interoperability | |
| Controller | Chest mounted ruggedized EUD Single-handed tactile device |
| Interoperability | Black Hornet 4 ATAK Nett Warrior |
| Expansion | Payload port |
| Accessories for the FirstLook 110 | |
|---|---|
| IDAC | Integrated Deployment and Camera (IDAC) - remote payload deployment platform with fixed camera with white light LED. |
| Gas sensor | RAE Systems MultiRae Pro Sensor - multi-threat monitor for VOC, O2, LEL, H2S, and CO detection. |
| Thermal camera | Boson® longwave infrared (LWIR) thermal camera – Boson 640, 42mm, 18° FOV and Boson 640, 4.9mm, 95° FOV |
| Manipulator | Small Lightweight Manipulator (SLM) - max lift capacity of 3.5 lb (1.6 kg). |
| Consumables | Consumables Kit - includes robot antenna, tracks, wheels, flippers, and more. |
This product is subject to United States export regulations and may require US authorization prior to export, reexport, or transfer to non-US persons or parties. Diversion contrary to US law is prohibited.
Datasheets & next steps
Common questions
What is the difference between the FirstLook 110 and the FirstLook 125?
How far can FirstLook be thrown or dropped?
Can FirstLook carry gas or HazMat sensors?
How is each model controlled?
Does the FirstLook 125 work with the Black Hornet 4?
Is FirstLook weatherproof?
Are there export restrictions?
