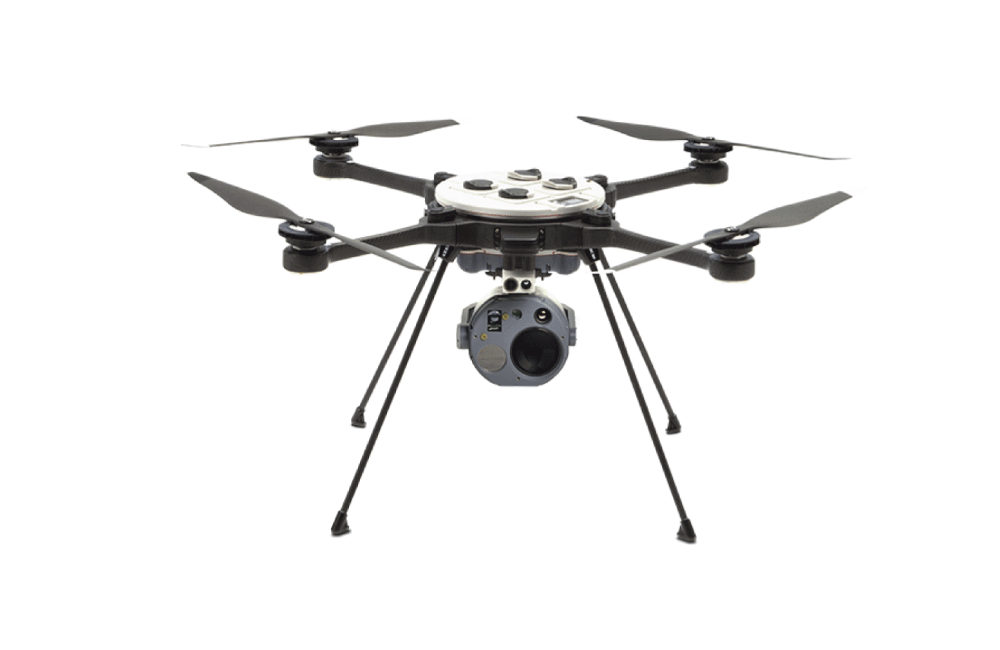

Developed for U.S. Defense and Federal Government customers, the R80D SkyRaider delivers versatile Group 2-3 payload capabilities with the agility and single-operator deployment footprint of a proven Group 1 VTOL aircraft. It carries and delivers multiple payloads up to 7.7 lbs on an open architecture, with embedded artificial intelligence (AI) computing on board.
From the manufacturer“Developed exclusively for U.S. DOD and Federal Agencies
operating the R80D, RaiderOS adds enhanced communication channels designed to keep pace with both evolving mission requirements and cybersecurity threats.”
Teledyne FLIR
Contact FarrWest to discuss eligibility · 210.566.1857
Hot-swappable Teledyne FLIR imaging payloads by role. Two of them have their own listing on farrwest.com.
Continuous zoom LWIR imaging, listed in both the Day Imager and Night Imager roles. The StormCaster family’s modularity facilitates rapid interchange of payloads across SkyRanger R70 and R80D SkyRaider platforms.
A multi-sensor imaging payload, flexible for day and night-time operations, listed in both the Day Imager and Night Imager roles.
Video carries Embedded STANAG 4609 KLV metadata. The HD40-XV is also a compatible Day Imager (see Specifications). Third-party payloads are covered in separate manufacturer materials; custom payloads are supported through the Payload Development Kit (PDK).
The R80D’s expanded carrying capacity, open payload architecture, and dynamic and responsive flight control provide an unprecedented level of flexibility in a single sUAS. Here is how the pieces connect.

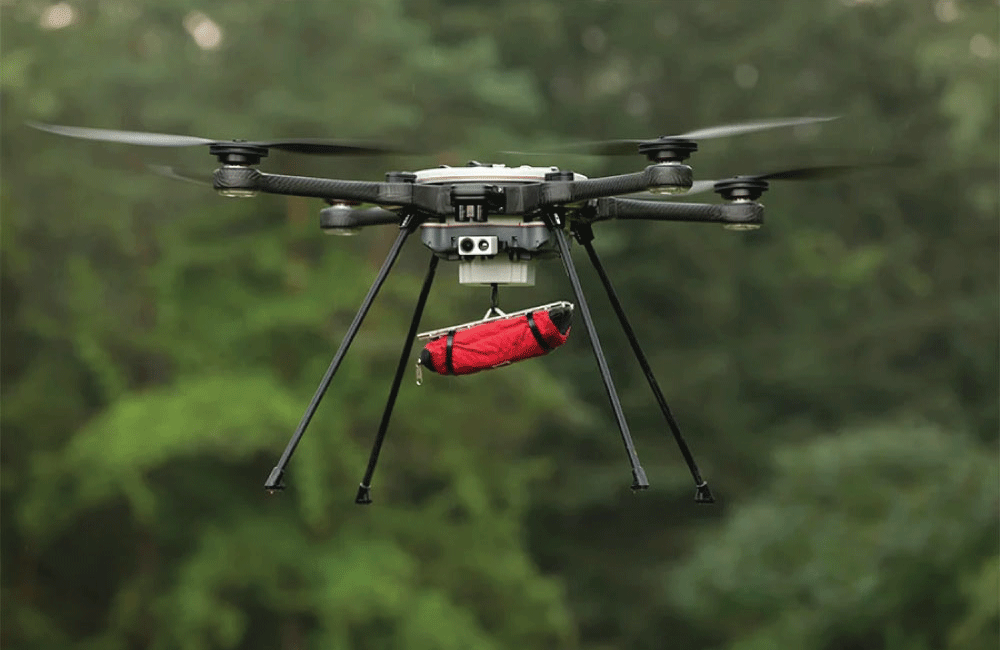

With prop and motor updates, R80D operators can attach and deliver nearly any object up to 7.7 lbs (3.5 kg). The updated EO/IR Frontcam (320x240 LWIR, 1080p EO) provides domain awareness while carrying bottom-mounted, non-camera payloads.
StormCaster-T, EO/IR MK-II and HD40-XV are compatible Teledyne FLIR imaging payloads.
The Payload Development Kit (PDK), supporting payloads up to 7.7lbs, allows end users and integrators to expand the capability set of their aircraft.
The latest R80D airframe includes a ruggedized connector providing access to aircraft power and communication networks, for persistent operations with the Tether Kit.
View Tether KitA rear-mount accessory port for Teledyne FLIR and 3rd party capabilities. The Unmanned Development Kits (UDK) let end users integrate custom payloads and sensors, integrate C2 and deploy custom applications on UAS hardware.
Teledyne FLIR describes the R80D as a flying supercomputer: multiple embedded NVIDIA processors run real-time artificial intelligence on the aircraft itself, so it can keep working when GPS or the command link is not available.
Upgraded to max available HD resolution on the latest R80D airframe, alongside the EO/IR Frontcam (320x240 LWIR, 1080p EO).
An engine for real-time artificial intelligence at the network edge.
The EO/IR Frontcam (320x240 LWIR, 1080p EO) can provide over 210° of simultaneous fore and aft situational awareness surveillance, and benefits from Teledyne FLIR’s integrated suite of AI tools and image analytics in both EO and IR.
The R80D is able to execute semi-autonomous missions without an active command link for operations in RF-denied environments, backed by a robust digital MIMO communications link and two independent navigation subsystems.
RaiderOS employs enhanced cybersecurity measures to bolster operational security and adds enhanced communication channels for agencies operating the R80D.
Specialized hardware and software support the unique needs of U.S. DoD and Federal Government users, including proprietary hardware and software interfaces and ATAK/Nett Warrior integration.
A carbon fiber and magnesium airframe tested to IP-54 and military standards, tested to withstand sustained winds and to operate up to 15,000’ MSL.
56mph gusting (65kph, 90kph)
Operate up to 15,000’ MSL
(-20°C to 50°C)
Tested to IP-54 and military standards
Over 40 minutes with standard propulsion system · Tether Kit available
Ground speed · Max ascent 13ft/s (4m/s) · Max descent 9ft/s (3m/s)
(8km) with standard base station · 915Mhz, 922Mhz, 2.2Ghz + other frequencies and waveforms
The FLIR SkyRanger R70 shares the StormCaster-T payload and the Tether Kit with the R80D.
View SkyRanger R70| Physical | |
|---|---|
| Height | 17.7in (45cm) |
| Total length | 53in (1.35m)Propeller tip to propeller tip |
| Weight | 11 lbs (5kg) |
| Performance | |
| Typical endurance |
|
| Max. speed |
|
| Compatible Teledyne FLIR payloads | |
|---|---|
| Hot-swappable | Yes |
| Custom | Supported through the Payload Development Kit (PDK) |
| Carry, drop, emplace | Osprey: Up to 7.7lbs (3.5kg) |
| Imagers | |
| Day imager | StormCaster-T, EO/IR MK-II, HD40-XV |
| Night imager | StormCaster-T, EO/IR MK-II |
| Third party payloads | (See separate materials) |
| Image stills | |
|---|---|
| StormCaster-T | 640 x 512 pixels |
| EO/IR MK-II | 13 megapixels (4192 x 3104 pixels) / (640 x 512 pixels) |
| Zoom | |
| StormCaster-T | 5x optical, 15x digital |
| HD40-XV | 33x optical, 66x digital |
| EO/IR MK-II | 4x digital |
| Field of view | |
| StormCaster-T | 31° to 6° optical, 2° with digital zoom |
| EO/IR MK-II | 58° / 45° (13mm) or 32° (19mm) |
| Video | |
| StormCaster-T | 640 x 512 60 FPS, H.264 recorded |
| HD40-XV | 720p30 H.264 recorded |
| EO/IR MK-II | 640 x 512 / 8.33 FPS H.264 recorded |
| Video metadata | Embedded STANAG 4609 KLV metadata |
| Environment | |
|---|---|
| Temperature | -4°F to 122°F (-20°C to 50°C) |
| Wind | 40mph sustained, 56mph gusting (65kph, 90kph) |
| Precipitation | Tested to IP-54 and military standards |
| Data link | |
| Frequency | 915Mhz, 922Mhz, 2.2Ghz + other frequencies and waveforms |
| Radio range | Up to 5 miles (8km) with standard base station |
Applications, features and specifications.
Sibling platformThe R70 shares the StormCaster-T payload and Tether Kit with the R80D.
AccessoryContinuous aircraft operation for R70 & R80D, via the latest airframe’s ruggedized connector.
