The AEMC INSTRUMENTS Model 6471 is a portable digital ground resistance tester designed for measuring ground resistance, soil resistivity, and bond connections in electrical safety applications.

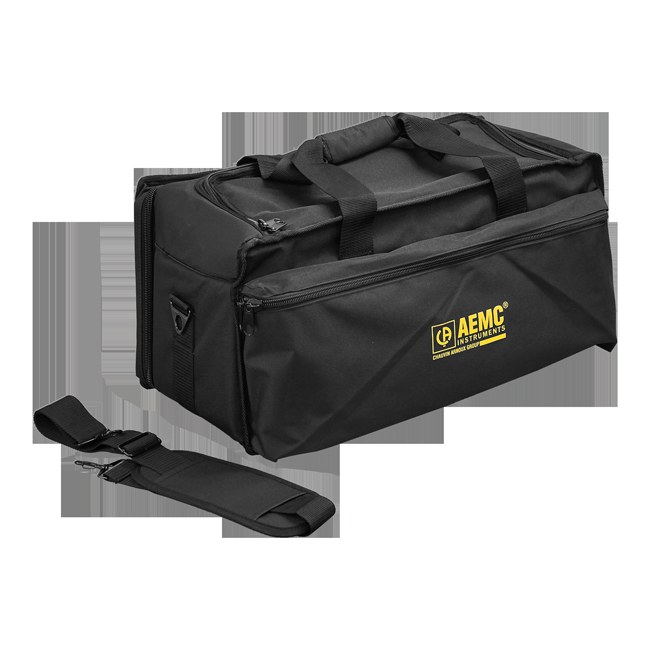

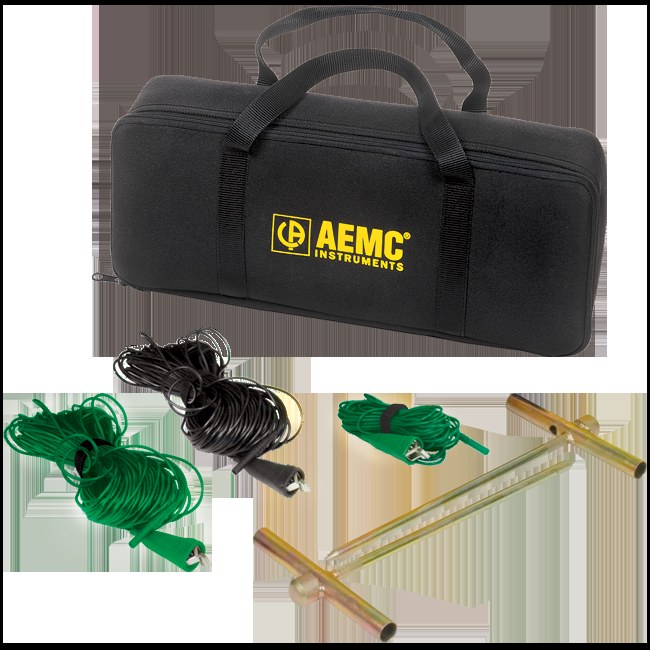

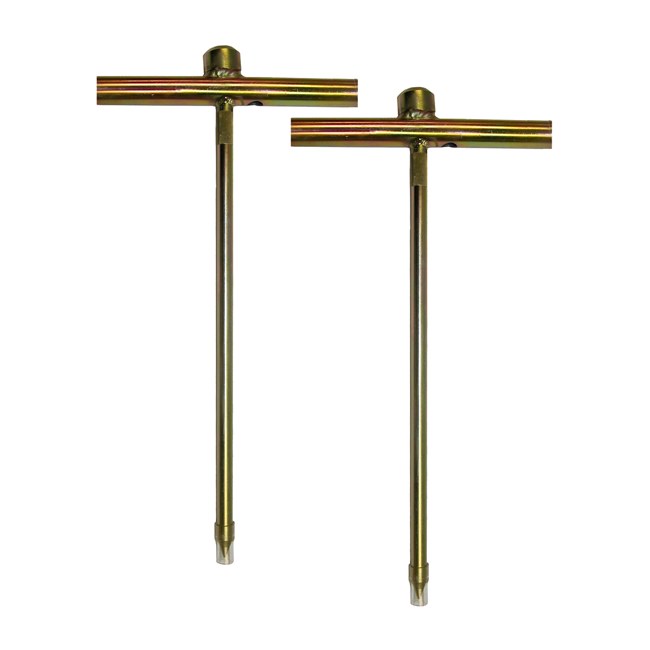

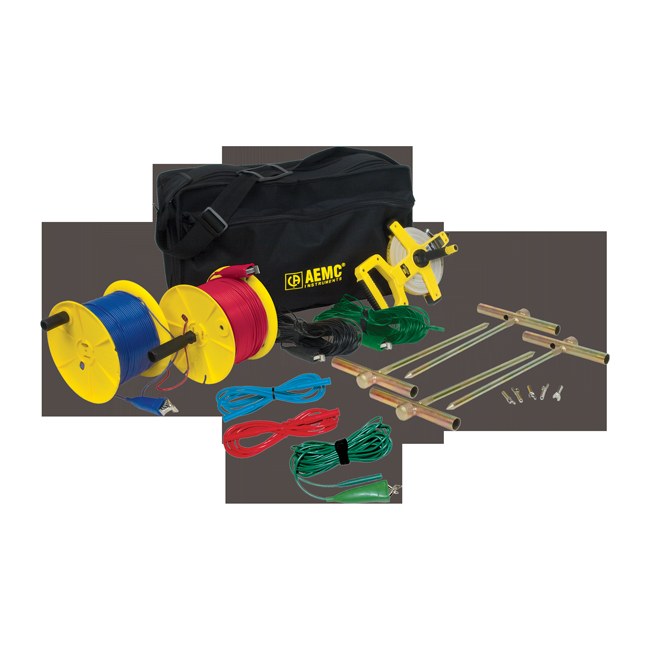

The Digital Ground Resistance Tester Model 6471 is a portable measurement instrument designed to measure ground resistance with 2 clamps (sold separately), no auxiliary rods required. Features include bond/connection resistance testing (2-pole and 4-pole Kelvin sensing), ground resistance measurement (3-pole or 4-pole), ground coupling resistance, selective ground resistance, and soil resistivity measurement using Wenner or Schlumberger methods. The meter features auto-ranging from 0.01 to 99.99kΩ, automatically optimizing measurement range, test frequency and test current. Includes carrying bag, power adapter, optical USB cable, rechargeable NiMH battery, and DataView software.
| Performance | |
| 4-Point Earth Resistance Measurement Range (Auto-Ranging) | 0.01 Ω to 99.99 kΩ |
| 4-Point Earth Resistance Measurement Resolution | (0.001 to 10) Ω |
| 4-Point Earth Resistance Measurement Accuracy | ±(2 % Reading +1 ct) |
| 4-Point Earth Resistance Measurement Test Current | Up to 250 mA |
| 3-Point Earth Resistance Measurement Range (Auto-Ranging) | 0.09 Ω to 99.9 kΩ |
| 3-Point Earth Resistance Measurement Resolution | (0.01 to 100) Ω |
| 3-Point Earth Resistance Measurement Accuracy | ±(2 % Reading +1 ct) |
| 3-Point Earth Resistance Measurement Test Current | Up to 250 mA |
| Soil Resistivity 4-Point Measurement Test method | Wenner or Schlumberger selectable with automatic calculation |
| Soil Resistivity 4-Point Measurement Range (Auto-Ranging) | 0.01 Ω to 99.9 kΩ; ρ max: 999 kΩm |
| Soil Resistivity 4-Point Measurement Resolution | (0.01 to 100) Ω |
| Soil Resistivity 4-Point Measurement Accuracy (Typical) | ±(2 % Reading +1 ct) |
| 2 Clamp Ground Measurement Range (Auto-Ranging) | (0.1 to 500) Ω |
| 2 Clamp Ground Measurement Resolution | (0.01 to 1) Ω |
| 2 Clamp Ground Measurement Frequency | Auto: 1611 Hz; Manual: 128 Hz-1367 Hz-1611 Hz-1758 Hz |
| DC Resistance Measurement 2-Pole Range (Auto-Ranging) | 0.12 Ω to 99.9 kΩ |
| DC Resistance Measurement 4-Pole Range (Auto-Ranging) | 0.020 Ω to 99.99 kΩ |
| DC Resistance Measurement 2-Pole Resolution | (0.01 to 100) Ω |
| DC Resistance Measurement 4-Pole Resolution | (0.001 to 10) Ω |
| DC Resistance Measurement Accuracy (Typical) | ±(2 % Reading +2 ct) |
| DC Resistance Measurement Test Current | Up to 250 mA |
| Current Measurement Range | 0.01 mA to 40 A, (16 to 400) Hz |
| Current Measurement Accuracy (Typical) | ±(3 % Reading +2 ct) typical |
| Power | |
| 4-Point Earth Resistance Measurement Test Voltage | (16 or 32) V; (41 to 513) Hz |
| 3-Point Earth Resistance Measurement Test Voltage | (16 or 32) V; (41 to 513) Hz |
| Soil Resistivity 4-Point Measurement Test Voltage | (16 or 32) V; (41 to 128) Hz selectable |
| DC Resistance Measurement Test Voltage | 16 V DC; (+, - or auto polarity) |
| External Voltage Measurement Range | (0.1 to 65) V AC/DC – DC, (15 to 440) Hz |
| External Voltage Measurement Accuracy | ±(2 % Reading +1 ct) |
| Power Source | 9.6 V rechargeable battery pack with external 110/220 V charger |
| Battery Life | 1500 tests typical in automatic mode |
| Physical | |
| Dimensions | (10.7 x 9.80 x 5.12) in (272 x 248 x 130) mm |
| Weight | 7 lb (3.2 kg) with battery |
| Connectivity | |
| Memory | 512 measurements (64 KB) |
| Approvals & Warranty | |
| Ingress Protection (IP) | IP 53 with cover closed |
| Safety Compliance | IEC 61010-1, EN 61557, 50 V CAT IV, Pollution Degree 2 |
| Other | |
| Communication | USB 2.0 optically isolated, DataView software included |
| Case | UL V0 Polypropylene |
| Operating Temperature | (32 to 113) °F (0 to +5) °C |
| Storage Temperature | (-40 to 158) °F (-40 to 70) °C |
| Relative Humidity | Up to 90 % RH |
| EMC | EN 61326-1 |
