True RMS power measurement
-
True InRush® current measurement
-
Harmonic analysis up to 25th harmonic
-
THD measurement (% fundamental and % rms)
-
AC, DC and AC+DC voltage measurement
-
AC and DC current measurement
-
Power factor measurement
-
Data logging up to 1000 points
-
Bluetooth connectivity
-
DataView software included
-
MIN/MAX/PEAK measurement functions
-
Relative (∆REL) measurement
-
Frequency measurement
-
Resistance measurement and continuity testing
-
Diode checking
-
1000 V CAT IV safety rating
-
IP54 ingress protection
-
One-handed operation with glove-friendly controls
-
60 mm jaw opening
Power Clamp-On Meter Model 607
$0.00
The AEMC INSTRUMENTS Power Clamp-On Meter Model 607 is a TRMS power measurement tool for electricians and technicians needing advanced diagnostics with harmonic analysis and data logging.

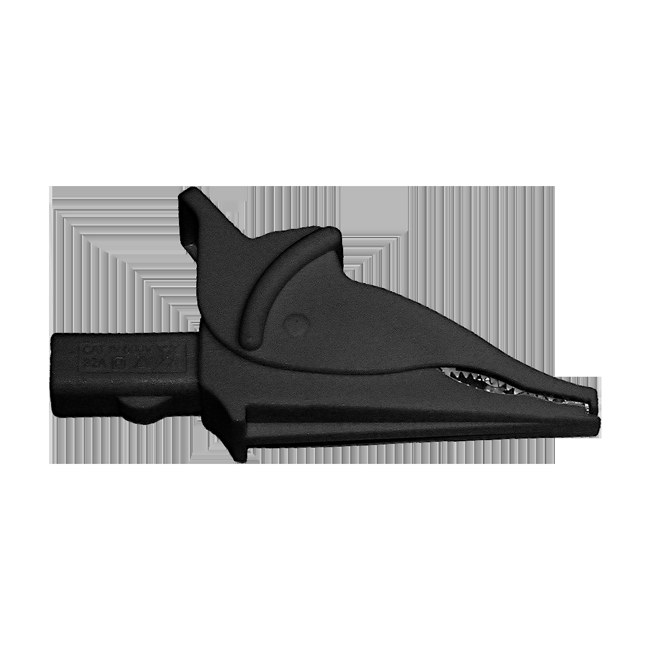

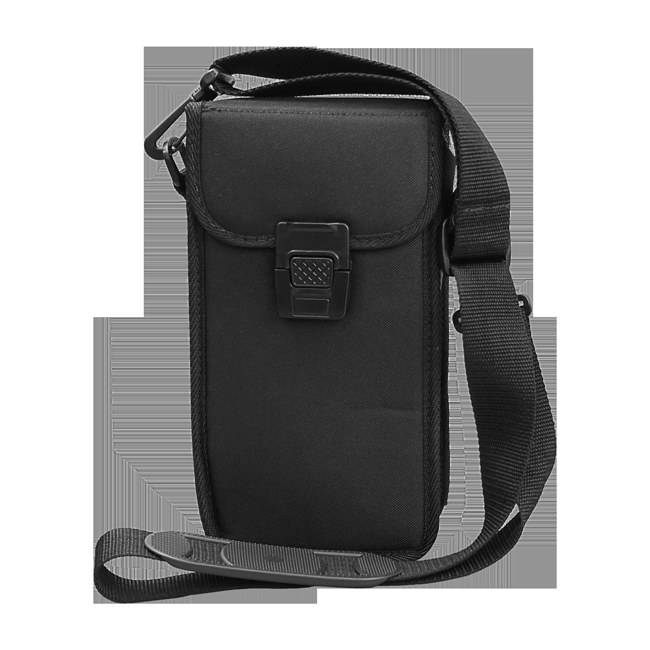

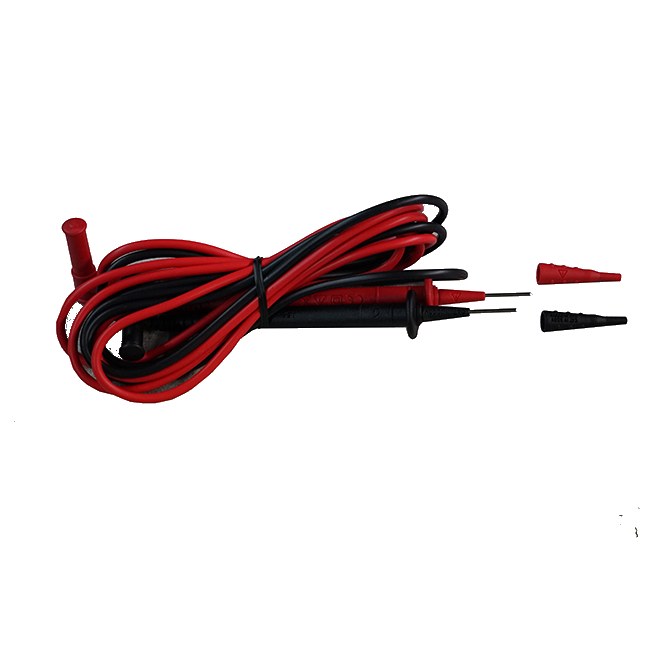

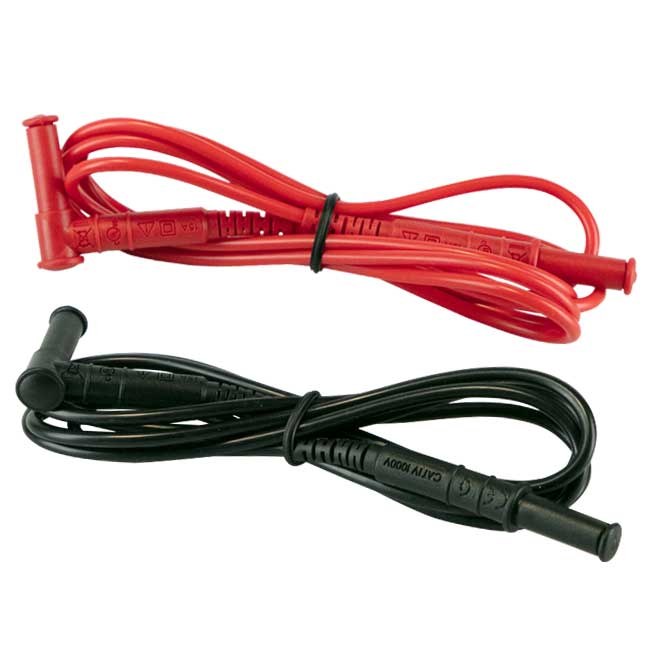

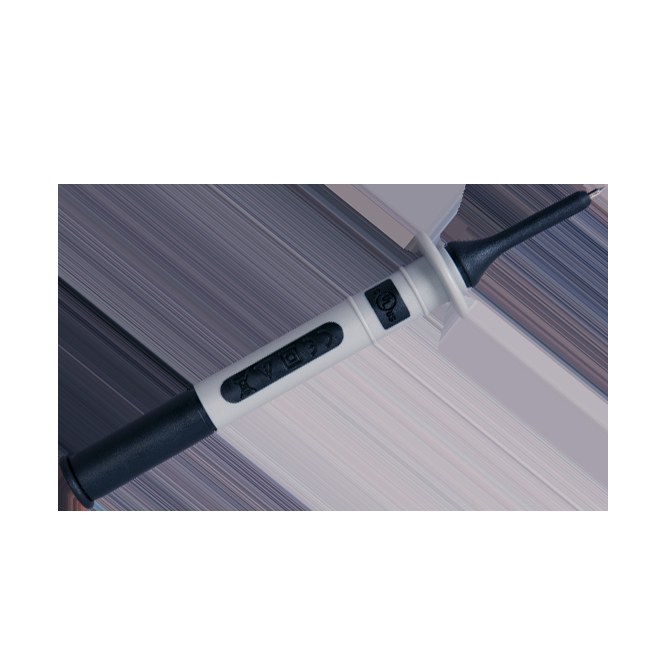

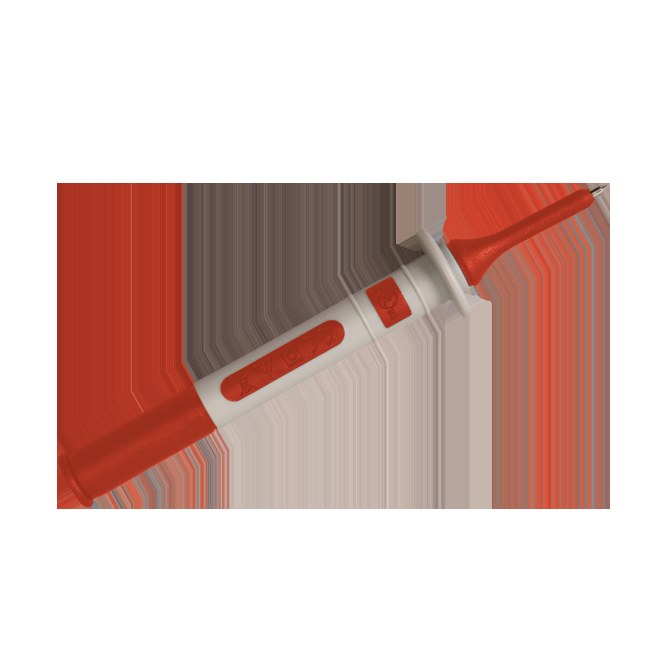

The TRMS Power Clamp-on Meter Model 607 provides advanced measurement capabilities with safety rating of 1000 V CAT IV, suitable for most electrical environments. Features IP54 rating for dust and water spray protection, ergonomic one-hand design with glove-friendly operation. Measures AC, DC, and AC+DC volts and amps; frequency; resistance; diode checking; continuity; True InRush; power measurements; harmonic analysis up to 25th; THD; power factor; MIN/MAX/PEAK measurements; data logging (up to 1000 points); and Bluetooth connectivity with DataView software. Includes hard carrying case, test leads, probes, alligator clips, Bluetooth USB adapter, batteries, and software.
Description
Power Clamp-On Meter Model 607
The TRMS Power Clamp-on Meter Model 607 provides advanced measurement capabilities with safety rating of 1000 V CAT IV, suitable for most electrical environments. Features IP54 rating for dust and water spray protection, ergonomic one-hand design with glove-friendly operation. Measures AC, DC, and AC+DC volts and amps; frequency; resistance; diode checking; continuity; True InRush; power measurements; harmonic analysis up to 25th; THD; power factor; MIN/MAX/PEAK measurements; data logging (up to 1000 points); and Bluetooth connectivity with DataView software. Includes hard carrying case, test leads, probes, alligator clips, Bluetooth USB adapter, batteries, and software.
Features
Specifications
- Voltage Range
- 1000 Vrms AC/DC / AC+DC Autoranging
- Resolution Max (Voltage)
- 0.01 V
- Current Range
- 2000 Arms AC, 3000 ADC
- Resolution Max (Current)
- 0.01 A
- Accuracy V Typical
- 1 % ± 3 cts
- Accuracy A Typical
- 1 % ± 3 cts
- True InRush®
- (20 to 2000) AAC, (20 to 3000) ADC
- Power Measurement Max
- 2 MW AC, 3 MW DC
- Harmonics
- Up to 25th
- THD
- Yes, % f and % r
- Continuity
- Selectable from (0 to 999.9) Ω
- Resistance
- 100 kΩ
- Frequency
- 20 kHz in V, 1 kHz in A
- Power Factor
- Yes
- MIN/MAX/PEAK-/PEAK+
- Yes
- ∆REL
- Yes
- Recording
- Yes, up to 1000 points (160 h at 10 min intervals)
- Communication
- Bluetooth
- Software
- Yes, DataView included
- Power Source
- (4) AA, NEDA 15 A, IEC LR6
- Battery Life
- > 350 h
- Dimensions
- (10.7 x 3.6 x 1.6) in (272 x 92 x 41) mm
- Weight
- 1.4 lbs (640 g) with batteries
- Jaw Opening
- 2.36 in (60 mm)
- Operating Temperature
- (-4 to 131) °F (-20 to 55) °C
- Storage Temperature
- (-40 to 158) °F (-40 to 70) °C
- Operating Humidity
- 90 % up to 131 °F (55 °C)
- Pollution Degree
- 2
- Ingress Protection
- IP54
- EMC
- EN61326-1
- Safety Compliance
- EN/IEC 61010-1 to 1000 V CAT IV; EN/IEC 61010-2-030:2010; EN/IEC 61010-032:2002
