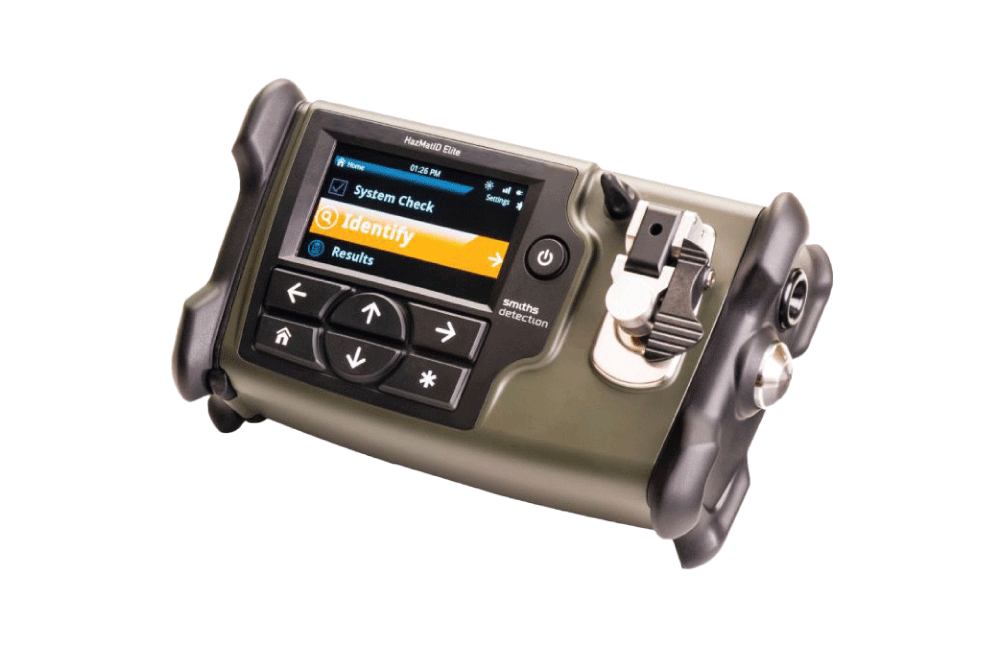

HazMatID Elite Handheld Chemical Identifier – Smiths Detection

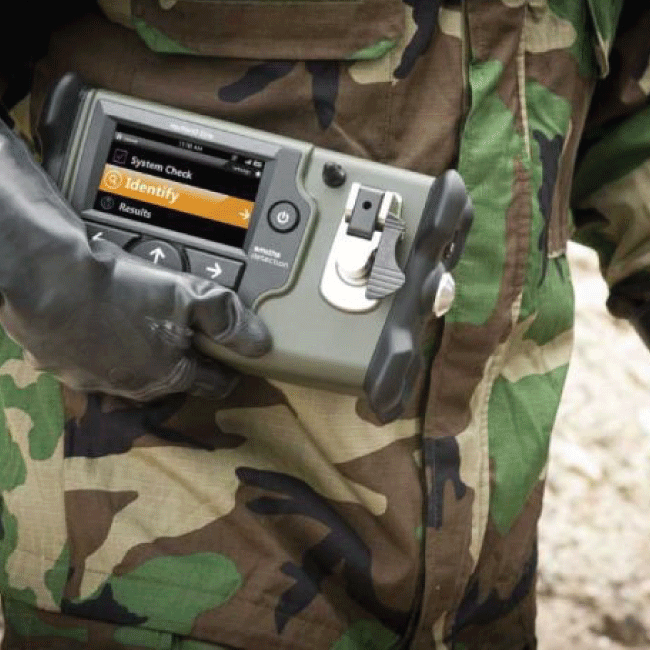

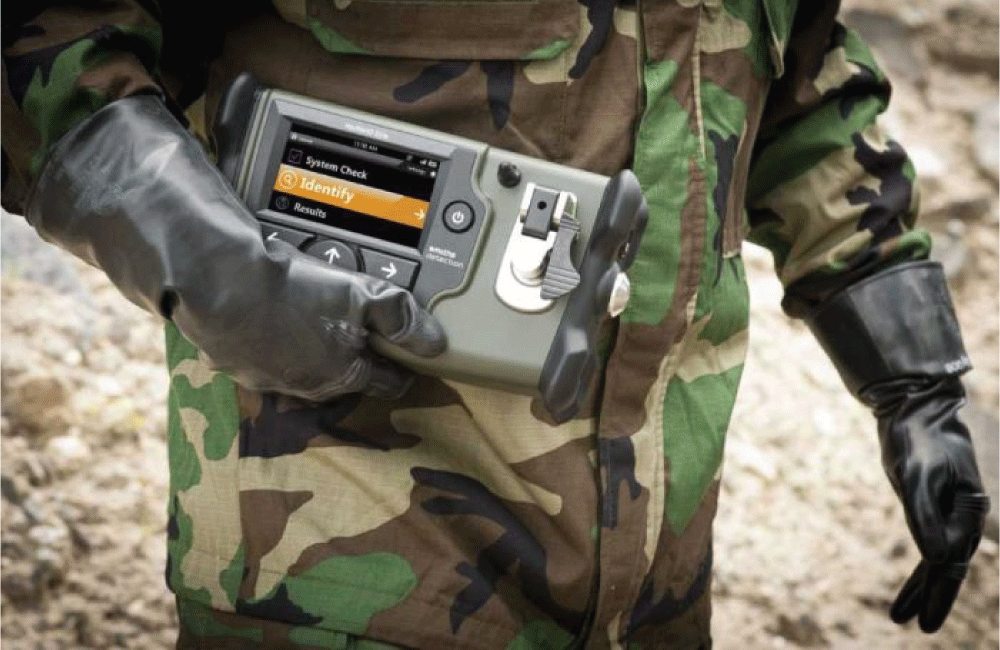

HazMatID Elite Handheld Chemical Identifier – Smiths Detection — view 2

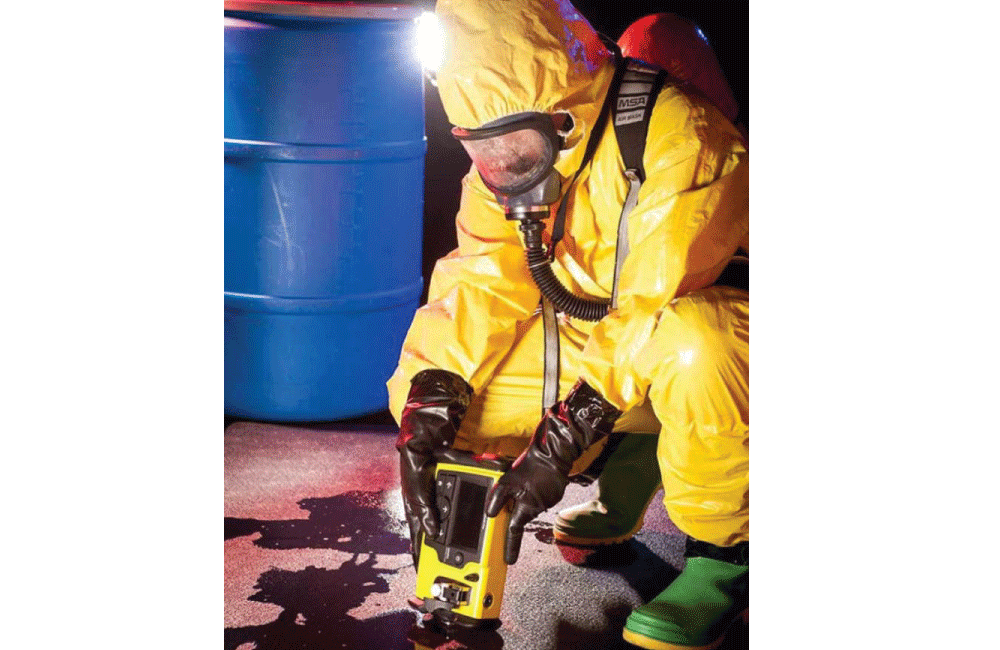

HazMatID Elite Handheld Chemical Identifier – Smiths Detection — view 3

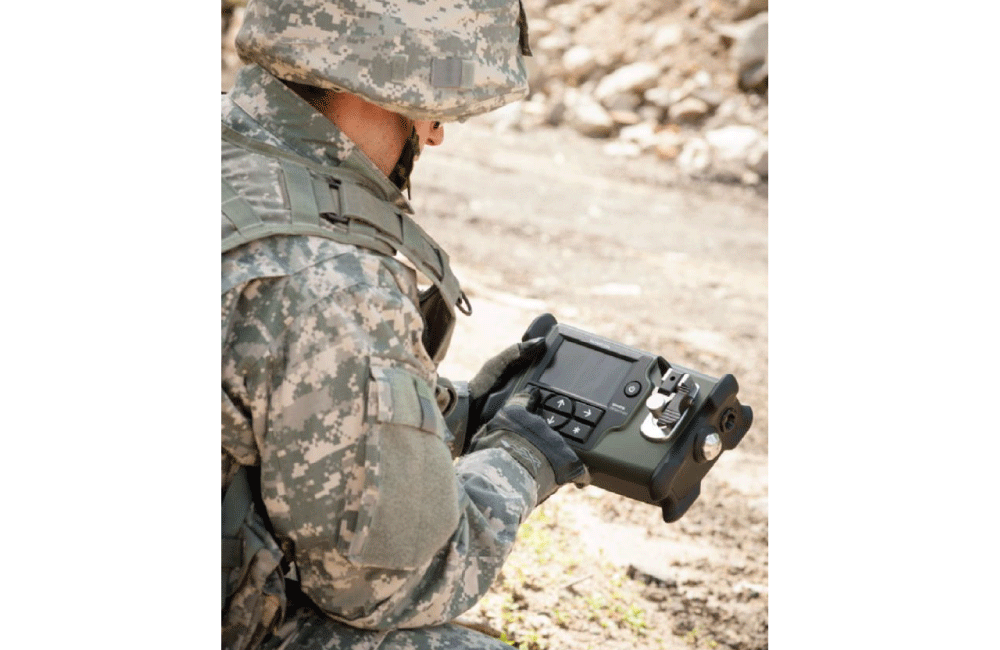

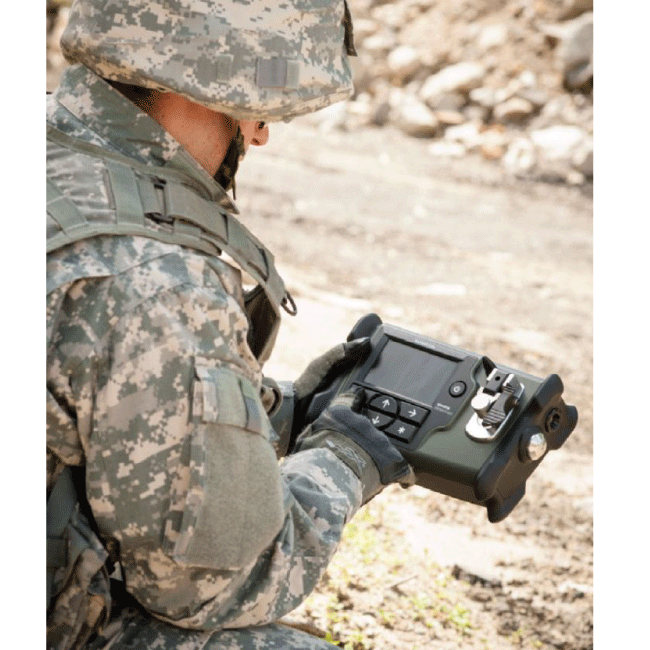

HazMatID Elite Handheld Chemical Identifier – Smiths Detection — view 4

HazMatID Elite Handheld Chemical Identifier – Smiths Detection — view 5

HazMatID Elite Handheld Chemical Identifier – Smiths Detection — view 6

Categories: Chemical Detection, Chemical Detection Equipment Brand: Smiths Detection

HazMatID Elite Handheld Chemical Identifier – Smiths Detection

Name: HazMatID Elite Handheld Chemical Identifier – Smiths Detection
Brand: Smiths Detection

$0.00

The Smiths Detection HazMatID Elite is a rugged handheld FTIR analyzer that identifies CWAs, explosives, TICs, and narcotics in solids and liquids in under one minute.

In stock

The HazMatID Elite by Smiths Detection is a rugged, handheld FTIR (Fourier-transform infrared) analyzer built for field identification of unknown solids and liquids.

It is capable of identifying chemical warfare agents, explosives, toxic industrial chemicals, and narcotics in under one minute, giving hazmat and law enforcement teams a fast, reliable tool for on-scene chemical identification.

Contact FarrWest for a quote.

Description

HazMatID Elite

Smiths Detection

The HazMatID Elite by Smiths Detection is a next-generation handheld chemical identifier that delivers rapid, field-ready analysis of unknown solids and liquids in under one minute. Trusted by military, hazmat, bomb squads, and first responders worldwide, it combines high performance with extreme ease of use, even in the most demanding environments.

Using advanced Fourier Transform Infrared (FTIR) spectroscopy, the HazMatID Elite can accurately identify a wide range of hazardous substances—including chemical warfare agents (CWAs), explosives, toxic industrial chemicals (TICs), pesticides, narcotics, and suspicious powders. Its design meets stringent military standards for ruggedness and is fully optimized for field use.

With its intuitive touchscreen interface, sunlight-readable 4.3” LCD, and individually-lit keypad, the HazMatID Elite is easy to operate while wearing full PPE. The device supports multiple sampling techniques, including surface contamination analysis and robotic integration, offering unmatched flexibility in real-world hazardous materials response. Whether you’re analyzing residues on surfaces, suspicious white powders, or chemical agents in challenging conditions, the HazMatID Elite provides fast, confident identification—enabling responders to act with clarity and protect lives.

Features

Optimized for easy operation in personal protective gear
MIL-STD-810G certified for use in harsh conditions and high temperature operation
Integrated pressure device for analysis of solid materials, plus direct touch-to-sample capability
Automated analysis of mixtures with available priority alerting for explosives, CWAs, TICs, and narcotics
Embedded Wireless Data Transmission

Technology

HazMatID Elite uses FTIR spectroscopy and innovative sampling techniques for accurate determination of suspicious powders, as well as for direct surface contaminant analysis and robotics integration. HazMatID Elite can perform an analysis in less than one minute.

Usability

HazMatID Elite features a large display screen, large keypad controls and an intuitive software work-flow design. The 4.3in internally-bonded LCD color display offers a high viewing angle and visibility in direct sunlight. The individually-lit keypad allows the users to enter commands. The on-screen instructional graphics make the operations of the device user-friendly.

Communications

HazMatID Elite is provided with a GPS and embedded radio frequency (RF) wireless transmission for command and control, as well as line-of-sight data transfer up to a one kilometre range. Certified as FIPS 140-2 compliant, the RF modem also ensures the rapid transmission of data out of the hotzone to ReachBackID support services.

Specifications

Details
Technology: Fourier-Transform Infrared Spectroscopy
Size: 14” X 10.6” X 6.12”
Weight: 14 lbs
Sample Interface: Hardened 10″ touch-screen display
Operational Ranges: Operational in extreme weather and temperatures ranging from -20°C to 50°C (-4°F to 122°F). Humidity ranging from 0-100%
External Data Storage: Full USB Support

User Interface

4.3 inches internally-bonded LCD color display for high visibility in direct sunlight conditions. Individually-lit keypad and instructional graphics guide users through the operation of the device

Power

Rechargeable lithium-ion battery for 4 hours operation

Disposable 123A battery compatible

External IP-67 rated connector for mains or automobile power

Wireless

Embedded RF modem for 1 km line-of-sight data transfer

FIPS 140-2 compliant encryption

GPS included

Libraries

10,000 spectra of chemical warfare agents, explosives, narcotics, TICs, pesticides, white powder, and other chemical classes. User-defined libraries transferable from the HazMatID

Available Options
Command PC Software: Advanced software package for data management and spectral reprocessing against upgraded databases (up to 35,000 spectra)
Repeater: RF repeater for extending the wireless data transfer range
Colors: Olive drab or yellow
ClearSampler: ATR/FTIR surface sampling accessory for decon verification, explosives analysis and hazardous materials assessment

Resources

HazMatID Elite Datasheet

Smiths Detection FT-IR Datasheet

Media

Smiths Detection HazMatID Elite Product Demonstration

A Quick Guide to the Smiths Detection HazMatID Elite
