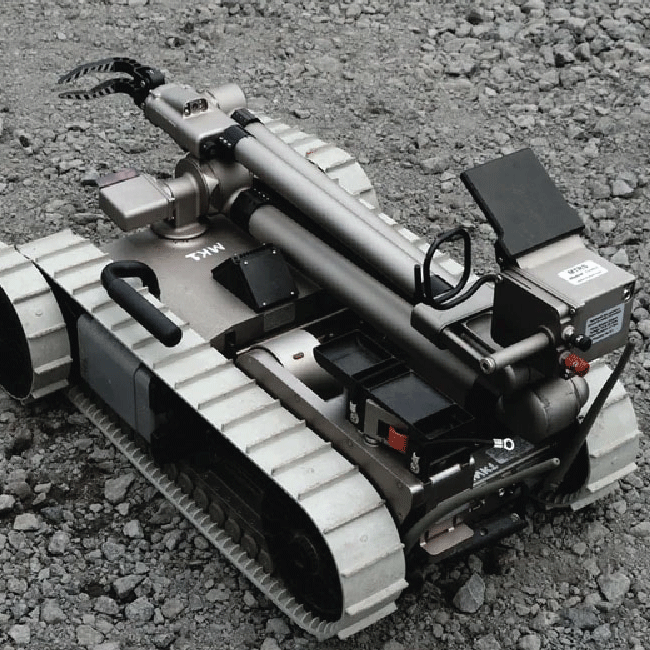

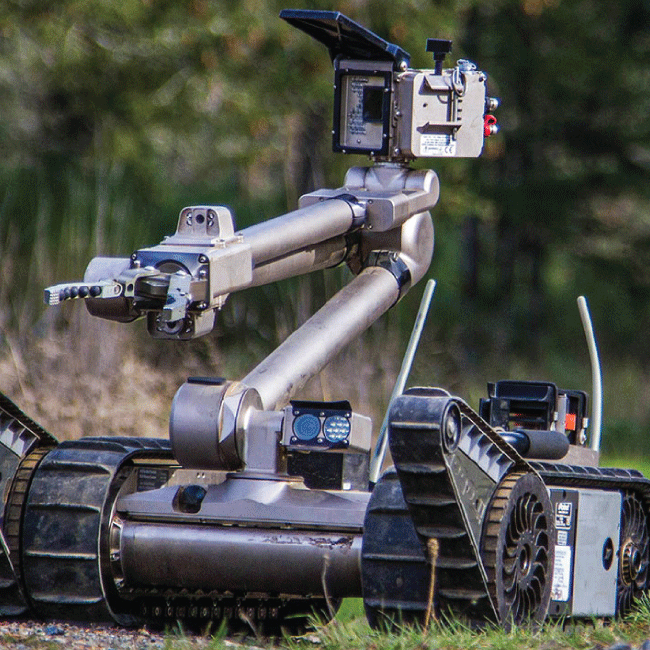

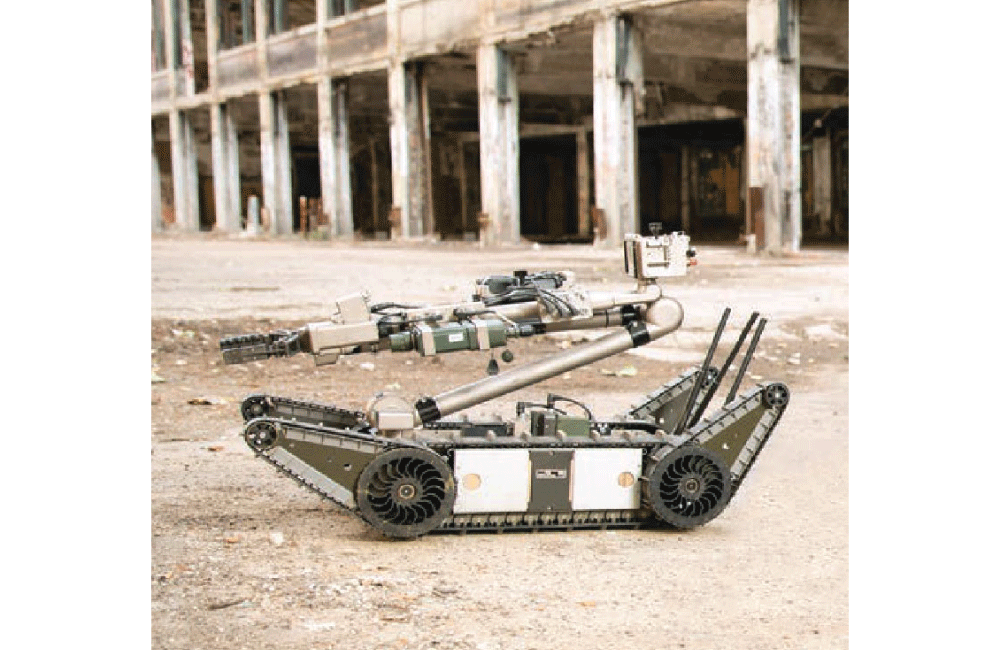

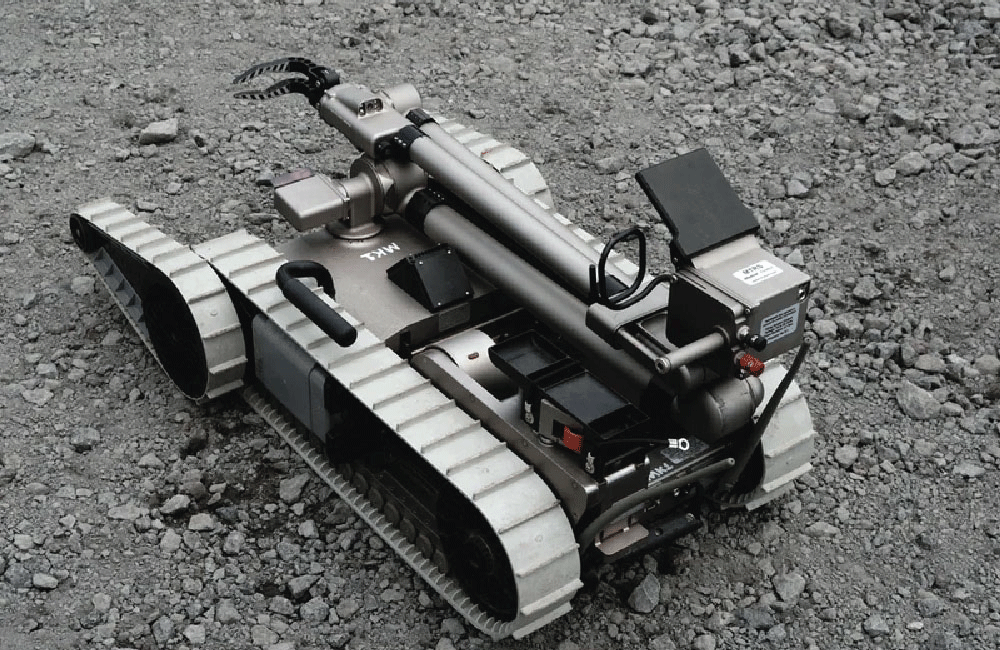

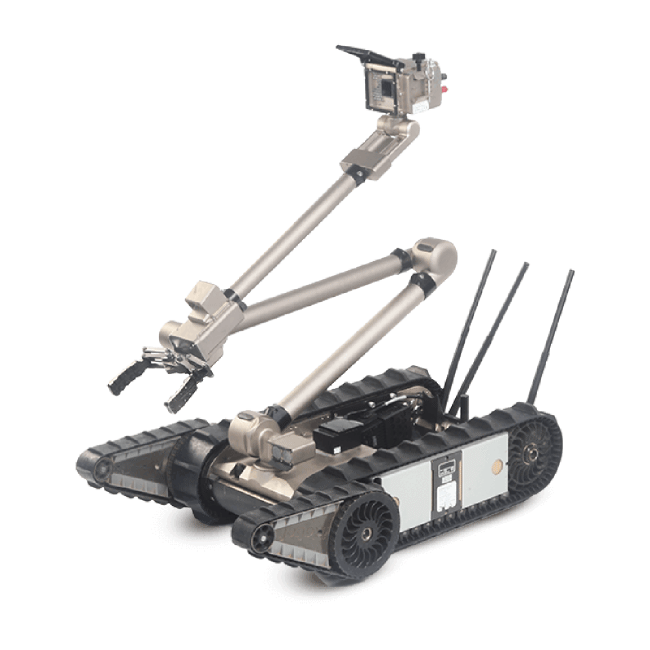

PackBot 510 Tactical Robot – FLIR

Name: PackBot 510 Tactical Robot – FLIR
Brand: FLIR

$0.00

The FLIR PackBot 510 is a man-portable tactical robot built for EOD, CBRN, and HazMat operations.

In stock

The FLIR PackBot 510 is a man-portable robot designed to support EOD, CBRN, and HazMat teams on operations where sending a person in first isn’t an option.

It provides HD video for real-time situational awareness and stair-climbing mobility to navigate structures and terrain, and it can be deployed in under two minutes when time matters most.

Supports EOD, CBRN, and HazMat missions
HD video feed
Stair-climbing mobility
Deployable in under 2 minutes

Contact FarrWest for a quote.

Description

PackBot® 510

FLIR

The FLIR PackBot® 510 is a compact, highly capable tactical robot trusted by defense and emergency response teams worldwide for EOD, CBRN, HazMat, and surveillance operations. With over 4,000 units deployed globally, PackBot 510 is a field-tested, mission-ready solution for complex and hazardous environments.

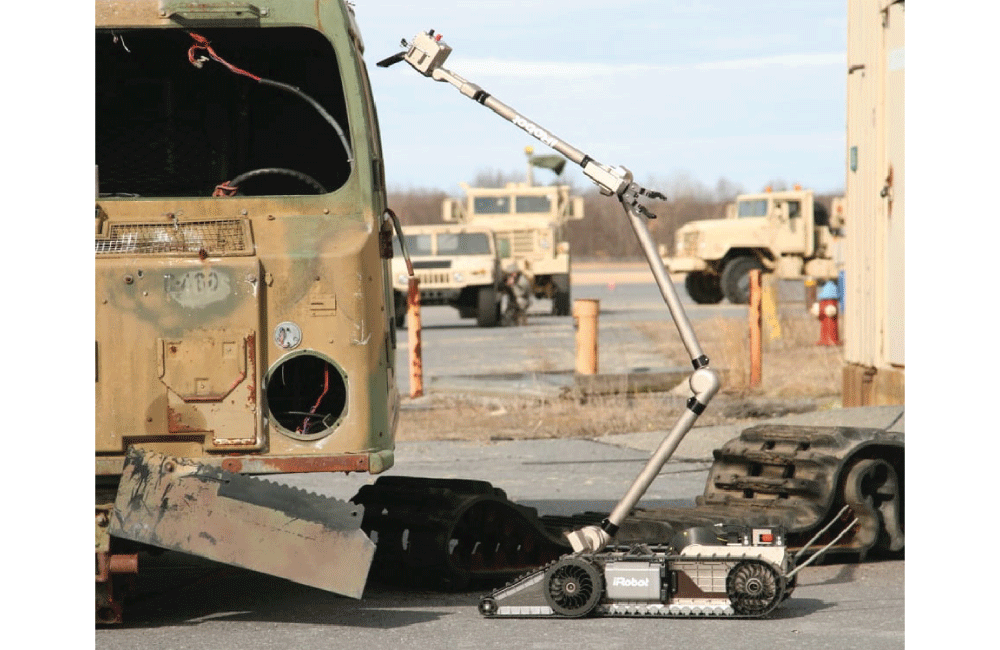

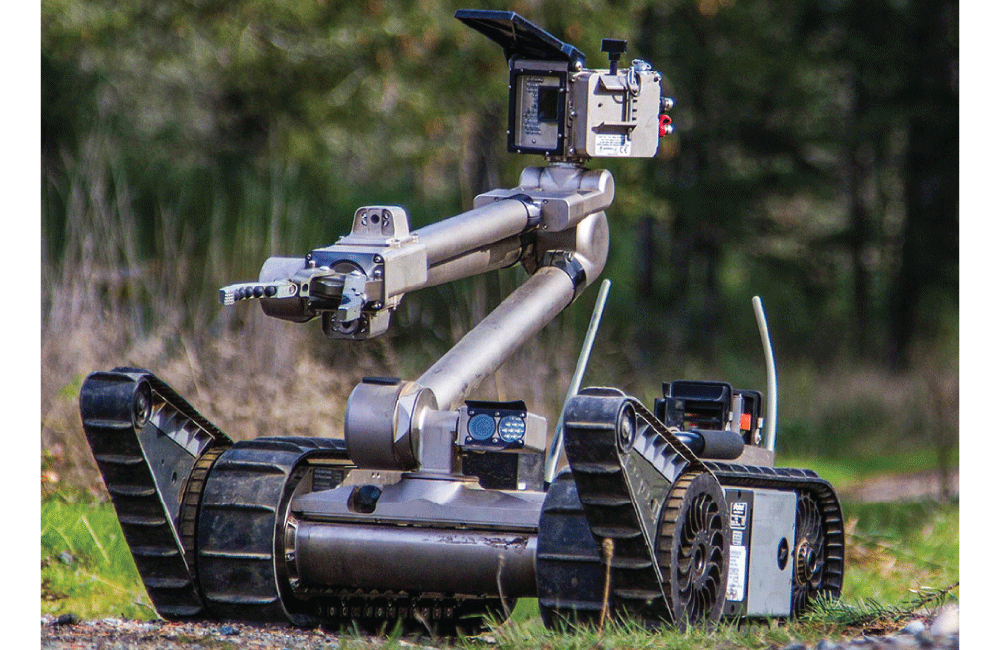

The robot features a manipulator arm that lifts up to 44 lb (20 kg) and is deployable by a single operator in under two minutes. Its rugged design allows it to climb stairs, navigate narrow passages, and operate in confined or hazardous locations—all while streaming real-time video, audio, and sensor data back to the operator at a safe distance.

Controlled via the uPoint® Multi-Robot Control System using a touchscreen tablet, PackBot 510 provides an intuitive interface for commanding multiple robots. The onboard MPU5 radio uses the Wave Relay® MANET to establish a secure, dynamic network of robots and operators for coordinated missions.

Features

MAN-TRANSPORTABLE
MOBILE
POWERFUL MULTI-SENSOR CAPABILITY
CONTROLLABLE FROM THE UPOINT MULT-ROBOT CONTROL SYSTEM
SUPERIOR COMMUNICATIONS

MAN-TRANSPORTABLE

Deployable by one person in less than two minutes. PackBot stows neatly in vehicle, even fitting in a car’s trunk.

CONTROLLABLE FROM THE UPOINT MULT-ROBOT CONTROL SYSTEM

Using the touchscreen-based ruggedized tablet controller, an operator can select from across the family of connected robots.

MOBILE

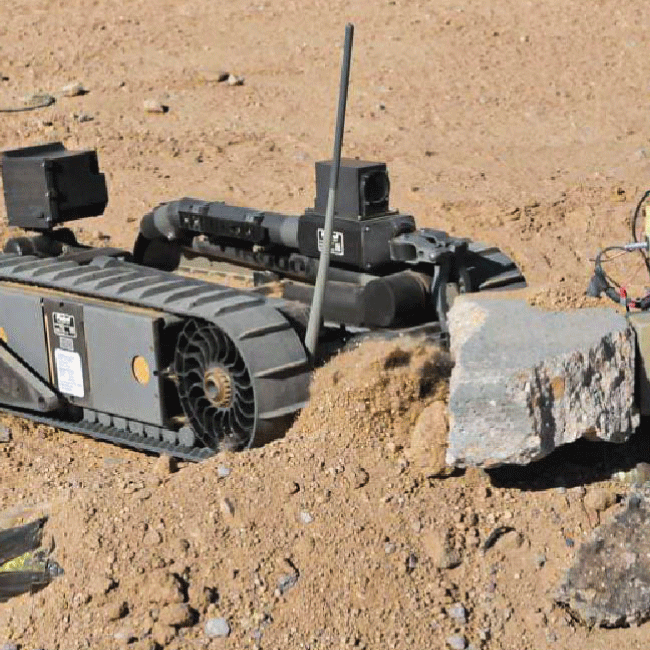

Climbs stairs, rolls over rubble and navigates narrow passages

SUPERIOR COMMUNICATIONS

The MPU5 radio operating on the Wave Relay MANET, allows the robot to penetrate deeper into complex structures and further downrange than ever before.

POWERFUL MULTI-SENSOR CAPABILITY

Four color cameras with zoom and illumination, plus audio capability are integrated into FirstLook. Optional CBRN/ HazMat sensors available.

Specifications

Specifications

Weight

– (no batteries) – 52.7 lb (23.9 kg)

Runtime & Charging

Up to 4 hrs with two (2) BB-2590 batteries

Up to 8 hrs with four (4) BB-2590 batteries

Mobility – Speed

Up to 5.8 mph (9.3 km/h)

Mobility – Agility

Zero radius turn

Mobility – Slopes

43° (ascend, descend) 40° Lateral

Mobility – Stair Climbing

40° [rise 8.5” (21.6 cm), run 10” (25.4 cm)]

Manipulator Lift

44 lb (20 kg) close-in
11 lb (5 kg) at max extension of 73.5” (187 cm)

Awareness

four (4) cameras

Two-way audio

Compatible

Connects to the Wave Relay® MANET, to form
a robust network in which robots, operators,
and observers seamlessly operate together.

Expansion

Multiple payload ports

22 disruptors supported

10 fully integrated HazMat/CBRN sensors

40+ Accessories

Controller

Multiple controller options available, including the uPoint® Multi-Robot Control System

Export Regulations

EAR

Accessories

FLIR LWIR Thermal Camera – the thermal image transmits directly to the robot controller.
Rear Flipper Kit – offers greater stability when climbing stairs or negotiating terrain.
Integrated CBRN sensor payloads – allow an operator to remotely monitor the environment.
Accessories and mounts available to support disruptors from leading manufacturers

Resources

PackBot 510 Datasheet

Media

PackBot® 510 | Unmanned Ground Systems

NH State Police PackBot 510 Robot
