Extend manually or pneumatically with air, carbon dioxide, or nitrogen
-
Machine knurled non-slip locking collar for secure load transfer
-
Fine adjustment capable in any increment up to maximum strut length
-
Interchangeable with over 20 base plates and accessories
-
Hard coat anodized aluminum for strength, durability, and reduced electrical conductivity
-

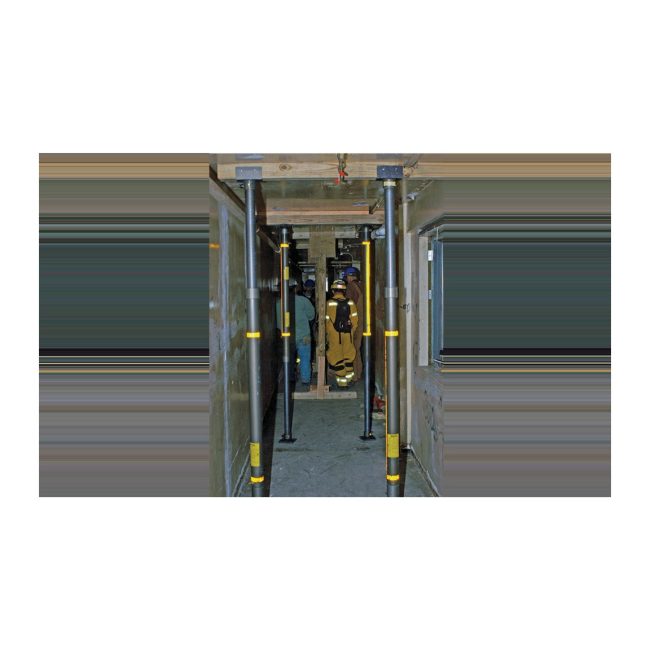

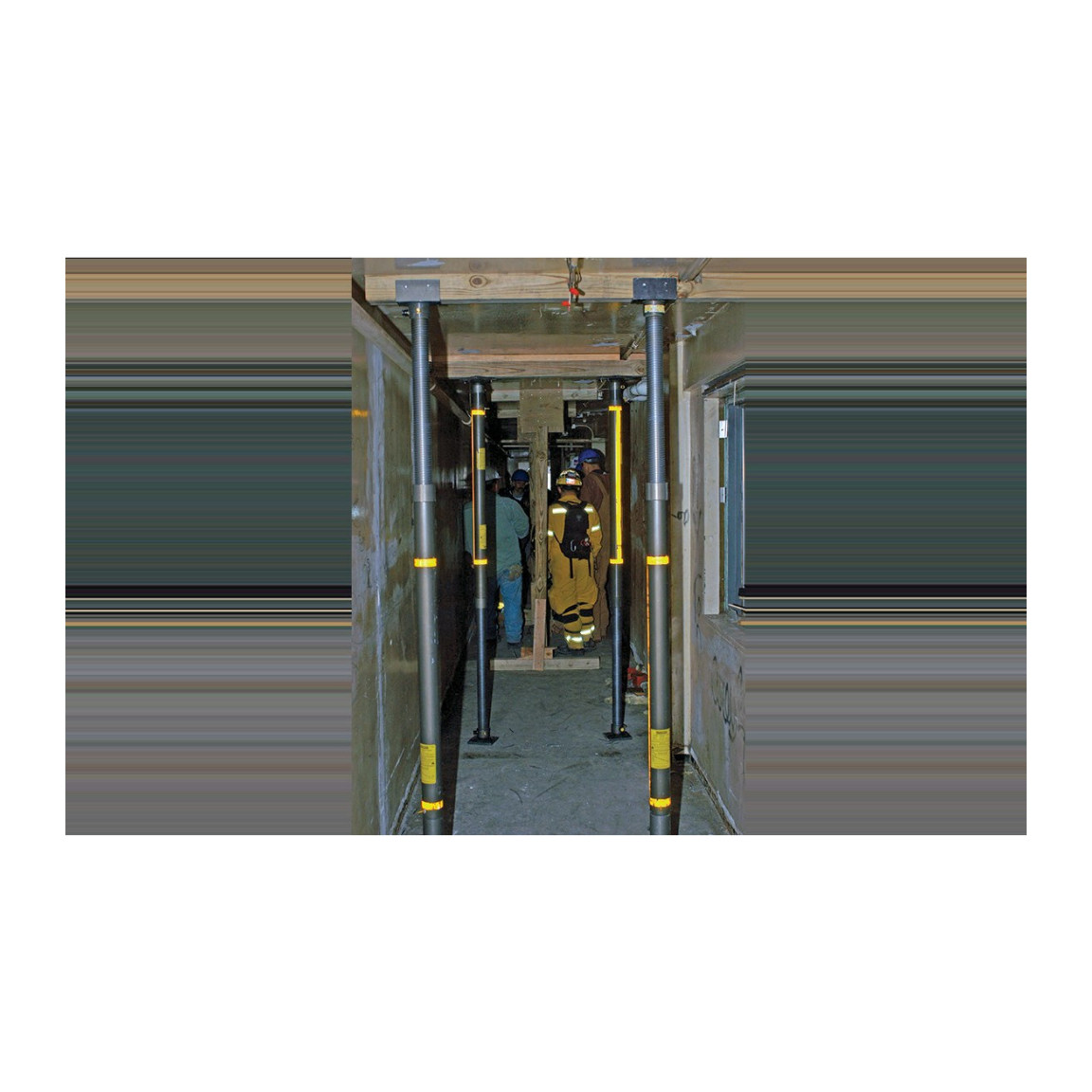

Suitable for structural collapse, vehicle stabilization, trench shoring, and specialized rescue applications
-
Always defaults to locked position
-
Full surface contact of shaft through collar transfers load directly to ground
-
Recessed nipple fitted to aluminum tube for pneumatic operation
Paratech AcmeThread Strut System
$0.00
The Paratech AcmeThread Strut System is a manual or pneumatic aluminum strut solution for structural collapse, vehicle stabilization, and rescue operations.

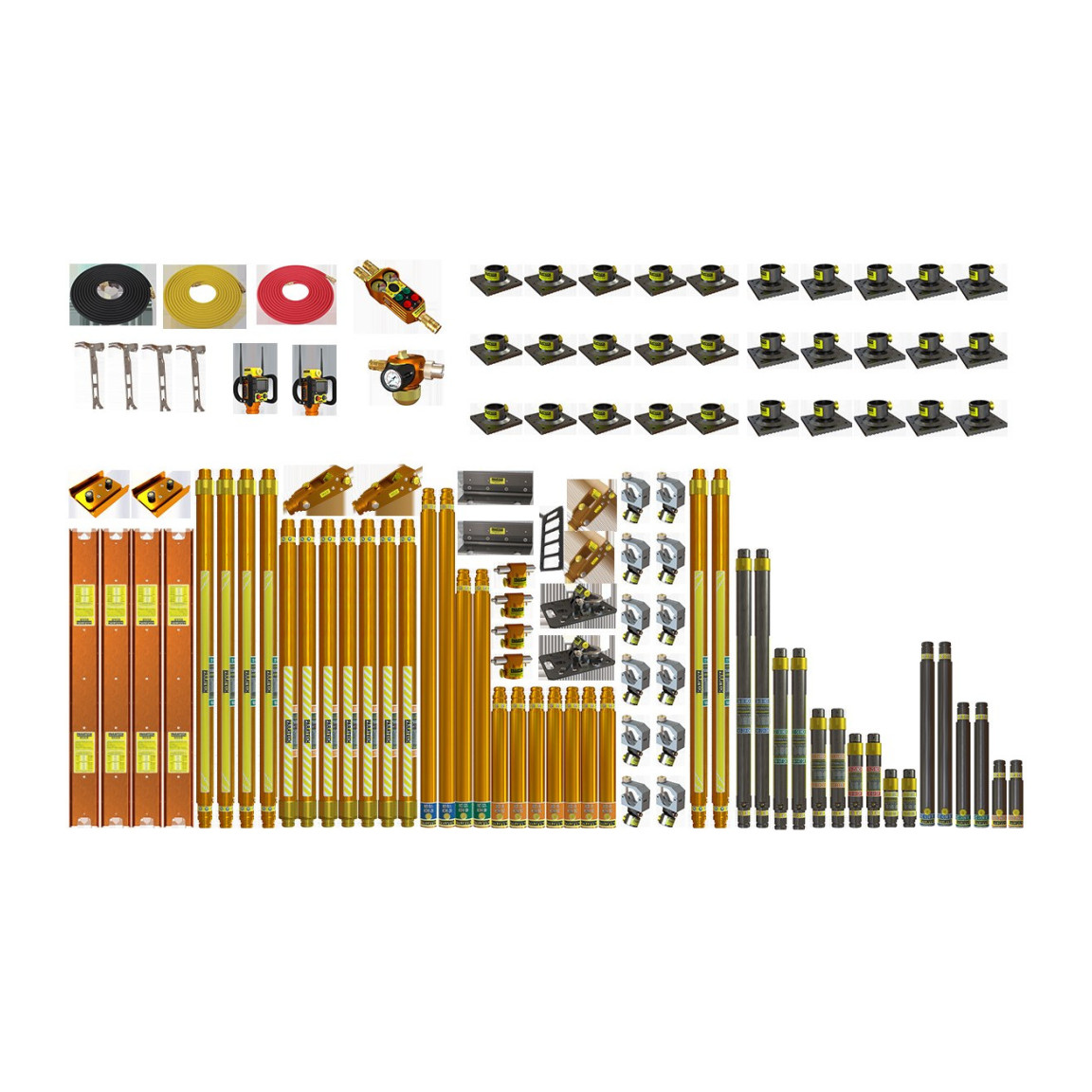

The Paratech AcmeThread Strut System is a comprehensive rescue support solution featuring 5 sizes of AcmeThread Struts (12-88 inches) with 2.5″ diameter Acme threaded aluminum shafts and 3″ diameter aluminum tubes. Designed for structural collapse rescue, vehicle stabilization, trench shoring, and special rescue applications. Features manual or pneumatic extension (air, CO2, nitrogen), fine adjustment capability in any increment, machine knurled non-slip locking collar, and hard coat anodized aluminum components. Can be paired with over 20 interchangeable base plates and accessories. Made in the USA with proven performance in earthquake and disaster rescue operations worldwide.
Description
Paratech AcmeThread Strut System
The Paratech AcmeThread Strut System is a comprehensive rescue support solution featuring 5 sizes of AcmeThread Struts (12-88 inches) with 2.5″ diameter Acme threaded aluminum shafts and 3″ diameter aluminum tubes. Designed for structural collapse rescue, vehicle stabilization, trench shoring, and special rescue applications. Features manual or pneumatic extension (air, CO2, nitrogen), fine adjustment capability in any increment, machine knurled non-slip locking collar, and hard coat anodized aluminum components. Can be paired with over 20 interchangeable base plates and accessories. Made in the USA with proven performance in earthquake and disaster rescue operations worldwide.
Features
Specifications
- Strut Type
- AcmeThread
- Movable Shaft Diameter
- 2½ inch
- Tube Diameter
- 3 inch
- Available Sizes
- 5
- Length Range
- 12-88 in / 31-224 cm
- Extension Lengths
- 6-36 in / 15-91 cm
- Fine Adjustment
- YES – any increment up to maximum length
- Auto-Locking Collar
- NO
- Remote Placement
- YES
- Manual or Pneumatic Operation
- YES – air, carbon dioxide, or nitrogen
- Trench Stabilization
- YES
- Collapse Stabilization
- YES
- Vehicle Stabilization
- YES
- Material
- Aluminum alloy, hard coat anodized
- Thread Type
- Square thread (Acme)
