    Petzl

    Petzl Micro Traxion

    Part # P53

    The Petzl Micro Traxion is a compact 85g progress-capture pulley for crevasse rescue, hauling, and emergency ascent on ropes from 7 to 11mm in diameter.

    or
    Add to Quote
    Questions? Talk to a specialist210.566.1857 · sales@farrwest.com

    Overview

    MICRO TRAXION is a compact and lightweight progress-capture pulley designed for crevasse rescue, hauling, self-rescue, and emergency ascender use. Features sealed ball bearings providing 91% efficiency, works on 7-11mm diameter ropes, and can be used as a simple pulley by locking the cam in the raised position. Only 85g with loss-proof design via carabiner connection hole.

    Know which rating applies

    The Micro Traxion carries two sets of numbers, depending on how the cam is set. Locked in the raised position, it works as a simple pulley with a working load of 2 x 2.5 = 5 kN and a breaking strength of 2 x 7.5 = 15 kN. As a progress-capture pulley, with the cam engaged, the figures drop to a 2.5 kN working load and 4 kN breaking strength. Plan haul systems around the lower figures whenever the cam is holding the load.

    Rope and cord it works with

    • Rope: 7 to 11 mm diameter, including frozen or muddy rope
    • Cord: PUR’LINE 6 mm for hauling a pack, and RAD LINE 6 mm
    • Sheave: 27 mm, on sealed ball bearings rated at 91% efficiency

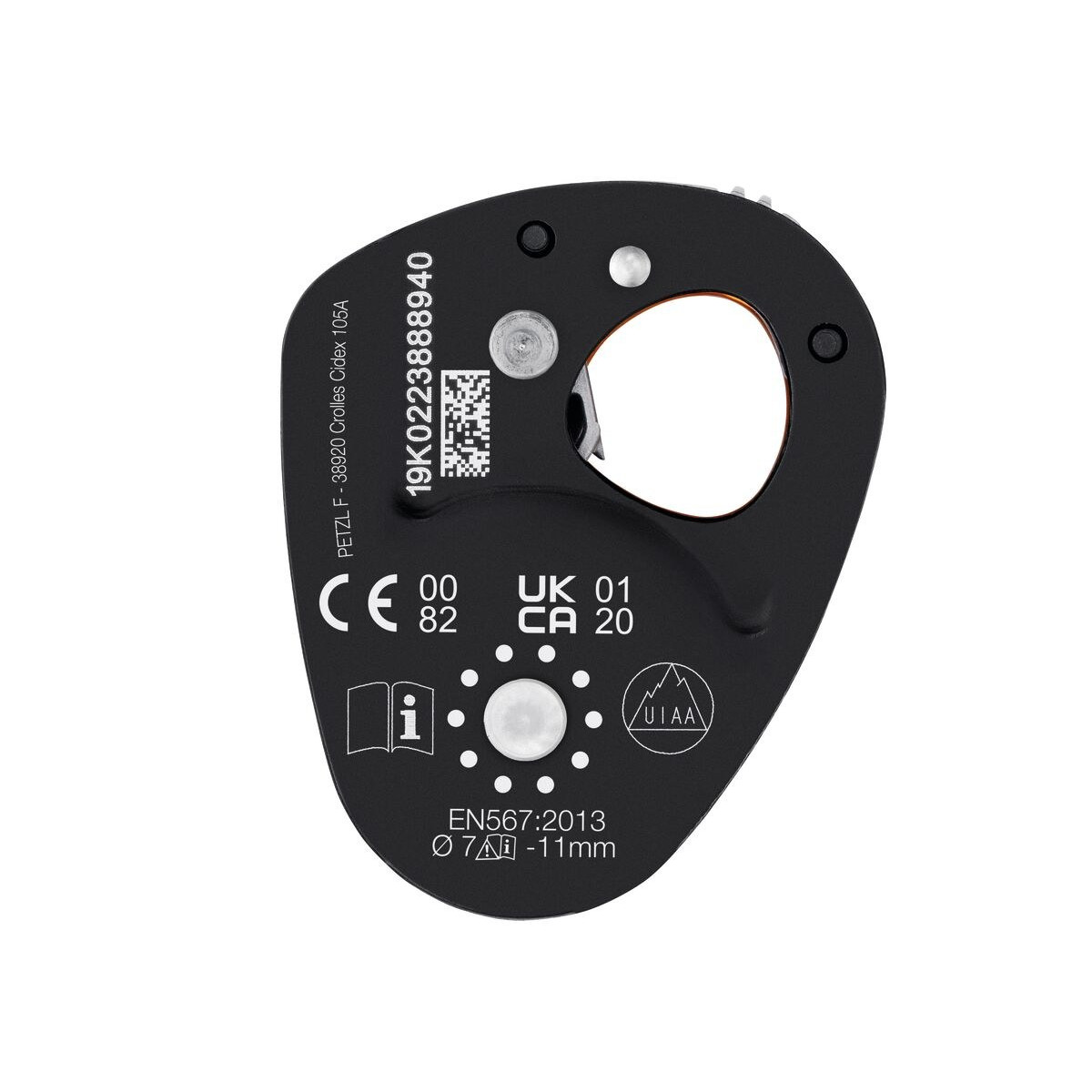

    Rope installation diagrams are engraved inside the side plates, which helps when rigging with cold hands or in poor light.

    Certification and carry

    It is certified to CE EN 567 and UIAA. A dedicated hole takes a Sm’D carabiner on a cord, so the pulley can be opened and loaded on the rope without being dropped.

    Frequently asked questions

    What rope diameter does the Petzl Micro Traxion take?

    It works on ropes from 7 to 11 mm in diameter, and Petzl notes it functions on frozen or muddy ropes. For hauling a pack it is also compatible with PUR'LINE 6 mm cord, and it works with RAD LINE 6 mm cord.

    Can the Micro Traxion be used as a regular pulley?

    Yes. Lock the cam in the raised position and it runs as a simple pulley, rated at a 5 kN working load and 15 kN breaking strength. With the cam engaged as a progress capture, the ratings are 2.5 kN working load and 4 kN breaking strength.

    • Designed for crevasse rescue, hauling, self-rescue, and emergency ascender use
    • May be used as a simple pulley by locking the cam in the raised position
    • Lightweight at 85 g
    • Hole allows Sm'D carabiner connection with cord for loss-proof use
    • Sealed ball bearings provide 91 % efficiency
    • Works on frozen or muddy ropes

    Specifications

    Physical
    Weight85 g
    Min. rope diameter7 mm
    Max. rope diameter11 mm
    Sheave diameter27 mm
    Approvals & Warranty
    Certification(s)CE EN 567, UIAA
    Other
    Sheave typeSealed ball bearings
    Working load2 x 2.5 = 5 kN
    Breaking strength2 x 7,5 = 15 kN
    Working load as progress capture pulley2,5 kN
    Breaking strength as progress capture pulley4 kN
