Openable side plate allows rope installation while connected to anchor
-
Large-diameter aluminum sheave with sealed ball bearings for 93% efficiency
-
Toothed stainless steel cam with self-cleaning slot
-
Triple-action opening of moving side plate operable with gloves
-
Can be locked as simple pulley by locking cam in raised position
-
Compact and lightweight at 150g
-
Compatible with 7 to 11mm diameter ropes
-
Compatible with RAD LINE 6mm cord
-
Compatible with PUR’LINE 6mm cord for hauling a pack

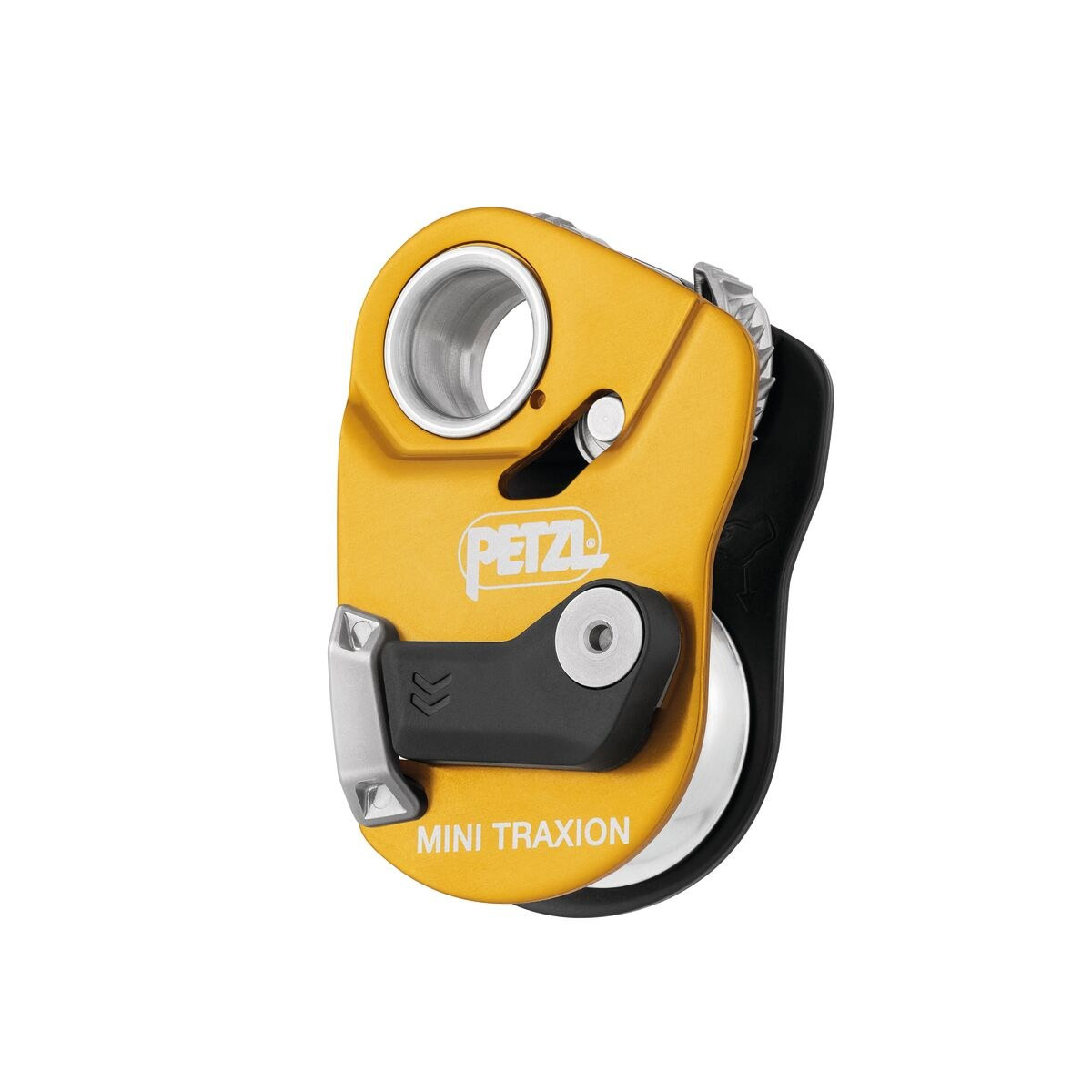

Petzl Mini Traxion
$179.95
Petzl Mini Traxion is a progress-capture pulley for hauling and rescue operations that opens while connected to anchor and works with 7-11mm ropes.
MINI TRAXION is an openable progress-capture pulley designed for hauling and rescue operations. Features a large-diameter aluminum sheave mounted on sealed ball bearings providing 93% efficiency. The toothed cam with self-cleaning slot optimizes performance under various conditions including frozen or dirty ropes. Rope compatible: 7-11mm diameter. Simple triple-action opening allows rope installation while connected to anchor. Can be locked as a simple pulley. Compact and lightweight at 150g. Certified for technical use and rope grab applications.
Description
Petzl Mini Traxion
MINI TRAXION is an openable progress-capture pulley designed for hauling and rescue operations. Features a large-diameter aluminum sheave mounted on sealed ball bearings providing 93% efficiency. The toothed cam with self-cleaning slot optimizes performance under various conditions including frozen or dirty ropes. Rope compatible: 7-11mm diameter. Simple triple-action opening allows rope installation while connected to anchor. Can be locked as a simple pulley. Compact and lightweight at 150g. Certified for technical use and rope grab applications.
Features
Specifications
- Weight
- 150 g
- Certification(s)

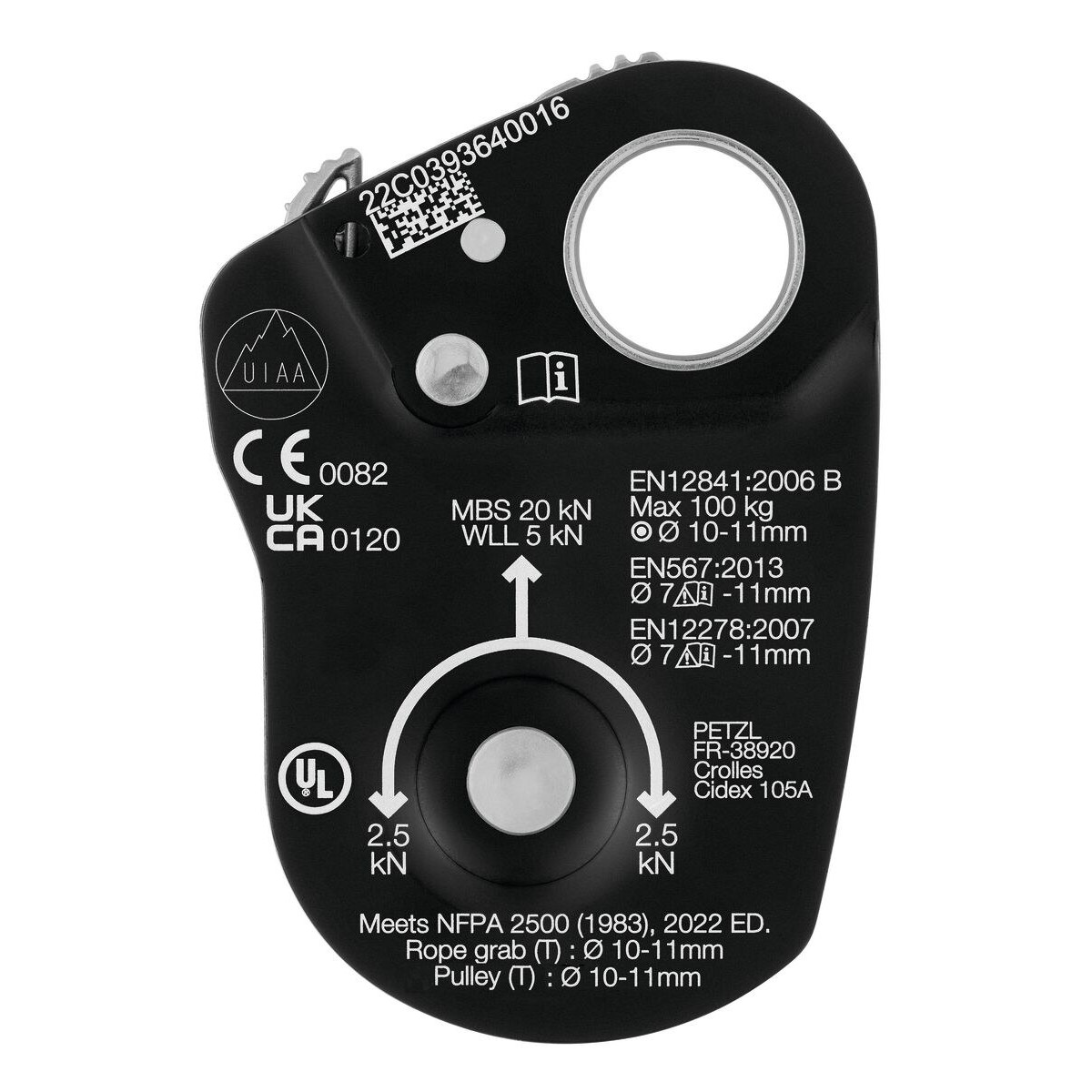

- CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11
- Material(s)
- Aluminum, stainless steel, nylon
- Min. rope diameter
- 7 mm
- Max. rope diameter
- 11 mm
- Sheave type
- Sealed ball bearings
- Sheave diameter
- 32 mm
- Working load
- 2 x 2.5 = 5 kN
- Breaking strength
- 2 x 10 = 20 kN
- Working load as progress capture pulley
- 2,5 kN
- Breaking strength as progress capture pulley
- 4 kN
- Efficiency
- 93 %
- Guarantee
- 3 years
