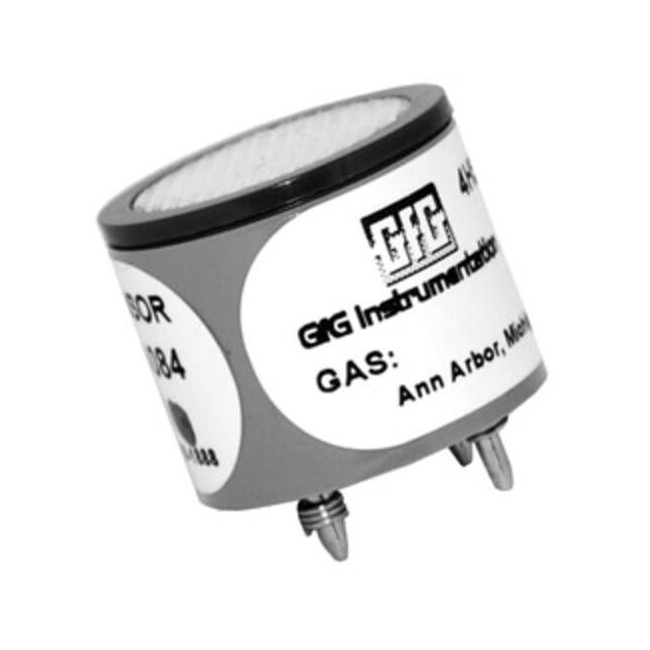

PID / VOC sensor
GfG Instrumentation PID/VOC sensor is a photoionization detector for the G460 gas detector offering sensitive volatile organic compound measurement with customizable correction factors.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
Overview
PID Smart-Sensor for G460 gas detector offering extremely sensitive broad range volatile organic compound (VOC) measurement. Available in two versions: Standard PID provides 0.5 ppm resolution over 0-2000 ppm isobutylene scale, or High Resolution PID provides 0.1 ppm resolution over 0-500 ppm isobutylene scale. Features customizable correction factors for gases including gasoline, acetone, benzene, toluene, xylene, ammonia, and many others from an extensive on-board library. System uses diffusion-based detection without pump, reducing particulate contamination. Protected by external and internal filters. Interchangeable smart sensor design allows easy installation into EC2 position on G460 PCB. Maintenance kit (PN 7740-026) available with replacement filters, lamp polishing pads, tweezers, and compressor stick.
- Broad range VOC measurement
- Extremely sensitive detection
- Two sensor range options: standard and high-resolution
- On-board gas library with multiple VOC correction factors
- User-selectable gas correction factors
- Custom VOC correction factor capability
- Readings displayed in measurement units of selected gas
- Protected by external and internal filters
- Gas diffusion-based sampling (non-pump design)
- Interchangeable smart sensor design
- Lamp and electrode cleaning capability
Specifications
| Standard PID Sensor Range | 0.5 – 2,000 ppm |
| Standard PID Sensor Resolution | 0.5 ppm |
| High Resolution PID Sensor Range | 0.1 – 500 ppm |
| High Resolution PID Sensor Resolution | 0.1 ppm |
| Measurement Scale | isobutylene scale |
