Touch screen operation
-
Test/Charge up to 5 P400’s simultaneously
-
Auto operation when instrument is installed
-
Indication of pass or fail
-
RJ45 intranet connection/Serial
-
Compatible with Windows 7, 8, 8.1, 10
-
Instrument Test Past Due alerts
-
Instrument Failure Alerts
-
Monthly Compliance Report
-
Sensor Performance Data
-
Optional Networking System
SCAL-400 calibration & charging station
$0.00
The SCAL-400 is a calibration and charging station that automatically tests and charges up to five Sensit P400 Gas Monitors simultaneously.

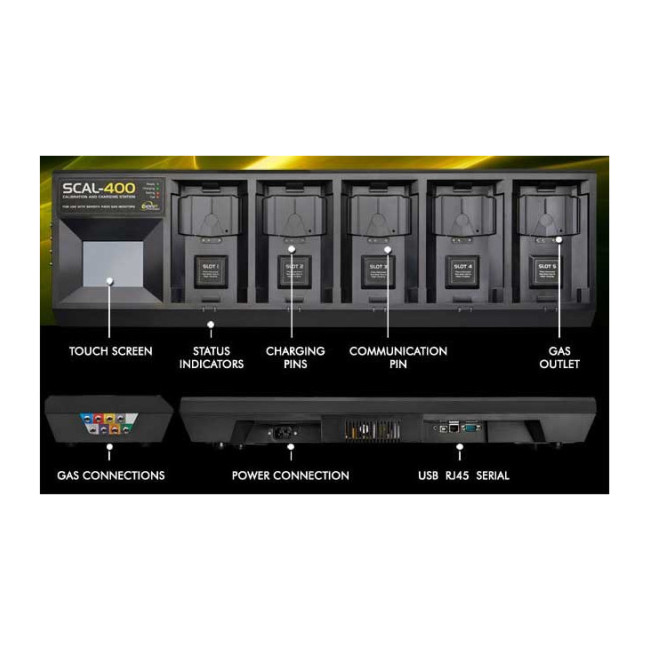

SCAL-400 Calibration and Charging Station automatically charges, bump tests and calibrates up to five SENSIT P400 Gas Monitors simultaneously. Features a touch screen display for easy operation. Simply place instruments into any of the five slots containing charger and communication connections. The station automatically detects when an instrument requires a bump or calibration and performs the required test with no user interaction. Includes SCAL-D Data Management Software for Windows 7, 8, 8.1, and 10, with optional SCAL-N Network version available separately. Compatible with P400 monitors for CH4, CO, O2, H2S, HCN, NO2, and SO2 detection.
Description
SCAL-400 calibration & charging station
SCAL-400 Calibration and Charging Station automatically charges, bump tests and calibrates up to five SENSIT P400 Gas Monitors simultaneously. Features a touch screen display for easy operation. Simply place instruments into any of the five slots containing charger and communication connections. The station automatically detects when an instrument requires a bump or calibration and performs the required test with no user interaction. Includes SCAL-D Data Management Software for Windows 7, 8, 8.1, and 10, with optional SCAL-N Network version available separately. Compatible with P400 monitors for CH4, CO, O2, H2S, HCN, NO2, and SO2 detection.
Features
Specifications
- Size
- 24″ x 7″ x 3″ (61cm x 17.8cm x 7.6cm)
- Weight
- 5.75 lb. (2.6 kg)
- Operational Temperature
- 40 – 122 F (5 to 50° C)
- Max. Inlet Pressure
- 20 PSI
- Power
- 100-240 VAC
- Hard Drive Space Required
- 30MB
- Compatible Operating Systems
- Windows 7, 8, 8.1, 10
