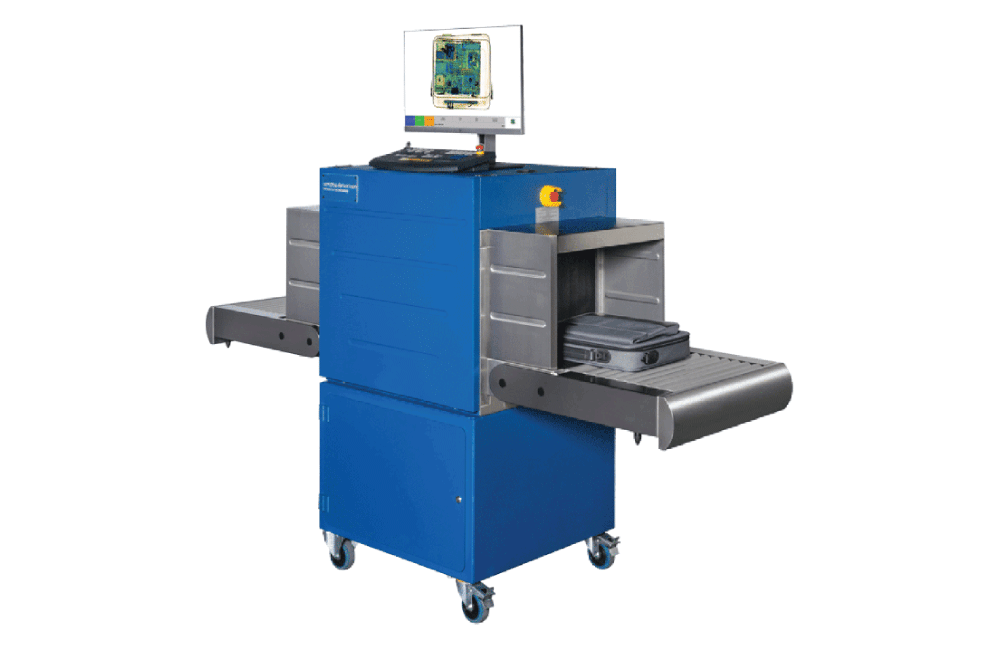

Smiths Detection HI-SCAN 5030C Compact X-Ray Scanner for Mail and Personal Items

Name: Smiths Detection HI-SCAN 5030C Compact X-Ray Scanner for Mail and Personal Items
Brand: Smiths Detection

$0.00

The Smiths Detection HI-SCAN 5030C is a compact X-ray scanner built for screening mail and personal items.

In stock

The HI-SCAN 5030C is a compact, mobile X-ray scanner designed for screening mail, bags, and parcels.

Compact, mobile form factor
Designed for mail and personal item screening

Well suited for offices, courthouses, schools, and security checkpoints. Contact FarrWest for a quote.

Description

Hi-Scan 5030C

Compact & mobile X-ray inspection system

The Smiths Detection HI-SCAN 5030C is a versatile X-ray inspection system tailored for screening mail, small parcels, and personal items in security-sensitive environments. Built on the proven HiTrax 3 electronics and software platform, it delivers sharp, reliable images that enable rapid threat identification and confident decision-making by security personnel.

Available as a stationary desktop unit or as a mobile version with wheels, shock absorbers, and integrated storage, the 5030C offers unmatched flexibility. Its compact, lightweight design allows it to be easily moved through standard doorways and deployed in tight spaces—including vehicles for temporary screening operations—without the need for permanent infrastructure changes.

Ideal for use in mailrooms, lobbies, schools, correctional facilities, and courthouses, the HI-SCAN 5030C provides efficient, contact-free screening of envelopes, purses, backpacks, and small packages. Its portability, ease of use, and durability make it a top choice for security teams looking to enhance screening efficiency across multiple locations.

Features

Compact desktop solution for mobile and stationary applications
Fast Start-Up
Tunnel opening of 50 x 30 cm
Lightweight and transportable through doors or within small spaces

Smart Technology

The HI-SCAN 5030C X-ray inspection system features the proven HiTrax 3 electronics and software platform to enhance and expedite security screening operations. It produces reliable and easy-to-interpret scanned images enabling screening personnel to make threat and contraband assessment of parcels to personal items quickly and confidently.

Lightweight

The HI-SCAN 5030C is available as a stationary desktop scanner or as a mobile version, on wheels featuring vibration shock absorbers and a storage compartment. The system’s lightweight design allows it to be transported through standard doorways and into confined spaces.

Multi-Use

The HI-SCAN 5030C is ideal for use in mailrooms, entrance halls, correctional and judicial facilities, schools and many other security sensitive areas, where contact-free inspection of pouches, bags, letters or packages are required.

Specifications

General Specifications
Tunnel Dimensions: 532 (W) x 328 (H) [mm] ● 20.9” (W) x 12.9” (H)
Max. Object Size: 530 (W) x 320 (H) [mm] ● 20.9” (W) x 12.6” (H) approx.
Conveyor Height: 187 mm (7.4”) / 800 mm (31.5”) with cart approx. 0.18 /
Conveyor Speed: 0.22 [m/s]
Max. Conveyor Load: 60 kg (132 lbs)
Resolution: Standard: 38 AWG (0.1 mm) ● typical: 39 AWG (0.09 mm)
Penetration: Standard: 14 mm ● typical: 16 mm
X-ray Dose: ≤ 1 μSv/h (0.1 mrem)
Film Safety: Guaranteed even for high speed films up to ISO 1600 (33 DIN)
Duty Cycle: 100%, no warm-up procedure required

X-ray Generator
Anode Voltage – Cooling: 100 kV cp ● hermetically sealed oil bath
Beam Direction: Diagonal
Image Generating System
X-ray Converter: L-shaped detector line, high resolution
Grey Levels Stored: 4096
Image Presentation: B/W, color
Digital Video Memory: 1920 x 1200 / 24 bit
Image Evaluation Functions: B/W, HIGH, LOW, NEG, VARI-MAT, O2, OS electronic zoom: stepless enlargement up to 256-times
Monitor: Flat Panel LCD Monitor

Installation Data
Options: X-ACT, HI-TIP, SD Training-System, Extended Image Storage of up to 500,000 images (HDD)
X-ray Leakage: meets all applicable laws & regulations w/ respect to X-ray emitting devices
CE-Labeling: in compliance with directives 2006/42/EC, 2014/35/EU, 2014/30/EU
Sound Pressure Level: < 50 dB(A)
Operating/Storage Temperature: 32°F – 104°F / -4°F – 140°F (0° – 40°C / -20°C – +60°C)
Humidity: 5% – 95% (non-condensing)
Power Supply: 100V / 120V / 230V / 240V AC (configurable); +10%/-15% ● 50 Hz / 60 Hz ± 3 Hz
Power Consumption: approx. 0.4 kVA
Protection Class System: IP 20 / IP43
Dimensions: 1200 (L)2) x 705 (B) x 1339 (H) [mm] ● approx. 270 kg 47.3” (L)2) x 27.8” (B) x 52.7” (H)
Weight: approx. 595 lbs
Mechanical Construction: Steel construction with aluminum panels Standard color(s): RAL B11/W1F12 / stainless steel
