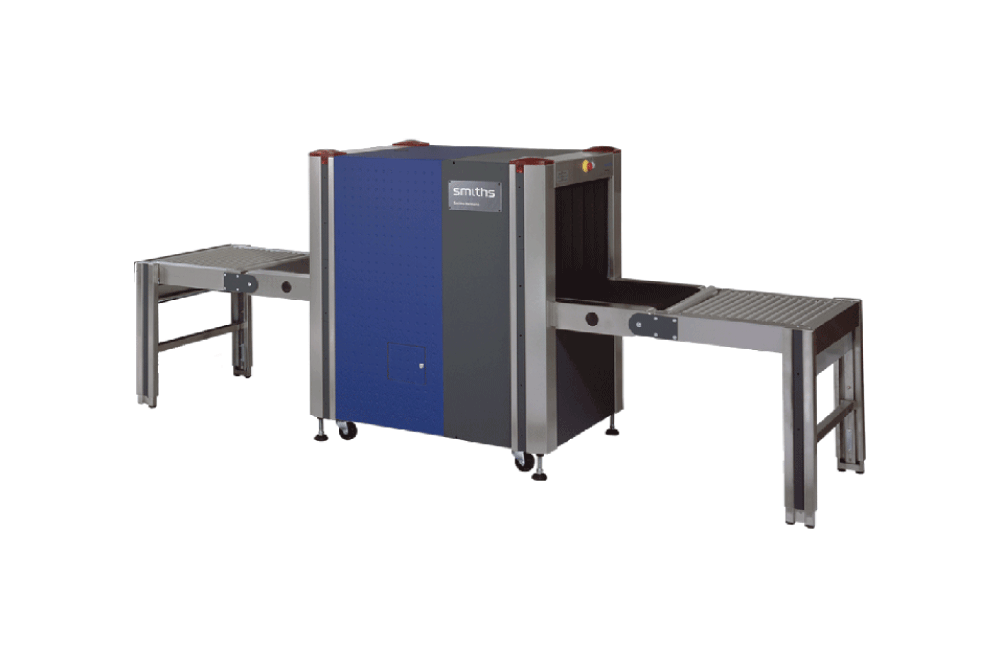

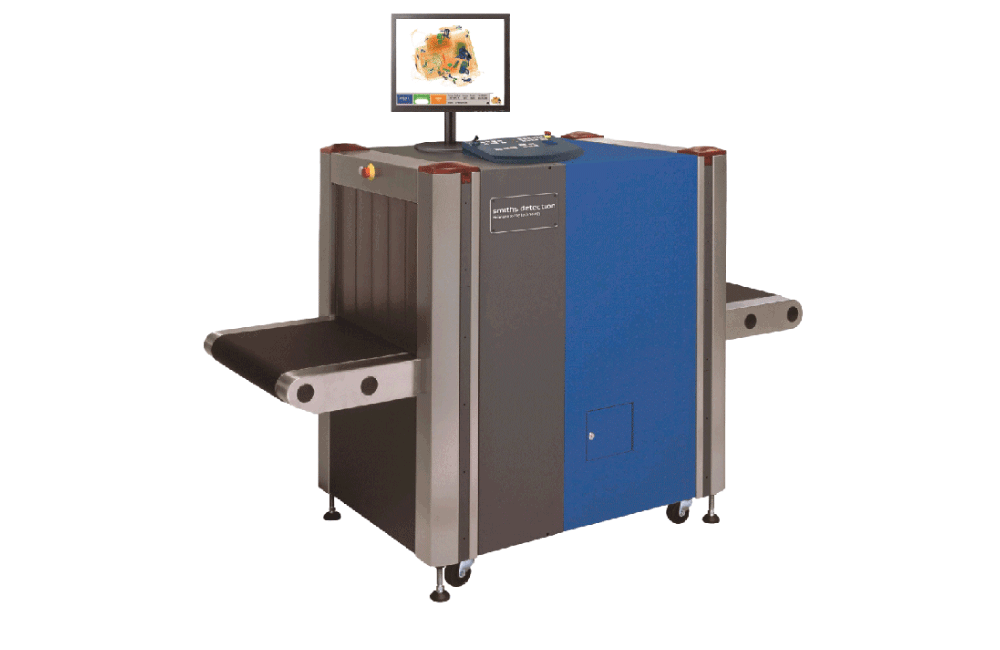

Smiths Detection HI-SCAN 6046si High-Resolution X-Ray Inspection System

Categories: Xrays SKU: 11128874 Brand: Smiths Detection

Smiths Detection HI-SCAN 6046si High-Resolution X-Ray Inspection System

Name: Smiths Detection HI-SCAN 6046si High-Resolution X-Ray Inspection System
Brand: Smiths Detection
SKU: 11128874

$0.00

The Smiths Detection HI-SCAN 6046si is a compact, high-resolution X-ray inspection system built for tight spaces and high-security screening.

In stock

The Smiths Detection HI-SCAN 6046si is a high-resolution X-ray inspection system designed with a compact footprint, allowing it to operate in locations where larger scanning systems won’t fit.

Its imaging capability is suited to high-security screening environments that require clear, detailed views of scanned items.

Contact FarrWest for a quote.

Description

Hi-Scan 6046si

X-ray inspection system

The Smiths Detection HI-SCAN 6046si represents a significant evolution from the globally recognized HI-SCAN 6040i, with over 6,000 systems installed worldwide. Engineered for next-level performance, the 6046si delivers enhanced image resolution using a drastically increased number of real physical pixels—providing more detailed, high-contrast images for improved threat detection and operator confidence.

With a compact footprint and weight under 850 kg (1,873 lbs), the HI-SCAN 6046si is ideal for installations in confined or restricted areas. It can be easily transported through standard 900 mm (35.5”) doorways, ensuring seamless deployment in facilities where space is limited.

Its advanced X-ray sensor technology, refined image processing, and modern design make it a standout solution for critical screening areas such as airports, government buildings, and secure facilities. The HI-SCAN 6046si redefines expectations for compact X-ray systems—offering exceptional flexibility, clarity, and reliability.

Features

X-ray generator with optimized spectrum
High resolution XADA sensor technology
HiTraX II system platform with extended scope of services
High resolution image display with doubled resolution

Smart Technology

HI-SCAN 6046si, despite all similarities, is by far more than a conventional X-ray system with a facelift. Crucial technological innovations concerning X-ray sensor and image processing technologies were part of the R&D process.

Advanced Imaging

THI-SCAN 6046si produces extremely detailed X-ray images, which impress by a more than doubled number of real, physical pixels. The drastically enhanced image resolution of the scanned objects represents a decisive advantage for image evaluations in security areas.

Scans Large Objects

HI-SCAN 6046si additonally has a higher tunnel opening and therefore can scan objects, whose sizes exceed standard dimensions for hand luggage in the aviation industry.

Specifications

General Specifications
Tunnel Dimensions: 620 (W) x 460 (H) [mm] ● 24.4” (W) x 18.1” (H)
Max. Object Size: 615 (W) x 455 (H) [mm] ● 24.2” (W) x 17.9” (H)
Conveyor Height: approx. 694 mm (27.3”)
Conveyor Speed: 0.2 / 0.24 [m/s]
Max. Conveyor Load: 160 kg (352 lbs)
Resolution: standard: 40 AWG (0.08 mm) ● typical: 41 AWG (0.07 mm)
Penetration: standard: 35 mm ● typical: 37 mm
X-ray Dose: 1.6 µSv (0.16 mrem)
Film Safety: guaranteed even for high speed films up to ISO 1600 (33 DIN)
Duty Cycle: 100%, no warm-up procedure required

X-ray Generator
Anode Voltage – Cooling: 160 kV cp ● hermetically sealed oil bath
Beam Direction: Diagonal
Image Generating System
X-ray Converter: L-shaped detector line
Grey Levels Stored: 4096
Image Presentation: B/W, color
Digital Video Memory: 1280 x 1024 / 24 bit
Image Evaluation Functions: B/W, HIGH, LOW, NEG, VARI-MAT, O2, OS electronic zoom: stepless enlargement up to 256-times
Monitor: Flat Panel LCD Monitor

Installation Data
Options: X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS (Image Store System – stores up to 100,000 images), Xport, Media Bay for RIDA (250 GB), CD/RW module
X-ray Leakage: meets all applicable laws and regulations with respect to X-ray emitting devices
CE-Labeling: iin compliance with directives 2004/108/EC, 2006/42/EC, 2006/95/EC
Sound Pressure Level: <70 dB(A)
Operating/Storage Temperature: 32°F – 104°F / -4°F – 140°F (0° – 40°C / -20°C – +60°C)
Humidity: 10% – 90% (non-condensing)
Power Supply: 230 VAC or 120 VAC + 10% / -15% ● 50 Hz / 60 Hz ± 3 Hz
Power Consumption: approx. 0.8 kVA
Protection Class System: IP 20 / IP43
Dimensions: 2004 (L) x 850 (W) x 1284 (H) [mm] ● approx. 400 kg 78.9” (L) x 33.5” (W) x 50.6” (H)
Weight: approx. 881 lbs
Mechanical Construction: steel construction with steel panels, mounted on rollers standard color(s): RAL 7016 (dark grey) / B11-W1 (blue)

Resources

Hi-Scan 6046si Datasheet
