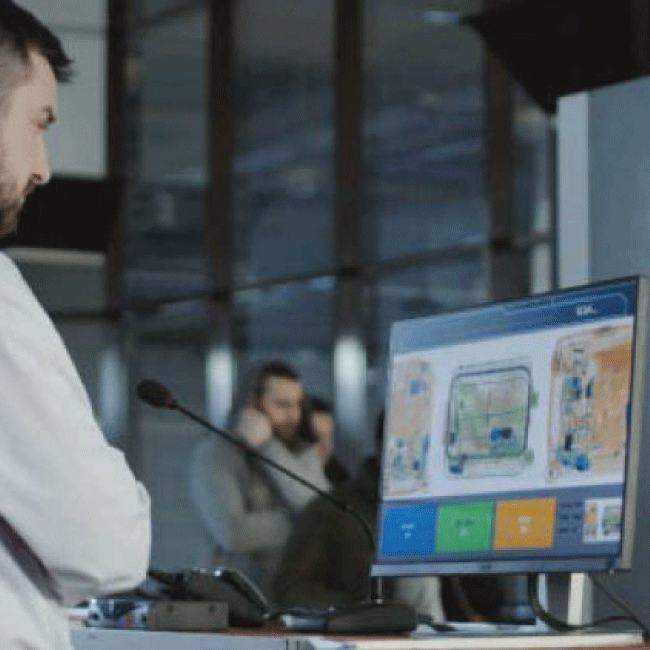

Smiths Detection HI-SCAN 6040C X-ray Scanner — view 2

Smiths Detection HI-SCAN 6040C X-ray Scanner — view 3

Smiths Detection HI-SCAN 6040C X-ray Scanner — view 4

Categories: Xrays SKU: 11131317 Brand: Smiths Detection

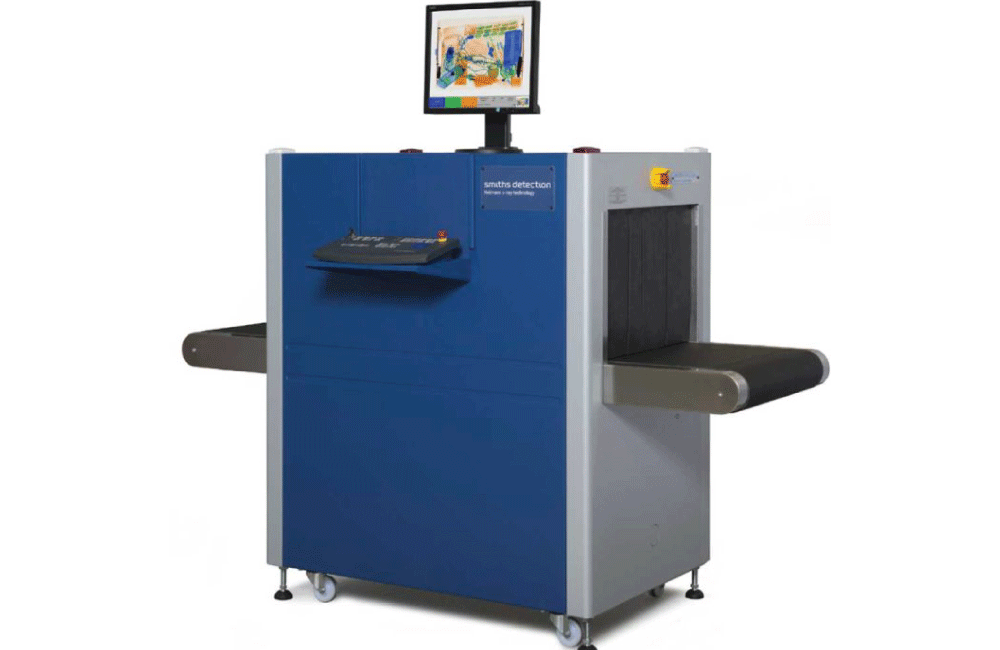

Smiths Detection HI-SCAN 6040C X-ray Scanner

Name: Smiths Detection HI-SCAN 6040C X-ray Scanner
Brand: Smiths Detection
SKU: 11131317

$0.00

The Smiths Detection HI-SCAN 6040C is a compact X-ray scanner for screening bags and parcels for threats at security checkpoints.

In stock

The HI-SCAN 6040C is a compact, powerful X-ray scanner built to screen bags and parcels for prohibited or dangerous items at security checkpoints.

Its footprint suits facilities such as courthouses, embassies, hotels, and banks, where fast, reliable screening is needed without a large equipment footprint.

Contact FarrWest for a quote.

Description

HI-SCAN 6040C

Reliable and Rapid Detection of Threat Items

High-performance threat detection in a compact footprint.

The Smiths Detection HI-SCAN 6040C is a state-of-the-art X-ray inspection system engineered to detect prohibited items, weapons, and contraband in bags and small packages at security checkpoints. Designed for use in public buildings like courthouses, prisons, embassies, banks, and hotels, the HI-SCAN 6040C combines advanced imaging with an elegant, space-saving design to fit seamlessly into modern entryways.

Whether deployed in a government building or a hospitality setting, the HI-SCAN 6040C delivers trusted screening performance where space, speed, and precision matter most.

Features

Designed for use at building entrances
High reliability
Best-in-class image quality
Easy to operate
Upgradable electronics and software
Uses next-generation HiTrax Software & Hardware
Cost-optimised

High Power

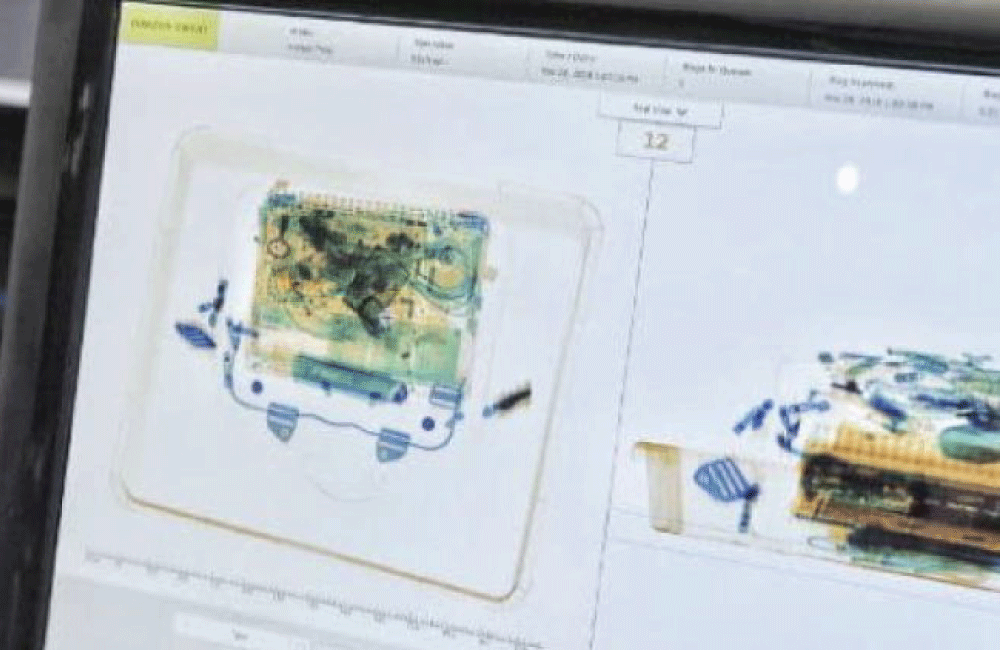

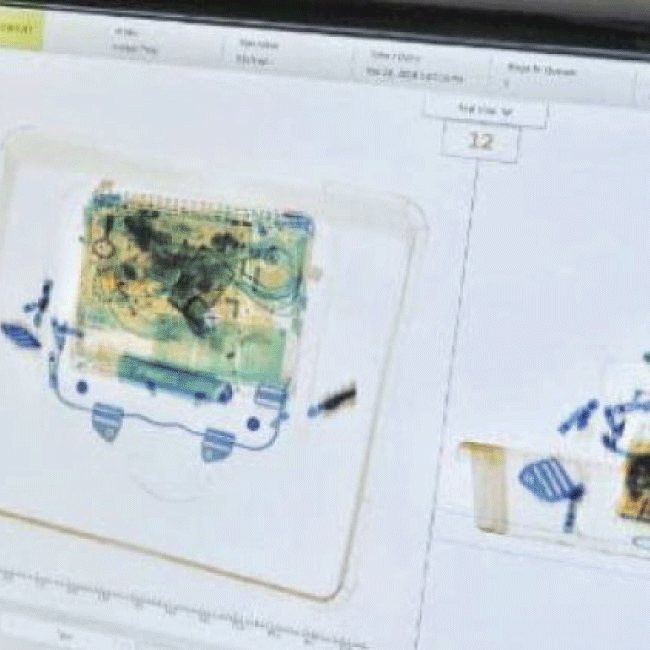

HI-SCAN 6040C is equipped with a 160kV generator, known for producing high quality X-ray images to make it easy for operators to identify potential threats quickly, while minimizing misinterpretations. New smart image display features such as Organic Only Plus, Organic Stripping Plus and Organic Enhancement give outstanding discrimination between organic and inorganic materials on screen – useful for reliable and rapid detection of threat items such as explosive devices, drugs, food or money.

Smart Technology

Smart system monitoring features such as Power-on Self-Test during start-up and specific diagnosis tools such as Real-time Background Diagnosis and Real-time System Feedback, during operation, provide instant information about the system’s status and ensure easy operation. These features support the operator or technician by providing critical system diagnostics, helping to expedite maintenance and service.

Innovative Software

The new HiTraX 3 electronics and software provide a reliable platform for future upgrades to meet changing security requirements. HI-SCAN 6040C can easily be used in combination with other security technologies from Smiths Detection, including people screening and trace detection of narcotics or explosives. HI-SCAN 6040C is backed by Smiths Detection’s global service network of field service locations and engineers to ensure optimum system performance 24/7/365 days a year.

Specifications

General
Tunnel dimensions: 620 (W) x 420 (H) [mm] • 24.4” (W) x 16.5” (H)
Max. object size: 615 (W) x 410 (H) [mm] • 24.2” (W) x 16.1” (H)
Conveyor height: approx. 800 mm (31.5”)
Conveyor speed with 50 Hz / 60 Hz frequency: standard: 0.2/0.24 [m/s]
Max. conveyor load: 165 kg
Resolution: standard: 39 AWG (0.09 mm Cu) • typical: 40 AWG (0.08 mm Cu)
Penetration (steel): standard: 35 mm • typical: 37 mm
External dose rate: <1.0 μSv/h (0.1 mrem)
Film safety: guaranteed up to ISO 1600 (33 DIN)
Duty cycle: 100%, no warm-up procedure required

X-Ray & Imaging
Anode voltage: 160 kV cp
Cooling: hermetically sealed oil bath
Beam direction: diagonal
X-ray converter: L-shaped detector line
Grey levels stored: 4096
Image presentation: B/W, color
Digital video memory: 1280 x 1024/24bit
Image evaluation functions: VARI-MAT, O2 PLUS, OSPLUS, HIGH, Organic Enhancement, HI-SPOT, SEN,
XPlore, HDA, Opti-Zoom, electronic Zoom: stepless enlargement up to 256x
and scaling down up to 2x, Optimized Background Contrast Mode
Monitor: Flat Panel LCD Monitor

Installation

X-ray leakage

meets all applicable laws and regulations with respect to X-ray emitting
devices

CE labelling/directives

in compliance with directives 2004/108/EC, 2006/42/EC, 2006/95/EC,
2014/30/EU, 2014/35/EU

Sound pressure

< 65 dB(A)

Operating/storage temperature

0° – 40°C / -20°C – +60°C

Humidity

5% – 95% (not condensing)

Power supply

220-240 VAC -15%/ +10% • 50Hz/60Hz ± 3Hz

110-120 VAC -15%/ +10% • 50Hz/60Hz ± 3Hz

Power consumption

approx. 0.8 kVA

Protection class system/keyboard

IP20 / IP43

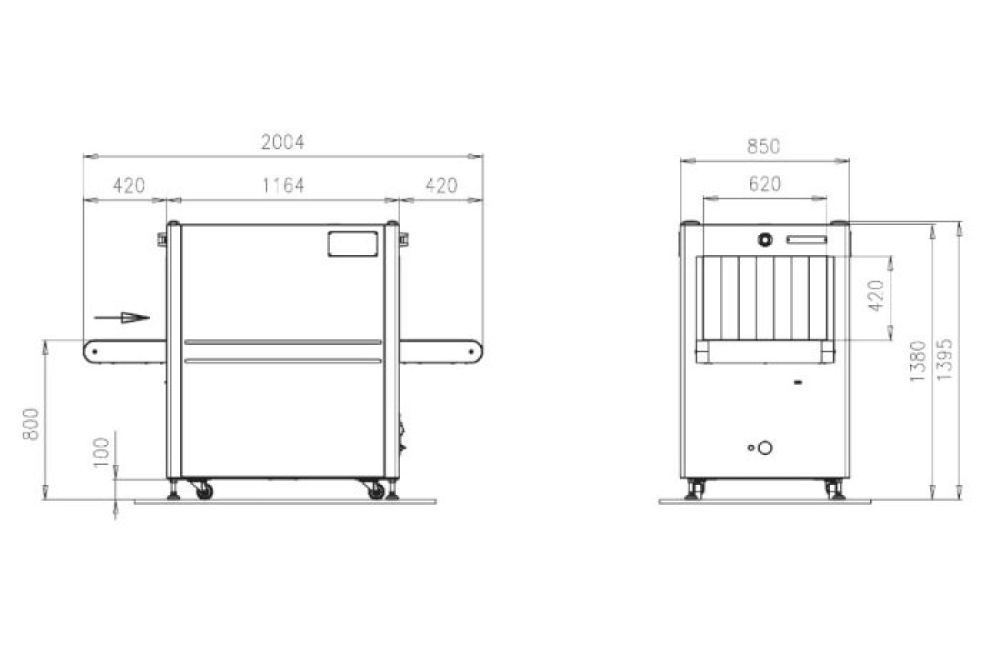

Dimensions • weight

2004 (L) x 850 (W) x 1395 (H) [mm] • approx. 460 kg • • 78.9” (L) x
33.5” (W) x 54.91” (H) • approx. 1014 lbs

Mechanical construction

steel construction with steel panels, mounted on roller castors standard
color(s): Silver matt / RAL Bl 11/W1 F12

Resources

HI-SCAN 6040C Datasheet

Media

Launch of HI-SCAN 6040C at ASIS 2015
