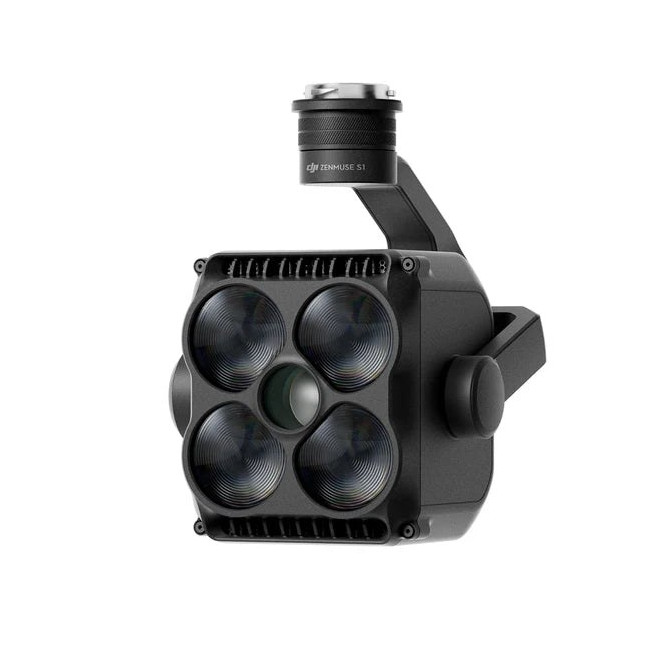

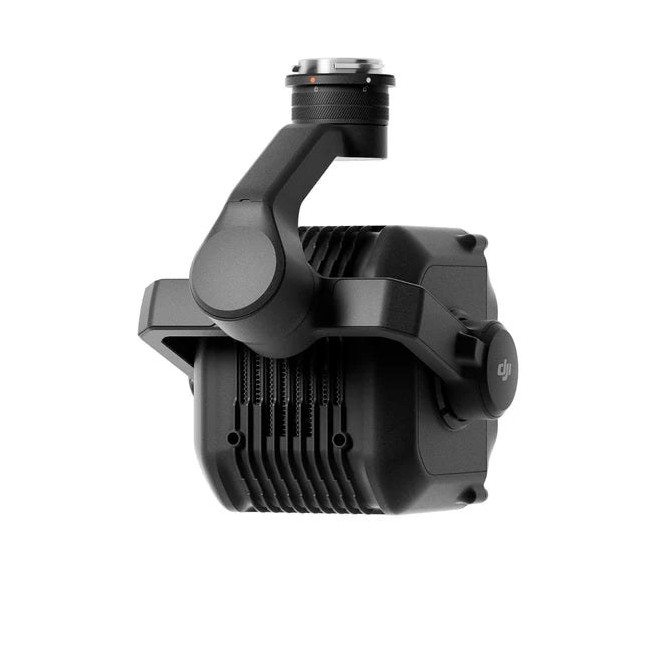

DJI Zenmuse S1 (Spotlight)
Laser-Excited-Phosphor aerial spotlight, up to 10,000 lm / 26,300 lux at 10 m, IP54; illuminates scenes and search areas after dark.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
Overview

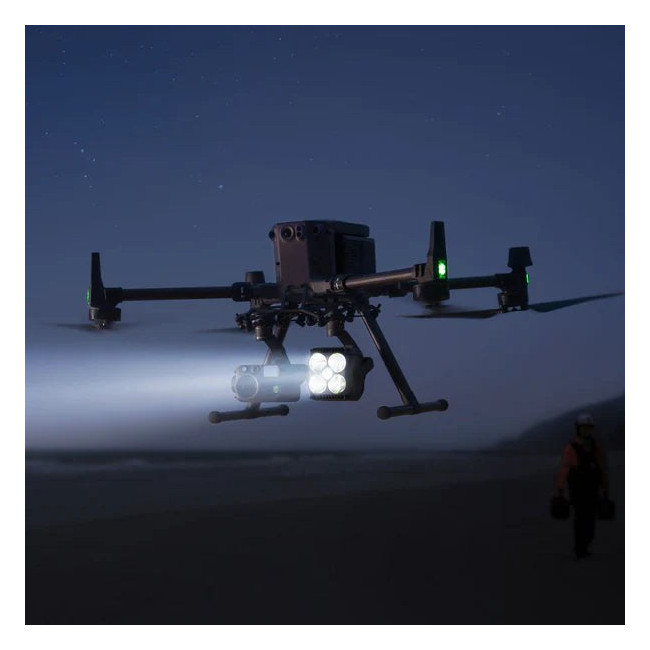

Zenmuse S1 is DJI’s first spotlight designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. Utilizing LEP technology, it offers high brightness and long illumination distance with multiple lighting modes including Low Beam (15° FOV / 150 m), High Beam LEP (4° FOV / 300 m), Both-On (up to 500 m), and high-frequency Strobe. The spotlight delivers 35 lux central illuminance at 100 m and consumes only 17 W in High Beam mode. Built-in safety features include temperature and overcurrent protection with plastic housing staying below 50°C. Features automatic ground dimming to 40% brightness, remote-controller shortcuts, and Mobile SDK support for custom app control and mission scripting.
- Multi-mode lighting: Low Beam (15° FOV / 150 m), High Beam LEP (4° FOV / 300 m), Both-On (up to 500 m), and high-frequency Strobe
- LEP technology delivers long-throw brightness while consuming only 17 W in High Beam
- Central illuminance of 35 lux at 100 m
- Built-in temperature, overcurrent, and power safeguards with plastic housing below 50°C
- Automatic dimming to 40% brightness on the ground
- Remote-controller shortcuts for on/off, mode changes, and brightness adjustment
- Mobile SDK support for custom app control and mission scripting
Specifications
| compatible_with | DJI Matrice 350 |
| Manufacturer | DJI |
| UPC | 190021136137 |
