Monitors flammable gases and vapors and carbon dioxide
-
Can replace catalytic ex-sensors
-
Robust and long-life sensors
-
Temperature-compensatory and non-imaging optics
-
Immunity against pellistor poisons
-
Fail-safe operation
-
Dirt and dust protection through hydrophobic splash guard
-
Hermetically closed enclosure made of stainless steel SS 316
-
Slim enclosure design for confined areas of use
-
Long maintenance interval thanks to minimum long-term drift
-
No moving parts
-
Unrestricted usage in humid atmospheres
-
Ex approvals for worldwide use: ATEX, IECEx, UL, CSA
-
Dust ex approval for zone 21 and 22

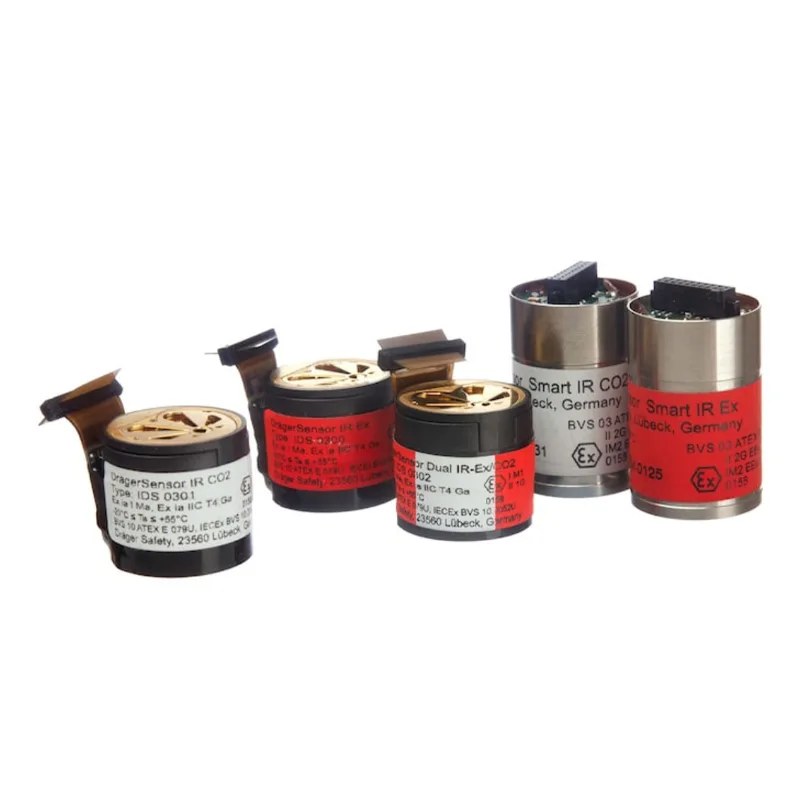

DrägerSensor IR (Ex / CO2)
$0.00
The DrägerSensor IR is an infrared combustible gas and CO2 sensor for fixed detection systems in hazardous areas worldwide.
In stock
DrägerSensor IR is an advanced infrared sensor designed for fixed gas detection systems. It monitors flammable gases and vapors as well as carbon dioxide, offering a robust and long-life alternative to catalytic ex-sensors (pellistors). The sensor features problem-free integration with existing Dräger control systems and most third-party installations without requiring wiring modifications. It emulates a Wheatstone half-bridge configuration for compatibility. Key advantages include immunity to pellistor poisons, a typical lifespan exceeding 15 years, and significantly lower maintenance costs. The sensor includes a gas library covering three categories: methane, propane, and ethylene, detecting nearly all hydrocarbons effectively. It operates reliably across a wide temperature range (-40°C to +65°C) in humid atmospheres. Built with hermetically sealed stainless steel SS 316 enclosure, it features slim design for confined spaces, IP 65/66/67 ingress protection, and worldwide Ex approvals (ATEX, IECEx, UL, CSA).
Description
DrägerSensor IR (Ex / CO2)
DrägerSensor IR is an advanced infrared sensor designed for fixed gas detection systems. It monitors flammable gases and vapors as well as carbon dioxide, offering a robust and long-life alternative to catalytic ex-sensors (pellistors). The sensor features problem-free integration with existing Dräger control systems and most third-party installations without requiring wiring modifications. It emulates a Wheatstone half-bridge configuration for compatibility. Key advantages include immunity to pellistor poisons, a typical lifespan exceeding 15 years, and significantly lower maintenance costs. The sensor includes a gas library covering three categories: methane, propane, and ethylene, detecting nearly all hydrocarbons effectively. It operates reliably across a wide temperature range (-40°C to +65°C) in humid atmospheres. Built with hermetically sealed stainless steel SS 316 enclosure, it features slim design for confined spaces, IP 65/66/67 ingress protection, and worldwide Ex approvals (ATEX, IECEx, UL, CSA).
Features
Specifications
- Temperature range
- – 40 °C to + 65 °C / – 40 °F to + 149 °F
- Ingress Protection
- IP 65, IP 66 and IP 67
- Enclosure material
- Stainless steel SS 316
- Output signal
- mV signal for Wheatstone bridge installations
- Typical life time
- 15 years
- Gas library
- 3 gas categories: Methane, propane and ethylene
- Performance approval substances
- 13 further substances in accordance with IEC 60079
