1 to 7 gas detection capability
-
Detection of toxic and combustible gases, vapors, and oxygen
-
Clearance measurement specialist
-
Powerful internal pump with 45-meter hose compatibility
-
Pump and diffusion mode operation
-
Color display with clear signaling design
-
D-Light visibility indicator for device readiness
-
100 dB(A) alarm horn with vibration alert
-
Inductive charging technology
-
Impact detection system
-
Dual sensor capability
-
CatEx Fullrange measurement
-
PID sensor support for hydrocarbon detection
-
Benzene-specific measurements with pre-tube support
-
Automatic measurement range switching for methane
-
Three-button single-handed operation
-
IP 68 waterproof protection
-
Li-Ion battery with 24+ hour operation
-
Bluetooth connectivity
-
X-dock station compatibility for bump testing and calibration
-
Assistant functions for process guidance
-
Software-based gas selection during operation
-
Hazard symbol display options
DrägerSensor PID (X-am 8000)
$0.00
The Dräger DrägerSensor PID is a photoionization VOC sensor module for the X-am 8000 portable gas detector used in confined space monitoring and clearance measurements.

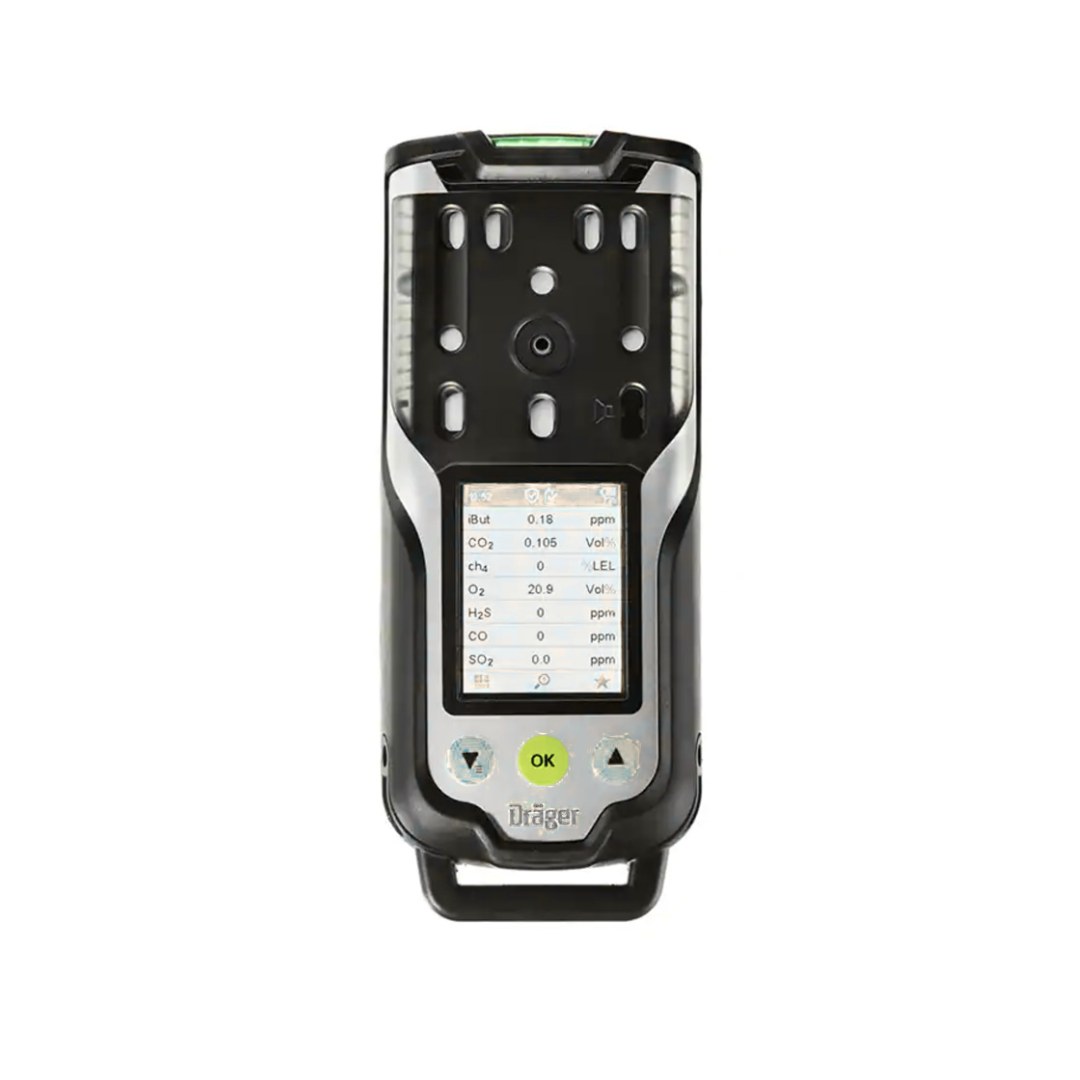

The Dräger X-am 8000 is a versatile 1 to 7 gas portable detector designed for detecting toxic and combustible gases, vapours, and oxygen in pump or diffusion mode. Features include: powerful pump with 45-meter hose capability, intuitive single-handed operation with three function keys, easy-to-read colour display, advanced sensor technology (CAT, IR, PID, EC), on-board sensor library with dynamic measurement gas switching, automated assistant functions for clearance measurement and documentation, optional automatic measurement range switching, compact and robust construction with shoulder strap. Ideal for clearance measurements, release procedures, and confined space monitoring.
Description
DrägerSensor PID (X-am 8000)
The Dräger X-am 8000 is a versatile 1 to 7 gas portable detector designed for detecting toxic and combustible gases, vapours, and oxygen in pump or diffusion mode. Features include: powerful pump with 45-meter hose capability, intuitive single-handed operation with three function keys, easy-to-read colour display, advanced sensor technology (CAT, IR, PID, EC), on-board sensor library with dynamic measurement gas switching, automated assistant functions for clearance measurement and documentation, optional automatic measurement range switching, compact and robust construction with shoulder strap. Ideal for clearance measurements, release procedures, and confined space monitoring.
Features
Specifications
- Number of gases
- 1 – 7
- Sensor technology
- CAT + IR + PID + EC
- Sensorports
- 5
- Measurable gases
- Ex, CO2, O2, CO, H2S, NO2, SO2, VOC (PID) + (choice out > 40 sensors)
- Operation time
- >24h
- Dimensions (W × H × D)
- 3.03×7.05×1.65 “
- Weight
- 1.32 lb
- Battery type
- Li-Ion
- Degree of protection (IP class)
- IP 68
- Dual sensors
- yes
- CatEx Fullrange
- yes
- D-Light
- yes
- Internal pump
- yes
- X-dock Station
- yes
- Bluetooth
- yes
- ATEX
- I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
- IECEx
- I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
- c CSA us
- Class I, Zone 0, AEx da ia IIC T4 Ga, Class II, Div 1, Gr. E, F, G
- CE
- yes
- GOST (EAC)
- PO Ex da ia I Ma X, 0Ex da ia IIC T4 Ga X
- Performance approval
- yes
- Shipping approval (MED/DNV GL)
- yes
