ZnS scintillation detector for alpha and beta surface contamination measurement
-
Sensitive area of approximately 125 cm²
-
Compatible with FH 40 G survey meter and FHT 6020 display unit
-
Automatic probe identification and calibration data loading
FHZ 742
$0.00

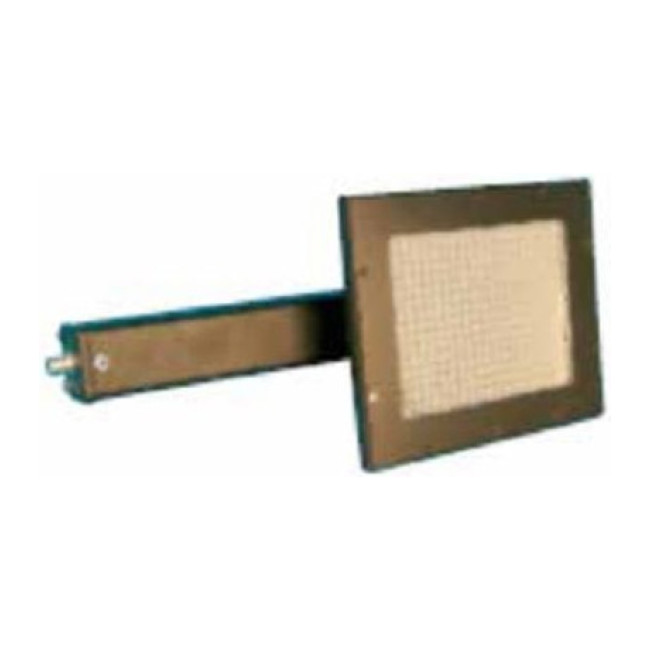

The Thermo Scientific FHZ 742 is a scintillator contamination probe designed for surface alpha and beta radiation detection with FH 40 G systems.
The FHZ 742 is an external surface contamination detector probe used for measuring alpha and beta radiation contamination. It features a ZnS scintillation detector with a sensitive area of approximately 125 cm². The probe provides high efficiency for alpha detection (40% for Am-241) and beta detection (56% for Sr/Y-90). It includes specifications for window thickness (0.87 mg/cm²) with a window size of 100mm × 125mm. The probe is compatible with the FH 40 G radiation measurement system and FHT 6020 display unit. Applications include surface contamination surveys and environmental monitoring.
Description
FHZ 742
The FHZ 742 is an external surface contamination detector probe used for measuring alpha and beta radiation contamination. It features a ZnS scintillation detector with a sensitive area of approximately 125 cm². The probe provides high efficiency for alpha detection (40% for Am-241) and beta detection (56% for Sr/Y-90). It includes specifications for window thickness (0.87 mg/cm²) with a window size of 100mm × 125mm. The probe is compatible with the FH 40 G radiation measurement system and FHT 6020 display unit. Applications include surface contamination surveys and environmental monitoring.
Features
Specifications
- Efficiency (Am-241, alpha)
- 40%
- Efficiency (Co-60, beta)
- 17%
- Efficiency (Sr/Y-90, beta)
- 56%
- Gamma response (Cs-137)
- approx.60s-1/(μSv/h) / 0.6s-1/(μR/h)
- Window thickness
- 0.87 mg/cm²
- Window size
- 100 mm × 125 mm [3.94″ x 4.92″]
- Dimensions
- 310 mm × 156 mm × 84 mm [12.2″ x 6.14″ x 3.31″]
- Weight
- approx. 1.2 kg [2.65 lb]
- Order number
- 4254039
