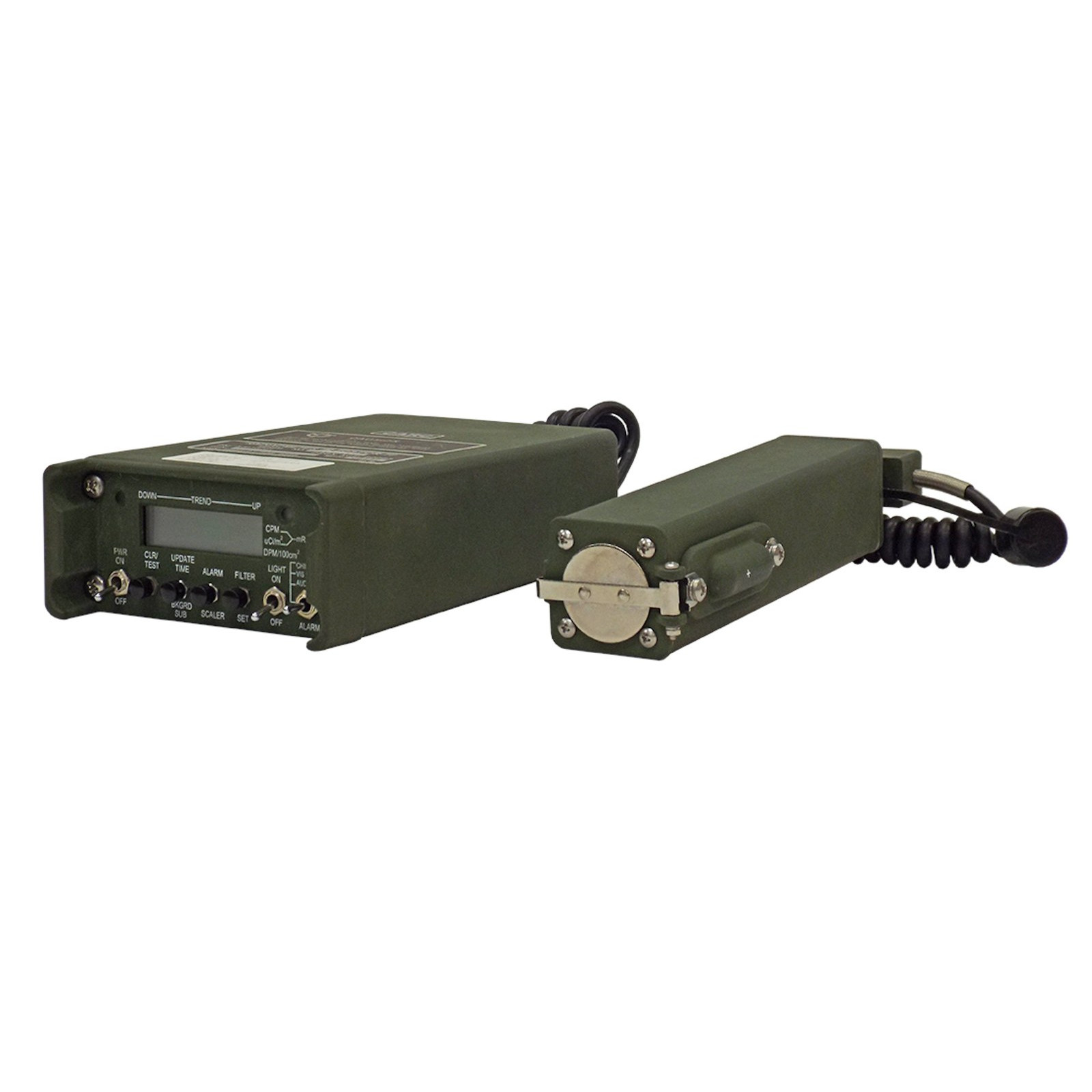

RDS-100P Radiation Detection System
The RDS-100P is a portable radiation detection system for defense and emergency response teams conducting contamination surveys and personnel monitoring in hazardous environments.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
Overview
The RDS-100P Radiation Detection System offers comprehensive radiation management and unsurpassed reliability in a self-contained, portable system. This rugged and lightweight equipment combines outstanding performance and reliability using unique Time-to-Count technique for linearity over the entire dynamic dose rate range. Compatible with existing AN/PDR-77 probes, it features beta-gamma, alpha, X-ray, and optional beta pancake probes for contamination surveys and frisking. Designed to meet Mil-STD-810 requirements, waterproof to 1m, and operable while wearing protective clothing. Applications include weapon surveillance, nuclear accident response, personnel monitoring, search, triage, and surveillance operations.

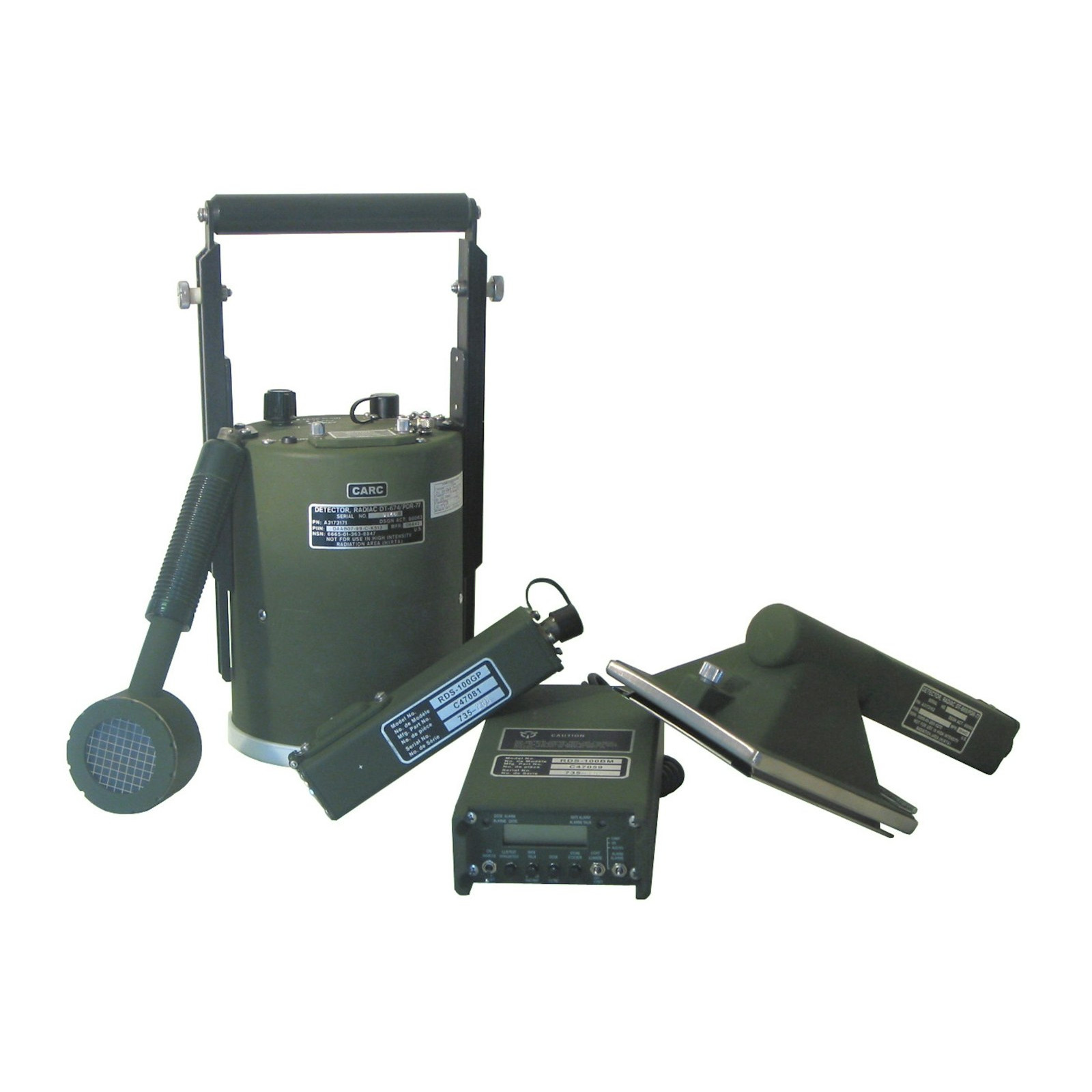

- Compatible with existing AN/PDR-77™ probes
- Designed to meet requirements of Mil-STD-810
- Outstanding linearity over a wide dynamic range
- Can be operated and read while wearing fire or hazmat protective clothing
- Waterproof to 1 m (3 ft)
- Background Subtract feature
- Electronic filter to reduce fluctuations in readings
- Built-in RS-232 interface
- Lowest life cycle costs due to calibration stability and semi automatic self calibration
Specifications
| Performance | |
| Display | Direct Reading Liquid Crystal Display (1/2 in. characters), Backlit for night operation, Three significant digits, Floating decimal point, Unit and alarm status indicators, Large digits, readable at 2 m |
| Alarms | Pre-settable alarm for dose rate, and count rate for attached probes, Settable to any values over dynamic range for each connectable probe, Audible alarm: 90 dB max, Visual alarm: Both LEDs flashing |
| Response Time | One to two seconds in unfiltered mode using update time, Four seconds in filtered mode |
| Operating Temperature Range | -40 °C to 50 °C (-40 °F to 122 °F) |
| Storage/Transport Temperature Range | -60 °C to 70 °C (-76 °F to 158 °F) |
| Power | |
| Power | Battery powered by three standard 9 V BA-3090 cells, 100 h operational time |
| Physical | |
| Size and Weight | 104 x 48 x 192 mm³ (4.1 x 1.81 x 7.56 in.³) (W x H x L), 1.11 kg (2.42 1b) |
| Other | |
| Locator/Frisking Function | Indication via LEDs clearly placed above LCD screen whether the measured value goes "down" or "up" |
| Controls | Power ON/OFF, Selectable Alarms - Chirp, Visual, AudVis, Modes: Rate (dose rate or count rate), Scaler, Test |
| EMI Susceptibility | Not affected by EMI, Will not affect other instruments |
| Communications | Built-in RS-232, data downloadable to standard remote PC |
| Read-out and Functions | An auto ranging LCD can be read at 3 ft, back lit for night use, updated every one or two seconds, Provides dose rate readout in units of mR/h and count rates in CPM, µCi/m2 or DPM/100 cm2 (probe dependant), UPDATE TIME button, to select one or two seconds read-out update time, FILTER button, to show current response time, BKGRD SUBstract function, to allow learning and differentiation of current background level, for frisking applications, SCALER function, to allow count mode application (typically when performing alpha measurements), SET selection function, to select Filtered response time |
| Humidity | 0 to 95% relative humidity |
| Immersion | Water-tight at 1 m (3 ft) depth for 2 hr |
| Sand | Withstands sand particles in 5700 ft /min wind |
| Dust | Withstands fine dust in 1750 ft /min wind |
| Fungus | Built from inherently fungus resistant materials |
| Vibration | Withstands vibration associated with transport |
| Shock | Withstands shock of dropping during use |
| Altitude | 4500 m (15 000 ft) |
| Explosive Atmospheres | Will not ignite explosive gas mixture |
| Nuclear Hardened | Designed for nuclear survivability |
