SPIR-Ident Spectroscopic Radiation Portals
SPIR-Ident Spectroscopic Radiation Portals are modular detection systems that identify radioactive sources in real-time for border protection, airports, seaports, and critical infrastructure.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Detector
- 2-liter NaI(Tl)
- Energy range
- 25 keV to 3 MeV
- IP rating (Pedestrian)
- IP54
- Weight (Pedestrian Lite)
- 52 kg (115 lb)
Overview
SPIR-Ident Portals are Spectroscopic Radiation Portal Monitors (SRPM) that detect radioactive sources with real-time radionuclide identification, providing alarms only for sources of interest. Available in modular designs for pedestrians, luggage, mail, vehicles, trucks, and trains. Features include dynamic radionuclide identification, high dose rate detection, simple alert system (background/tolerated/alarm/danger), video alarm replay, and low maintenance. Designed for border protection, airports, seaports, and critical infrastructure. Compliant with ANSI N32.38, IEC 62484, and IAEA NSS1 standards. Suitable for RDD detection and available in both standalone pedestrian and modular pole/wall-mounted versions.
- Detection-by-Identification: dynamic radionuclide identification

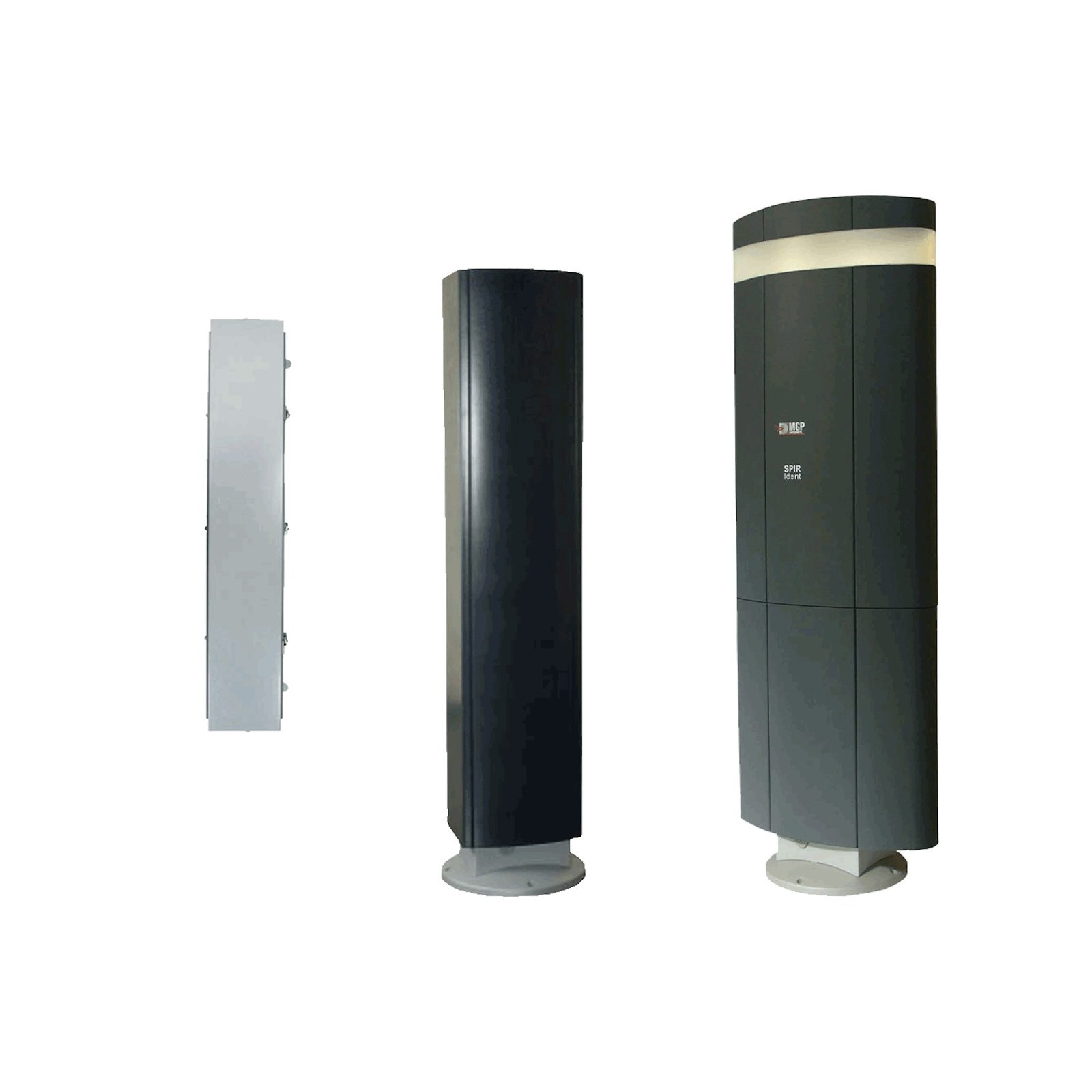

- Modular portals for pedestrians, luggage, mail, vehicles, trucks and trains
- Protection of borders, airports, seaports and critical sites such as buildings, industrial sites, nuclear plants, warehouses
- Usable for secondary inspection: less intrusive than with a handheld device
- High dose rate detector for large sources, for personal protection and saturation management
- Simple results: background, tolerated alarm, alarm, and danger
- Central alarm stations for monitoring of large sites, such as airports
- Alarms replay with video
- Low maintenance
- Low labor cost
- Designed and tested for standards related to the detection of illicit trafficking of radioactive materials: ANSI N32.38, IEC 62484, IAEA NSS1
- Suitable for Radiological Dispersal Device (RDD) "dirty bomb" detection
- Effective in permanent and temporary installations
Specifications
| Performance | |
| Detector | 2-liter NaI(Tl) |
| Energy range | 25 keV to 3 MeV |
| Energy resolution at 662 keV | typ. 7.5% |
| Cs-137 sensitivity | > 23 cps/nSv/h |
| Gamma high range | Energy compensated GM tube, up to 10 mSv/h |
| Neutron detectors | Moderated BZnS solid-state detectors (non-He3, non-hazardous) |
| Neutron detection rate | >130 cps / (N/s/cm²) for Cf-252 at 1 m |
| Neutron detection capability | Detects 12,000 N/s, Cf-252 at 1 m and 1.2 m/s |
| Physical | |
| Dimensions (Pedestrian Lite) | 131 x 26 x 22 cm (52 x 10 x 9 in.) |
| Dimensions (Pedestrian Regular) | 148 x 50 x 22 cm (58 x 20 x 9 in.) |
| Dimensions (Module) | 97 x 20 x 16 cm (38 x 8 x 6 in.) |
| Weight (Pedestrian Lite) | 52 kg (115 lb) |
| Weight (Pedestrian Regular, gamma-neutron) | 75 kg (165 lb) |
| Weight (Module, not shielded) | 14.6 kg (32 lb) |
| Weight (Module, focusing shielding in one direction) | 32 kg (71 lb) |
| Approvals & Warranty | |
| IP rating (Pedestrian) | IP54 |
| IP rating (Module) | IP65 |
| Other | |
| Radionuclide identification libraries | Seven libraries containing 80 radionuclides |
| Identifies up to | eight radionuclides simultaneously |
| Environment | CE Mark, Indoor and Outdoor, -30 °C to +55 °C |
| Mechanical integration (Pedestrian) | AC Mains and Ethernet |
| Mechanical integration (Module) | Power over Ethernet (PoE) |
