Detects and measures dose rate and accumulated dose from gamma-ray and beta radiation
-
Wide dynamic range for dose rate and dose
-
Pre-settable audio and visual alarms
-
600 hr battery life
-
Vehicle mount for operation using vehicle or aircraft power (available option)
-
Not affected by EMP
-
Nuclear hardened
-
Meets MIL-STD-810G for military environments
-
Operable/readable by personnel in Mission Oriented Protection Posture (MOPP IV) or arctic clothing
-
Outstanding linearity over a wide dynamic range
-
Calibration stability and semi automatic self calibration
-
RS-232 interface for computer control and data downloads (available option)
-
SMART probe technology with calibration factors stored inside the probe
-
Time-to-Count technique

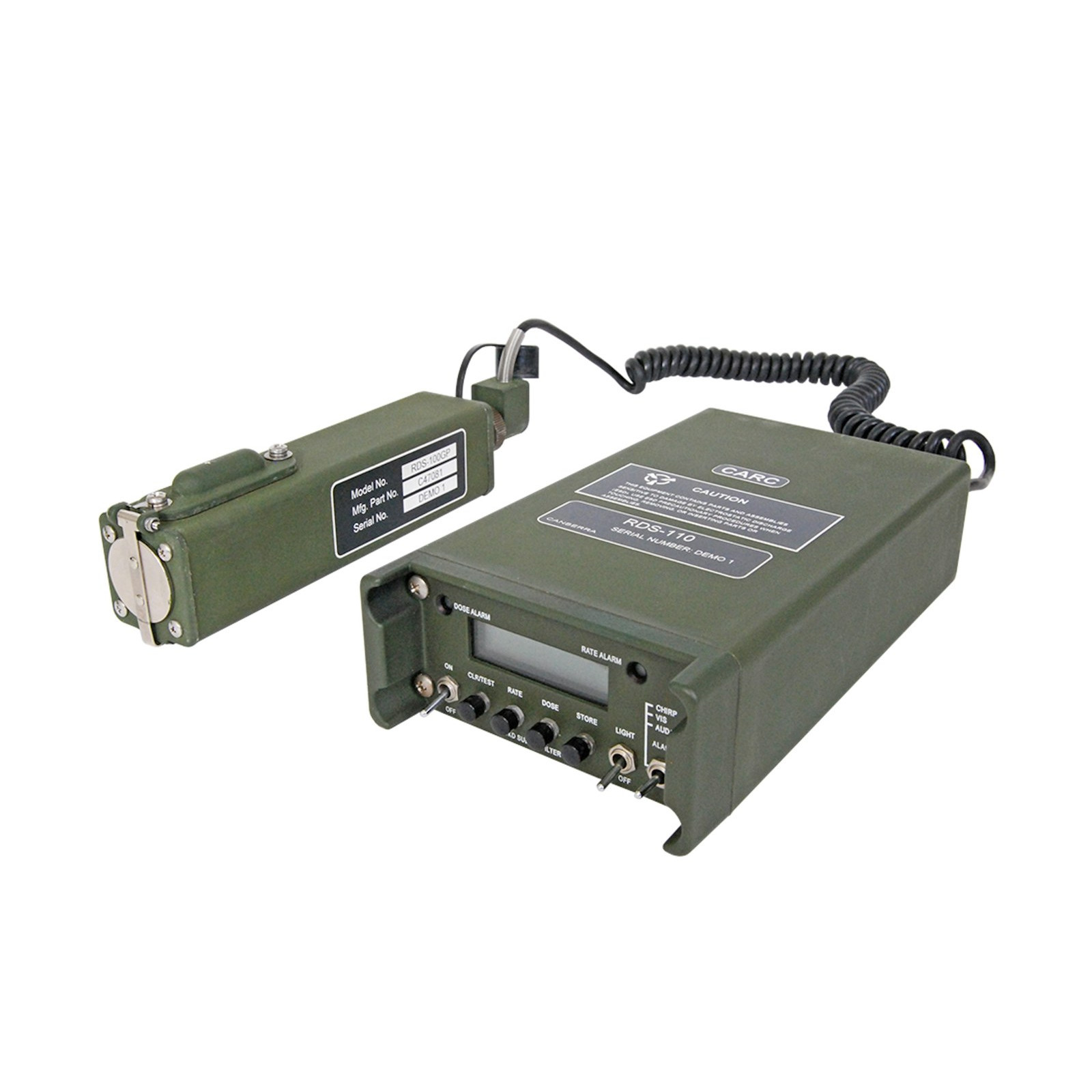

RDS-110V Military Radiac Set
$0.00
The RDS-110V Military Radiac Set is a vehicle-mounted radiation detector for defense personnel conducting nuclear survey operations.
In stock
The RDS-110V military radiac set is designed to detect and measure dose rate and accumulated dose derived from gamma-ray and beta radiation. This rugged, lightweight equipment combines unparalleled performance and reliability and may be carried by an operator or installed in a vehicular mount (optional). Features include wide dynamic ranges, pre-settable alarms, 600 hr battery life, nuclear hardening, EMP resistance, and compliance with MIL-STD-810G. Operable by personnel in MOPP IV or arctic clothing. Uses Time-to-Count technique for outstanding linearity and includes SMART probe technology with embedded calibration factors. Optional RS-232 interface for computer control and data downloads. Suitable for personnel, aircraft, and vehicle applications.
Description
RDS-110V Military Radiac Set
The RDS-110V military radiac set is designed to detect and measure dose rate and accumulated dose derived from gamma-ray and beta radiation. This rugged, lightweight equipment combines unparalleled performance and reliability and may be carried by an operator or installed in a vehicular mount (optional). Features include wide dynamic ranges, pre-settable alarms, 600 hr battery life, nuclear hardening, EMP resistance, and compliance with MIL-STD-810G. Operable by personnel in MOPP IV or arctic clothing. Uses Time-to-Count technique for outstanding linearity and includes SMART probe technology with embedded calibration factors. Optional RS-232 interface for computer control and data downloads. Suitable for personnel, aircraft, and vehicle applications.
Features
Specifications
- Features
- Pre-settable audible and visual: Dose and dose rate alarms., Modes: Rate, Dose, Test., Setup time: For all checks and alarms less than 1 min., Circuit Protection: Nuclear and EMP hardened., EMI compatibility: Will not be affected, or cause other equipment to be affected by its use., Operable and readable: By persons wearing Arctic and MOPP protective clothing.
- Radiac meter dimensions
- 19.2 x 10.4 x 4.8 cm (7.6 x 4.1 x 1.9 in.)
- Detector probe dimensions
- 18.2 x 5.1 x 3.8 cm (7.2 x 2 x 1.5 in.)
- Radiac set in pouch dimensions
- 23.2 x 17.5 x 7.9 cm (9.12 x 6.88 x 3.13 in.)
- Radiac with Beta/Gamma Probe weight
- 1.73 kg (3.8 Ib)
- Radiac set in pouch weight
- 2.08 kg (4.6 lb)
- Display
- Auto ranging LCD can be read at 2 m daylight or 3 ft, back lit for night use, updated every two seconds.
- RATE
- provides dose rate readout in µSv/hr, mSv/hr, Sv/hr)
- Total (Cumulative) Dose Read Out
- provides dose read out in units of µSv, mSv, Sv; will not be erased when read, resettable to zero as desired.
- Store function
- To store up to 300 read-out values with date and time stamp (or with GPS coordinates if externally coupled).
- Power source
- Six AA batteries
- Battery life
- 600 hours of continuous operation and monitoring
- Low battery indication
- Low battery LCD indication with 10 hr of battery life remaining, a “Go/No Go” feature provides battery status
- Vehicle/Aircraft power
- Can be operated on vehicle or aircraft power (12 or 24 V dc via universal connector)
- SELFTEST
- during start-up of the unit, with audible button strokes for verification
- Mean time between failure (MTBF)
- Greater than 2000 hr
- Mean time to repair (MTTR)
- 20 min
- Alarms
- Has selectable Visual and Audible indicators for DOSE and RATE alarm for day or night use.
- Alarm levels
- settable over entire dynamic range
- SMART probe Technology
- Instantly recognized and functional upon hook-up, without any adjustment, programming or calibration
- Detectors
- Combined two GM Tubes; low range EWGM and high range GM
- Beta radiation
- 0.01 µSv/hr to 50 mSv/hr
- Gamma radiation
- 0.01 µSv/hr to 99.9 Sv/hr (dose rate) and 0.01 µSv to 99.9 Sv (total dose)
- Energy response
- ±20% 80 keV to 3 MeV
- Accuracy
- ±10% of true dose and dose rate over the entire dynamic range
- Dose rate minimum detectable level
- 0.01 µSv/hr
- Response time
- Within 10% of final reading in 4 sec at 10 mSv/hr; returns to background within 4 sec. Meets ANSI N42.17A
- Operating temperature
- -50 °C to 60 °C (-58 °F to 140 °F)
- Storage/transport temperature
- -60 °C to 70 °C (-76 °F to 158 °F)
- Humidity
- 0 to 100% relative humidity
- Immersion
- 3 ft or 1 m for 30 min
- Dust
- Meets MIL-STD-810G, Method 510.5, Proc. I
- Fungus
- Built from inherently fungus resistant materials. Meets MIL-STD-810G, Method 508.6
- Salt fog
- Meets MIL-STD-810G, Method 509.5
- Vibration
- Meets MIL-STD-810G, Method 514.6, Procedures I (Cat 4) and II (Cat 5)
- Functional and transit shock
- Meets MIL-STD-810G, Method 516.6, Procedure I and IV
- Ballistic shock
- Meets MIL-S-901D, Grade A, Class 1, Type A
- Altitude
- 4572 m (15000 ft)
- Explosive Atmospheres
- Will not cause ignition of explosive gas mixtures. Meets MIL-STD-810G, Method 511.5
- Nuclear survivability
- Meets Nuclear Survivability criteria TOP 1-2-620 (for HEMP) and 1-2-612 for HEMP, Prompt Gamma Dose Rate, Gamma Total Dose, Neutron Fluence, Nuclear Air Blast & Nuclear Thermal Radiation
- External Communications
- 12-pin Hiroshi type of connector, towards earphone/serial RS-232 for PC/GPS – with breakout cable (optional). External alarm jack output
