Advanced gamma detection and spectroscopy
-
Optional neutron detection capability
-
NaI(Tl) crystal detectors of different sizes
-
GM detector for high gamma dose rate measurements
-
Optional BZnS-based neutron detectors
-
SPIR-Ident Mobile Suite software (SpirMOBILE, SpirPORTAL)
-
SpirVIEW MOBILE supervision software for fleet management
-
SpirTRAINING module for realistic training scenarios
-
Suitable for vehicles, ships, helicopters and aircraft
-
Radioactive source search and location
-
Natural radiation background mapping
-
Contamination analysis capability
-
Modular and customizable design
-
Rapid deployment in less than 5 minutes
SPIR-Ident Mobile Platform
$0.00

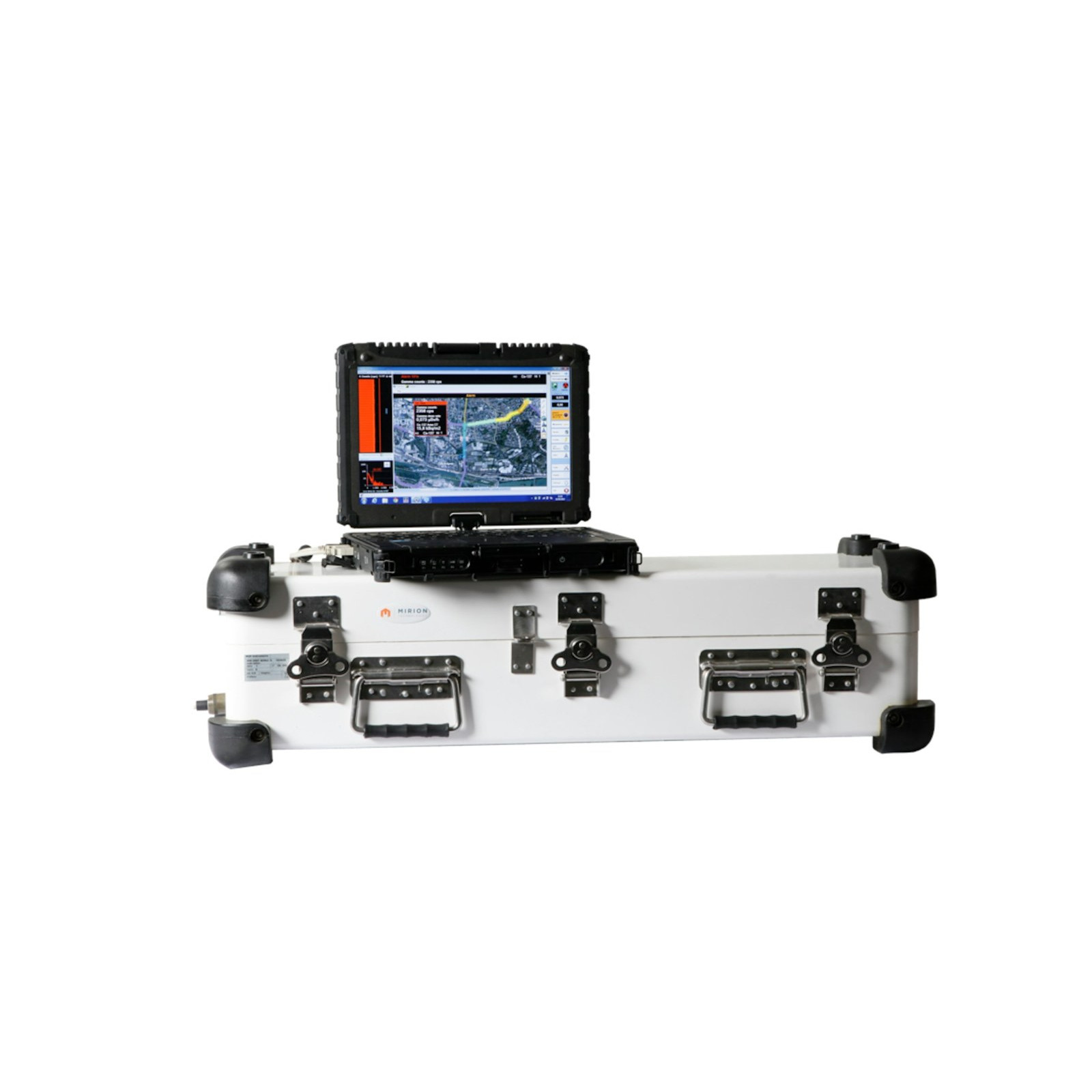

The SPIR-Ident Mobile Platform is an advanced gamma and optional neutron spectrometry system for vehicles, ships, and aircraft designed for radioactive source detection and contamination analysis.
In stock
The SPIR-Ident Mobile Platform is an advanced airborne and carborne system combining gamma detection and spectroscopy with optional neutron detection. Designed for vehicles, ships, helicopters and aircraft, it features NaI(Tl) detector crystals, GM detectors for high dose rate measurements, and optional BZnS neutron detectors. The system includes SPIR-Ident Mobile Suite software (SpirMOBILE, SpirPORTAL), optional connection/accessory box, SpirVIEW MOBILE fleet supervision software, and SpirTRAINING module. Applications include security-related radioactive source detection and location, natural radiation background mapping, and qualitative/quantitative contamination analysis. Known for robustness, modularity, and rapid deployment in under 5 minutes.
Description
SPIR-Ident Mobile Platform
The SPIR-Ident Mobile Platform is an advanced airborne and carborne system combining gamma detection and spectroscopy with optional neutron detection. Designed for vehicles, ships, helicopters and aircraft, it features NaI(Tl) detector crystals, GM detectors for high dose rate measurements, and optional BZnS neutron detectors. The system includes SPIR-Ident Mobile Suite software (SpirMOBILE, SpirPORTAL), optional connection/accessory box, SpirVIEW MOBILE fleet supervision software, and SpirTRAINING module. Applications include security-related radioactive source detection and location, natural radiation background mapping, and qualitative/quantitative contamination analysis. Known for robustness, modularity, and rapid deployment in under 5 minutes.
Features
Specifications
- Gamma Detectors
- NaI(Tl) and GM
- Sensitivity per detector (Cs-137) – 2l
- > 23 cps per nSv/h
- Sensitivity per detector (Cs-137) – 4l
- > 37 cps per nSv/h
- Dose rate
- 0,001 µSv/h to 9 999 µSv/h
- Typical resolution
- 7,5 %
- Spectra
- 1024 channels, from 25 keV to 3 MeV
- Identification
- up to 4 mixed isotopes (on top of the background noise) with confidence level and quantity per nuclide
- Libraries
- more than 75 nuclides
- Norms of reference
- ANSI N42.43, CEI 62438, IAEA NSS1, IAEA TECDOC 1363
- Neutron Detectors
- BZnS
- Sensitivity per detector (Cf-252)
- 89 cps / (N/s/cm²)
- Dynamic detection (Cf-252) at 3 m and 2,2 m/s – 1 detector
- 60 000 N/s
- Dynamic detection (Cf-252) at 3 m and 2,2 m/s – 4 detectors
- 20 000 N/s
- 1 detector case dimensions
- 84 cm x 24 cm x 24 cm
- 1 detector case weight (2l)
- 18 kg
- 1 detector case weight (4l)
- 24 kg
- 2 Gamma or 1 Gamma + 1 Neutron detectors case dimensions
- 90 cm x 42 cm x 33 cm
- 2 Gamma or 1 Gamma + 1 Neutron detectors case weight (2 x 2l)
- 35 kg
- 2 Gamma or 1 Gamma + 1 Neutron detectors case weight (2 x 4l)
- 49 kg
- 2 Gamma or 1 Gamma + 1 Neutron detectors case weight (2l + Ne)
- 50 kg
- 2 Gamma or 1 Gamma + 1 Neutron detectors case weight (4 l + Ne)
- 56 kg
- 4 detectors all-terrain roof box dimensions
- 195 cm x 130 cm x 50 cm
- 4 detectors all-terrain roof box weight
- < 120 kg (4 x 2l)
- Operating temperature
- -20 °C to +50 °C, protection against thermal shocks
- IP rating
- IP 65 case
- Typical autonomy
- 8 hours
- Power source
- Can use vehicle’s DC power
