H*(10) dose equivalent rate according to latest standards
-
External alpha, beta, gamma and neutron probes for direct connection
-
4-way navigation keys with practical shortcuts
-
Intuitive user interface
-
Large graphic screen with configurable backlight
-
Automatic display rotation with tilt sensor
-
High impact durable case construction, IP67 immersion proof
-
Internal memory with versatile histogram functions and manual measurement storage
-
Configuration and firmware upgrade via CSW-32 Software with USB cable-link
-
Visual, audible, and vibration alert functions
-
Warning and Alarm level settings
-
Battery cover with belt clip for wearable operation
-
Complies with IEC 60846 standards, designed to meet ANSI 42.17A, 42.17C standards
RDS-32 Radiation Survey Meter
$1,399.00

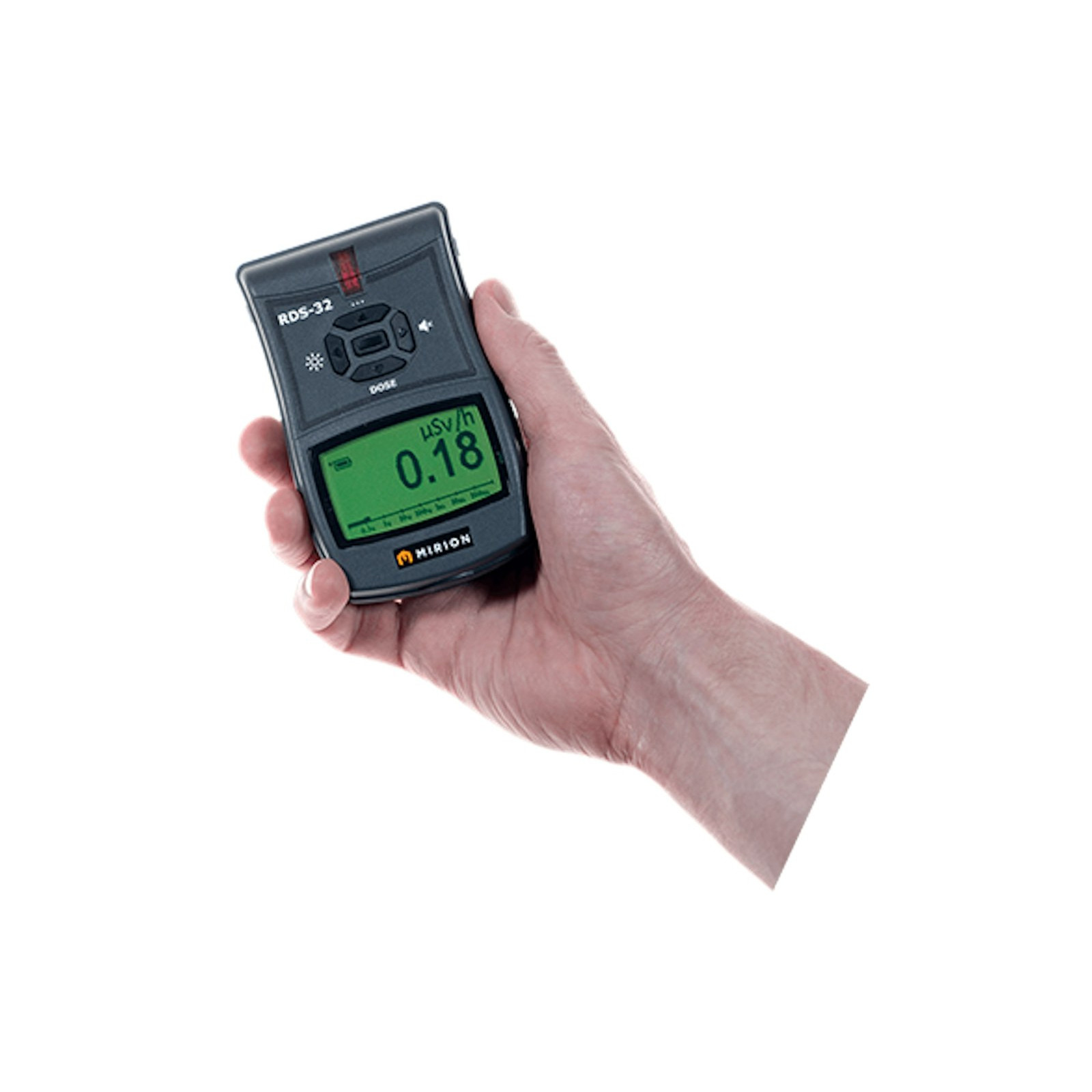

The Mirion Technologies RDS-32 is a handheld radiation survey meter designed for civil defense, industrial, nuclear, and laboratory applications.
The RDS-32 Survey Meters are small handheld, battery operated radiation survey instruments designed for versatile applications in civil defense, industrial use, nuclear power plants, and laboratories. Features include H*(10) dose equivalent rate measurement per IEC 60846 standards, compatibility with external alpha, beta, gamma and neutron probes, intuitive user interface with large graphic screen, automatic display rotation, IP67 immersion-proof durable case, internal memory with histogram functions, visual/audible/vibration alerts, configurable warning and alarm levels, and USB-based firmware upgrades via CSW-32 Software. The meter includes a battery cover with belt clip for hands-free operation and connects to Vital® Supervision and SpirVIEW Mobile™ platforms.
Description
RDS-32 Radiation Survey Meter
The RDS-32 Survey Meters are small handheld, battery operated radiation survey instruments designed for versatile applications in civil defense, industrial use, nuclear power plants, and laboratories. Features include H*(10) dose equivalent rate measurement per IEC 60846 standards, compatibility with external alpha, beta, gamma and neutron probes, intuitive user interface with large graphic screen, automatic display rotation, IP67 immersion-proof durable case, internal memory with histogram functions, visual/audible/vibration alerts, configurable warning and alarm levels, and USB-based firmware upgrades via CSW-32 Software. The meter includes a battery cover with belt clip for hands-free operation and connects to Vital® Supervision and SpirVIEW Mobile™ platforms.
Features
Specifications
- Radiation detected

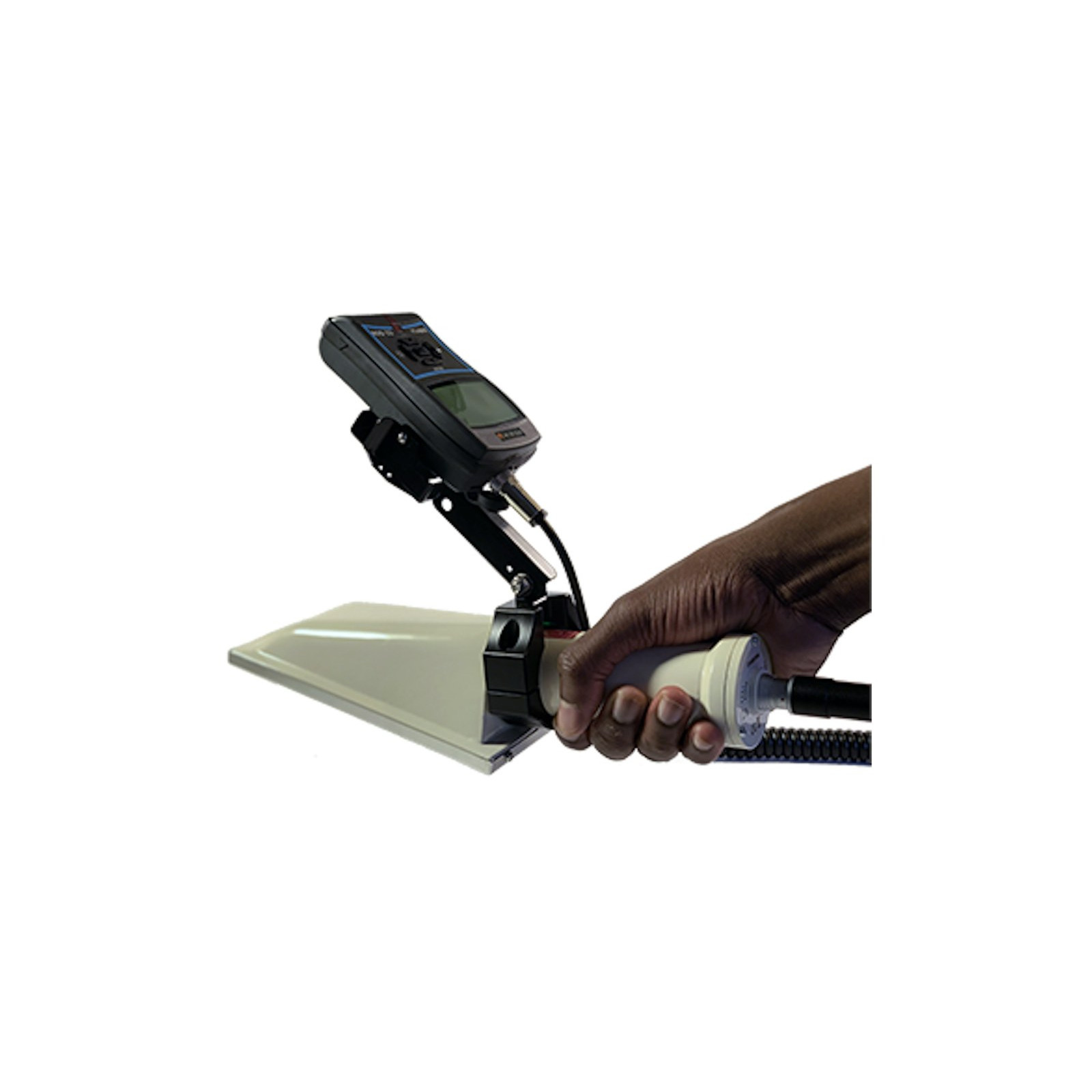

- gamma and X-rays. Alpha, beta, and neutron radiation with external probes
- Operational quantity
- ambient dose equivalent H*(10)

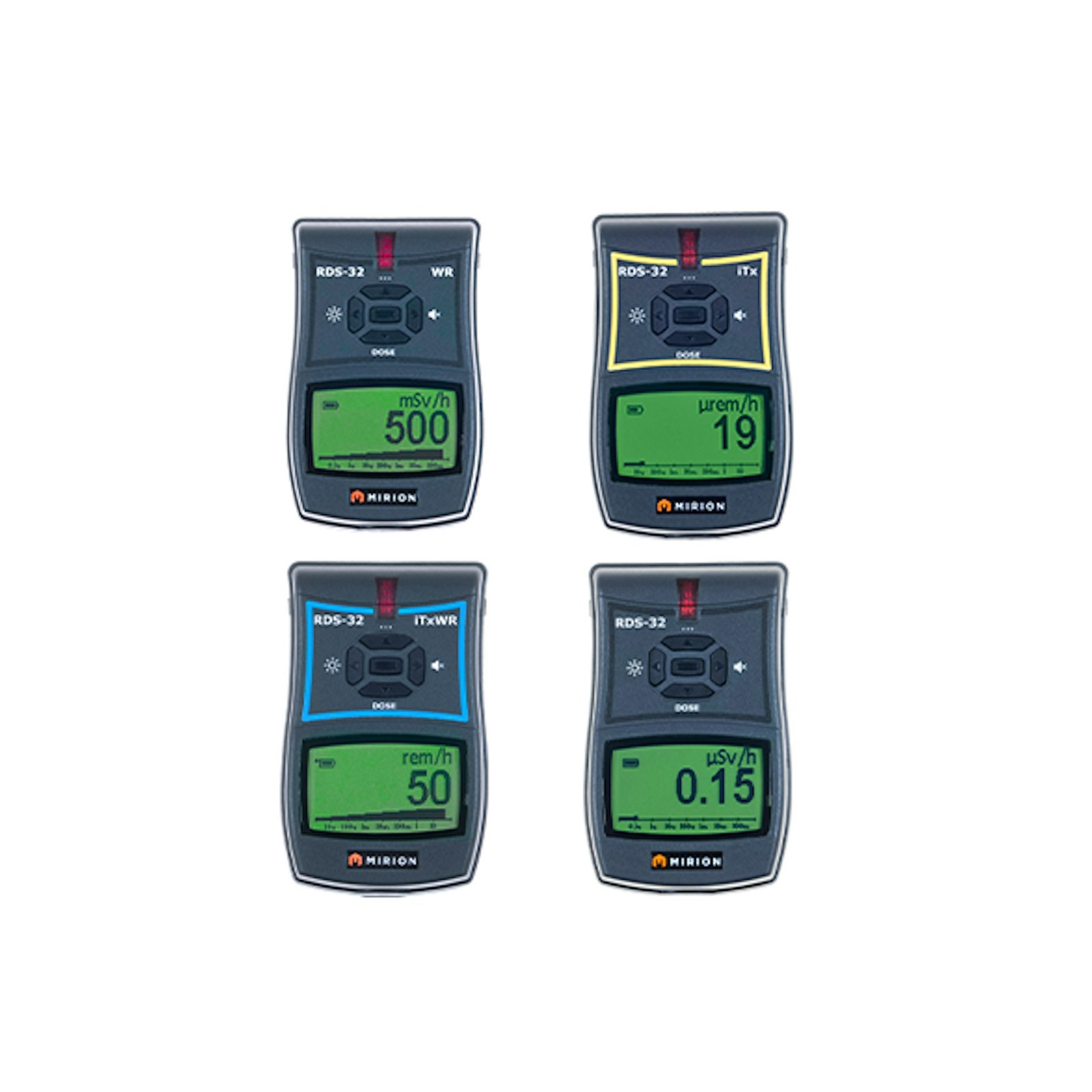

- Detector (RDS-32, RDS-32iTx)
- one energy-compensated GM tube
- Detector (RDS-32WR, RDS-32iTxWR)
- energy-compensated GM tube and energy-compensated Si diode*
- IEC Energy Range (RDS-32, RDS-32iTx)
- 48 keV to 1.8 MeV
- IEC Energy Range (RDS-32WR, RDS-32iTxWR)
- 55 keV GM tube / 65 keV* Si diode to 1.8 MeV
- High Energy Response to Cs-137 (4.4 MeV GM tube)
- 220%
- High Energy Response to Cs-137 (4.4 MeV Si diode)
- 120%
- High Energy Response to Cs-137 (6.7 MeV GM tube)
- 260%
- High Energy Response to Cs-137 (6.7 MeV Si diode)
- 200%
- Dose Rate Measurement Range (RDS-32, RDS-32iTx)
- 0.05 μSv/h to 100 mSv/h (5 µrem/h to 10 rem/h)
- Dose Rate Measurement Range (RDS-32WR, RDS-32iTxWR)
- 0.05 μSv/h to 10 Sv/h (5 µrem/h to 1000 rem/h)
- IEC Dose Rate Measurement Range (RDS-32, RDS-32iTx)
- 0.3 µSv/h to 100 mSv/h (0.03 mrem/h to 10 rem/h)
- IEC Dose Rate Measurement Range (RDS-32WR, RDS-32iTxWR)
- 0.3 µSv/h to 10 Sv/h (0.03 mrem/h to 1000 rem/h)
- Dose Measurement Range (RDS-32, RDS-32iTx)
- 0.1 µSv to 10 Sv (0.01 mrem to 1000 rem)
- Dose Measurement Range (RDS-32WR, RDS-32iTxWR)
- 0.1 µSv to 10 Sv (0.01 mrem to 1000 rem)
- Dose Rate Linearity (RDS-32, RDS-32iTx)
- -15% to +22% 0.3 μSv/h to 0.1 Sv/h (0.03 mrem/h to 10 rem/h)
- Dose Rate Linearity (RDS-32WR, RDS-32iTxWR)
- -15% to +22% 0.3 μSv/h to 10 Sv/h (0.03 mrem/h to 1000 rem/h)
- Case
- high impact durable glass fiber reinforced polymer; drop tested from 1 m height on concrete floor on each side
- Ergonomic design
- rubber grip around the case
- Connector
- Binder-702 series connector
- Enclosure class
- IP67 (IEC 60529), including battery compartment
- Dimensions
- 116 x 72 x 32 mm (4.57 x 2.83 x 1.26 in)
- Weight without batteries / with batteries (RDS-32)
- 160 g / 210 g (0.35 lb / 0.46 lb)
- Weight without batteries / with batteries (RDS-32iTx)
- 170 g / 220 g (0.37 lb / 0.49 lb)
- Weight without batteries / with batteries (RDS-32WR)
- 195 g / 245 g (0.43 lb / 0.54 lb)
- Weight without batteries / with batteries (RDS-32iTxWR)
- 205 g / 255 g (0.45 lb / 0.56 lb)
- Wrist strap
- battery covers with and without a belt clip
- Power supply
- Batteries 2 x AA/LR6, alkaline or NiMH
- Operation time with fresh Alkaline batteries
- more than 2 months 8 h use/24 h (600 h in background radiation, radios disabled, display backlight off, LED off)
- Operation time with fully charged NiMH batteries
- more than 1.5 months 8 h use/24 h with 2900 mAh capacity (in background radiation, radios disabled, display backlight off, LED off)
- Contacts
- for external power and charging of NiMH battery
- Alarm audio level
- 86 dBA at 30 cm
- Operating temperature (RDS-32/RDS-32iTx)
- -25 °C to +60 °C (-13 °F to 140 °F)
- Operating temperature (RDS-32WR/RDS-32iTxWR)
- -25 °C to +50 °C (-13 °F to 122 °F)
- Storage temperature
- -40 °C to +70 °C (-40 °F to 158 °F)
- Relative humidity
- 10% to 95% at +35 °C (95 °F)
- RF-immunity
- Fulfills following standards: IEC 61000-4-2 (2008), IEC 61000-4-3 (2006 +A1:2007 + A2:2010), IEC 61000-4-6 (2013), IEC 61000-4-8 (2009)
- RF Emissions
- Fulfills following standards: EN 55032B
- FCC approval
- 2AHI8-RDS-32
- IC Approval
- 26167-RDS32
- IEC Compliance
- IEC 60846-1 (all models), 60846-2 (WR models) compliant
- USB communication
- with suitable adapter
- iTx versions communication
- WRM radio 900 MHz or 2.4 GHz
- Maximum possible emitting Tx power (900 MHz)
- 298 mW
- Maximum possible emitting Tx power (2.4 GHz)
- 86 mW
- Bluetooth protocol
- Bluetooth® Low Energy 4.2 protocol, Class 2 communication
