160 × 120 pixel thermal imaging
-
Integrated 300 lumen LED flashlight
-
MSX scene enhancement technology
-
360° situational awareness capability
-
Operates in total darkness and through smoke
-
Withstands 2-meter drop onto concrete
-
Water-resistant IP67 rating
-
Stores up to 10,000 radiometric thermal and visual images
-
Built-in visible camera with 320 × 240 pixel resolution
-
5.5 hour battery life in MSX mode
-
2.4-inch backlit LCD display
-
Compatible with FLIR Tools software
-
Lightweight and attachable to gear
-
FLIR 2-10 Warranty (2 years full coverage, 10 years on detector)

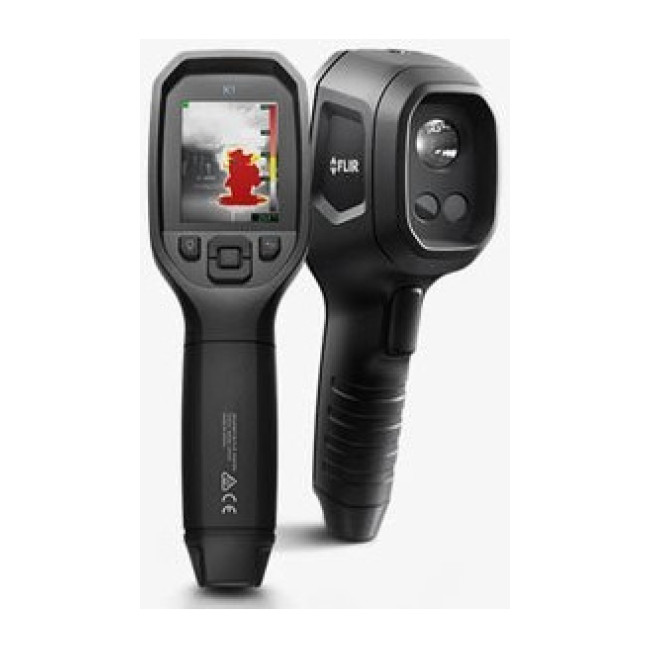

FLIR K1
$0.00
The FLIR K1 is a rugged thermal imaging camera with integrated flashlight for first responders to maintain situational awareness in darkness and smoke.
In stock
The FLIR K1 is a rugged, compact thermal imaging camera designed for first responders including fire commanders, officers, and inspectors. It provides situational awareness in total darkness and through smoke with a 160 × 120 pixel thermal display and MSX (Multi-Spectral Dynamic Imaging) technology that embosses visible camera details onto thermal images. Features include a bright 300-lumen integrated LED flashlight, water-resistant IP67 design withstanding 2-meter drops, internal storage for up to 10,000 radiometric images, and approximately 5.5 hours battery life. The kit includes the thermal camera, USB-C cable, wrist strap lanyard, tactical pouch, and user manual. Protected by FLIR’s 2-10 Warranty (2 years full coverage, 10 years on detector).
Description
FLIR K1
The FLIR K1 is a rugged, compact thermal imaging camera designed for first responders including fire commanders, officers, and inspectors. It provides situational awareness in total darkness and through smoke with a 160 × 120 pixel thermal display and MSX (Multi-Spectral Dynamic Imaging) technology that embosses visible camera details onto thermal images. Features include a bright 300-lumen integrated LED flashlight, water-resistant IP67 design withstanding 2-meter drops, internal storage for up to 10,000 radiometric images, and approximately 5.5 hours battery life. The kit includes the thermal camera, USB-C cable, wrist strap lanyard, tactical pouch, and user manual. Protected by FLIR’s 2-10 Warranty (2 years full coverage, 10 years on detector).
Features
Specifications
- Accuracy
- ±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)
- Detector Type
- Focal plane array, uncooled microbolometerField of view (FOV)
- Field of view (FOV)
- 57° × 44°
- Focal Length
- 1.9 mm (0.075 in.)
- IR Resolution
- 160 × 120 pixels
- Multi Spectral Dynamic Imaging (MSX)
- Yes
- Object Temperature Range
- High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
- Packaging Size
- 283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)
- Thermal Sensitivity/NETD
- <100 mK @ 30°C (86°F)
- Compatible with FLIR software
- FLIR Tools
- Flashlight
- Bright LED flashlight
- Interface
- Update from PC devices over USB
- Storage Media
- Internal memory (3.9 GB)
- USB
- USB Type-C
- Drop
- 2 m (6.6 ft.)
- EMC
- EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B
- Encapsulation
- IP 67 (IEC 60529)
- Humidity (Operating and Storage)
- 0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)
- Magnetic fields
- EN 61 000-4-8 Class 3
- Operating Temperature Range
- Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –30°C to 55°C (–22°F to 131°F)
- Tripod Mounting
- UNC 1/4″-20
- Vibration
- 2 g (IEC 60068-2-6)
- Built-in Digital Camera
- 320 × 240 pixels
- Camera weight incl battery
- 0.41 kg (0.90 lb.)
- Depth of Field
- 0.1 m (0.33 ft.), infinity
- Digital Camera FOV
- 71° × 56°, adapts to the IR lens
- f-number
- 1.1
- Focus
- Fixed
- Image Frequency
- 8.7 Hz
- Image Modes
- • TI Basic (White-hot with isotherm) • White-hot
- Pitch
- 12 µm
- Spatial resolution (IFOV)
- 6.22 mrad
- Spectral Range
- 8–13 µm
- Storage Capacity
- Approx. 10,000 images
- Isotherm
- • Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C
- Spot Meter
- Center spot
- Display
- 2.4 in. backlit LCD, 320 × 240 pixels
- Camera size (L x W x H)
- 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
- Battery capacity
- 3000 mAh
- Battery operating time
- Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only
- Battery Type
- Li ion
- Battery voltage
- 3.7 V
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 4 hours to 90%, 6 hours to 100%
- Safety [power supply]
- Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA
- Start Up Time
- 15 s
- Material
- PPSU Silicon rubber Aluminium, cast
- Light Output
- 300 lumens
- Image Storage
- JPEG files
- Image Storage Capacity
- 4 GB
- Image Storage Mode
- FLIR radiometric JPEGs, visual JPEGs
