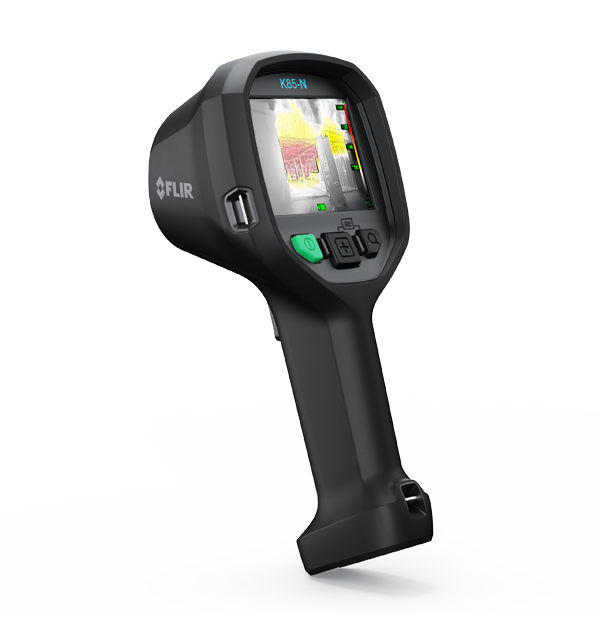

FLIR K85-N
NFPA 1930:2025-certified firefighting TIC · 640 × 480 · App-enabled
The FLIR K85-N gives firefighters clearer vision and greater confidence in smoke-filled, high-heat environments. Fully certified to NFPA 1930:2025, it combines sharp 640 × 480 resolution, enhanced contrast and a single-range imaging solution that reveals critical scene detail without switching ranges or losing situational awareness.
Certified for the latest standard
The K85-N carries NFPA 1930:2025 certification alongside an IP67 rating and a hazardous-location rating. P/N 18703-0301.
Fully certified to NFPA 1930:2025, the K85-N gives departments a future-ready firefighting TIC aligned with the newest standard.FLIR, on the K85-N
The certification sits on a camera engineered for frontline firefighting: rugged IP67-rated construction, 2-meter drop resistance and high-heat performance, with thermal visibility optimized for low-light and smoke-obscured environments. Purpose-built firefighting modes help crews adapt to changing conditions on the fireground.
- Compliance
- NFPA 1930:2025
- Encapsulation
- IP67 (IEC 60529)
- Hazardous locations
- Class I, Division 2, Groups C & D · Class II, Division 2, Groups F and G · Class III, Division 1 and 2 · Temperature code T4
- Part number
- 18703-0301
One range. No switching.
With 640 × 480 resolution, enhanced contrast and a single-range imaging solution, the K85-N helps firefighters see critical details in smoke and high heat without interruptions, image freeze or loss of awareness, from the first alarm to the last fire out.
A seamless single-range interface keeps the focus on the scene: a simplified live image display and minimal menu interaction.
FSX® contrast
Digital enhancement with Flexible Scene Enhancement (FSX®).

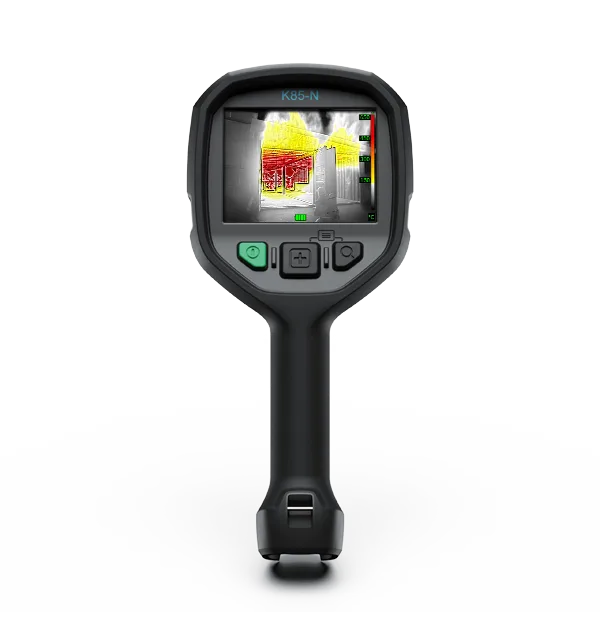

4" backlit LCD
640 × 480 display with a 60 Hz display frame rate.
2x digital zoom
Digital zoom supports faster, more effective operation.
- Image modes
- TI Basic
- Search
- Detection
- High Heat
- White Hot
Station, scene, debrief
Integrated wireless connectivity links the K85-N to the FLIR Responder App, which supports the camera before, during and after the mission. The app is available through the Apple Store and Google Play.
At the station
- Camera setup and configuration from the app
- Over-the-air updates over Wi-Fi using the FLIR Responder App
- Advanced calibration support in the app
On the fireground
- Wireless streaming: MPEG-4 stream over Wi-Fi to the FLIR Responder App
- Real-time visibility for training, with real-time feedback and analysis
- Images and video recorded to the camera's internal flash memory
Debrief & training
- Media handling: easy transfer of images and video, with a media gallery on the camera and in the app
- Post-incident review and reporting
- Training and ongoing skill development
- Wi-FiIEEE 802.11 b/g/n (2.4 GHz)
- Bluetoothv. 5.0 EDR + BLE
- USBUSB-C, uncompressed colorized video
- PCLegacy support for updates and data transfer
Sealed, drop-rated, heat-rated
Improved ergonomics and easier cleaning, a sealed IP67 body and a Li-Ion battery with approximately 4 hours of operation in typical use.
- 01
IP67 and a 2 m drop
Encapsulation IP67 (IEC 60529). Drop: 2 m (6.6 ft) on concrete floor (IEC 60068-2-31). Shock 25 g, vibration 2 g.
- 02
Operates in high heat
Operating range -20°C to 60°C (-4°F to 140°F), plus 150°C (302°F) for 15 minutes and 260°C (500°F) for 5 minutes.
- 03

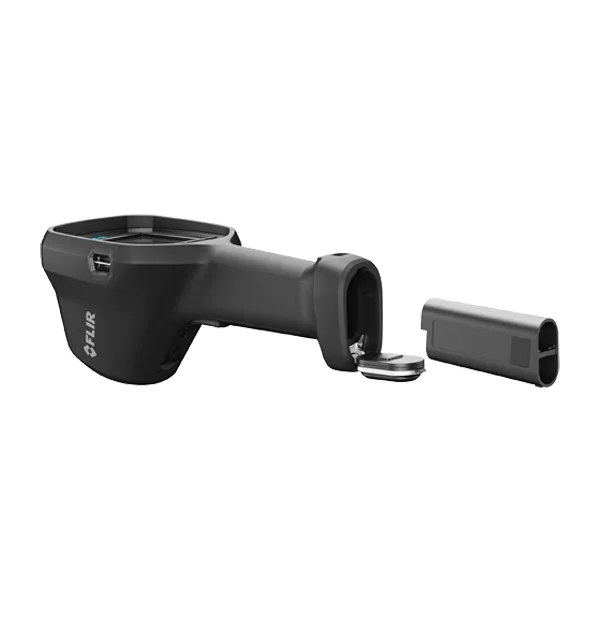

Approx. 4 hours per battery
3.6 V, 6.2 Ah Li-Ion battery: approx. 4 hours at 25°C (77°F) ambient temperature and typical use. Automatic shutdown and sleep mode.
- 04
Two batteries, a charger in the box
Two batteries and a battery charger come in the box. The charging system is a desktop 2-bay charger, with an optional in-truck charger. Charging time: <3 h to capacity enough for 3 h operation.
What ships with it
- Infrared camera
- Battery2 ea.
- Battery charger
- Power supply
- USB cable
- Carabiner strap
- Retractable lanyard
- Torx screwdriverT20
- Printed documentation
FLIR K85-N specs
Key specifications for the FLIR K85-N, P/N 18703-0301.
| Detector | |
|---|---|
| IR resolution | 640 × 480 |
| Thermal sensitivity / NETD | <60 mK |
| Field of view | 53° × 40° |
| Depth of field | 1.2 m to infinity (47 in to infinity) |
| Image frequency | 30 Hz |
| Spectral range | 7.5 to 14 µm |
| Pixel pitch | 12 µm |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Image & display | |
| Display | 4" LCD, 640 × 480, backlit |
| Display frame rate | 60 Hz |
| Contrast optimization | Digital enhancement, Flexible Scene Enhancement (FSX®) |
| Image modes | TI Basic, Search, Detection, High Heat, White Hot |
| Zoom | 2x digital zoom |
| Measurement | |
|---|---|
| Object temperature range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Accuracy | ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Storage & video | |
| Storage media | Internal flash memory |
| Image file format | Standard JPEG |
| Media gallery | Camera and FLIR Responder App |
| Image storage capacity | 200 files in total; the total number of files varies dependent on the number of saved video clips |
| Non-radiometric IR video recording | MPEG4 to internal flash memory |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to FLIR Responder App |
| Connectivity | |
|---|---|
| Interfaces |
|
| USB | USB-C |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz) |
| Bluetooth | Bluetooth v. 5.0 EDR + BLE |
| Power | |
| Battery type | Li-Ion |
| Battery voltage | 3.6 V |
| Battery capacity | 6.2 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Charging system |
|
| Charging time | <3 h to capacity enough for 3 h operation |
| Charging temperature | 0°C to 45°C (32°F to 113°F) |
| Power options | Automatic shutdown and sleep mode |
| Environment | |
|---|---|
| Operating temperature range |
|
| Storage temperature range | -40°C to 85°C (-40°F to 185°F) |
| Relative humidity | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| Encapsulation | IP67 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Drop | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| Approvals | |
| Certifications — compliance | NFPA 1930:2025 |
| Hazardous locations | Class I, Division 2, Groups C & D, Class II, Division 2, Groups F and G, Class III, Division 1 and 2, Temperature code T4; T ambient range -20°C to 60°C (-4°F to 140°F) |
| Safety (power supply) | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| EMC |
|
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Radio spectrum |
|
| Ordering | |
|---|---|
| Part number | 18703-0301 |
| Package contents |
|
| Export | This product is subject to United States export regulations and may require US authorization prior to export, reexport, or transfer to non-US persons or parties. Diversion contrary to US law is prohibited. |
Downloads & service
FLIR K85-N datasheet
Imaging, measurement, power, environmental and approvals specifications for the K85-N.
Comparison · PDFFLIR K-Series comparison
The K-Series lineup side by side, with the FLIR Responder App and the in-truck charger.
Warranty · PDFFLIR 2-5-10 warranty
FLIR Fire Service 2-5-10 Global Limited Warranty terms, including registration requirements.
ServiceFarrWest Repair Depot
OEM-certified service and support on every product we deliver. When a repair or calibration falls outside our in-house scope, we coordinate directly with the manufacturer and manage the logistics end to end.
K85-N questions
Is the K85-N certified to NFPA 1930:2025?
What temperature range does it image?
Which image modes does it have?
What does the FLIR Responder App do?
Can it stream video?
How long does the battery last?
How much heat can the camera itself take?
What warranty does FLIR offer?
Is the K85-N export-controlled?
