Operates 35 or 30 hrs on alkaline / Ni-MH
-

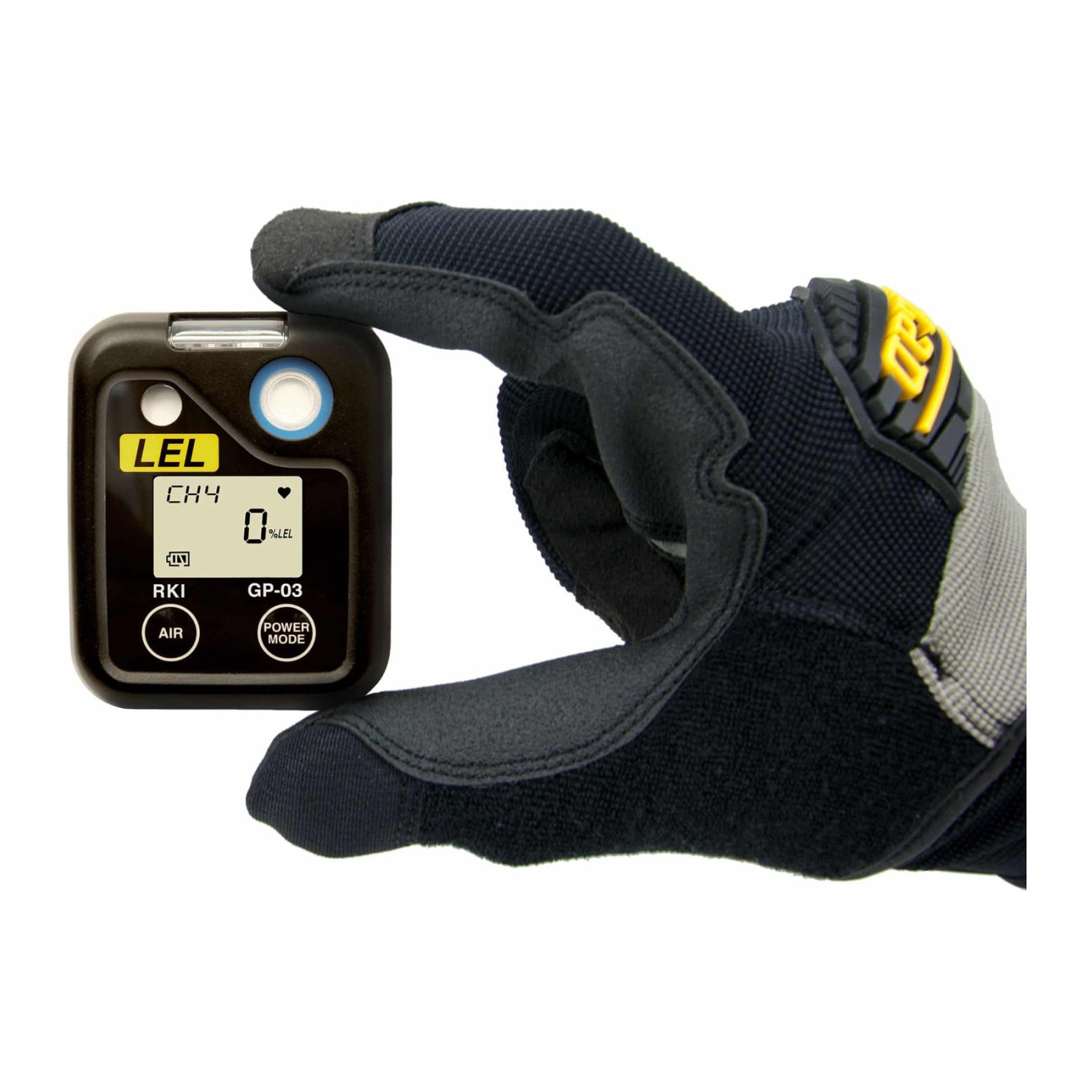

Pocket size 2.1″(W) x 2.6″(H) x 0.9″(D)
-
Light weight 2.8 ounces
-
Impact, dust, and water resistant (IP-67)
-
Replaceable rubber boot
-
Data log 5 to 300 hours with adjustable intervals
-
Audible / visual / vibration alarms
-
Automatic backlight
-
Peak Hold, STEL & TWA
-
Low battery alarm
-
Intrinsically safe, ATEX, CSA
-
2 Year warranty
GP-03
$349.20

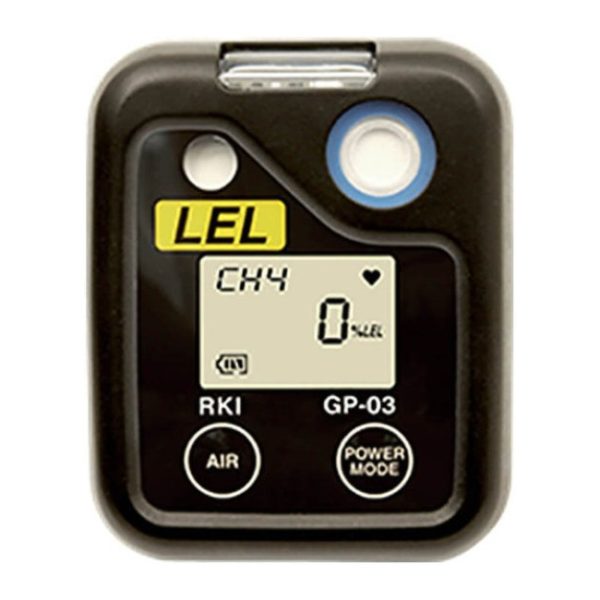

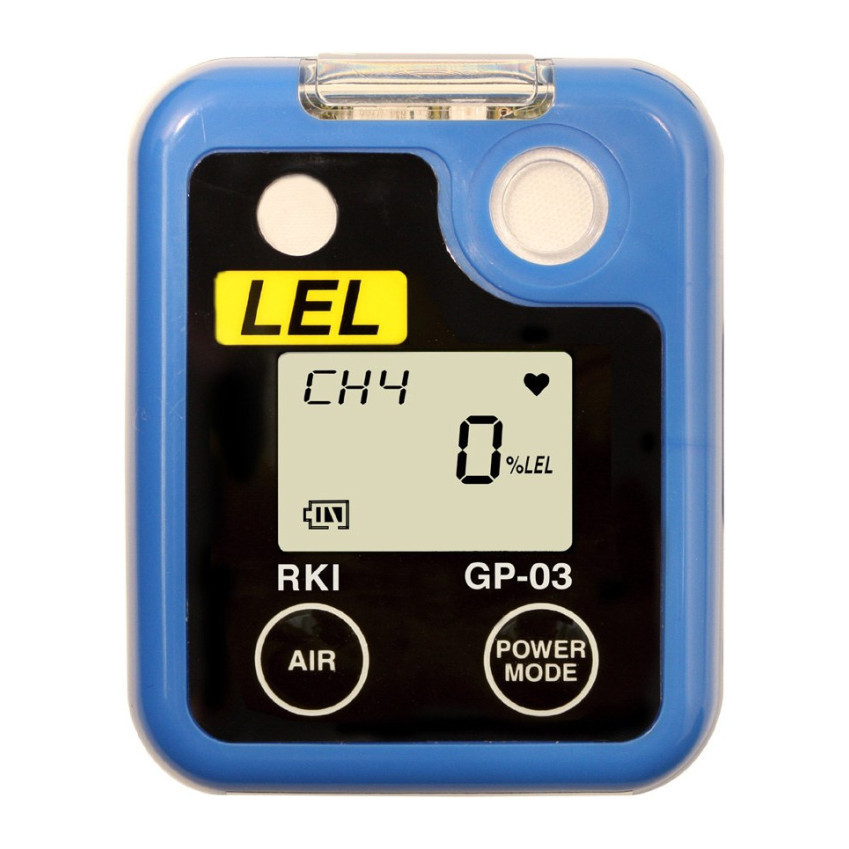

The RKI Instruments GP-03 is a pocket-sized single-gas monitor designed to protect workers from combustible hydrocarbon exposure in hazardous atmospheres.
The GP-03 is a personal single gas monitor designed for protection from exposure to combustible hydrocarbons. It operates for 35 hours on alkaline batteries and 30 hours on rechargeable Ni-MH. The compact pocket-sized detector (2.1″W x 2.6″H x 0.9″D, 2.8 oz) features adjustable dual alarms, visual/audible/vibration alerts, data logging (5-300 hours), peak hold, STEL & TWA functions, and automatic backlight. Impact, dust, and water resistant with IP-67 rating. Intrinsically safe certified by ATEX/IECEx and CSA for Class I, Division 1 hazardous atmospheres. Field-replaceable sensor with 2+ year life expectancy. Includes rubber protective boot, alligator clip, software, and wrist strap.
Description
GP-03
The GP-03 is a personal single gas monitor designed for protection from exposure to combustible hydrocarbons. It operates for 35 hours on alkaline batteries and 30 hours on rechargeable Ni-MH. The compact pocket-sized detector (2.1″W x 2.6″H x 0.9″D, 2.8 oz) features adjustable dual alarms, visual/audible/vibration alerts, data logging (5-300 hours), peak hold, STEL & TWA functions, and automatic backlight. Impact, dust, and water resistant with IP-67 rating. Intrinsically safe certified by ATEX/IECEx and CSA for Class I, Division 1 hazardous atmospheres. Field-replaceable sensor with 2+ year life expectancy. Includes rubber protective boot, alligator clip, software, and wrist strap.
Features
Specifications
- Model Name
- GP-03
- Gas Detected
- Combustible gas
- Detection Principle
- Catalytic combustion
- Detection Range (Increments)
- 0 – 100% LEL (1% LEL increments)
- Alarm Set Points
- 1st 10% LEL, 2nd 50% LEL, Over 100% LEL
- Alarm Types
- Gas alarms: 1st and 2nd (user adjustable), OVER alarm, STEL and TWA; Trouble alarms: Sensor connection, low battery circuit failure, and calibration range error
- Alarm Methods
- Gas alarm: Flashing LED’s, intermittent buzzer, flashing gas value, and vibration; Trouble alarm: Flashing LED’s, intermittent buzzer, and display of error message; STEL & TWA alarms: Flashing LED’s, intermittent buzzer, flashing gas value, and vibration
- Gas Sampling
- Diffusion
- Response Time
- T90 in 30 seconds
- Accuracy (whichever is greater)
- ± 5% of reading or ± 2%
- Data Logging
- 10 second intervals = 5 hours, 5 minute intervals = 150 hours, 10 minute intervals = 300 hours
- Battery Options
- Alkaline dry cell (2-AAA size), Ni-MH battery
- Continuous Operation
- Alkaline: 35 hours, Ni-MH: 30 hours
- Safety Rating
- ATEX/IECEx approved. CSA classified, “C/US”, as intrinsically safe, Class I, Division 1, Groups A, B, C, D
- Enclosure
- Dust and water resistant with IP-67 rating
- Dimensions & Weight
- 2.1″ W x 2.64″ H x 0.94″ D, (54 x 67 x 24 mm); 2.8 ounces (80 g)
- Display
- Digital LCD, gas name & concentration, auto backlighting during alarm, operation icon, battery icon
- Operating Temperature & Humidity
- -4°F ~ 122°F (-20°C ~ 50°C); Humidity below 90% RH (non-condensing)
- Special Functions
- Manual backlight for LCD (automatically lit during alarm), Peak hold, STEL & TWA
- Warranty
- 2 Year warranty
