RKI Instruments
GX-2012 Li-ion pack / alkaline battery holder
Part # 49-1615RK

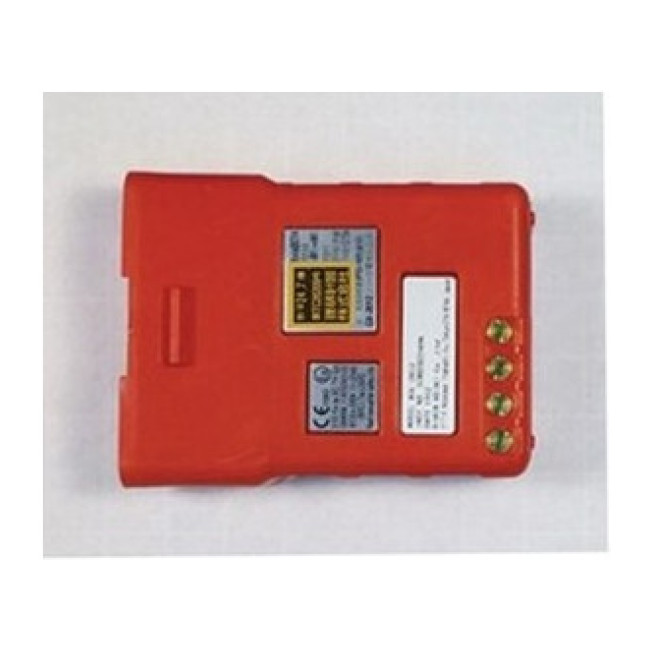

Rechargeable Li-ion pack and swappable alkaline (AA) holder for GX-2012
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
Questions? Talk to a specialist210.566.1857 · sales@farrwest.com
- Gas Detected - Oxygen (O2)
- Galvanic cell
- Detection Range - % Volume Methane
- 0 ~ 100% Vol.
- Continuous Operation - Alkaline battery
- 15 h
Overview

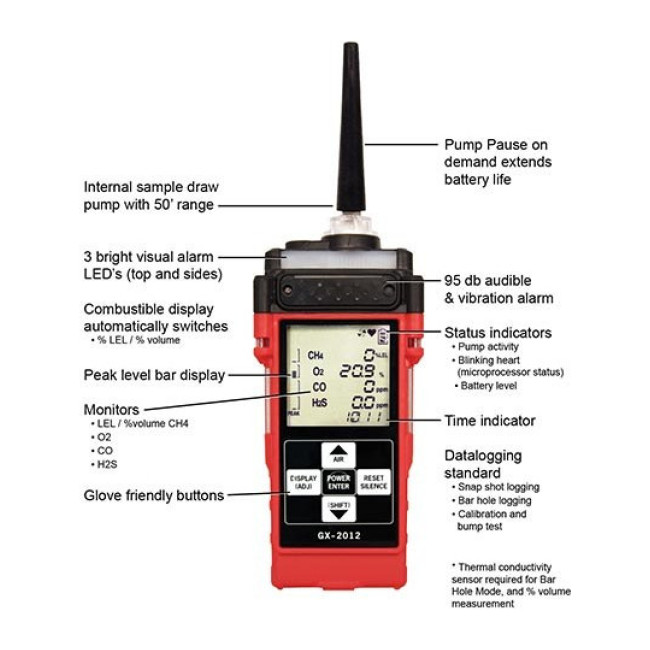

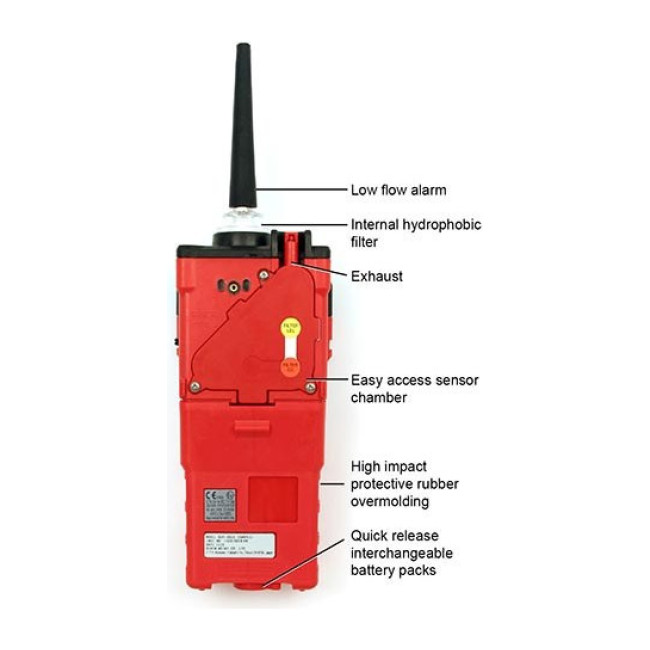

The GX-2012 is a discontinued multi-gas personal detector with 3 operating modes: normal for confined space monitoring, leak check for leak investigation, and bar hole mode for underground leak checking. It monitors combustible gases (LEL/% volume methane), oxygen, carbon monoxide, and hydrogen sulfide with an internal sample-drawing pump reaching up to 100 feet. Features include auto-ranging display, vibration/visual/audible alarms, large LCD with automatic backlight, and interchangeable Li-ion or alkaline battery packs. Weighs 12.3 ounces and measures 5.6″H x 2.8″W x 1.6″D. Available in 1-5 sensor configurations with optional intrinsically safe certifications.
- Monitors ppm LEL, % volume methane, O2, CO and H2S
- 0 to 100% volume methane option
- Auto-ranging display of % LEL and % volume
- 3 Operating modes: Normal, leak check, & bar hole
- PPM leak detector
- Adjustable display ranges
- Visual / audible pulses change with gas concentration
- CO display in leak check mode
- Bar hole test mode for underground leak checks

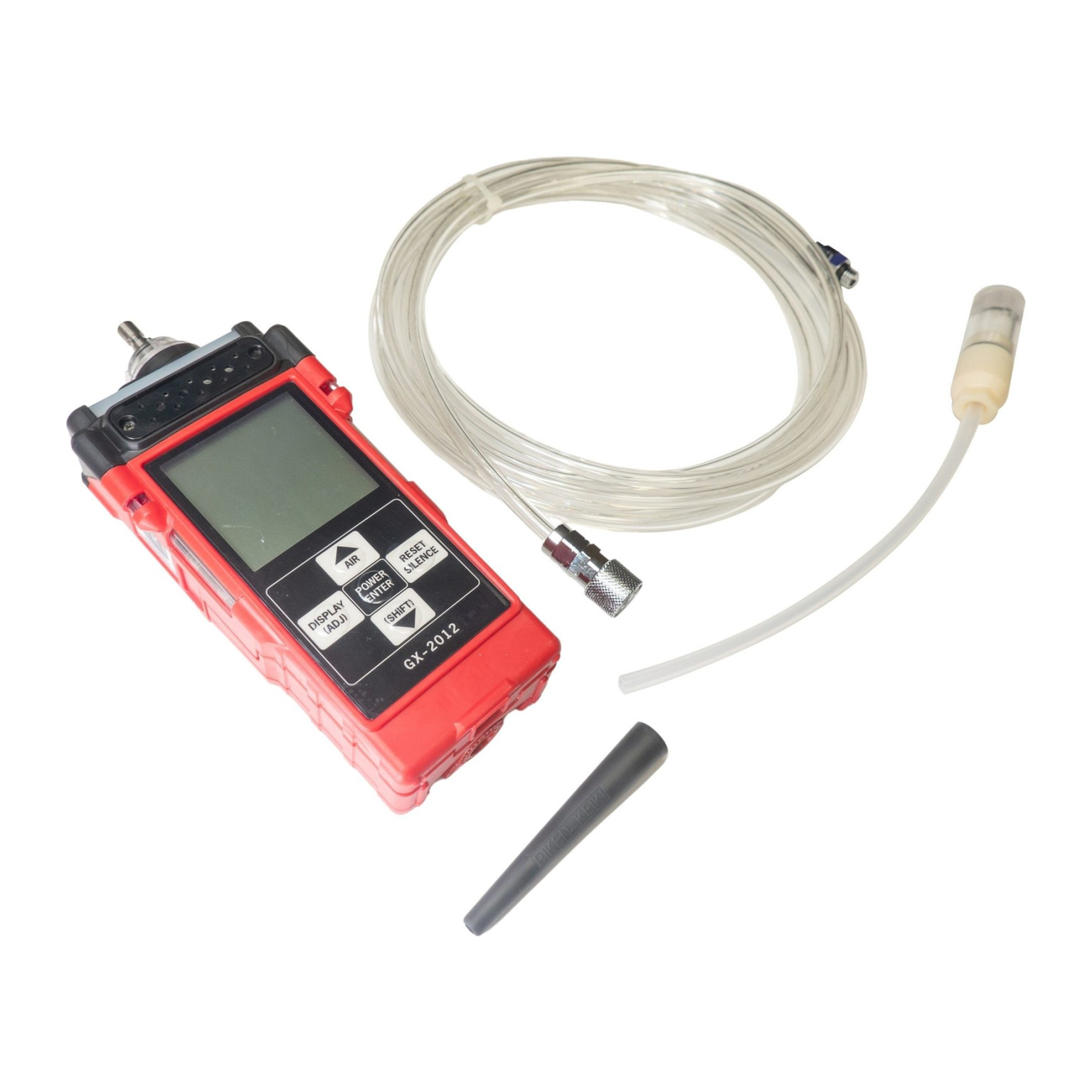

- Internal sample drawing pump with up to 100 feet range
- Vibration, visual, and audible alarms
- Automatic backlight during alarms
- Lithium ion or alkaline battery packs (interchangeable)
- Intrinsically safe, ATEX/IECEx/CE or CSA/CE (Optional)
Specifications
| Performance | |
| Gas Detected - Combustible Gases (Methane as standard) | Catalytic combustion |
| Gas Detected - % Volume Methane | Thermal conductivity |
| Gas Detected - Oxygen (O2) | Galvanic cell |
| Gas Detected - Hydrogen Sulfide (H2S) | Electrochemical cell |
| Gas Detected - Carbon Monoxide (CO) | Electrochemical cell |
| Detection Range - Combustible Gases | 0 ~ 100% LEL, 0 ~ 500 / 1,000 / 2,000 / 5,000 ppm |
| Detection Range - % Volume Methane | 0 ~ 100% Vol. |
| Detection Range - Oxygen (O2) | 0 ~ 40% Vol. |
| Detection Range - Hydrogen Sulfide (H2S) | 0 ~ 100 ppm (optional 0-500 ppm) |
| Detection Range - Carbon Monoxide (CO) | 0 ~ 500 ppm |
| Accuracy Statement - Combustible Gases | ± 5% of reading or ± 2% LEL(LEL mode only) |
| Accuracy Statement - % Volume Methane | ± 5% of reading or ± 2% of full scale |
| Accuracy Statement - Oxygen (O2) | ± 0.5% O2 |
| Accuracy Statement - Hydrogen Sulfide (H2S) | ± 5% of reading or ± 2 ppm H2S |
| Accuracy Statement - Carbon Monoxide (CO) | ± 5% of reading or ± 5 ppm CO |
| Display | Digital LCD with 7 segments, auto backlight during alarm |
| Preset Alarms - Combustible Gases | 1st alarm 10% LEL, 2nd alarm 50% LEL, Over alarm 100% LEL |
| Preset Alarms - % Vol. CH4 | No alarms for % Vol. CH4 |
| Preset Alarms - Oxygen (O2) | Low alarm 19.5% High alarm 23.5% Over alarm 40.0% |
| Preset Alarms - Hydrogen Sulfide (H2S) | 1st 5 ppm, 2nd 30 ppm, TWA 10 ppm, STEL 15 ppm, Over 100 ppm |
| Preset Alarms - Carbon Monoxide (CO) | 1st 25 ppm, 2nd 50 ppm, TWA 25 ppm, STEL 200 ppm, Over 500 ppm |
| Alarm Types | Gas alarms: 1st and 2nd, STEL, TWA (user adjustable) and OVER; Trouble alarms: Sensor connection, low battery, low flow, circuit trouble and calibration error |
| Alarm Methods | Gas alarms: Flashing lights, two tone buzzer, and vibration; Trouble alarms: Flashing lights, trouble displayed, intermittent buzzer, and vibration |
| Response Time | Within 30 s (T90) |
| Power | |
| Continuous Operation - Alkaline battery | 15 h |
| Continuous Operation - Li-Ion battery | 10 h |
| Power Source | Li-Ion battery pack, or 3 "AA" Alkaline battery pack; interchangeable |
| Physical | |
| Dimension & Weight | Approx. 143 (H) x 71 (W) x 43 (D) mm (5.6" H x 2.8" W x 1.6" D), approx. 350 g (12.3 oz) |
| Case Material | High dust & water resistant design. RFI shielded high impact plastic with protective rubber overmolding |
| Approvals & Warranty | |
| Warranty | Two years material and workmanship |
| Other | |
| Sampling Method | Internal sample pump, flow rate nominal 0.5 LPM, includes hydrophobic filter |
| Operating Temp. & Humidity | -20°C to +50°C (-4°F to 122°F), 0 to 95% RH, non-condensing |
| Safety Rating | ATEX, TIIS, IECEx, CE, CSA classified (as standard), as intrinsically safe. Class I, Division 1, Groups A, B, C, D (optional version available) |
| Controls | Five buttons: POWER / ENTER, DISPLAY, AIR, RESET, SHIFT |
Documents 8 PDFs
- GX-2012 Product DatasheetDatasheet · 576 KB
- GX-2012 Spanish DatasheetDatasheet · 666 KB
- Natural Gas Detector BrochureBrochure · 2 MB
- Standard ATEX version Operator's ManualManual · 1 MB
- CSA version Operator's ManualManual · 1 MB
- GX-2012 Data Logger Management Program Operator's ManualManual · 2 MB
- Quick Check Cylinder SupplementDocument · 34 KB
- Quick Reference CardDocument · 143 KB
