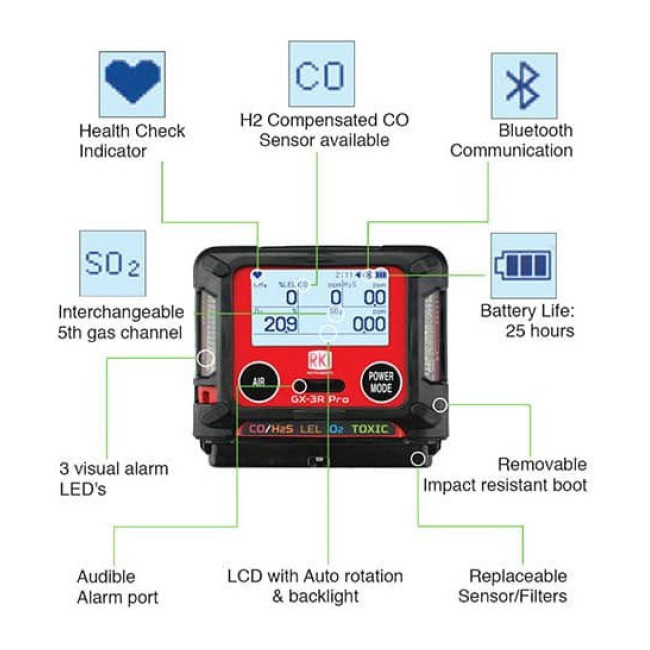

Smallest & lightest 5-gas detector
-
Detect up to 5 gases simultaneously
-
Confined space monitoring: LEL, O2, H2S, CO
-
Toxic/IR sensor options: HCN, NH3, NO2, PH3, SO2, CO2
-
H2 compensated CO sensor available
-
Simple 2-button operation
-
Bluetooth communication with iOS & Android app
-
3 user adjustable alarm levels
-
Panic Alarm
-
Man Down Alarm
-
Large full dot auto-backlit display with auto-rotation
-

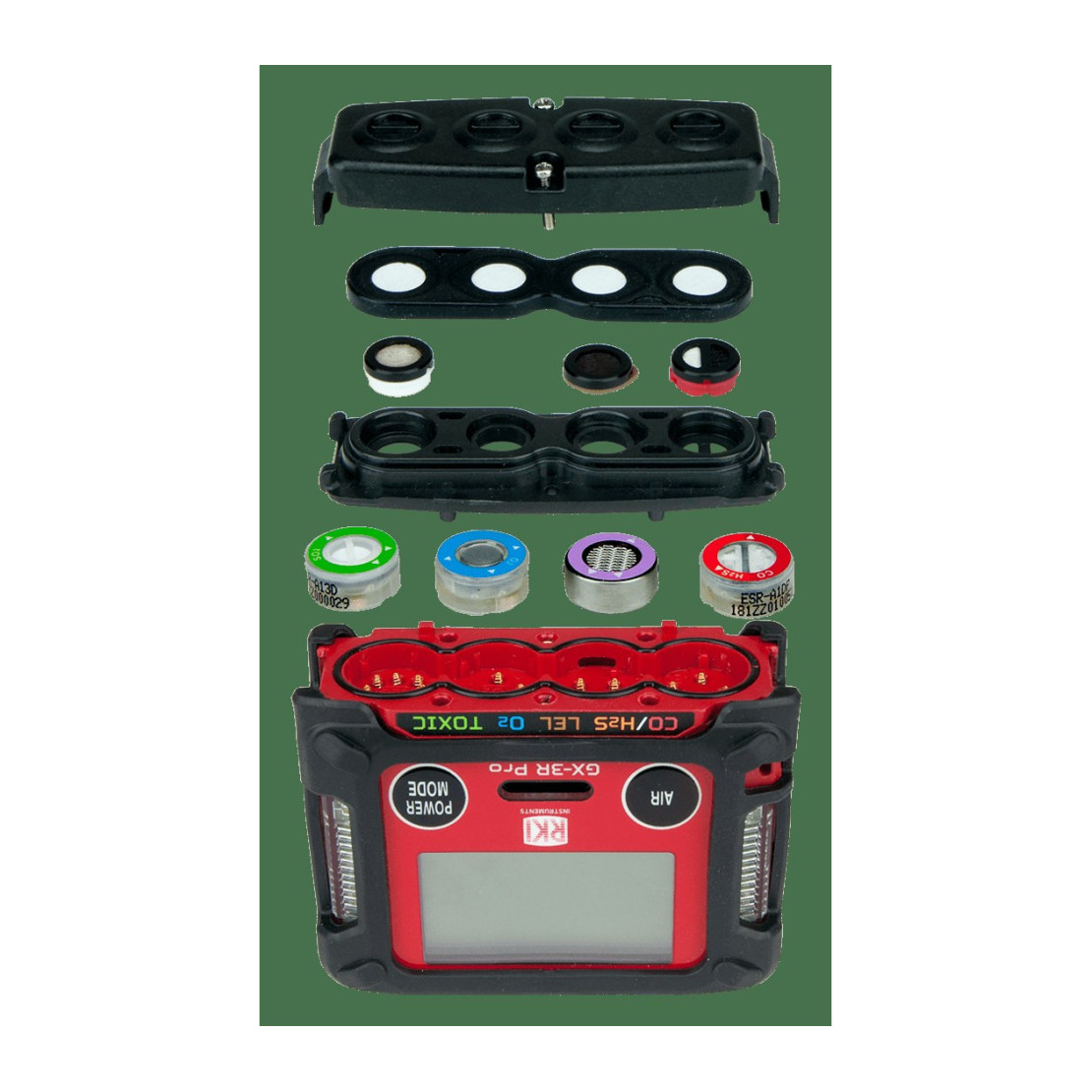

Field replaceable sensors & filters
-
Water and dust resistant design IP66/68
-
Non-compliance indicator with flashing LEDs
-
Datalogging of calibration and bump test history
-
Datalogging of alarm events and trends

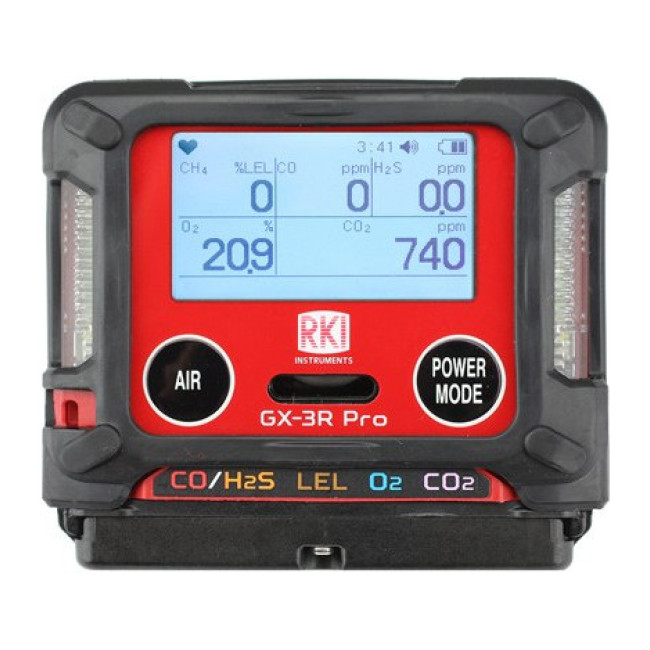

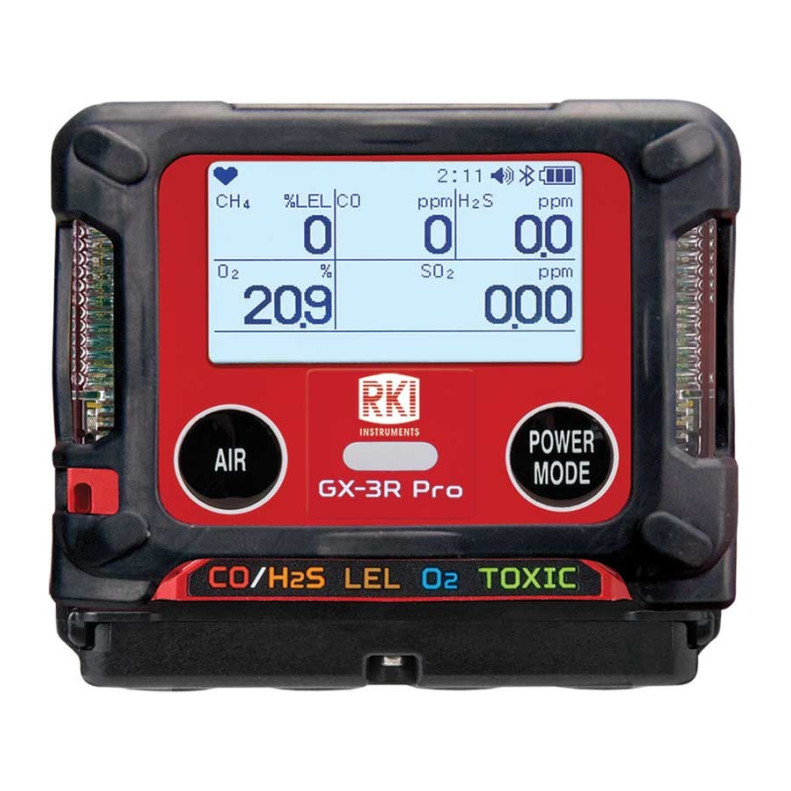

GX-3R Pro
$0.00
The RKI INSTRUMENTS GX-3R Pro is a lightweight 5-gas monitor with Bluetooth connectivity and man-down alarm for confined space and hazardous environment safety.
The GX-3R Pro is the world’s smallest 5-gas monitor weighing only 4.58 ounces. It simultaneously monitors and displays 5 different gases including standard confined space gases (LEL, O2, CO, H2S) plus a 5th channel for infrared or toxic gas sensors (HCN, NO2, NH3, SO2, PH3, CO2). Features Bluetooth wireless communication with iOS/Android app, man-down alarm, panic alarm, 3 user-adjustable alarm levels, large auto-backlit display with auto-rotation, field-replaceable sensors, water/dust resistant IP66/68 design, and includes choice of alkaline or rechargeable lithium-ion battery (25-hour runtime). CSA, ATEX, IECEx and MED approved with 3-year warranty on materials and sensors.
Description
GX-3R Pro
The GX-3R Pro is the world’s smallest 5-gas monitor weighing only 4.58 ounces. It simultaneously monitors and displays 5 different gases including standard confined space gases (LEL, O2, CO, H2S) plus a 5th channel for infrared or toxic gas sensors (HCN, NO2, NH3, SO2, PH3, CO2). Features Bluetooth wireless communication with iOS/Android app, man-down alarm, panic alarm, 3 user-adjustable alarm levels, large auto-backlit display with auto-rotation, field-replaceable sensors, water/dust resistant IP66/68 design, and includes choice of alkaline or rechargeable lithium-ion battery (25-hour runtime). CSA, ATEX, IECEx and MED approved with 3-year warranty on materials and sensors.
Features
Specifications
- Sampling Method

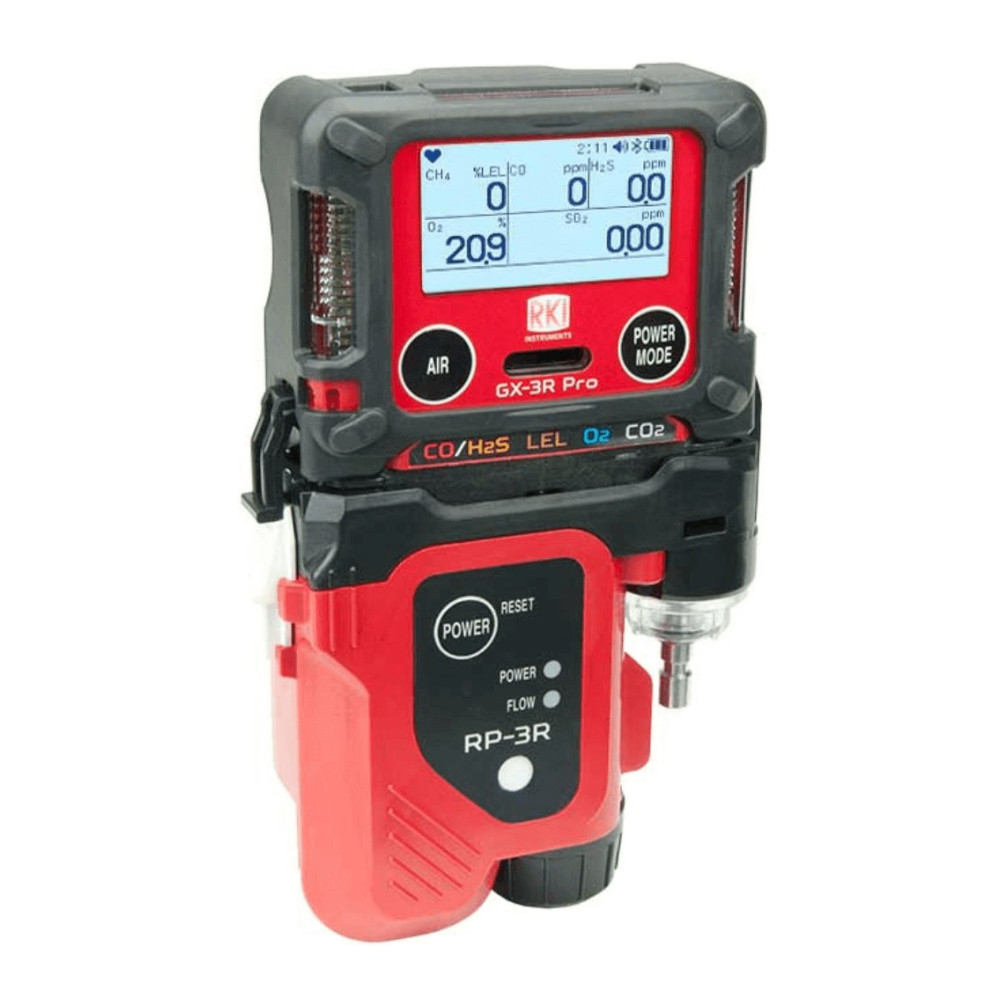

- Diffusion sampling standard (hand aspirator or clip-on motorized pump optional)
- Display
- Full dot LCD with Autobacklight and Autorotation
- Dimension & Weight
- 2.9″ W x 2.6″ H x 1.06″ D (Approx. 73 W x 65 H x 26 D mm), 4.58oz (with rubber boot)
- Case Material
- Dust and water resistant to IP-66/68 (2m,1h) approval. Drop height 23 ft
- Operating Temp. Continuous
- -20°C ~ +50°C [-4°F ~ +122°F], 10 to 90% RH, non-condensing
- Operating Temp. Temporary
- -40°C ~ +60°C [-40°F ~ +140°F], 0 to 95% RH, non-condensing
- Response Time
- Within 30 seconds (T90)
- Bluetooth Communication
- BLE: with iOS and Android phone app: RK Link
- Datalogging
- Logs user ID, station ID, Calibration & Bump Test history, Alarm Events & Alarm Trends
- Safety Design / Approvals
- ATEX, CSA, IECEx, MED
- Warranty
- Three years material and workmanship including sensors (1 year for Ammonia sensor)
- CO/H2S Range
- 0 ~ 2000 ppm (1 ppm) / 0 ~ 200.0 ppm (0.1 ppm)
- CO Accuracy
- ± 5% of reading or ± 5 ppm
- H2S Accuracy
- ± 5% of reading or ± 2 ppm
- LEL Range
- 0 ~ LEL (1% LEL)
- LEL Accuracy
- ± 5% of reading or ± 2 % LEL
- O2 Range
- 0 ~ 40.0% Vol. (0.10%)
- O2 Accuracy
- ± 0.5% O2
- HCN Range
- 0 ~ 30.0 ppm (0.1 ppm)
- HCN Accuracy
- ± 10% of reading or ± 5 % of full scale
- NO2 Range
- 0 ~ 20.00 ppm (0.05 ppm)
- CO2 Range (Volume)
- 0 ~ 10.0% Vol. (0.01%)
- CO2 Range (ppm)
- 0 ~ 10,000 ppm (20 ppm)
- CO2 Accuracy
- ± 5% of reading or ± 2 ppm
- Li-ion Battery Life 4-gas EC
- 25 hours
- Li-ion Battery Life 4-gas EC with Bluetooth
- 23 hours
- Li-ion Battery Life 4-gas IR
- 16 hours
- Li-ion Battery Life 4-gas IR with Bluetooth
- 15 hours
- Alkaline Battery Life 4-gas EC
- 16 hours
- Alkaline Battery Life 4-gas EC with Bluetooth
- 14 hours
- Alkaline Battery Life 4-gas IR
- 7 hours
- Alkaline Battery Life 4-gas IR with Bluetooth
- 6 hours
