Detects hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2), and combustible gases (LEL)
-
Field-selectable combustible gas measurement: percent LEL or percent by volume methane (0-5.0%v/v)
-
Automatic zero and O2 calibration on startup (optional)
-
Bump test functionality before each day’s use
-
Data logging with 16 hours storage capacity
-
TWA (Time-Weighted Average) and STEL (Short-Term Exposure Limit) calculations for toxic gases
-
Peak (maximum) concentration recording
-
Multiple alarm types: low, high, TWA, STEL, and multi-gas alarms
-
Audible, visual (LED), and vibrator alarm indicators
-
IntelliFlash green LED visual confirmation (XT, XL, X3 models)
-
Confidence beep for continuous audible confirmation
-
Latching alarm option
-
Safe Mode displaying ‘SAFE’ when no hazardous gas detected
-
Stealth Mode disabling backlight, visual and audible alarms
-
Low Alarm Acknowledge to temporarily deactivate audible alarm
-
Calibration IR Lock preventing manual calibration
-
Force Calibration When Overdue requiring immediate calibration
-
Force Bump When Overdue requiring bump test before operation
-
Rechargeable lithium polymer battery
-
IP68 rating
-
Infrared (IR) interface for configuration and calibration via Safety Suite Device Configurator
-
Event log recording 10 most recent gas alarm events
-
Support for five languages
-
Alligator clip for attachment to clothing
-
Automatic deactivation alarm for low battery or failed sensors
MicroClip XL/X3 combustible LEL sensor
$195.00
Honeywell MicroClip XL/X3 combustible LEL sensor is a portable personal safety device for detecting hazardous gases in explosive atmospheres.

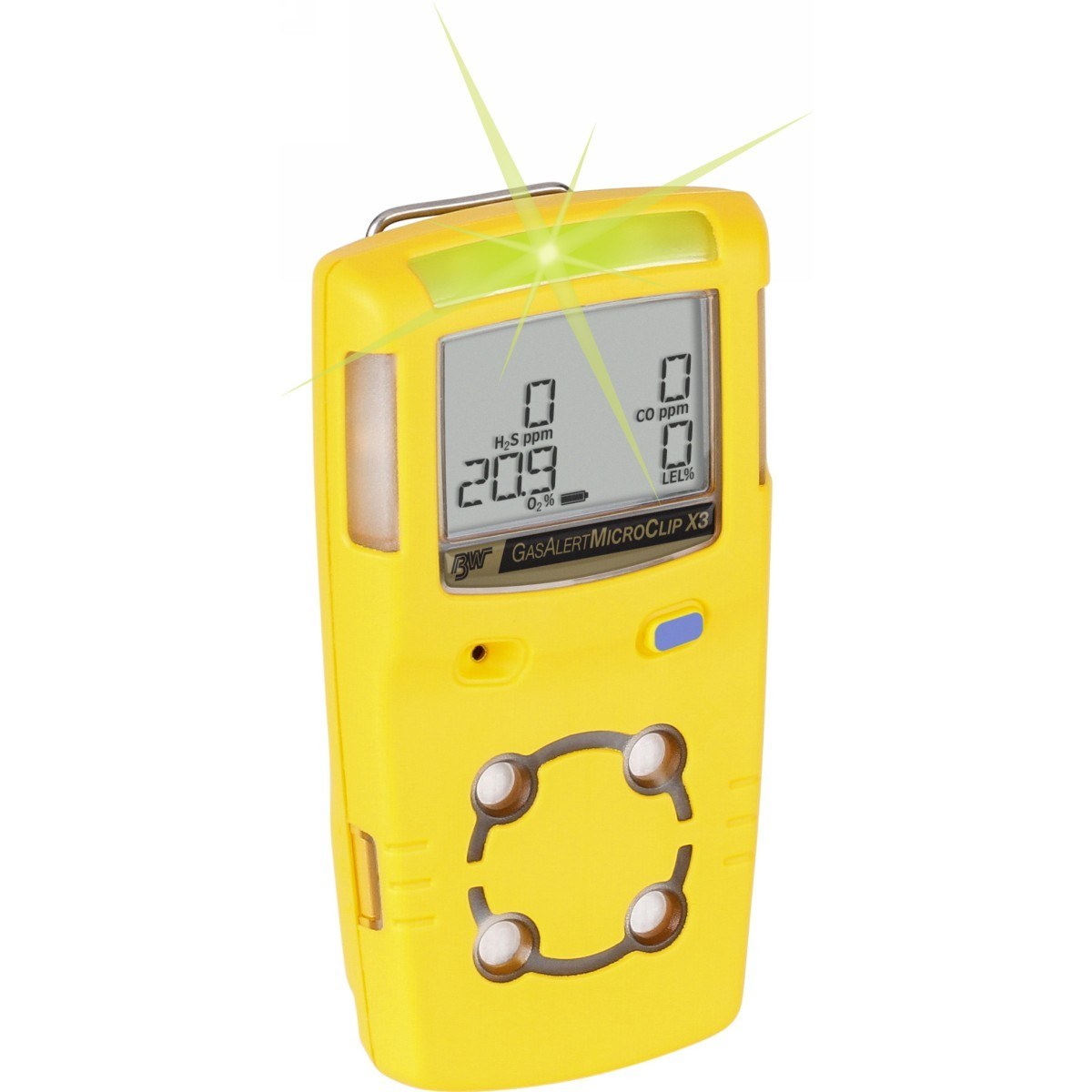

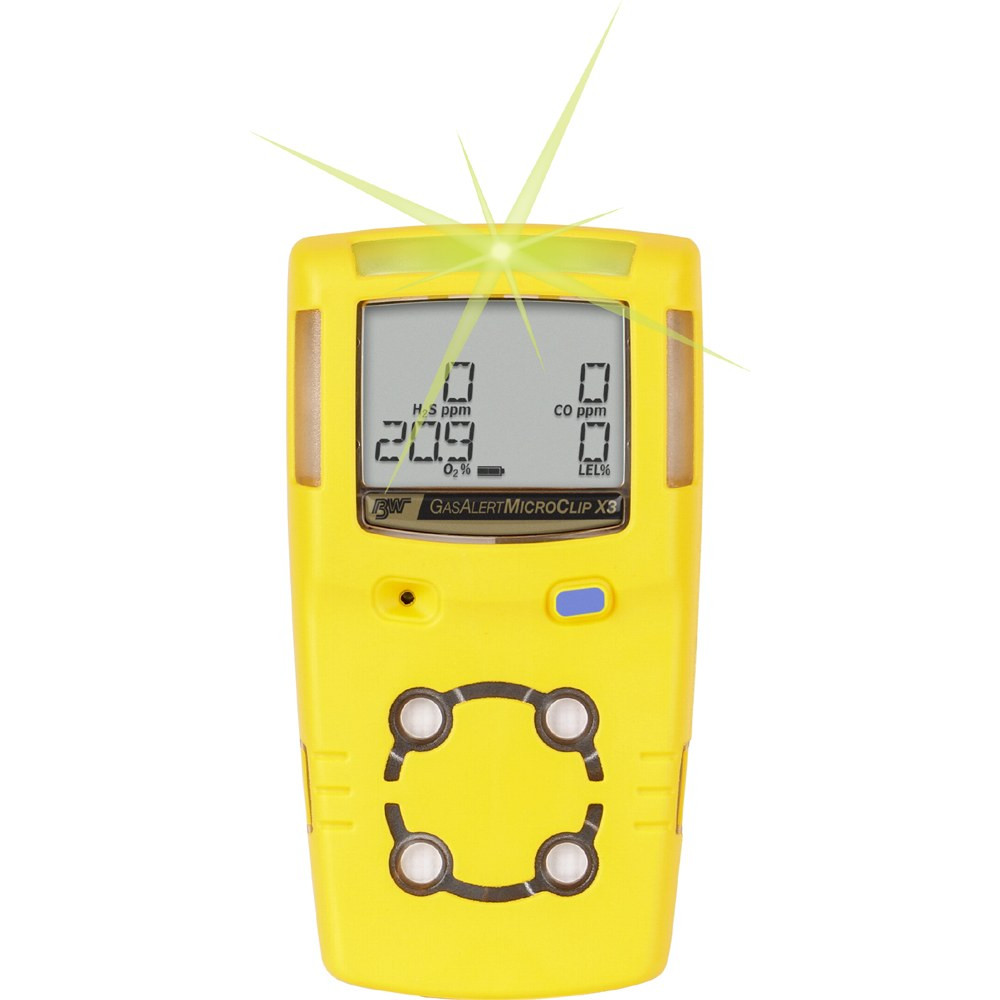

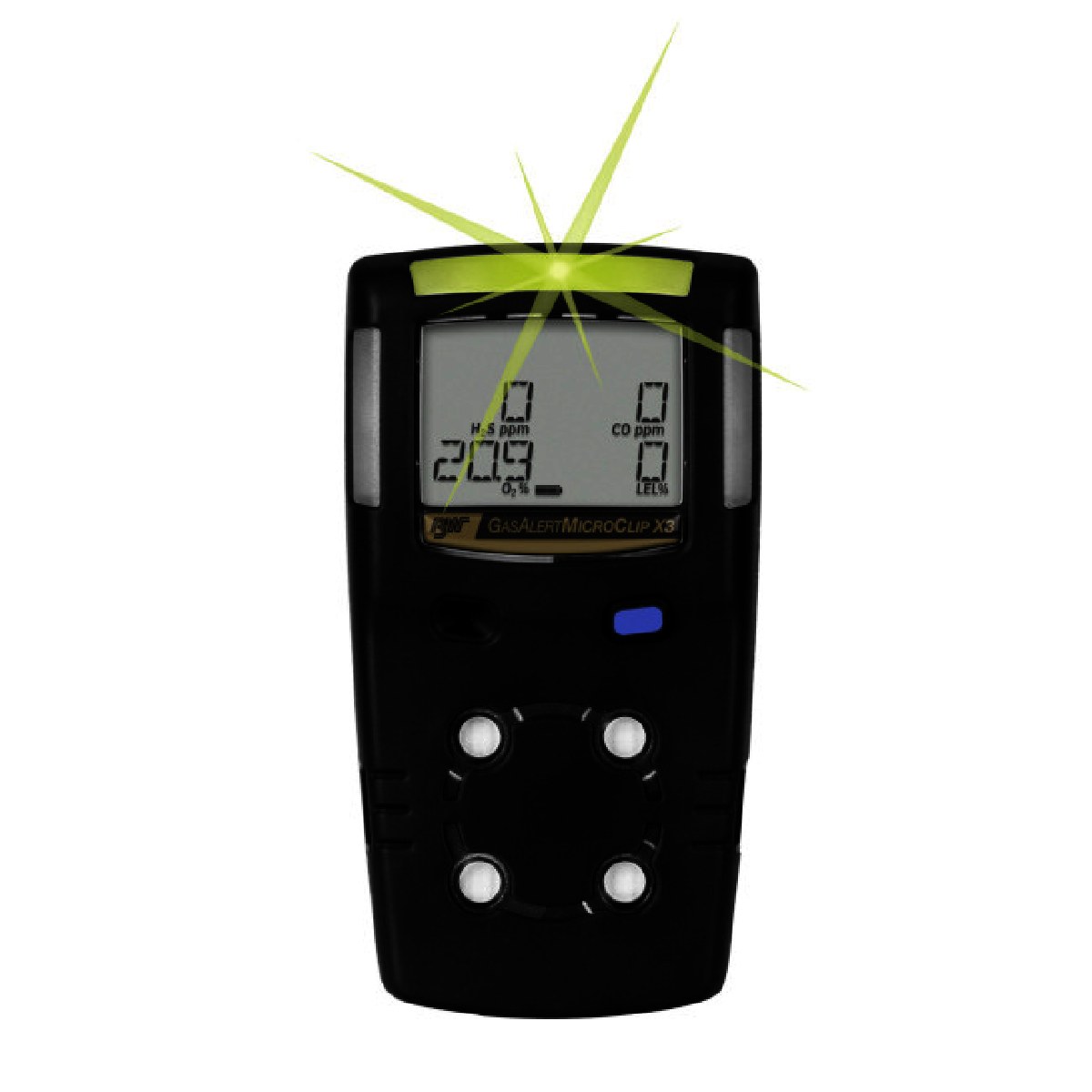

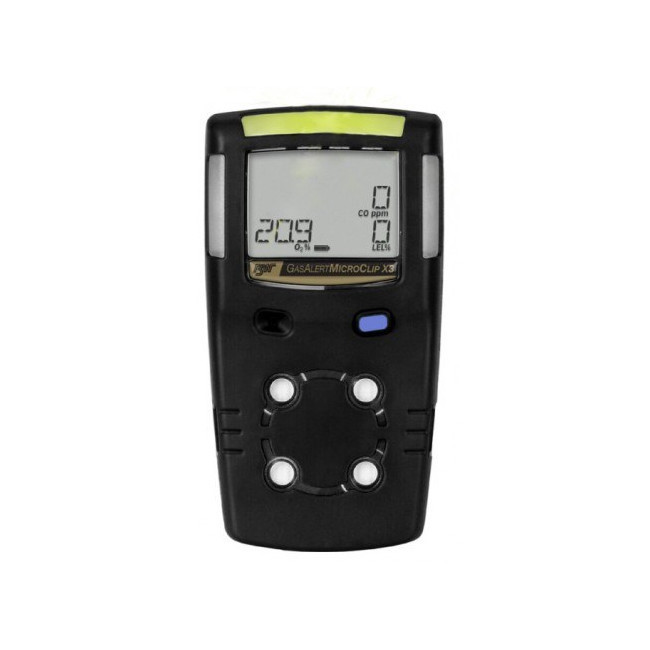

The GasAlertMicroClip XL/X3 is a portable personal safety device that detects combustible gases (LEL), hydrogen sulfide (H2S), carbon monoxide (CO), and oxygen (O2). It features audible and visual alarms, a rechargeable battery, calibration and bump test capabilities, data logging, and configurable alarm setpoints. The device includes an IR interface for wireless configuration and supports multiple languages. It is approved by CSA International for use in hazardous explosive atmospheres.
Description
MicroClip XL/X3 combustible LEL sensor
The GasAlertMicroClip XL/X3 is a portable personal safety device that detects combustible gases (LEL), hydrogen sulfide (H2S), carbon monoxide (CO), and oxygen (O2). It features audible and visual alarms, a rechargeable battery, calibration and bump test capabilities, data logging, and configurable alarm setpoints. The device includes an IR interface for wireless configuration and supports multiple languages. It is approved by CSA International for use in hazardous explosive atmospheres.
