Honeywell

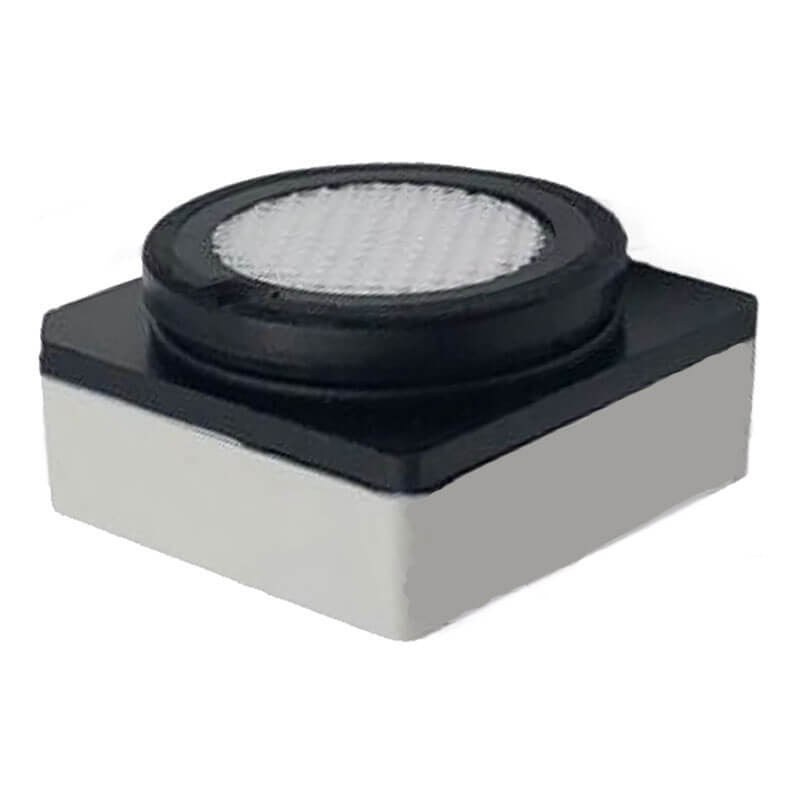

MicroClip XL/X3 O2 sensor
Part # SR-X2V
Replacement electrochemical oxygen sensor (SR-X-series)
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
Questions? Talk to a specialist210.566.1857 · sales@farrwest.com
Overview
The GasAlertMicroClip XT, XL and X3 is a personal gas detector that warns of hazardous gases at user-defined alarm setpoints. It monitors hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2), and combustible gases (LEL). The detector features automatic calibration capabilities, bump testing, data logging, configurable alarm setpoints, and supports multiple languages. It includes a rechargeable lithium polymer battery, LCD display, audible/visual/vibrator alarms, and an infrared interface for configuration and data download via Safety Suite Device Configurator.
- Monitors four gases: H2S, CO, O2, and combustible gases (LEL)
- Automatic zero and O2 auto-calibration on startup (optional, enabled by default)
- Bump test capability to confirm sensor response
- Automatic calibration capability for O2 sensor
- Data logging with 16-hour capacity
- Event logging of 10 most recent gas alarm events
- Latching alarm option
- Safe Mode displays SAFE when no hazardous gas detected
- Stealth Mode disables backlight, visual and audible alarms
- Low Alarm Acknowledge to temporarily silence audible alarm during low alarm
- Confidence Beep provides continuous audible confirmation of operation
- IntelliFlash provides continuous visual confirmation via green LED
- Configurable alarm setpoints: Low, High, TWA, and STEL
- Time-weighted average (TWA) calculation for H2S and CO
- Short-term exposure limit (STEL) calculation for H2S and CO
- Peak exposure tracking (maximum or minimum for O2)
- Multiple alarm types: Low, High, TWA, STEL, Multi-gas, Over Limit (OL)
- Infrared (IR) calibration lock option to ensure calibrations are recorded
- Force Calibration When Overdue option to require calibration
- Force Bump When Overdue option to require bump testing
- Startup message customization (up to 50 characters total)
- Temperature-dependent sensor response
- Dead band suppression near zero values
- Automatic deactivation if battery critically low or all sensors fail
- IP68 rated for dust and water resistance
- Certified for intrinsic safety in explosive atmospheres
Specifications
| Performance | |
| Gases Monitored | H2S (ppm), CO (ppm), O2 (% by volume), LEL (% LEL or % by volume methane) |
| O2 Detection Range | 0-25% by volume |
| Display | Liquid crystal display (LCD) |
| Alarms | Audible, Visual (LEDs), Vibrator |
| Power | |
| Battery Type | Lithium polymer (rechargeable) |
| Connectivity | |
| Data Storage | 16 h (at 15-second intervals) |
| Approvals & Warranty | |
| Ingress Protection | IP68 |
| Intrinsic Safety Certification | nEx da la IIC T4 GaCSA 05CA1730355 |
| Other | |
| Calibration Interval (recommended) | 180 days (6 months) |
| Event Log Storage | 10 most recent gas alarm events |
| STEL Interval | 5-15 min (user-defined) |
| Language Options | 5 languages |
