Monitors up to seven gases simultaneously
-
Certified for Ex zone 1 and mining areas (M1)
-
IP67 protection against water and dust ingress
-
Operating time up to 170 hours
-
Three-mode alarm: light, 103 dB(A) horn, and optional vibration
-
Color-backlit rotatable display
-
Three-button operation
-
Optional electric pump with up to 10 hours continuous operation and 100-meter intake distance
-
Catalytic combustion sensor for combustible gases and vapors (0 to 100% LEL)
-
Infrared (NDIR) sensor for gases
-
Three electrochemical sensors for toxic gases and oxygen
-
Optional PID sensor for volatile organic compounds (VOCs)
-
DS400 docking station compatibility for charging, calibration, and adjustment
-
Data logger capability with optional smart charger cap

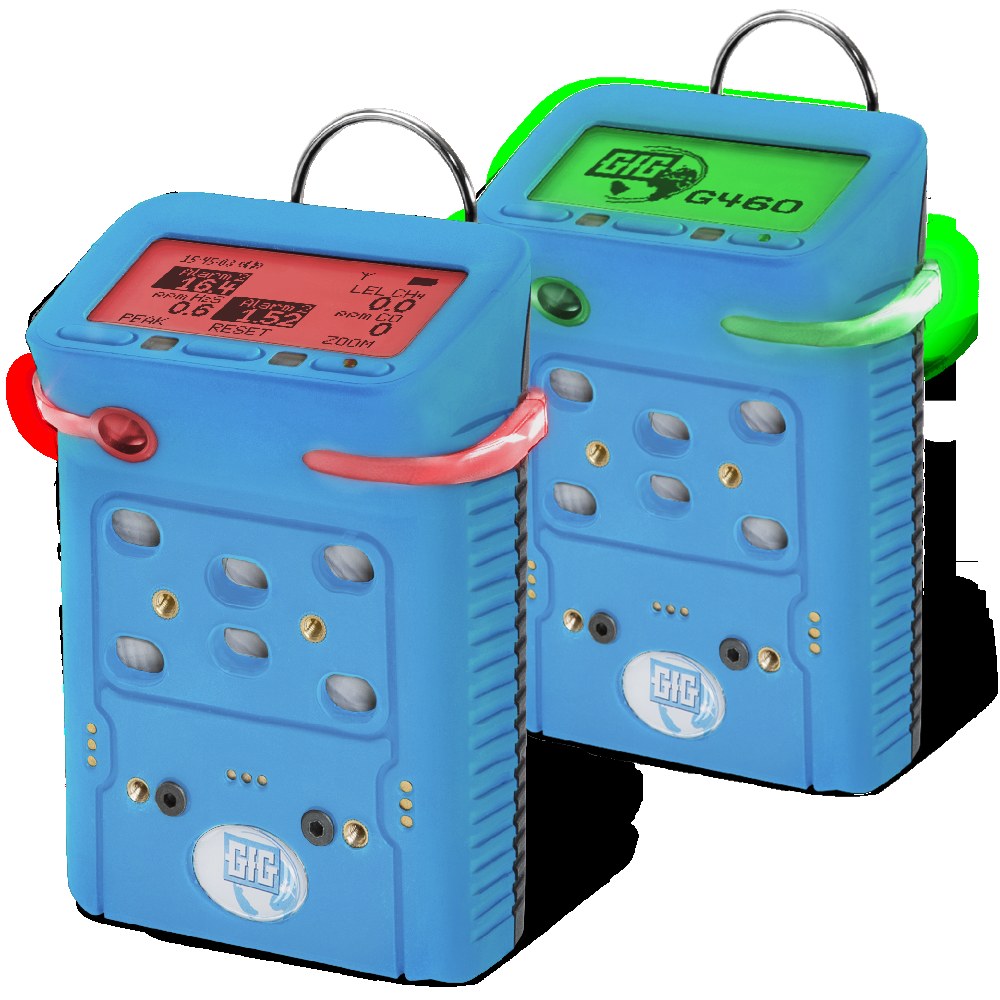

Microtector II G460
$0.00
The Microtector II G460 is a multi-gas detector for steel, refinery, sewer, and fire department personnel monitoring up to seven gases in hazardous areas.
In stock
The Microtector II G460 is a compact personal protection multi-gas detector developed for use in steel industry, refineries, sewer construction, and fire departments. It monitors up to seven gases simultaneously including methane, propane, carbon monoxide, carbon dioxide, hydrogen sulfide, hydrogen, and VOCs. Features include a catalytic combustion sensor for combustible gases (0-100% LEL), infrared NDIR sensor, 3 electrochemical sensors for toxic gases and oxygen, with one EC sensor replaceable by PID sensor. Certified for Ex zone 1 and mining hazardous areas (M1), with IP67 protection rating. Rubberized polycarbonate housing protects from shocks and vibrations. Three-button operation with 180-degree rotatable color-backlit display. Triple alarm system: light signal, 103 dB(A) horn, and optional vibration. Operating time up to 170 hours depending on battery module and configuration. Optional electric pump available for remote confined space clearing up to 100 meters with 10-hour continuous operation.
Description
Microtector II G460
The Microtector II G460 is a compact personal protection multi-gas detector developed for use in steel industry, refineries, sewer construction, and fire departments. It monitors up to seven gases simultaneously including methane, propane, carbon monoxide, carbon dioxide, hydrogen sulfide, hydrogen, and VOCs. Features include a catalytic combustion sensor for combustible gases (0-100% LEL), infrared NDIR sensor, 3 electrochemical sensors for toxic gases and oxygen, with one EC sensor replaceable by PID sensor. Certified for Ex zone 1 and mining hazardous areas (M1), with IP67 protection rating. Rubberized polycarbonate housing protects from shocks and vibrations. Three-button operation with 180-degree rotatable color-backlit display. Triple alarm system: light signal, 103 dB(A) horn, and optional vibration. Operating time up to 170 hours depending on battery module and configuration. Optional electric pump available for remote confined space clearing up to 100 meters with 10-hour continuous operation.
Features
Specifications
- Measurement method
- Sensor-dependent
- Temperature
- -4 to +131 °F / -20 to +55 °C
- Humidity
- 5 to 95 % RH
- Air pressure
- 70 to 130 kPa
- Power supply
- NiMH battery module (black housing; rechargeable) or Alkaline battery module (gray housing, not rechargeable) for 2x AA batteries 1.5 V
- Operating time
- Max. 24 hours
- Material
- Rubberized plastic
- Dimensions
- 3 x 4.3 x 6 in / 75 x 110 x 55 mm (W x H x D)
- Weight
- max. 12 oz / 350 g
- Protection class
- IP67
- CSA certification
- Microtector II G460 c-CSA-us
- Intrinsic safety
- Class I, Division 1, Groups A, B, C, and D T3, Ex ia IIC T3, Class I, Zone 0 AEx ia IIC T3, Ex db eb ia IIC T3/T4 Gb (NiMH=T3) -20 ≤ Ta ≤ +45 / +50 °C
- Standards
- IEC 60079-0:2011 (Ed.6), IEC 60079-7:2015 (Ed.5), IEC 60079-1:2014 (Ed.7), IEC 60079-11:2011 (Ed.6), CSA C22.2 No. 152-M1984, UL 913, ANSI / ISA-12.13.01-2000
- EMI/RFI Resistance
- EMC Directive 89 / 336 / EEC
