The Sensit P400 %LEL combustible smart sensor is a replacement catalytic sensor for the P400 multi-gas personal monitor used by workers in hazardous environments.

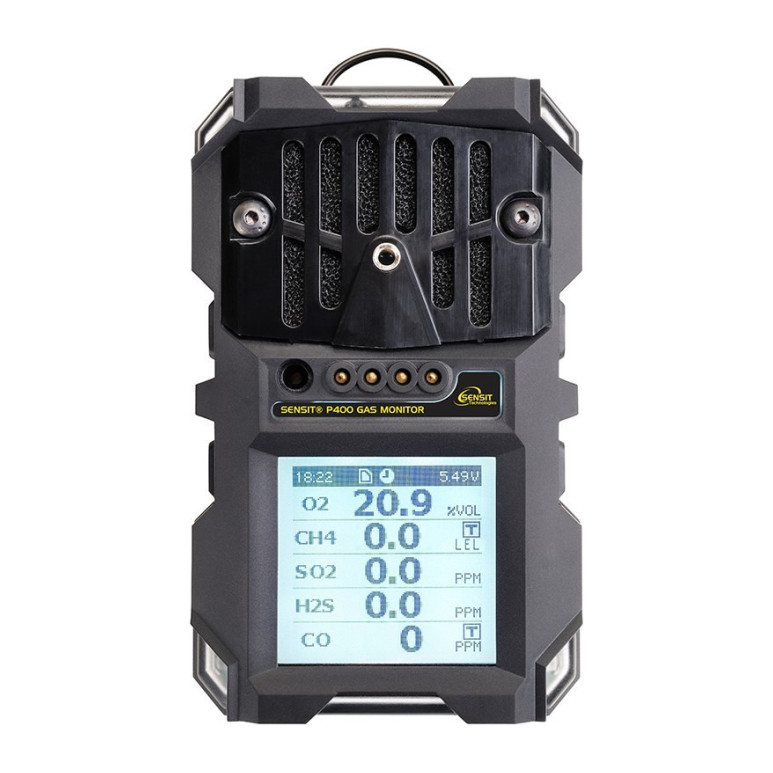

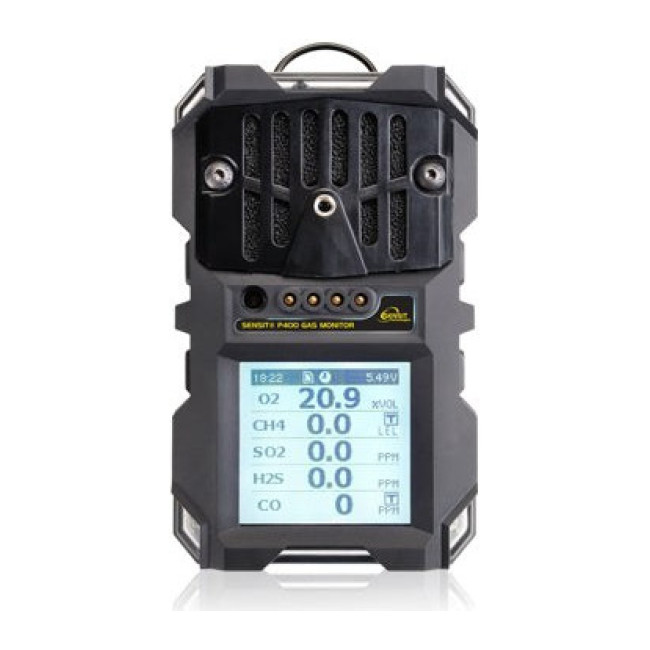

The SENSIT P400 is a state-of-the-art multi-gas personal monitor designed to alert users of hazardous gases in their work environment. Features a durable polycarbonate housing with protective rubber covering, user-friendly design with large graphic display, and three types of alarms (audible 3-tone, visual 270° view, vibration). Can display up to 5 gases simultaneously with available sensors for combustible gases (%LEL), oxygen, carbon monoxide, hydrogen sulfide, hydrogen cyanide, nitrogen dioxide, and sulfur dioxide. Includes easy manual calibration or optional SCAL-400 calibration station. Standard features include intrinsically safe design, STEL and TWA alarms, data logging, reusable dust filter, and support for alkaline or NiMH batteries. Made in USA with UL913 approval for Class 1 Division 1 hazardous locations. Limited 2-year warranty included.
| Performance | |
| Typical Response Time | Initial<2SecT90<10Sec(LEL) |
| LEL Resolution | 0.1% |
| LEL Range | 0-100 |
| LEL Accuracy | ±10% |
| O2 Resolution | 0.1% |
| O2 Range | 25% |
| O2 Accuracy | ±2%or10% |
| CO Resolution | 1ppm |
| CO Range | 0-999 |
| CO Accuracy | ±5ppm or10% |
| H2S Resolution | 1ppm |
| H2S Range | 0-100 |
| H2S Accuracy | ±2ppm or10% |
| HCN Resolution | 0.1ppm |
| HCN Range | 0-30 |
| HCN Accuracy | ±1ppm or10% |
| NO2 Resolution | 1ppm |
| NO2 Range | 0-250 |
| NO2 Accuracy | ±2ppm or10% |
| SO2 Resolution | 0.1ppm |
| SO2 Range | 0-20 |
| SO2 Accuracy | ±1ppm or10% |
| Power | |
| Power Source | 4"AA"Alkaline orNiMHRechargerPack |
| Battery Life | 24Hr.Alkalineor15Hr.NiMH |
| Physical | |
| Size | 5.2"x3.2"x1.7"(13.2x8.1x4.0cm) |
| Weight | 12oz.(340g) |
| Other | |
| Operational Temperature | -4 to 122F(-20to50℃) |
| Humidity | 10-90%RH(Non-condensing) |
| Sound | 98db@15cm |
| LEL T90 Time | <10Sec |
| O2 T90 Time | <10Sec |
| CO T90 Time | <10Sec |
| H2S T90 Time | <20Sec |
| HCN T90 Time | <20Sec |
| NO2 T90 Time | <20Sec |
| SO2 T90 Time | <20Sec |
