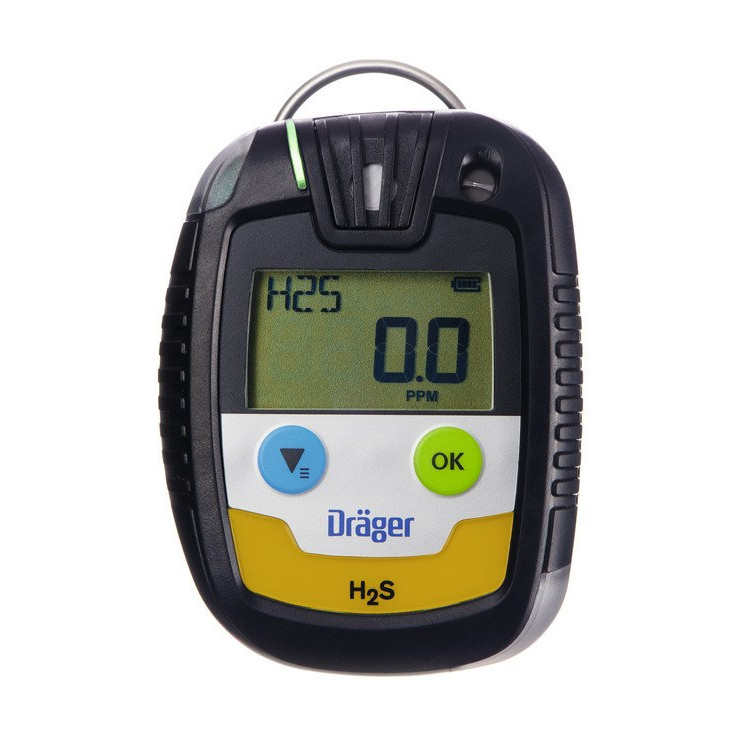

Pac 6500
The Dräger Pac 6500 is a robust personal single-gas detector for monitoring CO, H2S, SO2, or O2 in hazardous work environments.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Measurable gases
- CO, O2, H2S, SO2
- Battery service life
- 2 years (24/7)
- Degree of protection (IP class)
- IP 68
- Weight
- 3.74 oz
- Performance approval
- no
Overview
The Dräger Pac® 6500 is a robust, non-disposable single-gas detection device designed for personal air monitoring of carbon monoxide (CO), hydrogen sulfide (H2S), sulfur dioxide (SO2), or oxygen (O2). Features include quick sensor response times, wide measurement ranges (e.g., CO: 1-1,999 ppm, H2S: 0.4-100 ppm), 360° audible/visual/vibrating alarms at 90 dB, large backlit display, data logging capabilities, and rugged IP68-rated housing tolerating temperatures from -40°C to 55°C and air pressures 700-1,300 mbar. Replaceable battery (2-year service life), user-replaceable membrane filter, and compatible with Dräger bump test stations and X-dock calibration systems. Approved for hazardous locations (ATEX, IECEx, c CSA us, CE, GOST).
- Measures CO, H2S, SO2, or O2
- Quick sensor response times with wide measurement range
- Color-coded sensor variants minimize mistakes
- D-Light indicates device functionality status
- Large display shows gas concentration and battery capacity
- Bright backlighting for visibility in darkness
- 360° alarm with audible (90 dB), visual, and vibrating signals
- Peak concentration display
- Alarm retrieval for previously registered alarms
- Dual alarm thresholds for oxygen sensor (pre-alarm and main alarm)
- Data logger and event logger with date and time
- Replaceable battery
- Easy-to-replace membrane filter
- Automatic bump test selection in X-dock calibration station
- Shock-proof and chemical-resistant housing
- Membrane filter protects sensor from dust and liquids
Specifications
| Performance | |
| Sensor type | Single-Gas Detector |
| Measurable gases | CO, O2, H2S, SO2 |
| Number of gases | 1 |
| Temperature range (device) | -40°F - 131°F |
| Air pressure (hPa) | 700 - 1300 |
| Dual sensor | no |
| Alarm Hold | yes |
| Power | |
| Battery service life | 2 years (24/7) |
| Physical | |
| Weight | 3.74 oz |
| Approvals & Warranty | |
| Degree of protection (IP class) | IP 68 |
| ATEX | yes I M1 Ex ia I Ma II 1G Ex ia IIC T4 Ga (Zone 0) |
| IECEx | yes Ex ia I Ma Ex ia IIC T4 Ga |
| Performance approval | no |
| Shipping approval (MED) | yes |
| Other | |
| Lifetime | unlimited |
| Personal Air Monitoring | yes |
| Air humidity (relative humidity) in % | 10% to 90% |
| Changable filter | easy to change from outside / mechanical connection |
| D-light | yes |
| TLV / STEL | yes |
| Peak | yes |
| c CSA us | yes Class I, Zone 0, AEx ia IIC T4 Ga, Class II, Division 1, Group E, F, G |
| CE | yes |
| GOST (EAC) | yes |
