Pac 8500
The Dräger Pac 8500 is a robust dual-gas detector for personal air monitoring in extreme conditions with hydrogen-compensated sensors and customizable alarms.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Number of gases
- 1-2
- Battery service life
- 2 years (24/7)
- Degree of protection (IP class)
- IP 68
- Weight
- 3.74 oz
- Performance approval
- no
Overview

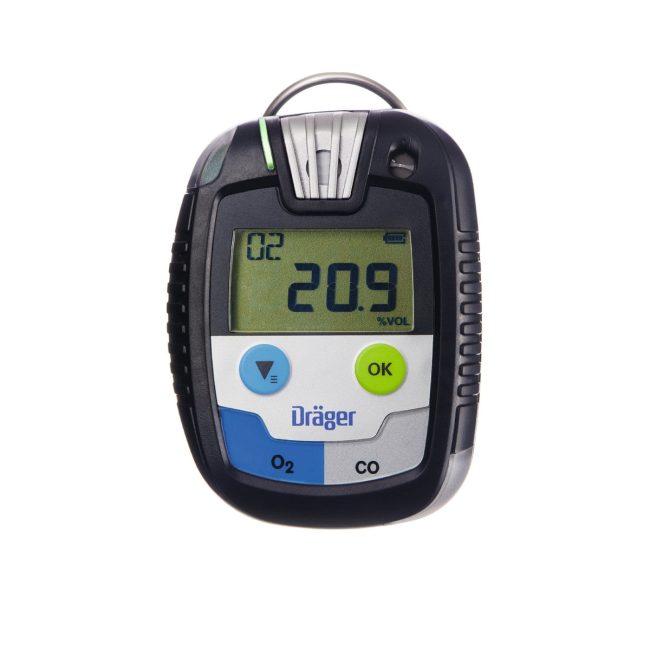

The Dräger Pac® 8500 is a robust, non-disposable single-gas detection device designed for personal air monitoring in extreme conditions. It can be equipped with a hydrogen-compensated CO sensor or dual sensors to measure two gases simultaneously: H2S with CO, H2S with O2, or O2 with CO. Features include powerful sensors with low t90 response time, customizable alarm thresholds (TLV and STEL), data and event logging, 360° audible/visual/vibrating alarms at 90 dB, bright backlighting, IP68 rating, operating range of 700-1300 mbar, and 2-year battery life. Compatible with Dräger X-dock calibration stations for efficient bump testing and calibrations.
- Dual sensor capability for measuring two gases simultaneously
- Hydrogen-compensated CO sensor with reduced cross sensitivity to hydrogen
- Data and event logger with date and time
- Customizable alarm thresholds for TLV and STEL
- Peak concentration display
- 360° alarm with audible, visual and vibrating alerts
- Two additional alarm thresholds for oxygen sensor variants
- Word-free display with gas concentration indication
- Bright backlighting for dark environments
- D-Light functionality indicator
- Color-coded sensor variants for safety
- Membrane filter protecting sensor from dust and liquids
- IP68 shock-proof and chemical-resistant housing
- Compatible with Dräger X-dock calibration station
- Easy self-replacement of membrane filter
- Powerful battery requiring infrequent charging
Specifications
| Performance | |
| Sensor type | Single-Gas Detector |
| Measurable gases | CO H2-CP, CO/H2S, CO/O2 |
| Number of gases | 1-2 |
| Temperature range (device) | -40°F - 131°F |
| Air pressure (hPa) | 700 - 1300 |
| Dual sensor | yes |
| Alarm Hold | yes |
| Power | |
| Battery service life | 2 years (24/7) |
| Physical | |
| Weight | 3.74 oz |
| Approvals & Warranty | |
| Degree of protection (IP class) | IP 68 |
| ATEX | yes I M1 Ex ia I Ma II 1G Ex ia IIC T4 Ga (Zone 0) |
| IECEx | yes Ex ia I Ma Ex ia IIC T4 Ga |
| Performance approval | no |
| Shipping approval (MED) | no |
| Other | |
| Lifetime | unlimited |
| Personal Air Monitoring | yes |
| Air humidity (relative humidity) in % | 10% to 90% |
| Changable filter | easy to change from outside / mechanical connection |
| D-light | yes |
| TLV / STEL | yes |
| Peak | yes |
| c CSA us | yes Class I, Zone 0, AEx ia IIC T4 Ga, Class II, Division 1, Group E, F, G |
| CE | yes |
| GOST (EAC) | yes |
