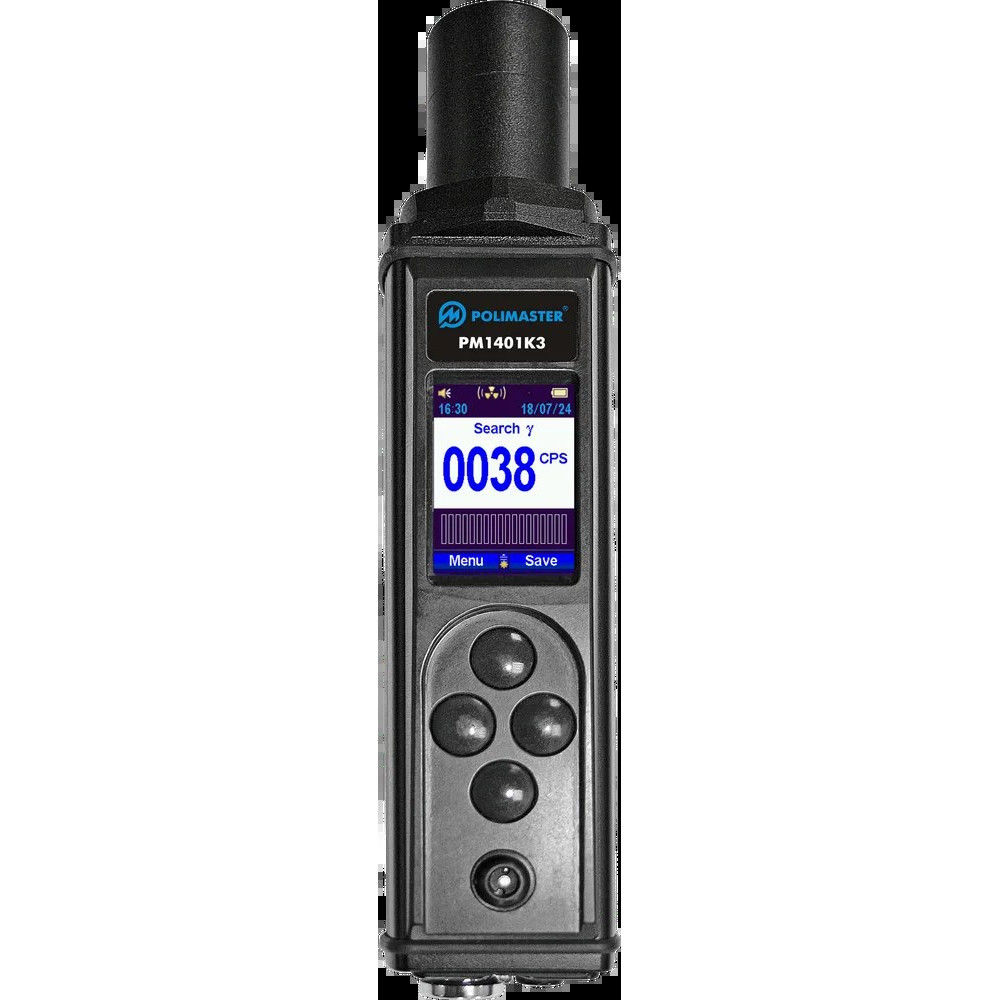

PM1401K-3M
The POLIMASTER PM1401K-3M is a multipurpose handheld radiation monitor and identifier for customs, HAZMAT, emergency services, and first responders.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Detector
- CsI(Tl), GM
- Dose rate measurement energy range
- 15 keV to 15 MeV
- Battery lifetime
- 300 h
- Ingress protection
- IP65
- Weight
- ≤ 820 g
Overview
The PM1401K-3M is a multipurpose hand-held radiation monitor and radionuclide identifier designed for quick and reliable measurement of gamma dose rate, detection of alpha, beta, and gamma sources, measurement of radiation flux density, gamma spectra acquisition, radionuclide identification, and food/soil contamination measurement with 137Cs. This gamma-only model (without neutron detector) features a shock and water-resistant IP65 case, storage of up to 10,000 events and 1,000 spectra, audible/visual/vibration alarms, adjustable radionuclide libraries, USB PC communication, and built-in GPS. Ideal for customs, HAZMAT, emergency services, industrial facilities, and first responders.
- Storage of up to 10000 events and 1000 spectra
- Audible, visual, and external vibration alarm
- Categorization of identified radionuclides
- Shock and water-resistant IP65 case
- Adjustable radionuclide libraries
- USB communication with PC
- Built-in GPS module
Specifications
| Performance | |
| Detector | CsI(Tl), GM |
| Dose rate indication range | 0.01 μSv/h to 200 mSv/h |
| Dose rate measurement range | 0.1 μSv/h to 100 mSv/h |
| Dose rate measurement accuracy | ± (15 + 0.0015 / Ḣ) (where Ḣ is the measured dose rate value in mSv/h) |
| Dose rate measurement energy range | 15 keV to 15 MeV |
| Spectroscopy energy range | 25 keV to 3 MeV |
| Gamma radiation sensitivity | 200 cps per µSv/h (137Cs), 2000 cps per µSv/h (241Am) |
| α-radiation sensitivity (239Pu) | ≥ 0.5 counts·cm2 |
| β-radiation sensitivity (90Sr+90Y) | ≥ 3.5 counts·cm2 |
| α-radiation flux density measurement range | 15 to 105 min-1·cm-2 |
| α-radiation flux density accuracy (239Pu) | ± (20 + 450 / φ) % (where φ is the measured α-radiation flux density, min-1·cm-2) |
| β-radiation flux density measurement range | 6 to 105 min-1·cm-2 |
| β-radiation flux density accuracy (90Sr+90Y) | ± (20 + 60 / φ) % (where φ is the measured β-radiation flux density, min-1·cm-2) |
| 137Cs activity measurement range | 102 to 105 Bq/kg (Bq/l) |
| Alarms | visual, audible, external vibration |
| Atmospheric pressure | 84 to 106.7 kPa |
| Power | |
| Power supply | 2 AA alkaline or NiMH batteries |
| Battery lifetime | 300 h |
| Physical | |
| Full width-half maximum (FWHM) for 137Cs | ≤ 9 % |
| Dimensions | 262 × 60 × 65 mm |
| Weight | ≤ 820 g |
| Connectivity | |
| Memory | 10000 history events, 1000 scintillation spectra |
| Approvals & Warranty | |
| Ingress protection | IP65 |
| Other | |
| Gamma radiation scintillation spectra acquisition channels | 1024 |
| PC communication | USB |
| Drop test | 0.7 m |
| Operating temperature | –20 °С to 50 °С |
| Humidity | up to 95 % at 35 °С |
