PoliPack GN-S
The PoliPack GN-S is a spectroscopic gamma-neutron backpack detector for radiation surveys and emergency response personnel requiring rapid radionuclide identification.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Gamma radiation energy range
- 30 keV to 3 MeV
- Battery lifetime
- ≥ 72 h
- Ingress protection
- IP67
- Dimensions
- 360 × 320 × 164 mm
- Operating temperature
- –20 °С to 50 °С
Overview

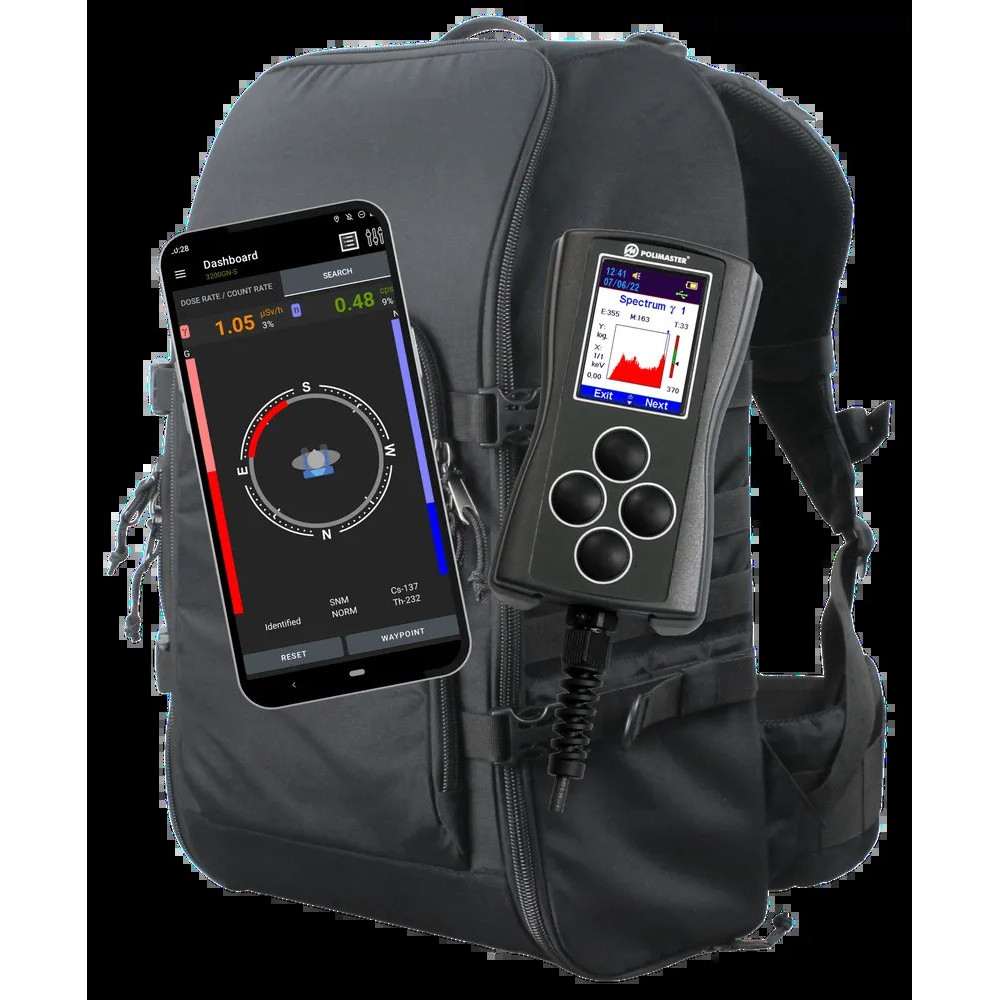

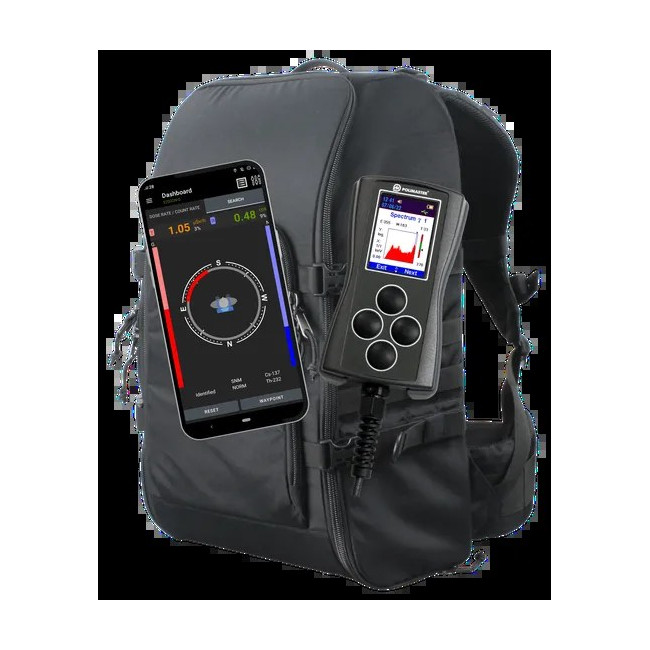

The PoliPack™ GN-S is a gamma-neutron Backpack-Based Radiation Detection System equipped with spectroscopic gamma detectors for identifying radionuclides. Carried in a compact backpack and controlled remotely via wired control unit or smartphone app (Polismart®). Features include ANSI N42.53-2021 and IEC 62694:2022 compliance, radionuclide identification in under 1 minute, dose rate measurement range 0.05-30 µSv/h, 72-hour battery life, IP67 rating, and optional extended range detector. Ideal for radiation surveys, contamination mapping, critical infrastructure security, public events, and emergency services.
- ANSI N42.53-2021 and IEC 62694:2022 compliance
- ANSI N42.42 format data transmission
- Indication of the direction to the source
- Radionuclides identification in less than 1 minute
- Categorization of identified radionuclides
- Adjustable radionuclide libraries
- Long-life rechargeable battery for 72 hours of operation
- Housing design ensures device floats in water
- Operable in stationary mode with mains power
- Wired (remote control) and wireless (Polismart® App) display
- Optional extended range detector for dose rate up to 10 Sv/h
- USB and Bluetooth communication
Specifications
| Performance | |
| Detector | gamma Csl(TI) SiPM; neutron 6LiF/ZnS |
| Dose rate measurement range | 0.05 µSv/h to 30 µSv/h (built-in detectors); 0.05 µSv/h to 10 Sv/h (with extended range detector) |
| Dose rate measurement accuracy | ± 30 % |
| Gamma radiation energy range | 30 keV to 3 MeV |
| Gamma radiation sensitivity | 2100 cps per µSv/h (137Cs); 15000 cps per µSv/h (241Am) |
| Neutron radiation energy range | thermal to 15 MeV |
| Neutron radiation sensitivity | 75 cps⋅cm2 (for 252Cf in 4 cm HDPE capsule at 1.5 m) |
| Neutron count rate indication range | 0.01 cps to 9999 cps |
| Alarms (in the remote control) | visual, audible, vibration |
| Atmospheric pressure | 84 kPa to 106.7 kPa |
| Power | |
| Power supply | Li-ion battery, 6400 mAh, 3.7 V; 4 h charging time |
| Battery lifetime | ≥ 72 h |
| Physical | |
| Dimensions | 360 × 320 × 164 mm |
| Weight | ≤ 10 kg (wearable part) |
| Connectivity | |
| Memory | 8 h of data records, 1000 spectra; ANSI N42.42 data format |
| Approvals & Warranty | |
| Ingress protection | IP67 |
| Other | |
| Gamma radiation scintillation spectra acquisition channels | 1024 channels |
| Radionuclide libraries | ANSI (N42.53), User/customized |
| Radionuclide identification | Categorization (IND, MED, NUC, NORM); Identification |
| PC communication | USB-C, Bluetooth |
| Smartphone communication | Bluetooth 4.0 |
| Drop test | 1 m |
| Operating temperature | –20 °С to 50 °С |
| Humidity | up to 98 % at 40 °С |
