Assesses resolving time of Geiger-Müller counters
-
Measures counter reaction speed to radiation events
-
Two configuration options for different regulatory regions
-
Compliant with U.S. NRC Exempt Quantity limits
-
Sealed radioactive sources for safe handling
RSS2 GM Resolving Time Set
$0.00
The SPECTRUM TECHNIQUES RSS2 GM Resolving Time Set is a sealed radioactive source kit designed to measure the reaction speed of Geiger-Müller counters to individual radiation events.
In stock

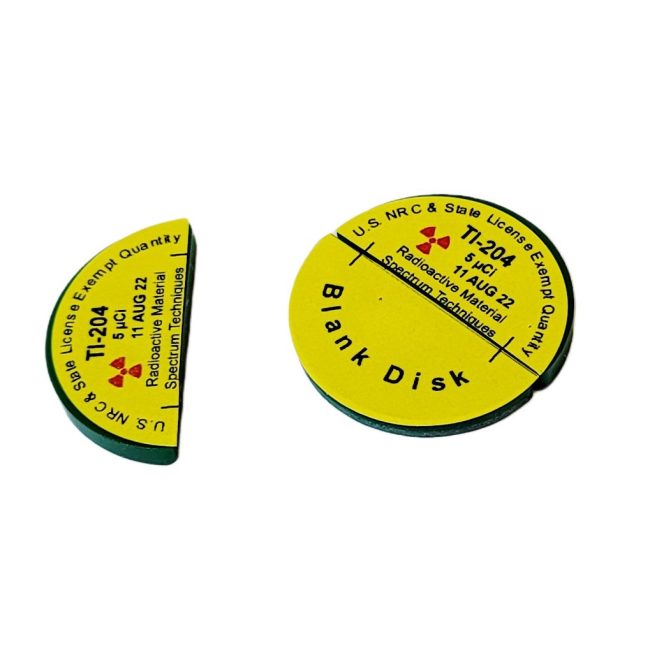

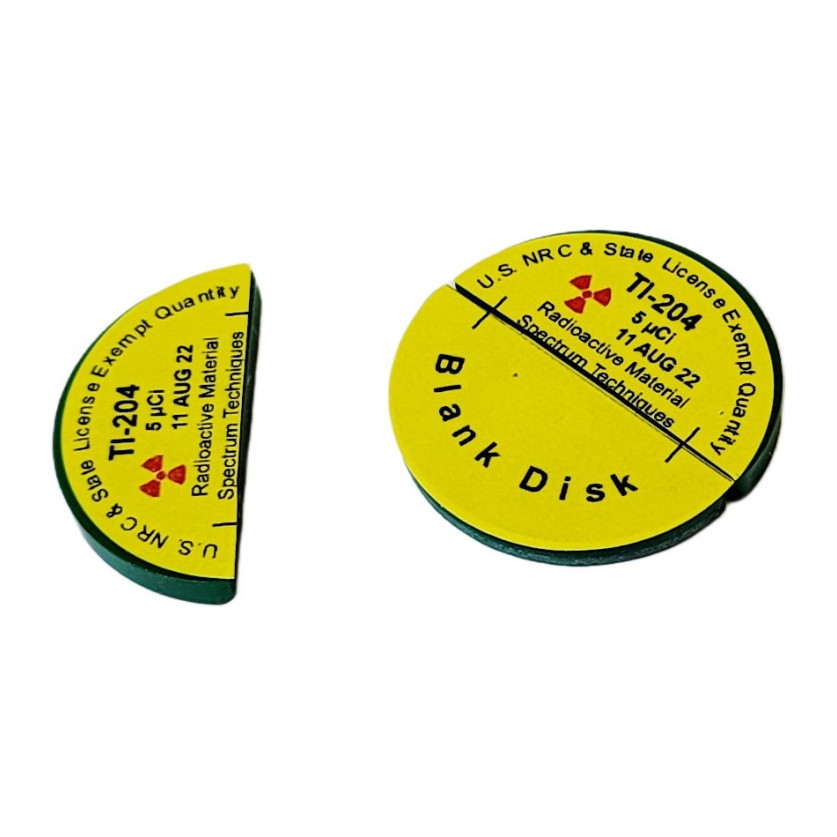

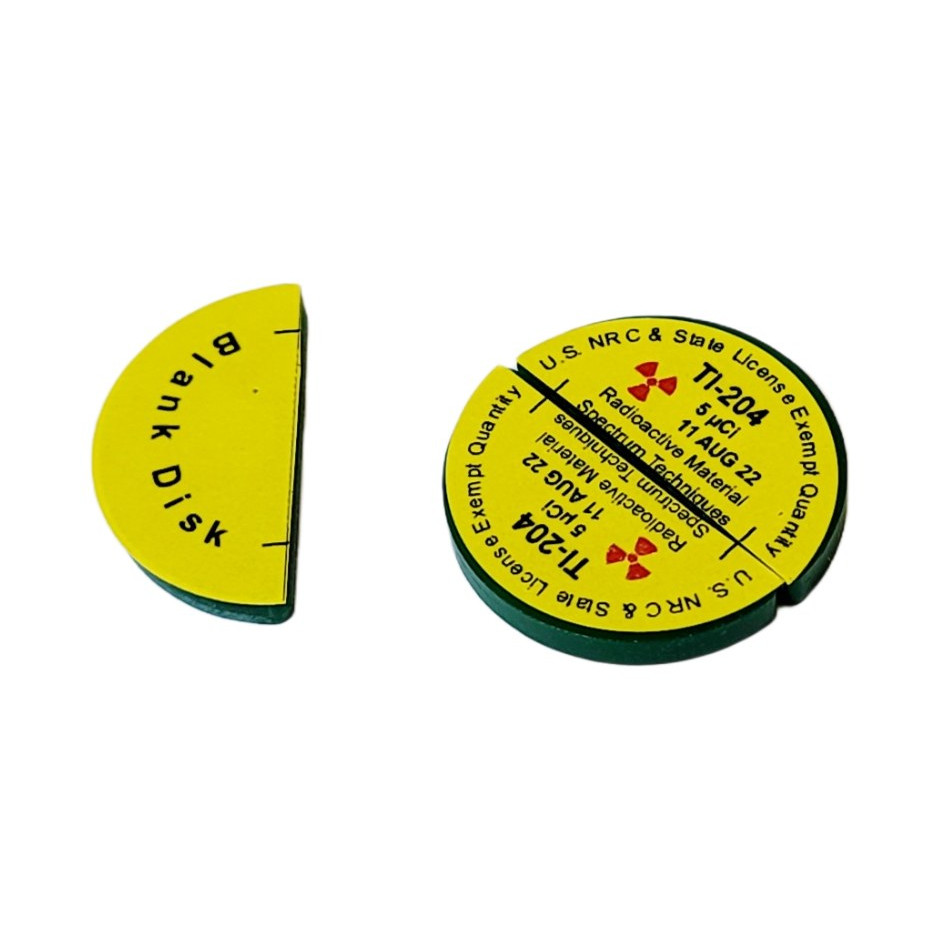

The RSS2 source set is specifically designed to determine the resolving time of a Geiger-Müller (GM) counter, measuring how rapidly the counter can react to and discern individual radiation events. The set comprises three half-disks with radioactive material (Tl-204) placed within wells in injection-molded Plexiglas® disks, dried and sealed with epoxy plugs. Available in two configurations: RSS2 (2 half-disks with 5 µCi Tl-204 each, 10 µCi total) and RSS2-EU (2 half-disks with 0.25 µCi each, 0.5 µCi total). Maximum activity deviation is ±20%. Activities comply with U.S. NRC Exempt Quantity limits. Calibration not available.
Description
RSS2 GM Resolving Time Set
The RSS2 source set is specifically designed to determine the resolving time of a Geiger-Müller (GM) counter, measuring how rapidly the counter can react to and discern individual radiation events. The set comprises three half-disks with radioactive material (Tl-204) placed within wells in injection-molded Plexiglas® disks, dried and sealed with epoxy plugs. Available in two configurations: RSS2 (2 half-disks with 5 µCi Tl-204 each, 10 µCi total) and RSS2-EU (2 half-disks with 0.25 µCi each, 0.5 µCi total). Maximum activity deviation is ±20%. Activities comply with U.S. NRC Exempt Quantity limits. Calibration not available.
Features
Specifications
- Radioactive Material
- Tl-204
- Number of Half-Disks
- 3 (2 with material, 1 blank)
- RSS2 Activity
- 5 µCi per half-disk (10 µCi total)
- RSS2-EU Activity
- 0.25 µCi per half-disk (0.5 µCi total)
- Activity Tolerance
- ±20%
- Housing Material
- Plexiglas®
- Sealing
- Epoxy plug
