Dose and dose rate Neutron Hp(10) displayed
-
Totalized dose for Hp(10) Gamma + Neutron displayed
-
Superior gamma rejection in Neutron channel
-
Connect and ready for use
-
Full Neutron energy range coverage
-
Meets or exceeds applicable IEC and ANSI standards
-
Designed for ruggedness and durability
-
Excellent EMC Immunity
-
Waterproof IP67

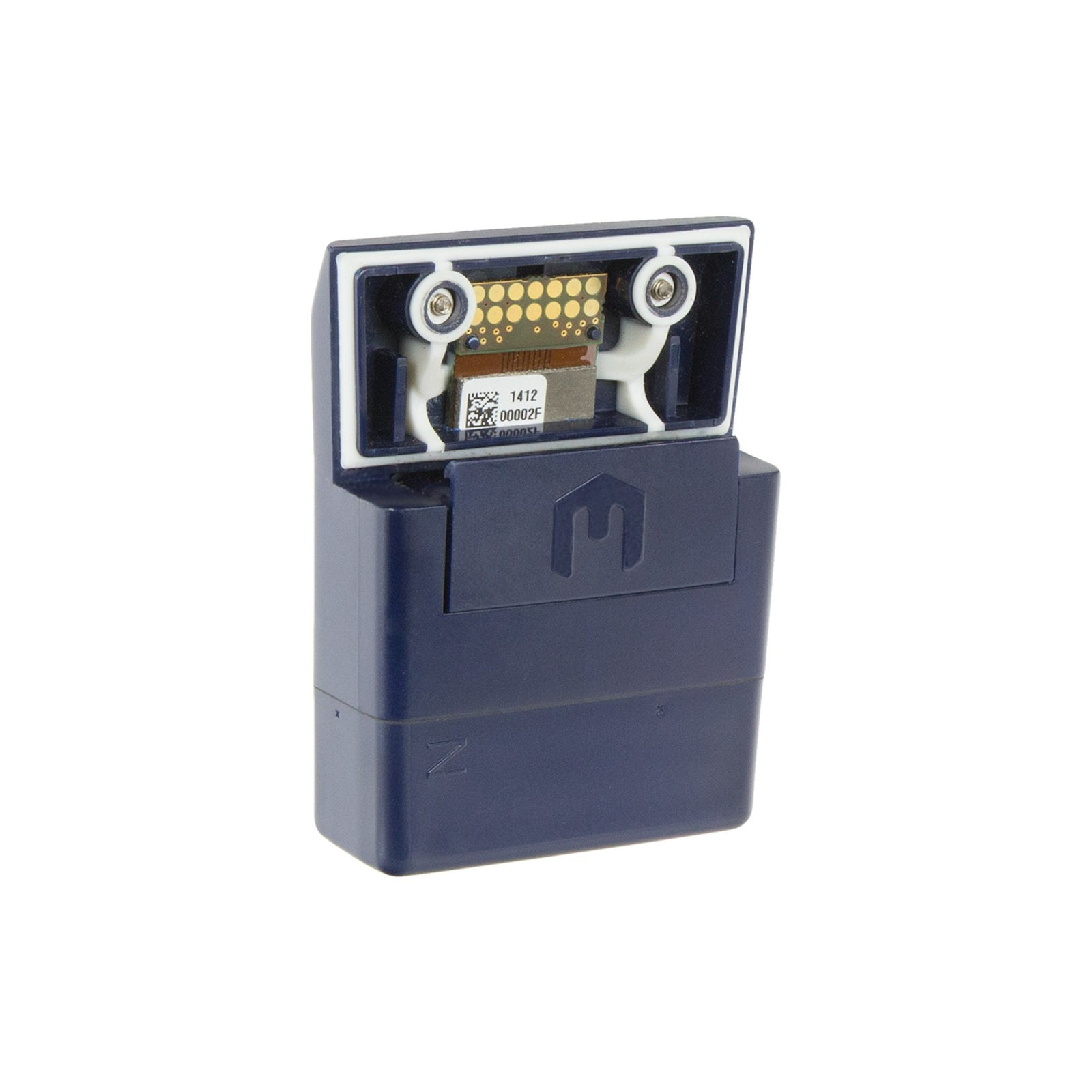

DMC 3000 Neutron Module Hp(10)
$1,286.00

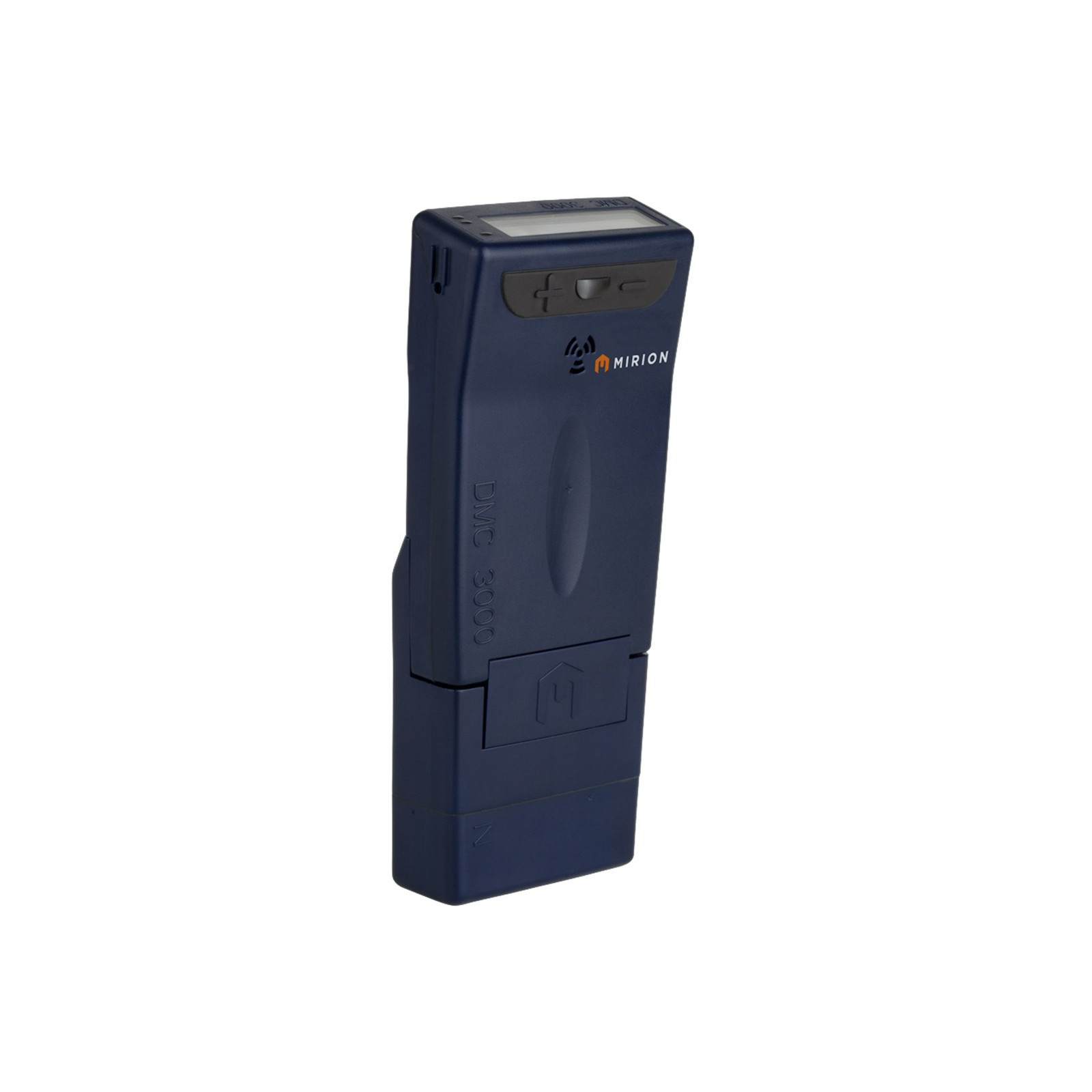

The Mirion Technologies DMC 3000 Neutron Module is an add-on dosimeter for military personnel, first responders, and radiation workers requiring operational neutron dosimetry measurement.
The Neutron Module provides operational dosimetry for Military, First Responders and radiation workers where there is a Neutron radiation risk. The add-on Neutron Module attaches to the DMC 3000 dosimeter and is able to measure Hp(10) radiation at a wide range of energy levels. Features include dose and dose rate Neutron Hp(10) display, totalized dose for Hp(10) Gamma + Neutron, superior gamma rejection, full Neutron energy range coverage, meets IEC and ANSI standards, waterproof IP67 rating, and operates over 2400 hours continuously without requiring supplementary battery.
Description
DMC 3000 Neutron Module Hp(10)
The Neutron Module provides operational dosimetry for Military, First Responders and radiation workers where there is a Neutron radiation risk. The add-on Neutron Module attaches to the DMC 3000 dosimeter and is able to measure Hp(10) radiation at a wide range of energy levels. Features include dose and dose rate Neutron Hp(10) display, totalized dose for Hp(10) Gamma + Neutron, superior gamma rejection, full Neutron energy range coverage, meets IEC and ANSI standards, waterproof IP67 rating, and operates over 2400 hours continuously without requiring supplementary battery.
Features
Specifications
- Neutron energy range
- 0.025 eV to 15 MeV
- Effective Range of Dose
- 2 µSv to 100 Sv (0.2 mrem to 10000 rem)
- Display Resolution (Dose)
- 0,1 μSv to 10 Sv (0.01 mrem to 1000 rem) up to four decimal places
- Overload Indication (Dose)
- from 10 Sv to >50 Sv (1000 rem to >5000 rem)
- Effective Range of Dose Rate
- 1 µSv/h to 10Sv/h (0.1 mrem/h to 1000 rem/h)
- Display Resolution (Dose Rate)
- 100 µSv/h to 10 Sv/h (10 mrem/h to 1000 rem/h) up to three decimal places
- Overload Indication (Dose Rate)
- from 10 Sv/h to >50 Sv/h (1000 rem/h to >5000 rem/h)
- Accuracy Hp(0,07) Neutron
- ≤ ± 10% (AmBe, 0.75 mSv/h, 75 mrem/h, target 1,3)
- Hp(10) Dose Rate Linearity
- < ± 20% up to 10 Sv/h, 1000 rem/h
- Temperature range
- -10°C to 50°C (14°F to 122°F)
- Storage
- -20°C to 71°C (-4°F to 160°F)
- IP67 protection
- 1 m (39 in) during 1 hour
- Dimensions with DMC 3000 (without clip)
- 131 x 60 x 21 mm (5.1 x 2.4 x 0.8 in) max.
- Dimensions with DMC 3000 (with standard clip)
- 131 x 60 x 28mm (5.1 x 2.4 x 1.1 in)
- Weight with DMC 3000
- < 138 g (4.9 oz)
- 10 calendar month battery life
- 8 h per day, 5 days per week in run mode, without excessive alarms
- 2400 h battery life
- DMC 3000 with Neutron module and DMC 3000 in continuous run, without excessive alarms
