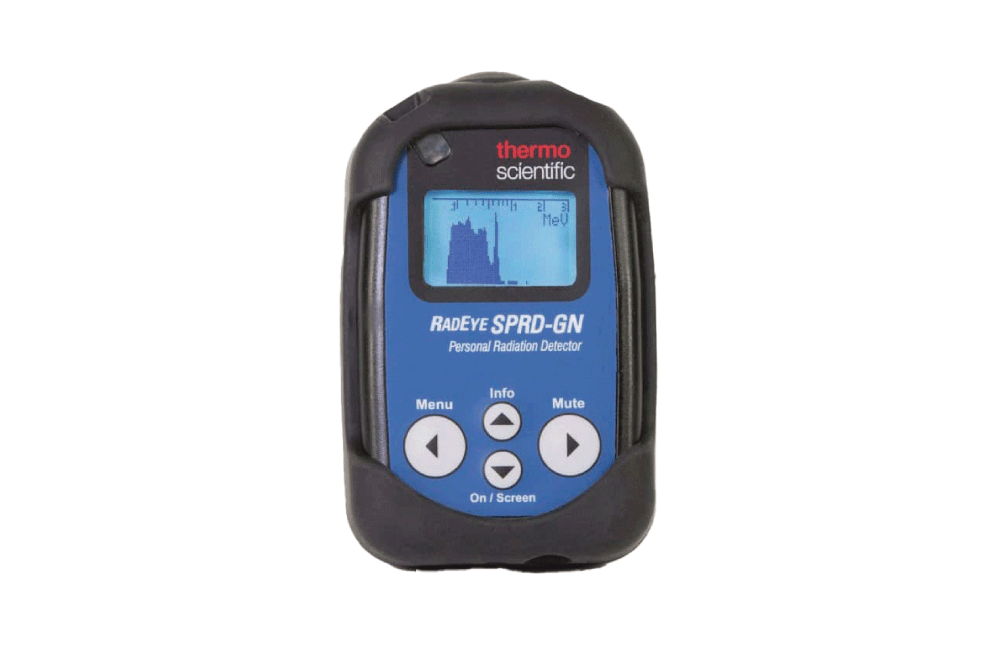

Thermo Scientific RadEye SPRD-GN – Compact Gamma-Neutron Radiation Detector with RIID Capabilities
The Thermo Scientific RadEye SPRD-GN is a compact, pocket-sized gamma-neutron radiation detector with RIID (radioisotope identification) capability.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Radiation Detected
- Gamma and Neutron
- Energy Range (+/- 30%)
- 60keV - 3 MeV
- Battery Type
- AAA x2
- Weight including Batteries and Rubber Sleeve (g)
- 175
Overview
The Thermo Scientific RadEye SPRD-GN is a compact gamma-neutron radiation detector designed for first responders who need both radiation detection and radioisotope identification in a pocket-sized form factor.
It is built as the first compact personal radiation detector (PRD) to exceed ANSI N42-48 neutron standards, combining reliable gamma identification with advanced neutron detection through CLYC and pulse shape discrimination (PSD) technology for dual-radiation performance.
- Compact, pocket-sized gamma-neutron detector
- Exceeds ANSI N42-48 neutron standards
- CLYC crystal with pulse shape discrimination (PSD) for gamma/neutron separation
Contact FarrWest for a quote.
- Can be worn in holster or standard service belt
- Small and lightweight
- Long battery life
- Drop resistant to 1.5m
- Can be operated in extreme temperatures
Specifications
| Performance | |
| Radiation Detected | Gamma and Neutron |
| Detector | CLYC (Cs2LiYCl6) |
| Energy Resolution (662 keV) | 7.0% |
| Sensitivity (cps per μSv/h) (662 keV) | 110 |
| Alarm Notification | Display, LED, Sounder, Vibe |
| Dose Rate Range | 1 μR/h - 25mR/h (10 nSv/h - 250 μSv/h) |
| Energy Range (+/- 30%) | 60keV - 3 MeV |
| Neutron Alarm Response | <2 sec vs. ANSI N42.48 2008 1 sec vs. ANSI N42.32 2016 |
| Thermal Neutron Sensitivity (cps/nv) | 4 |
| Power | |
| Battery Type | AAA x2 |
| Estimated Battery Life | ~ 120 hrs |
| Weight including Batteries and Rubber Sleeve (g) | 175 |
| Connectivity | |
| Wireless Communication | BT4 optional |
| Other | |
| NBR (Natural Background Rejection) | Advanced with 6 energy windows |
| Typical ID Time @ 1μSv/h (100μR/h) | ~ 5 min |
| Gain Stabilization | Patent pending continuous source-less stabilization |
| Neutron Verification | thermal neutrons & fast neutrons |
| Designed to Meet Specification | ANSI N42.48 2008 |
| Water/Dust Rating | IP65 |
| Dropt Distance onto Concrete | 1.5m |
| Wired Communication | USB to IR |
Documents 1 PDF
Description
Thermo Scientific
The Thermo Scientific RadEye SPRD-GN is a next-generation, compact spectroscopic personal radiation detector (SPRD) that delivers RIID-level gamma identification and advanced neutron detection in a pager-sized form factor. Engineered for frontline deployment, it significantly exceeds the ANSI N42.48 2008 standards for neutron alarms—making it ideal for homeland security, customs, border patrol, and nuclear facility personnel.
At the heart of the SPRD-GN is a sophisticated Cs₂LiYCl₆:Ce (CLYC) detector, which is both gamma- and neutron-sensitive, eliminating the need for separate, bulky neutron tubes like He-3 counters. This single-detector design enables true dual-radiation performance in a highly portable device.
The unit uses Pulse Shape Discrimination (PSD) to clearly distinguish between neutron and gamma radiation, allowing for highly sensitive and specific alarm thresholds. Additionally, its real-time spectrum monitoring incorporates a cosmic background neutron peak to maintain source-less stabilization, even in environments like open water with no natural radioactivity.
