- Capable of identifying more than 23,000 solids and liquids
- Capable of identifying more than 5,600 gases and vapors as low as 25 ppm
- 4-meter gas cell
- Swap from ATR to gas cell (and back) in less than 10 seconds w/ no re-alignment necessary
- Adaptable to all sample collection methods (Tedlar bags, PID w/ outlet, syringe, canister, pump, etc.)
- No downtime from over-saturation
FTIR Technology

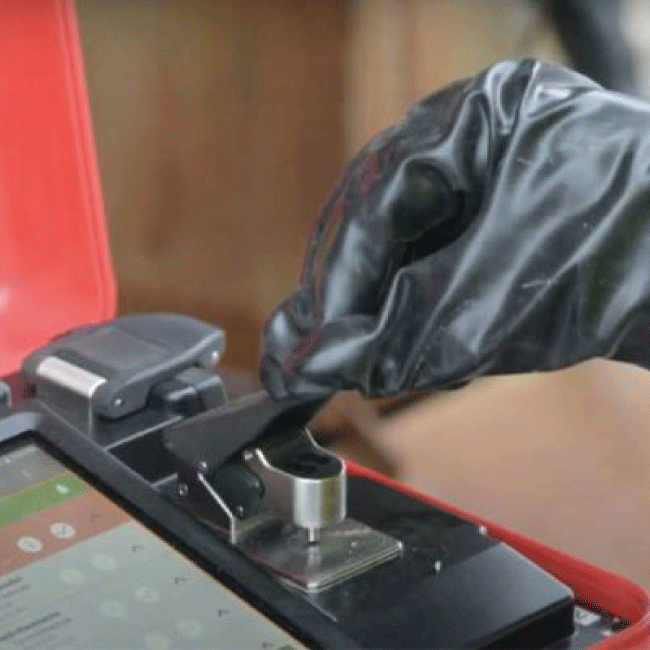

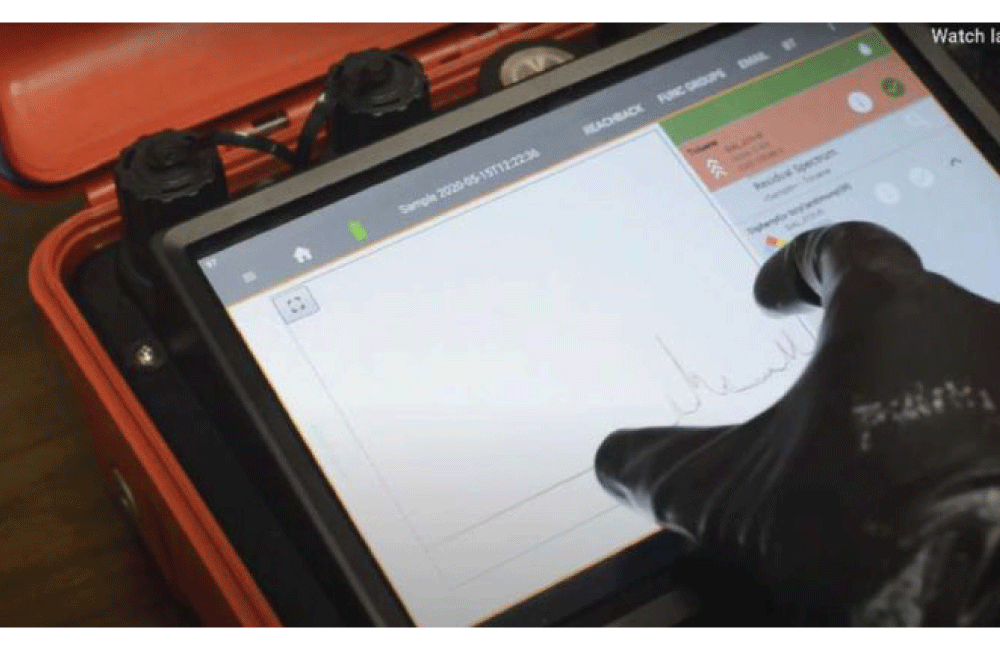

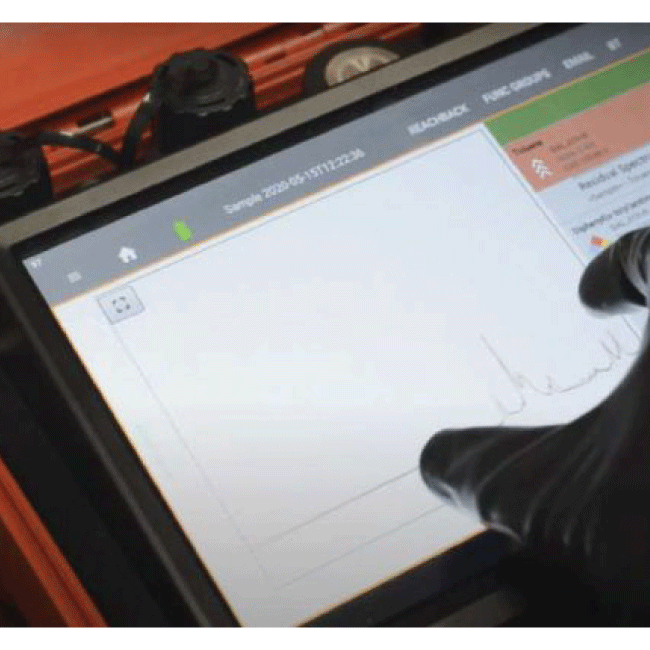

Any substance in contact with the diamond surface is interrogated by IR energy and a spectrum is acquired that is a characteristic pattern of the substance. In seconds, this IR “fingerprint” is automatically compared with libraries of digital reference spectra – Toxic Industrial Chemicals (TICs), Narcotics (including Fentanyl), Explosives, Pesticides, Weapons of Mass Destruction, Chemical Warfare Agents, and common household chemicals.
23,000 Substance Library
ThreatID comes standard with more than 23,000 reference spectra of pure substances and common mixtures including WMD’s (w/ Novichok agents), explosives and drugs including fentanyl & fentanyl derivatives. All library spectra are matched to 908 Devices’ proprietary onboard chemical database, ThreatAssist. Web-based chemical informational databases such as NIOSH, PubChem and WISER are automatically searched with push-button links for all library files as well.

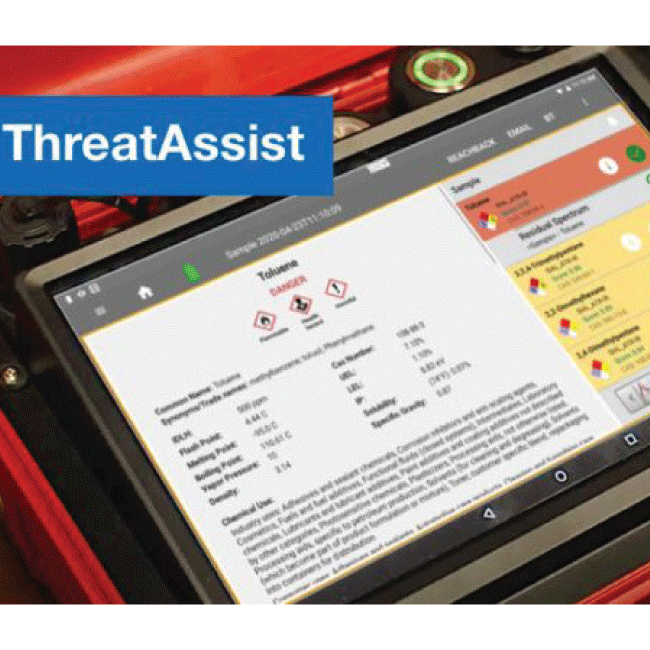

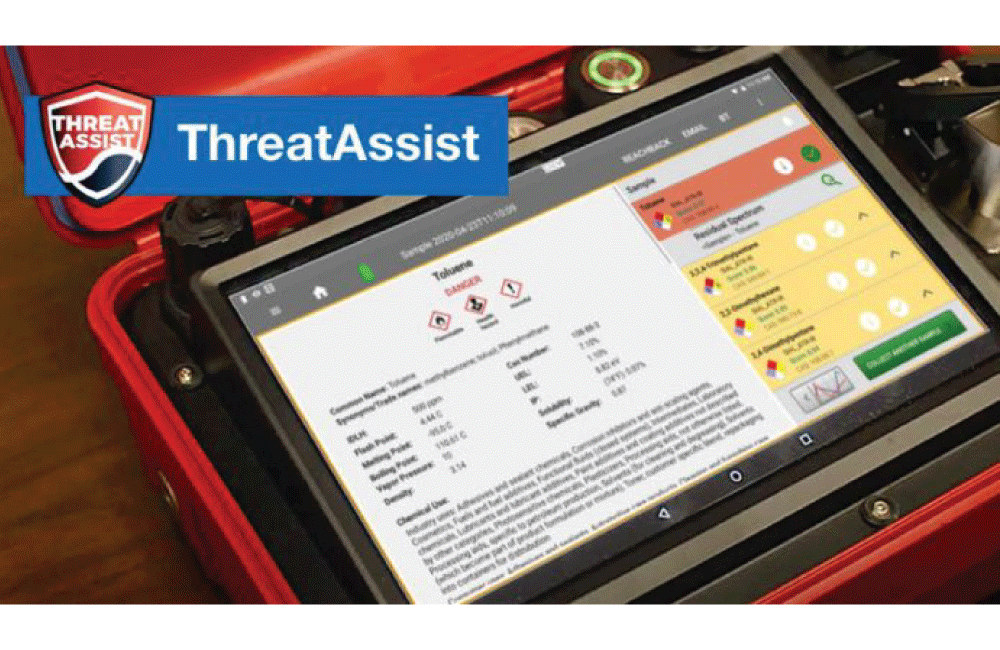

ThreatAssist
The ThreatAssist onboard database provides additional information on any library entry such as chemical name, synonyms, common use, hazards and PPE as well as many more chemical-specific properties. With the click of a button, all information about the sample and spectrometer, including spectra, library hits, data manipulation, system health and date/time of sample acquisition can be sent via email, directly from the spectrometer.
