908 Devices VipIR
One handheld, two analytical technologies and the algorithm that ties them together. VipIR collects two separate spectra from the exact same sample, without re-positioning it or taking an additional sample, and Smart Spectral Processing uses the results from one technique to refine, challenge, or confirm the interpretation of the other. You read one identification, not two.
Same sample, second opinion built in
VipIR runs FTIR and Raman on one sample and lets Smart Spectral Processing (SSP), a proprietary algorithm, check one against the other before it reports. 908 Devices says this interaction enhances the accuracy and reliability of chemical identification from a single sample.
Place it once

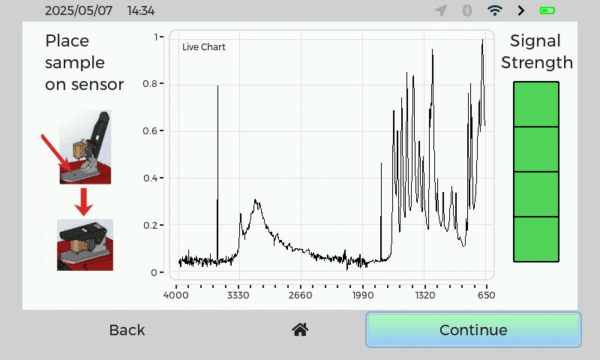

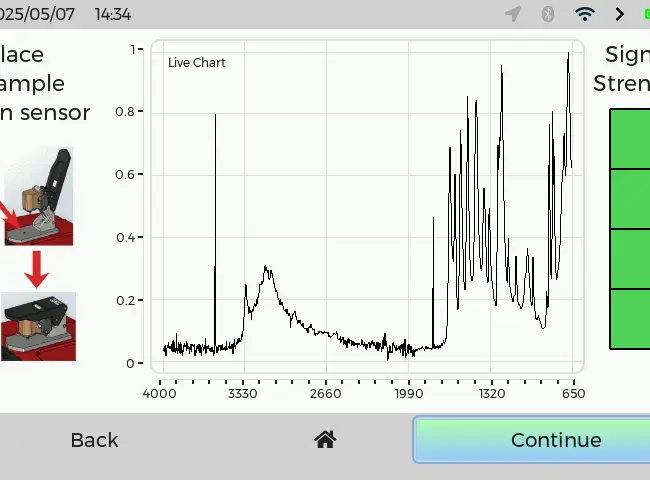

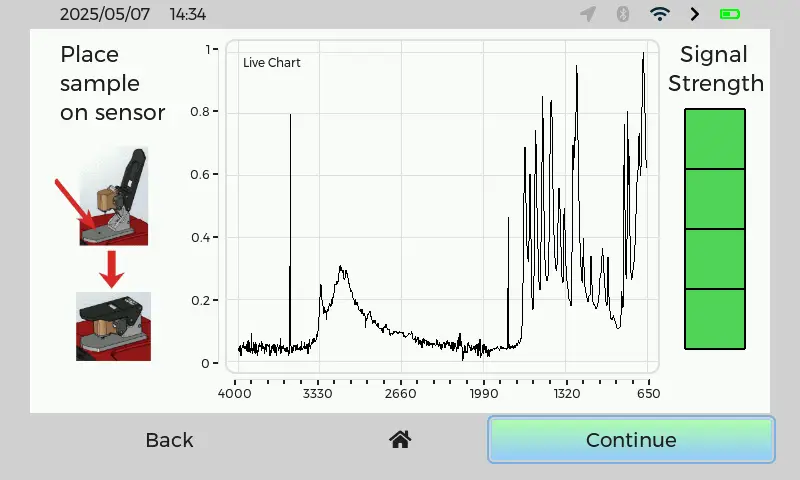

Solids or liquids go onto the single sampling interface. Nothing is moved between techniques and no additional sample is taken.
Two spectra, cross-checked

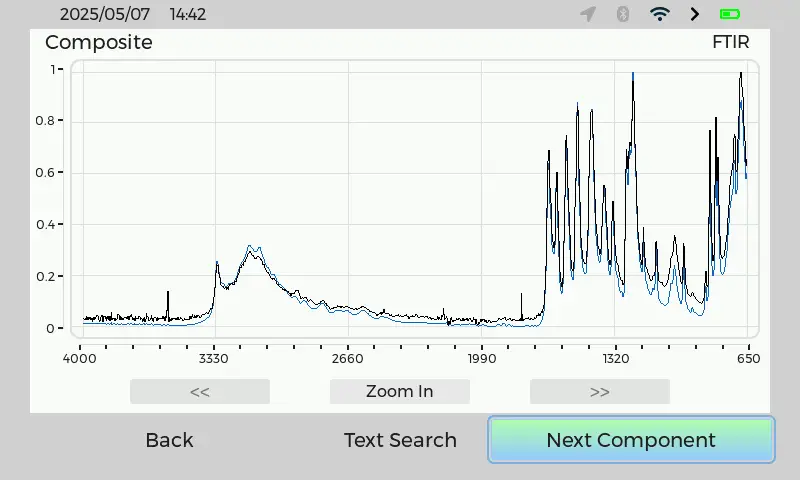

VipIR collects an FTIR and a Raman spectrum from the exact same sample. SSP actively integrates the two data sets, using the results from one to refine, challenge, or confirm the interpretation of the other.
One confident result

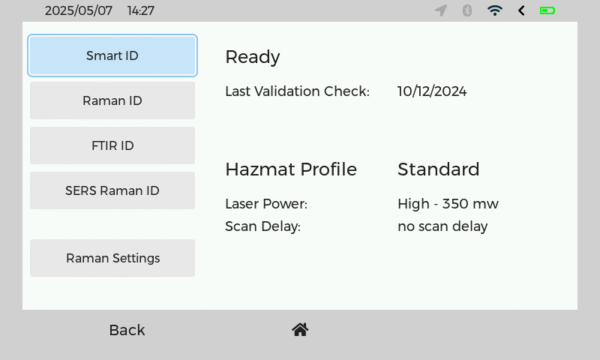

SmartID uses SSP to provide a singular, confidence-based result. Check marks indicate the result was confirmed by both Raman and FTIR.
“The result is a single, high-confidence identification of unknown solids, or liquids, including toxic industrial chemicals, narcotics, explosives, and everyday chemicals.”908 Devices
FTIR, Raman and the algorithm between them
908 Devices calls VipIR a 3-in-1 device with FTIR, Raman, and SSP, and is clear that it is more than two instruments in one case: it “amplifies their capabilities” for unknown substance identification. Here is what each part brings.
FTIR
The first of the two analytical technologies in VipIR's singular workflow.
- Range
- 4000 – 650 cm-1
- Resolution
- 4 cm-1 res
Raman
The second technology, collected from the same sample. Raman sampling also includes the flexible, integrated Raman probe for non-invasive identification through containers, and an integrated vial holder for standard vials.
- Range
- 250 – 2875 cm-1
- Resolution
- 7 – 10.5 cm-1 res
- Laser
- 785 nm; up to 450 mW
Smart Spectral Processing
A proprietary algorithm that actively integrates Raman and FTIR spectral data. It uses the results from one to refine, challenge, or confirm the interpretation of the other.
- Output
- SmartID: a singular, confidence-based result
- Confirmed
- Check mark when both Raman and FTIR agree
Let SmartID decide
A simplified workflow eliminates the guesswork in unknown chemical identification: FTIR, Raman, and SSP analysis to refine and confirm results.
Choose the technology yourself
VipIR was built with flexibility in mind. Experienced hazmat technicians can also select which technology to employ as needed.
Solids, liquids, containers, vials
Sample types are solids/liquids, containers with the Raman probe, and vials. The flexible Raman probe and integrated vial holder are there for versatile sampling options, alongside SERS support for low-concentration work.
Single sampling interface
Smart Spectral Processing through a single sampling interface: both spectra from one placement.
Flexible, integrated Raman probe
For non-invasive identification through containers.
Integrated vial holder
For easy analysis within standard vials.
SERS technique support
Surface-enhanced Raman spectroscopy (SERS) for low concentrations (such as synthetic opioids/fentanyl).
An extensive library of drugs, TICs/TIMs, consumer products, chemical warfare agents and explosives, the same library behind both missions further down this page.
- TICs
- Narcotics
- CWA
- Explosives
- Consumer Products
- Chemicals
Mixtures, not just pure compounds
Sophisticated mixture analysis which can report all observable components in a mixture.
Hazmat scene or port of entry
The hardware and every specification are the same for both audiences; what changes is the job and the threats in front of it.
Confidence on every call
For hazmat teams facing an unknown, VipIR offers a dramatic improvement in unknown substance identification and accelerates decision-making on scene.
- Identifies unknown solids or liquids, including toxic industrial chemicals, narcotics, explosives, and everyday chemicals
- More accurate field identifications during hazmat response scenarios
- Experienced hazmat technicians can select which technology to employ as needed
- Team Leader app for fleet management: view results, sample data, review spectra, and more after samples are analyzed on scene
Simple, smart, and speedy
For customs and border agents, VipIR accelerates decision-making at ports of entry, during inspections and high-stakes interdiction efforts.
- Identifies unknown powders, solids, or liquids, including narcotics, cutting agents, and other concealed threats
- A simplified, singular workflow lets users focus on their mission, and not which device is best suited for which sample
- Individual methods remain available if desired
- View results, sample data, and ensure your devices are operating in accordance with your SOPs
Same instrument · Same specifications · Same 39,000+ spectra library

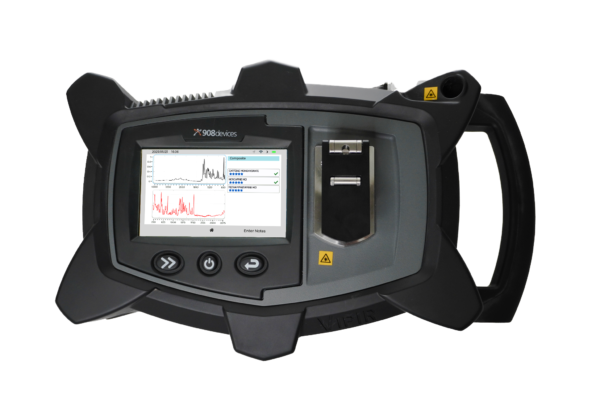

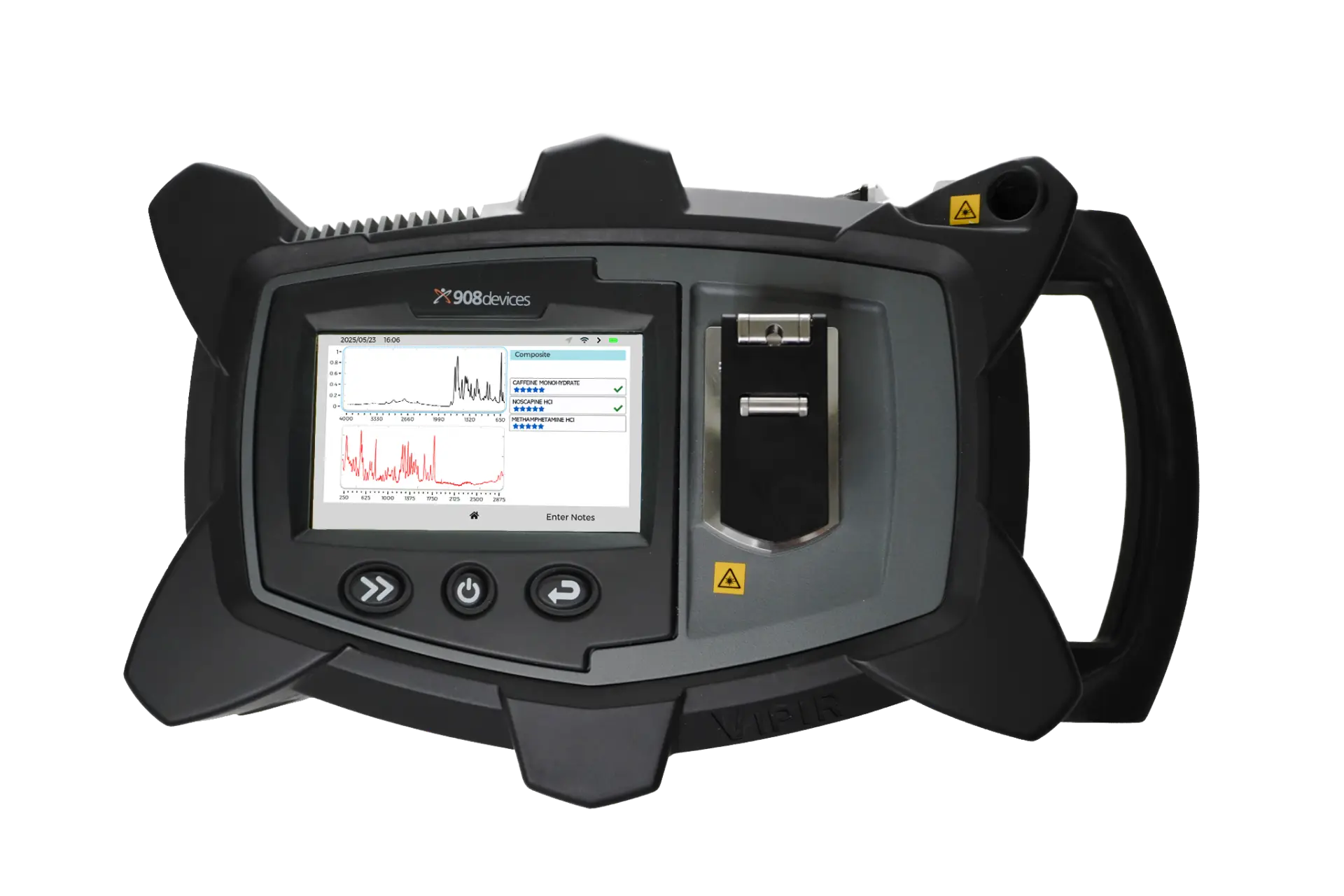

Rugged, decontaminable, connected
A rugged, lightweight design for use in any conditions, a 5” touchscreen that shows the analysis as it runs, and wireless links that get the result to the rest of the team.
MIL-STD-810G. Rugged, lightweight design for use in any conditions.
Spray, wipe-down or dunk with bleach or detergent.
4.3 kgs. 14.6" × 8.6" × 5.8" (37.1 cm × 21.8 cm × 14.7 cm).
Plus the Team Leader App, so data can be quickly shared with team members.
Users can see analysis progress in real time and see results instantly on screen.
The numbers
| Spectroscopy | |
|---|---|
| FTIR | 4000 – 650 cm-1, 4 cm-1 res |
| Raman | 250 – 2875 cm-1, 7 – 10.5 cm-1 res |
| Laser | 785 nm; up to 450 mW |
| Sampling | |
| Sample Type | Solids/Liquids, Containers with Raman probe, Vials |
| Raman Sampling Options | Flexible sampling probe; SERS accessory; Integrated vial holder |
| Library | |
| Library | 39,000+ chemical spectra TICs, Narcotics, CWA, Explosives, Consumer Products, Chemicals |
| Physical | |
|---|---|
| Size | 14.6" × 8.6" × 5.8" (37.1 cm × 21.8 cm × 14.7 cm) |
| Weight | 9.5 lbs (4.3 kgs) |
| Display | 5” Touchscreen |
| Ruggedness | IP 67, MIL-STD-810G |
| Decontamination | Spray, wipe-down or dunk with bleach or detergent |
| Power & data | |
| Power | Rechargeable Li-ion battery and wall power adapter |
| Communications | Wi-Fi, LTE, Team Leader App |
VipIR is subject to export controls including those of the Export Administration Regulations of the U.S. Department of Commerce.
Spec sheets & service
Pick the spec sheet that matches your audience; the specifications are identical.
Hazardous Materials & CBRN

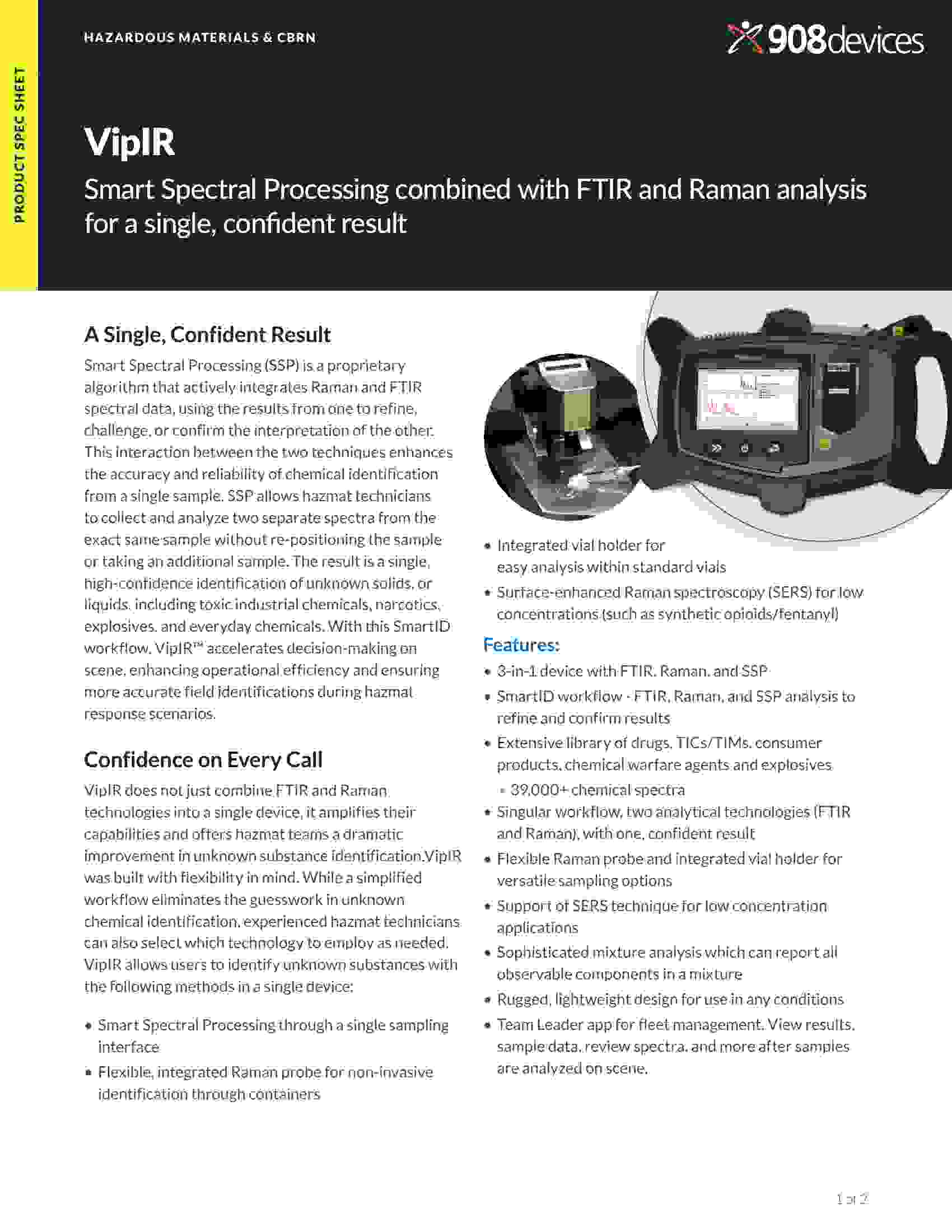

VipIR product spec sheet, 2 pages. Hazmat response workflow, features and full specifications.
Spec sheet · PDFCustoms & Borders
VipIR product spec sheet, 2 pages. Port-of-entry and interdiction workflow, features and full specifications.
ServiceFarrWest Repair Depot
OEM-certified service and support on every product we deliver. When a repair or calibration falls outside our in-house scope, we coordinate directly with the third-party manufacturer and manage the logistics end to end.
Questions we hear
What does Smart Spectral Processing actually do?
Can I choose a single technology?
Can VipIR identify through a container?
What about very low concentrations, such as fentanyl?
What is in the library, and can it handle mixtures?
How is it cleaned after a hazmat entry?
How do results get to the rest of the team?
Are there export restrictions?
